SelectaFlo™Hi-Efficiency Valve

How To Guide

Table of Contents

How To:

Pg.

Product Overview

Function

of Valve Positions

Handle Installation

Assembly

Operating Instructions

Winterization Disassembly

Valve: Replacement Parts

Valve: Product Overview

•The SelectaFlo Hi-Efficiency valve is designed

for Hayward ProGrid DE series filters.

•The valve has built in unions to attach to the

filter.

•The Pump, Return, and Waste ports are 2” SKT

x 2 ½ Spigot (solvent weld) connections.

•The supplied elbow can be used on the waste

port to direct waste piping away from the

equipment pad.

•For connections to the TriStar and the EcoStar

pumps, use the supplied EcoFlo union fitting

from the pump outlet to the pump port on the

valve.

Valve: Function of Valve Positions

ALWAYS turn off pump before changing valve position.

VALVE

SETTING FLOW DIRECTION THROUGH VALVE

(1)

FILTER

PUMP

–THROUGH FILTER –RETURN

For normal filtration and vacuuming pool

through filter.

(2)

BACKWASH

PUMP

–THROUGH FILTER –WASTE

For cleaning filter.

(3)

RECIRCULATE

PUMP

–THROUGH VALVE –RETURN

For bypassing filter, but circulating

pool

water.

(4)

WASTE

PUMP

–THROUGH VALVE ONLY –

WASTE

For vacuuming directly to waste, lowering

pool level and/or

draining pool.

Use the steps provided to install the handle assembly.

Secure the handle to valve by aligning the thin

tooth on handle with the thin slot on valve

shaft.

Insert the screw into handle & tighten with a

3/8” socket & ratchet. Align and press handle

plug into slot to cover screw.

Completed assembly will look like picture

above.

Step 2

Step 3

Step 1

Valve: Installation: Handle

Use the steps provided to install the valve assembly.

Install waste port seal carrier by aligning the

locating features (arrows) on the carrier and

the bottom of the valve body

Lubricate inward facing seals with silicon lube

and install seal carriers by firmly pressing them

down into their slots.

Install Hub Assembly into valve body by

aligning the locating features (arrows).

Step 2

Step 1

Valve: Assembly

Fold handle down and install the cover by

aligning cover and hub locating features.

Step 4Step 3

Depress button on handle to release handle

latch.

With button depressed rotate handle to

desired valve position.

Step 2

Step 1

Valve: Operating Instructions

Release button on handle, allowing handle to

lock into position.

Step 3

Turn off pump before changing valve position.

Turn off pump before disassembling filter control valve.

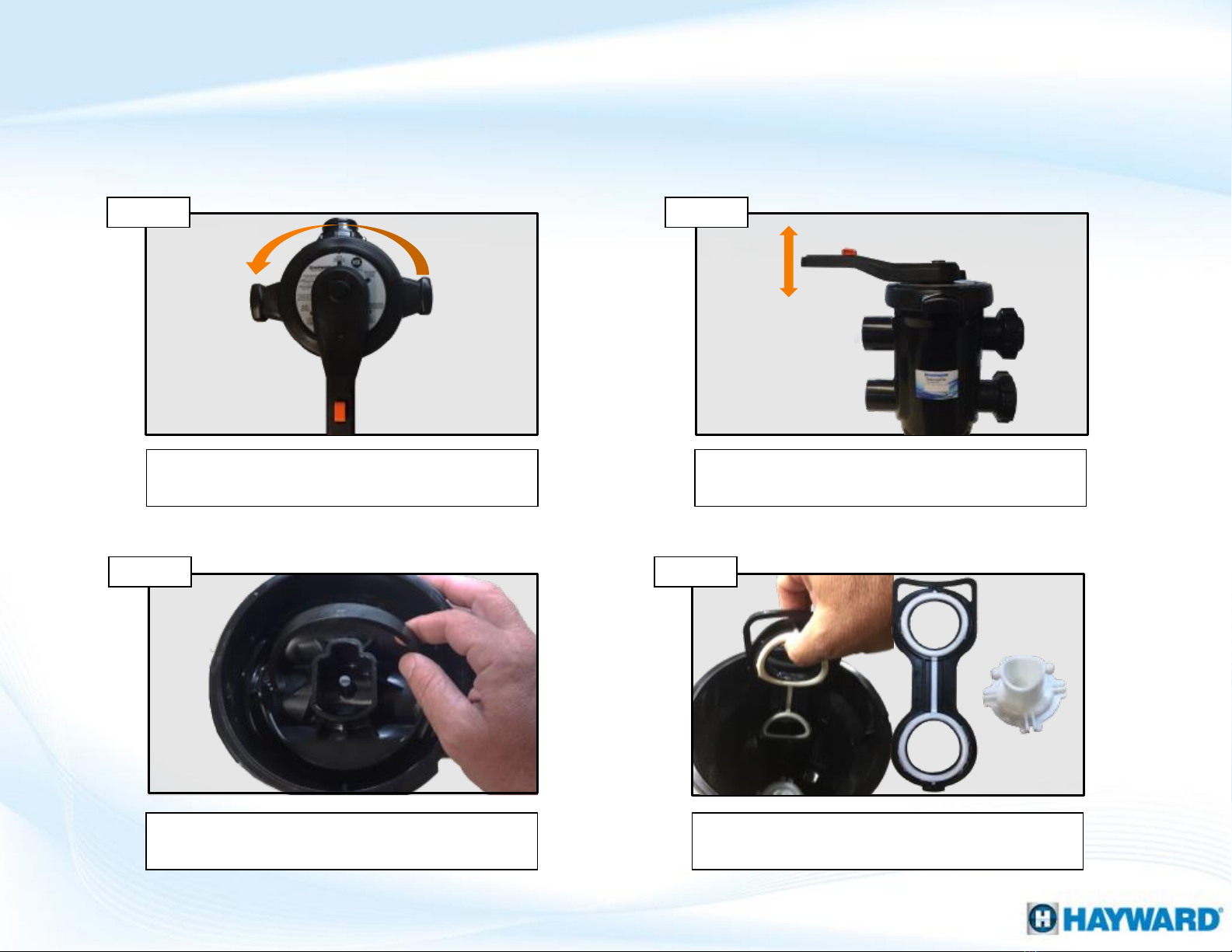

Rotate lock ring counterclockwise for removal

of the cover assembly.

Remove cover assembly. If difficult to remove,

rock the base of the handle while pulling up.

Using handle, lift hub assembly out of the

body.

Step 2

Step 1

Valve: Winterization Disassembly

Remove seal carriers and check for wear.

Replace worn or damaged parts.

Step 4

X 2

Step 3
