ISSUE: 06.06.11 PART NUMBER: 111-5145 (A)

OWNER’S HANDBOOK

Spirit 41

CODE

616E

CONTENTS

Contents 2

Introduction 3

Specications / Main Features 4

Safety Precautions 5 - 6

- Safety Alert Symbol 5

- Training 5

- Preparation 5

- Safety Symbols 5

- Operation 5 - 6

- Maintenance & Storage 6

- Control Symbols 6

Assembling the Mower Before First Use 7

- Delivery Checklist 7

- Handlebar 7

- Grassbag Assembly 7

- Grassbag Attachment 7

- Prevent Engine Damage 7

- Oil Type 7

- Check Oil Level 7

- Fuel Type 7

Operating The Mower 8 - 10

- Controls 8

- Starting - Step 1 8

- Starting - Step 2 8

- Forward Travel 8

- Reverse Travel 9

- Turning 9

- Stopping 9

- Slopes 9

- Height of Cut 9

- Before Mowing 9

- Grassbag 9

- Without Grass Collection 9

- Heavy Growth 9

- Friction Disc 10

- Non-Grassed Areas 10

- Maintenance Schedule 11

Mower Maintenance 11 - 13

- Carburettor Adjustments 11

- Oil Service 11

- Air Cleaner Service 11

- Spark Plug Service 11

- Keeping Engine Clean 11

- Grassbag 11

- Deck Housing 11

- Securing Nuts and Bolts 12

- Lubrication 12

- Cutterblade Removal 12

- Cutterblade Assembly 12

- Cutterblade Sharpening 12

- Storage 13

Lawn Care Calendar 14

Trouble Shooting 15

Warranty 16

Notes 16 - 17

Customer Info / Service Records 18

INTRODUCTION

Thank you for purchasing a Hayter mower. The following pages are designed to help you

gain safe and efcient service from your machine.

IMPORTANT: This ‘Owners Handbook’ should be regarded as part of the mower as it

gives essential information regarding mower safety, operation, maintenance and specica-

tions. Read and understand this handbook prior to operating your mower for the rst time.

Make sure you are familiar with all the controls and points of regular maintenance. If you

have any doubts, consult your local Hayter authorised dealer who will be pleased to give

you assistance.

IMPORTANT: This mower is designed solely for use in a domestic grass cutting

environment. Use in any other way is considered as contrary to the intended use. Compli-

ance with and strict adherence to the conditions of operation, service and repair as speci-

ed in this handbook also constitute essential elements of the intended use.

This mower should be operated, serviced and repaired only by persons who are familiar

with its particular characteristics and who are acquainted with the relevant safety proce-

dures.

The safety precautions listed in this handbook and all other generally recognised regula-

tions on safety must be observed at all times.

Use of non standard parts or any arbitrary modications carried out on this machine may

relieve Hayter Limited of liability for any resulting damage or injury.

Hayter mowers are robustly constructed and designed for efcient economical perfor-

mance under normal mowing conditions. Correct operation and maintenance will ensure a

long and satisfactory service life. Prior to despatch from our factory every effort is made

to ensure that your mower is delivered in perfect condition.

Throughout this handbook all references to left and right are as viewed from behind the

handlebar, in the direction of forward travel.

This handbook is based on information available at the time of publication.

HAYTER LIMITED reserve the right to amend product specications without prior

notication.

For a full range of products and to locate your nearest authorised sales stockist, service or parts dealer please visit our website at www.hayter.co.uk

SPECIFICATIONS / MAIN FEATURES

Code 616

Engine Briggs & Stratton

Engine type Series 500

Engine / Cutterbar Speed 2850 rpm

Fuel type Unleaded petrol

Fuel capacity 1.5 litres

Oil type SAE 30 engine oil

Oil sump capacity 0.6 litres

Cutting width 410mm

Cutting height 13 - 65mm

Overall dimensions 1050 x 472 x 1370mm

Weight 30 Kg

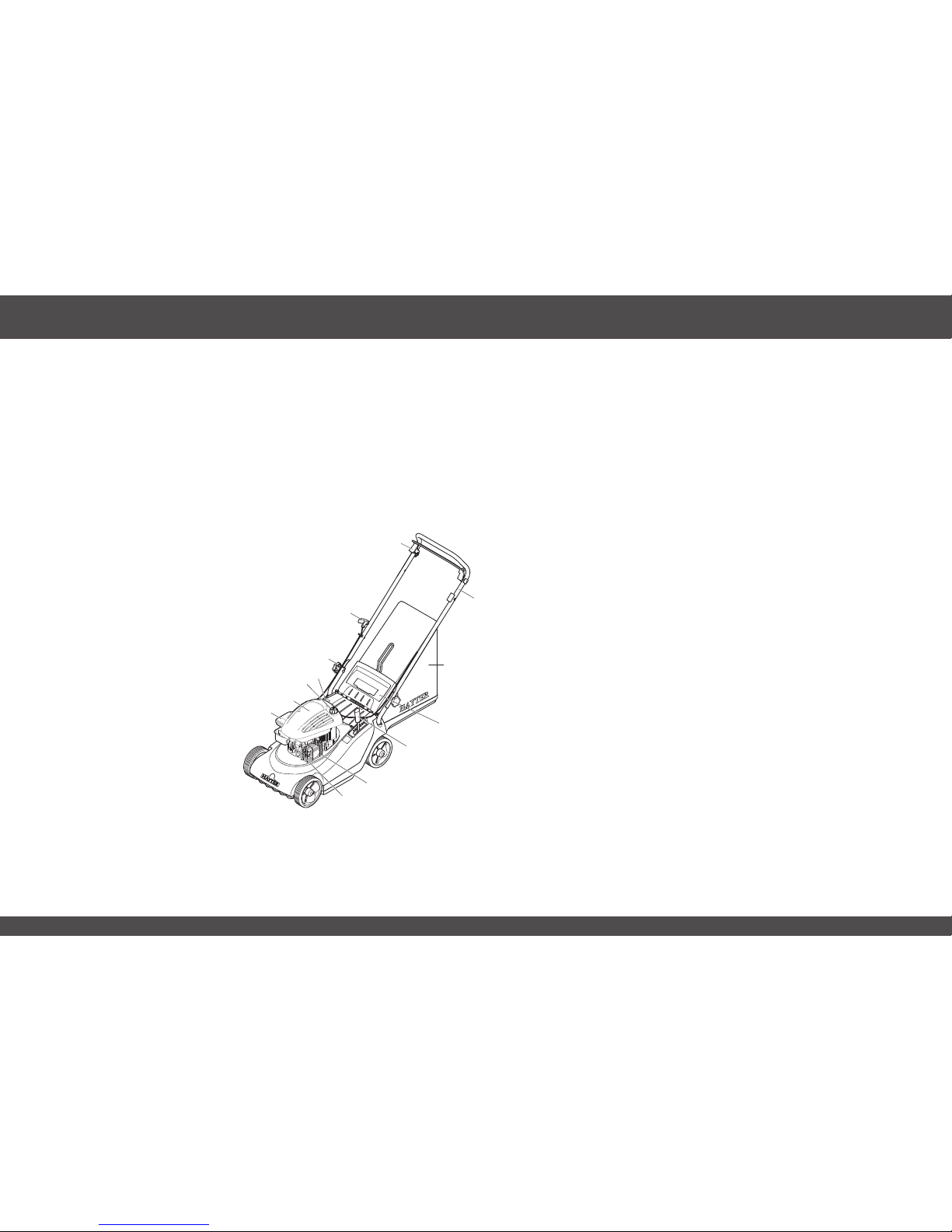

1. Air Cleaner.

2. Engine Cover

3. Oil Filler Cap and Dipstick.

4. Serial No. Label.

5. Handlebar Securing Knob.

6. Engine Start Grip.

7. Engine Stop Lever.

8. Upper Handlebar.

9. Grassbag.

10. Rear Deector.

11. Height Of Cut Adjuster.

12. Exhaust Guard.

13. Spark Plug Lead.

SAFETY PRECAUTIONS

Safety Alert Symbol

This safety alert symbol indicates important safety

messages. When you see this symbol be alert to the

possibility of injury. Carefully read the following and

inform others.

Your mower is perfectly safe if used correctly. Failure

to observe the following precautions may result in

serious injury.

Training

Before using the mower read the owners handbook

carefully. Pay particular attention to the safety

precautions. Ensure that you are familiar with the

controls and the proper use of the equipment. Learn how

to stop the mower quickly in an emergency.

Never allow children or people unfamiliar with these

instructions to use the mower. Local regulations can

restrict the age of the operator.

Never mow while people, especially children, or pets are

nearby.

Keep in mind that the user is responsible for accidents or

hazards occurring to other people or their property.

Preparation

While mowing, always wear substantial footwear and

long trousers. Do not operate the equipment when

barefoot or wearing sandals.

Thoroughly inspect the area where the mower is to be

used and remove all objects which may be thrown by the

machine.

WARNING: Petrol is highly ammable:

- store fuel in containers specically designed for this

purpose.

- refuel outdoors only and do not smoke while

refuelling;

- add fuel before starting the engine. Never remove the

cap of the fuel tank or add petrol while the engine is

running or when the engine is hot;

- if petrol is spilled, do not attempt to start the engine

but move the machine away from the area of spillage

and avoid creating any source of ignition until the

petrol vapours have dissipated;

- replace all fuel tank and container caps securely.

- always use fresh fuel. Stale fuel can block the

carburettor and cause leakage.

Replace faulty exhaust.

A damaged cutterblade or loose xing bolt are major

hazards. Before use, always visually inspect the cutting

mechanism to ensure that it is in good condition. A

damaged cutterblade must be replaced immediately with a

genuine Hayter replacement part.

Operation

Do not operate the engine in a conned space where

exhaust fumes (carbon monoxide) can collect.

Always pull the starter cord slowly until resistance is felt.

Then pull the cord rapidly to avoid kickback and prevent

hand or arm injury.

Mow only in daylight or good articial light.

Avoid using the machine on wet grass, where feasible.

Always be sure of your footing on slopes.

Walk, never run.

Do not mow excessively steep slopes of more than 20O

and mow across the face of slopes, never up and down.

Exercise extreme caution when changing direction.

Use extreme caution when reversing or pulling the

mower towards you.

Safety Symbols

Danger of severing

toes or ngers in

cutting mechanism.

Danger of being hit

by thrown objects.

Carefully read the Owners Hand-

book before using the machine

Keep bystanders at

a safe distance from

the mower.

Safety Alert - Be aware

to the possibility of injury

Stop engine and remove spark plug

lead before working on the mower.

SAFETY PRECAUTIONS

Operation cont

Always replace worn or faulty parts with genuine Hayter

parts.

If the machine has to be tilted for transportation when

crossing surfaces other than grass, and when transporting

the machine to and from the area to be mowed. Stop the

blade (s) by releasing the engine stop lever, ensure that

the blade (s) have stopped before tilting the mower.

Never operate the machine with defective guards, or with

out safety devices, for example deectors and/or grass

bag in place.

Do not change the engine governor settings or overspeed

the engine.

Start the engine carefully, with feet well away from the

cutterblade.

Do not tilt the mower when starting the engine.

Do not start the engine when standing in front of the

discharge chute.

Do not put hands or feet near or under rotating parts.

Never pick up, carry the machine or lift the rear deector

while the engine is running.

Never touch the exhaust/exhaust guard or cooling ns

when the engine is hot.

Stop the engine and disconnect the spark plug lead:

- Before clearing blockages or unclogging the dis-

charge chute.

- Before cleaning/checking or working on the ma-

chine.

- After striking a foreign object. Inspect the machine

for damage and ensure necessary repairs are made

before re-starting and operating.

- If the machine starts to vibrate abnormally (check

immediately).

Stop the engine:

- Whenever you leave the mower.

- Before refuelling.

- Reduce throttle setting during engine shutdown.

Maintenance & Storage

Keep all nuts, bolts and screws tight to ensure that the

equipment is in safe operating condition.

Frequently check fuel lines and ttings for cracks or

leaks and replace if necessary.

Inspect the exhaust periodically and replace if worn or

leaking.

Never store the mower with petrol in the tank within an

enclosed area where fumes may reach an open ame or

spark.

Allow the engine to cool before storing in any enclosure.

To reduce the re hazard, keep the engine and the

surrounding deck area free of grass, leaves, or excessive

grease.

Check the rear deector and grassbag frequently for wear

or deterioration.

Replace worn or damaged parts for safety.

If the fuel tank has to be drained, this should be done

outdoors and when the engine is cool.

Wear strong work gloves when removing and reassem-

bling the cutterblade.

This machine contains spring loaded assemblies which

could cause a hazard when disassembled and

reassembled. Maintenance should only be carried out by

a Hayter authorised dealer.

Control Symbols

Engine Stop

STOP

Height of Cut Adjustment

Delivery Checklist

Remove the mower from the packaging and check that

the following items have been supplied correctly. If any

items are missing contact, your local Hayter dealer.

1. Engine Handbook. 3. Parts list/D of C

2. Grassbag Assembly. 4. Warranty Reg Card.

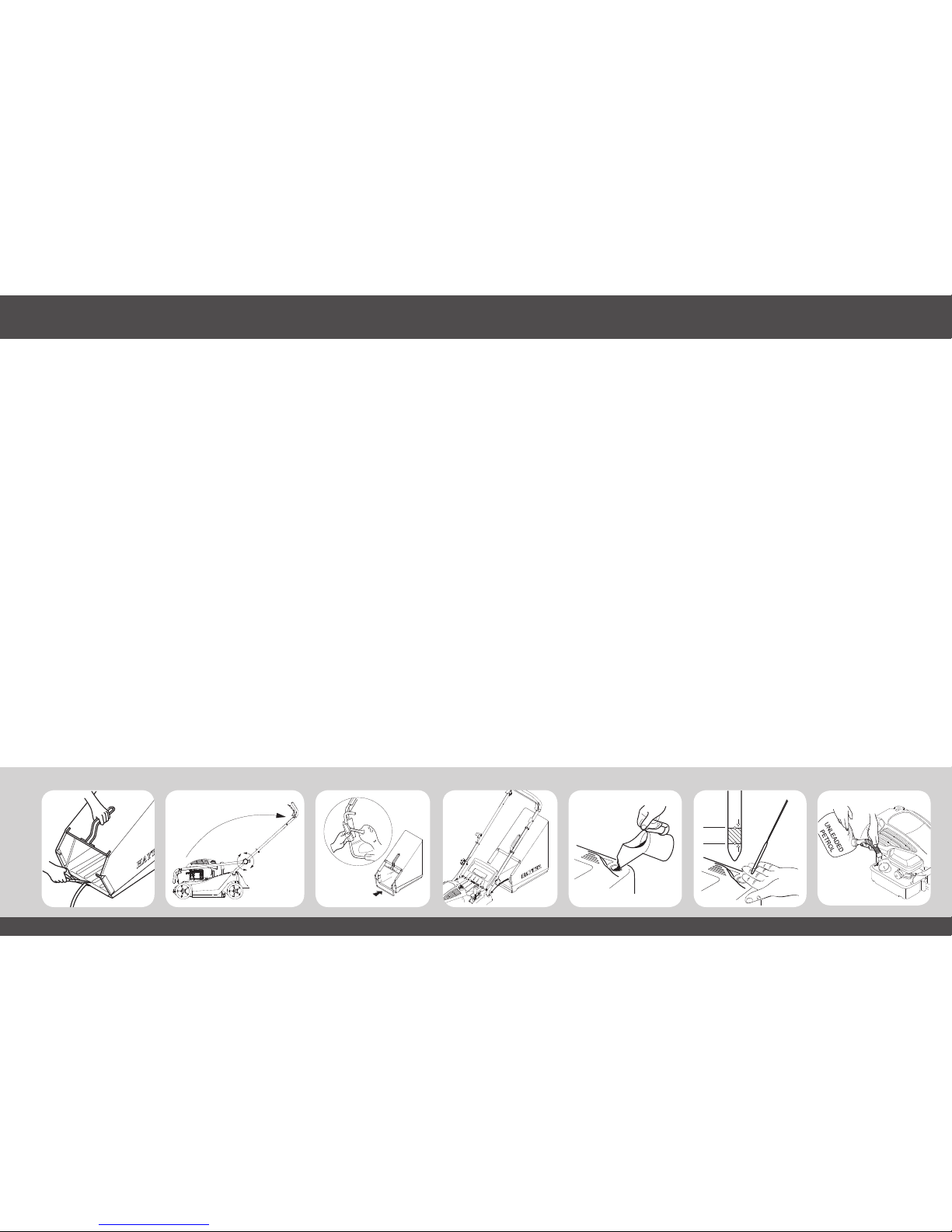

To prevent accidents cut off the long ribbon attached to

the grassbag and discard. (Refer g.1)

Handlebar

Unscrew the handlebar securing knobs sufciently to

allow the handlebar to pivot. Move the engine stop lever

away from the engine to avoid damage and unfold the

handlebar to the operating position. Make sure the knobs

are assembled to the outside of the handlebar. (Refer

g.2)

Tighten both handlebar knobs to secure in position.

Take care to ensure that the control cables do not

become snagged at the pivot point.

Grassbag Assembly

Insert the metal frame into the grassbag fabric and then

clip into position. (Refer g.3)

Grassbag Attachment

Raise the rear deector, lower the grassbag through the

handlebar and hook into position. Lower the deector to

rest on the grassbag (Refer g.4)

Prevent Engine Damage

To prevent engine damage the engine is shipped

without oil or petrol. The engine must be lled with

the correct grade of oil and petrol before starting the

engine.

Oil Type

Always use high quality detergent oil classied SAE 30

oil. Never use additives with recommended oil.

To prolong the life of your engine it is important that

the oil is changed after the rst 5 hours of use - Refer to

‘Maintenance Schedule’.

Check Oil Level

Clean around the oil ller cap before removing. With

the mower on a level surface, unscrew and remove the

oil ller - dipstick. Wipe oil from it with a clean cloth.

Screw the oil ller - dipstick back in place, then unscrew

and remove it to check the oil level. (Refer g.6)

The oil level is correct when it is at the full mark on the

dipstick. DO NOT OVERFILL. (Refer g.6)

Fuel Type

Always use clean, fresh unleaded petrol. Purchase fuel

in quantities that can be used within 30 days. Never mix

oil with petrol. For added engine protection Briggs &

Stratton recommend the use of their fuel additive which

is available from an authorised Briggs & Stratton service

dealer.

Fill to base of neck to allow for fuel expansion. Do not

overll the fuel tank. (Refer g.7)

Fig. 3

Fig. 2 Fig. 5 Fig. 6 Fig. 7

Fig. 1

ADD FULL

0.15

Litres

ASSEMBLING THE MOWER BEFORE FIRST USE

Fig. 4

Fig. 8 Fig. 9 Fig. 10 Fig. 11

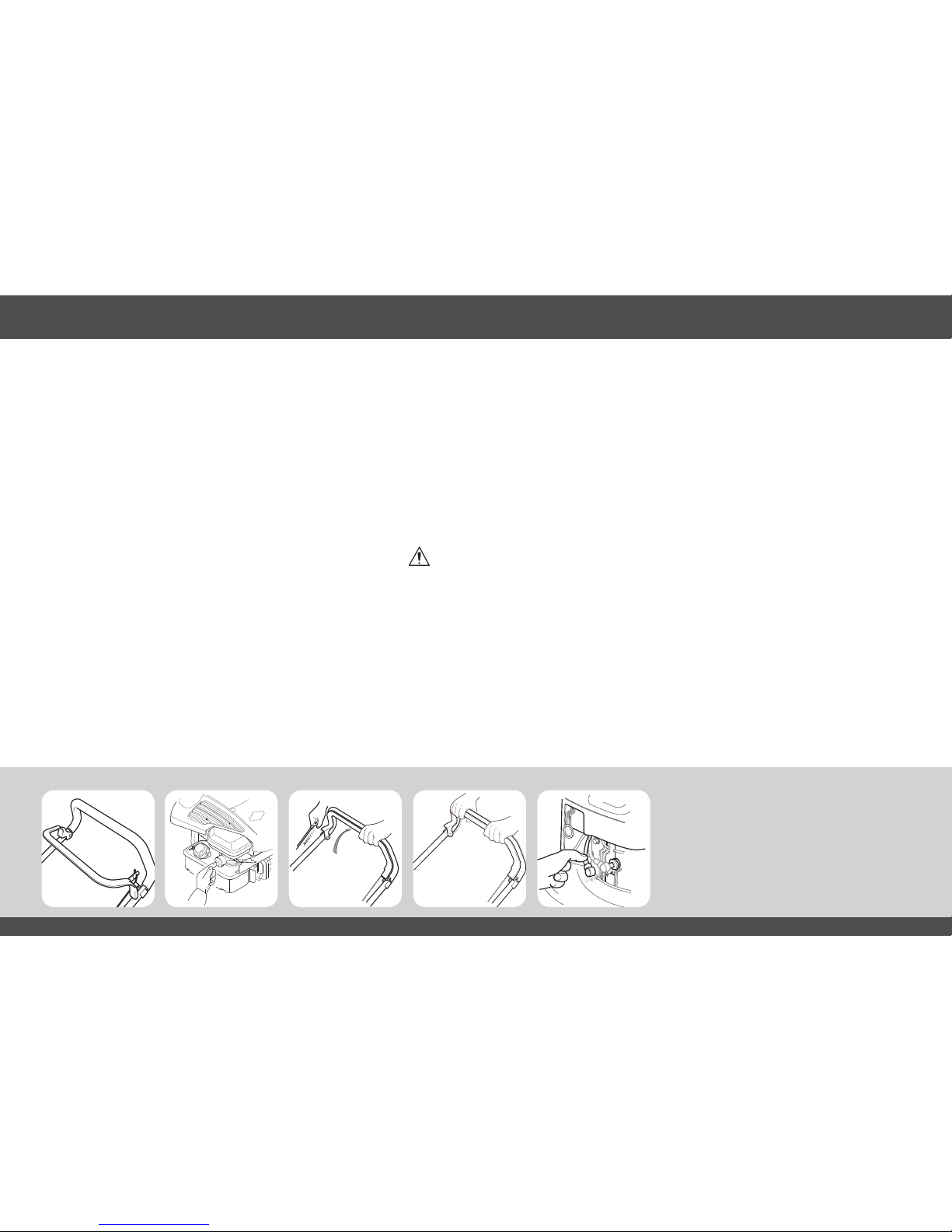

OPERATING THE MOWER

Controls

Operate all control levers several times and ensure that

the cables move freely. Check that the engine stop lever

returns freely to its rest position when released. (Refer

g.8)

Starting - Step 1

Operate the primer bulb.

Push on the primer bulb 5 times at two second intervals

to provide the extra fuel to start the engine after

assembling the mower for the rst time.

In normal use push on the primer bulb 3 times at 2

second intervals to provide extra fuel required to to start

a cold engine. Operation of the primer bulb is usually

unnecessary when starting a warm engine. (Refer g.9)

Starting - Step 2

Stand behind the mower and hold the handlebar together

with the engine stop lever with your left hand. With your

right hand hold the engine start grip and pull slowly until

resistance is felt, then pull rapidly to crank the engine.

Carefully return the start grip to the storage position

when the engine starts.

If the engine does not start after 5 attempts, refer to

‘Trouble Shooting’. (Refer g.10)

The engine stop lever must be held rmly against the

handlebar to start and keep the engine running. If the

engine stop lever is released the engine will stop.

To prevent damage never pull the engine start grip

when the engine is running.

Forward Travel

Hold and push against the handlebar with both hands to

move the mower forwards. (Refer g.11)

Reverse Travel

Hold and pull against the handlebar with both hands to

reverse the mower.

Turning

To make a wide turn steer the mower with the handlebar

in the direction required.

To make a tight turn, apply downward pressure on the

handlebar to raise the front wheels just above ground

level and steer in the required direction.

To prevent accidents do not raise the front of the

mower excessively when making a turn. Never raise

the rear of the mower when the engine is running.

Stopping

Release the engine stop lever.

Emergency stop: Release the engine stop lever.

If the engine fails to stop, disconnect the spark plug

lead. (Refer g.12)

Fig. 12

HAY-G00485-A

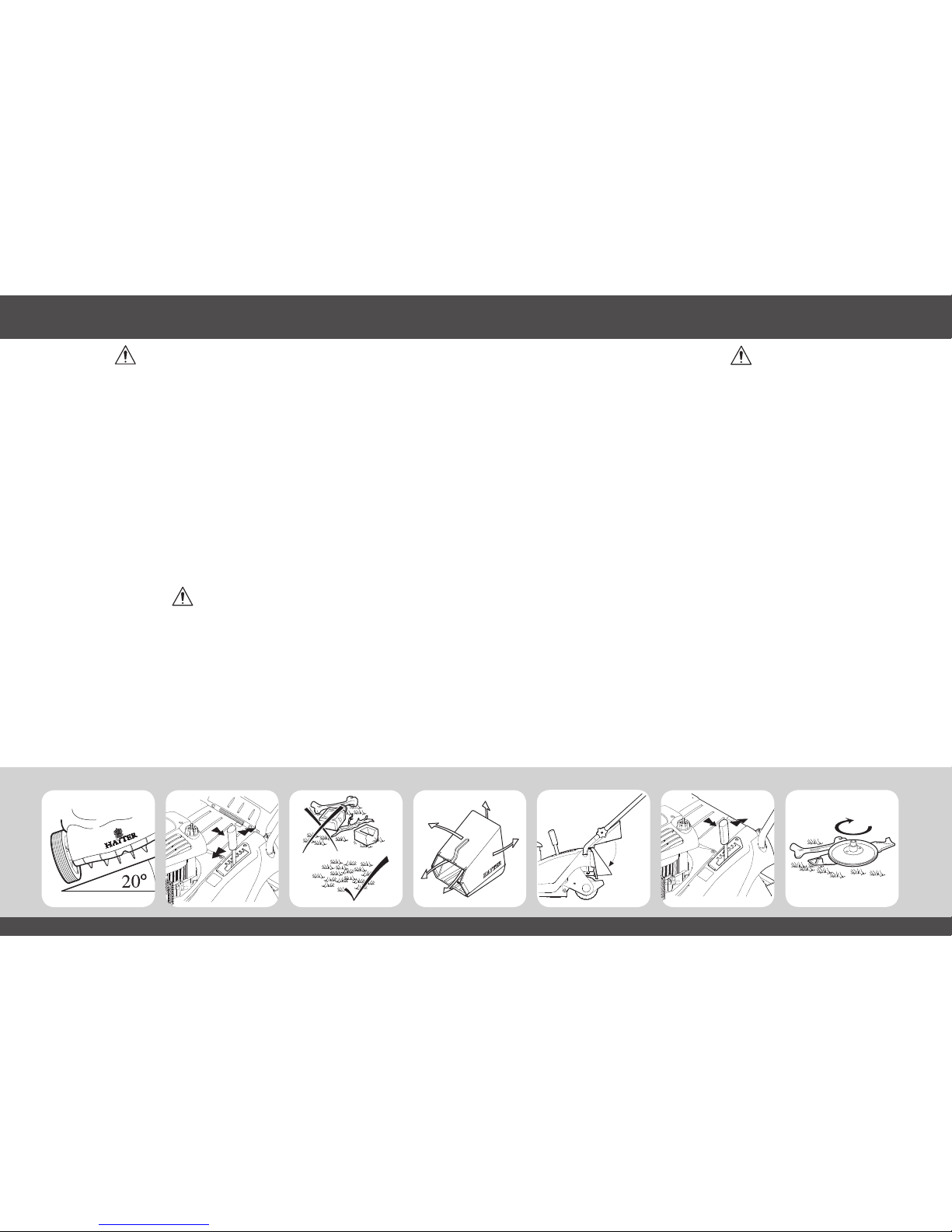

Slopes

To prevent engine damage do not use the mower on

slopes greater than 20 degrees. (Refer g.13)

Height Of Cut

To adjust the height of cut: Grip the lever and pull side-

ways to disengage it from the locking notch, then push

forwards to lower or pull backwards to raise the height

of cut. Finally release the lever at the required position

and ensure it locks rmly into one of the seven setting

notches.

Always select a height of cut to suit operating conditions.

Aim to prevent engine overloading and blockages by

avoiding low cuts in long grass conditions. Be prepared

to make two cuts when the grass is long. (Refer g.14)

Before Mowing

To prevent accidents, thoroughly inspect the area

and remove all objects which when contacted by the

mower cutterblade could become dangerous projec-

tiles. Inspect the area for hidden obstructions which

when contacted by the cutterblade could risk health

and safety or result in damage to the mower. Remem-

ber the location of these obstructions and ensure that

you mow around them. (Refer g.15)

Grassbag

Raise the rear deector and lift the grassbag through the

handlebar and lower the rear deector to rest against the

rear of the mower.

To empty the grassbag, pour out the grass clippings and

shake the grassbag vigorously to clean the airways. Good

grass collection depends on good air ow through the

grassbag. When collecting grass clippings it is important

that the grassbag is emptied regularly to prevent block-

ages and engine overloading. (Refer g.16)

Without Grass Collection

Remove the grassbag and operate the mower with the

rear deector in the closed position. (Refer g.17)

Heavy Growth

Areas of heavy growth should be mown without

collecting the clippings. If collection is required, rst

mow the area without the grassbag at the maximum

height of cut setting. Allow the grass clippings to dry

out and then mow the area at the maximum height of cut

setting with the grassbag tted. Reduce the height of cut

and mow the area again as necessary until the required

nish is obtained.

To prevent damage to your lawn do not remove more

than one third of grass height in one cut. (Refer g.18)

Friction Disc

The cutterblade is driven by the engine via a friction

disc to help prevent damage occurring to the engine

crankshaft and cutting mechanism when a hidden

obstruction or overload is encountered. (Refer g.19)

Always stop the engine when a hidden obstruction

or excessive vibration is encountered. Disconnect the

spark plug lead and examine the cutting mechanism.

ALWAYS replace a damaged cutterblade - Refer to

“Maintenance”.

Non Grassed Areas

When moving the mower across non-grassed areas, stop

the engine and set the mower to the maximum height of

cut to protect the cutting mechanism. (Refer g.14)

OPERATING THE MOWER

1CG411A08

Fig. 13 Fig. 15 Fig. 16 Fig. 17 Fig. 18

Fig. 14 Fig. 19

Maintenance Schedule

To prevent accidents, stop the engine and disconnect

the spark plug lead before attempting to carry out

procedures on the mower.

After the very rst ve hours change the engine oil.

Follow the hourly or calendar intervals, whichever occurs

rst. More frequent service will be required if working for

prolonged periods under dusty, dry conditions, or when

airborne debris is present or after extensive operation

cutting tall, dry grass.

Daily

- Check the oil level.

- Remove grass debris from around the engine, exhaust/

exhaust guard, air ways in the top cowl, underside of

the deck housing and from the grassbag and check for

signs of damage.

- Check the condition of guards and safety devices.

- Check condition of cutterblade.

25 Hours Or Every Season

- Change the engine oil if continuously operating under

heavy load or high ambient temperature.

- Service the air cleaner.

- Lubricate wheels, pivot points and linkages and grease

the inner control cables at point of entry and exit from

their outer casing.

- Check the clutch cable adjustment.

- Sharpen the cutterblade.

50 Hours Or Every Season

Change the engine oil.

100 Hours Or Every Season

- Clean the engine cooling system. Clean more often

under dusty conditions or when airborne debris is

present or after prolonged operation whilst cutting tall,

dry grass.

- Replace the spark plug.

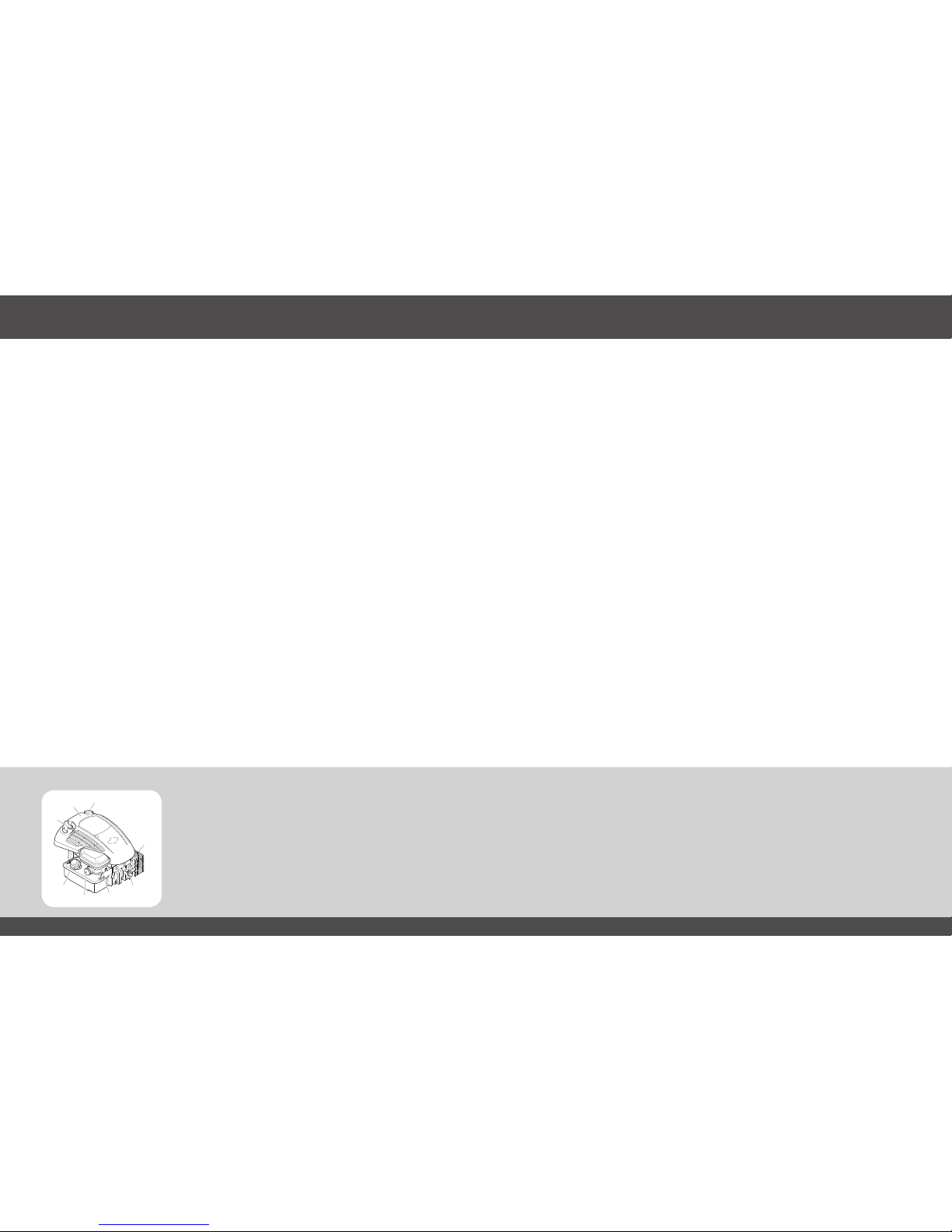

Engine Detail

(Refer g.20)

MAINTENANCE SCHEDULE

1. Air Cleaner

2. Primer Bulb

3. Fuel Cap

4. Start Grip

5. Cover

6. Oil ll/Dipstick

7. Exhaust Guard

8. Spark Plug / Lead

Fig. 20

Table des matières

Autres manuels Hayter Tondeuse à gazon

Hayter

Hayter Envoy 36 100E Guide de l'utilisateur

Hayter

Hayter Hawk 308A Guide de l'utilisateur

Hayter

Hayter Heritage RS 17/102H Manuel utilisateur

Hayter

Hayter LT324 Manuel utilisateur

Hayter

Hayter Harrier 48 Pro Guide de l'utilisateur

Hayter

Hayter 101 88 90-26 Manuel d'instructions

Hayter

Hayter H15/40 145S Manuel utilisateur

Hayter

Hayter Harrier 56 BBC Guide de l'utilisateur

Hayter

Hayter Hayterette 005D Guide de l'utilisateur

Hayter

Hayter R324T Manuel utilisateur

Hayter

Hayter M10/30 133E Manuel utilisateur

Hayter

Hayter Harrier 56 340S Guide de l'utilisateur

Hayter

Hayter Motif 48 Autodrive Manuel utilisateur

Hayter

Hayter Hobby 41 Manuel utilisateur

Hayter

Hayter Motif 41 Push Guide de l'utilisateur

Hayter

Hayter Spirit 41 Manuel utilisateur

Hayter

Hayter Motif 432A Guide de l'utilisateur

Hayter

Hayter Spirit 41 617J Guide de l'utilisateur

Hayter

Hayter Harrier 41 PRO FS Manuel utilisateur

Hayter

Hayter Envoy 36 Manuel utilisateur

Hayter

Hayter CODE610B Manuel utilisateur

Hayter

Hayter Harrier 41 Electric Guide de l'utilisateur

Hayter

Hayter Condor RATCHET DRIVE 511R Manuel utilisateur

Hayter

Hayter Jubilee 422V Guide de l'utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
