Hayter 10/30 Guide de configuration

1740517

ILLUSTRATED PARTS LIST

133E

CODE

CODE 133E

HERITAGE TRACTOR

10/30

PART NO: 111-1179 (Rev A)

SERIAL NO.

470000001

ISSUE 01/23/2007

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Chassis & Hood ................................................................................................................................................... 4

Steering ................................................................................................................................................................ 8

Motion Drive ......................................................................................................................................................... 10

Mower Housing .................................................................................................................................................... 14

Mower Housing Suspension ................................................................................................................................ 18

Decals .................................................................................................................................................................. 20

Electrical System .................................................................................................................................................. 22

Chassis & Hood

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

0003

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

309029x11E - 10/30, Heritage Tractor (2007)

TP 400-4456-00-RD-R

PART NO. DESCRIPTIONREF NO

Chassis & Hood

Footnotes

Seat1 MU690566MA

Hood2 MU1401379E549MA

Washer3 MU017X47MA

Bolt, Wing4 MU1001054MA

Bolt, Carriage5 MU002X16MA

Bracket, Hinge6 MU1401378E701MA

Bolt, Shoulder7 MU009X29MA

Bolt, Shoulder8 MU009X56MA

Rod, Battery10 MU1401113MA

Nut, Flange11 MU015X84MA

Plate, Rear12 MU1401025E701MA

Screw13 MU26X249MA

Plate, Hitch14 MU1401050E701MA

Cover15 MU1401087MA

Screw16 MU26X263MA

Tray, Battery17 MU1401076E701MA

Nut, Flange18 MU015X79MA

Washer19 MU017X45MA

Pin, Cotter20 MU0031X6MA

Cap, Fuel Tank (Included when ordering Ref. No. 22)21 MU092317MA

Tank, Fuel22 MU1401361MA

Screw (Included when ordering Ref. No. 22)23 MU06X111MA

Screw24 MU26X253MA

Screw25 MU26X263MA

Rod, Hood Prop26 MU1401110MA

Spring, Seat Deck27 MU1401282MA

Bracket, Prop Rod28 MU1401297E701MA

Screw29 MU26X201MA

Nut, NY-Lock30 MU15X116MA

Control, Throttle31 MU1401248MA

Cover, Detent (Black)32 MU1401084MA

Bolt, Shoulder33 MU009X47MA

Footmat, Left (Black)36 MU1401229MA

Footmat, Right (Black)37 MU1401228MA

Frame39 MU1401371E701MA

Deck, Seat40 MU1401349E549MA

Bumper41 MU094744MA

Nut (Included when ordering Ref. No. 22)42 MU15X116MA

Screw43 MU0025X2MA

Kit, Foil Heat Shield44 MU7601036MA

Trim, Left45 MU1401076MA

Trim, Right46 MU1401072MA

Fastener, Panel47 MU0196X1MA

Plenum48 MU1401380MA

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

309029x11E - 10/30, Heritage Tractor (2007)

TP 400-4456-00-RD-R

Chassis & Hood

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

0003

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

309029x11E - 10/30, Heritage Tractor (2007)

TP 400-4456-00-RD-R

PART NO. DESCRIPTIONREF NO

Chassis & Hood

Footnotes

Nut, Hex 5/16-1849 MU15X123MA

Valve, Fuel Shutoff50 MU698183

Shield, Heat51 MU1401401MA

Hose, Clamp52 MU095197MA

Fuel, Hose53 MU1401346E701MA

Heat Shield, Hood54 MU1401385MA

Reflector Tape, Heat Shield Hood55 MU1401208MA

Reflector Tape, Heat Shield Upper56 MU1401209MA

Bag, Parts-- MU1401361

Book, Instruction-- 111-1179

Manual, Parts LIst-- 111-1012

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

309029x11E - 10/30, Heritage Tractor (2007)

TP 400-4456-00-RD-R

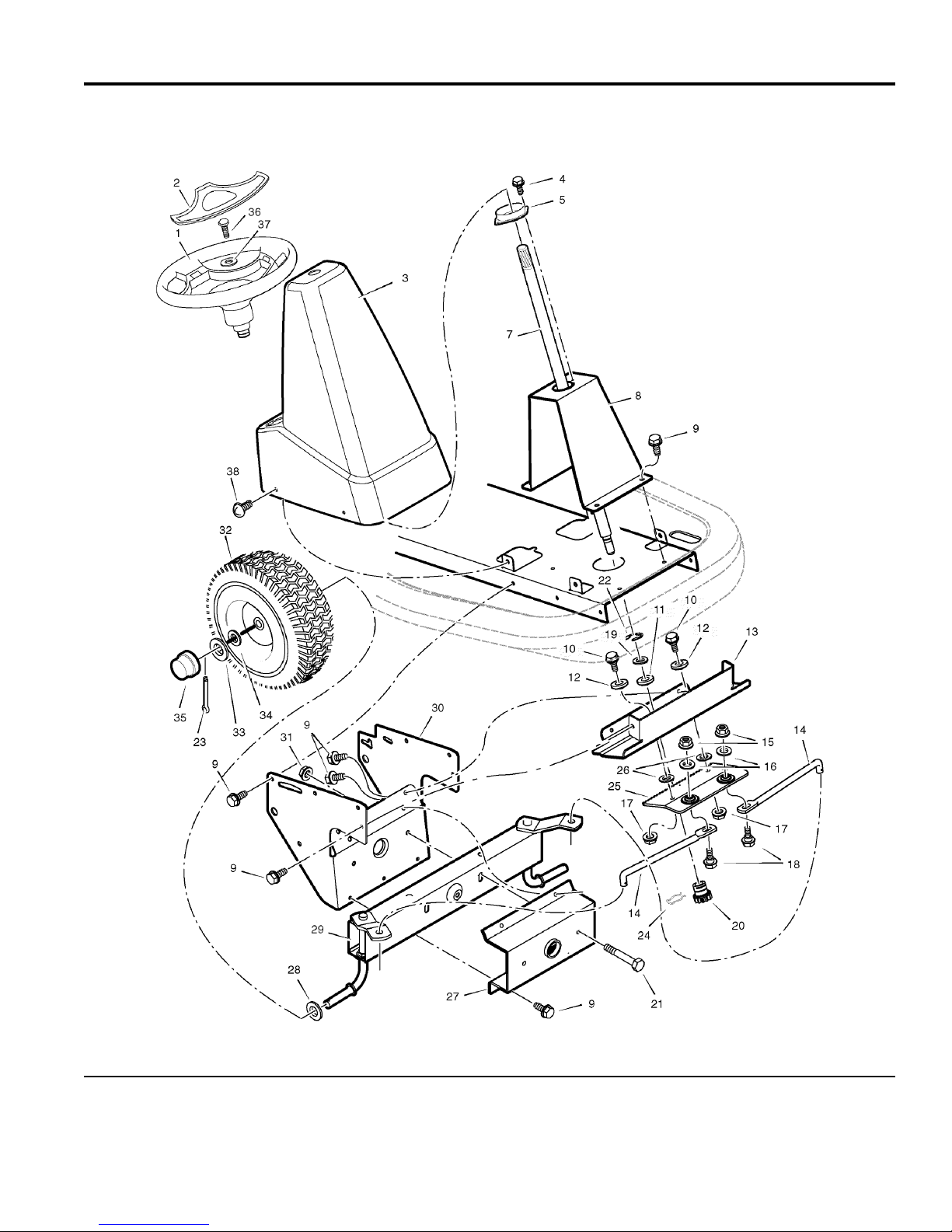

Steering

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

0007

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

309029x11E - 10/30, Heritage Tractor (2007)

TP 400-4456-00-RD-R

PART NO. DESCRIPTIONREF NO

Steering

Footnotes

Wheel, Steering1 MU1001980MA

Cap, Steering2 MU1001982MA

Console, High -Black3 MU1401067MA

Screw4 MU26X250MA

Bearing, Upper Steering5 MU1401090MA

Shaft, Steering7 MU1401100MA

Support, Steering8 MU1401055E701MA

Screw9 MU26X249MA

Bolt, Shoulder10 MU009X67MA

Bearing, Lower Steering11 MU1401098MA

Roller12 MU1401102MA

Plate, Gear Mounting13 MU1401058E701MA

Link, Drag14 MU1401123E701MA

Nut, Flange15 MU015X84MA

Washer16 MU17X104MA

Nut, Flange17 MU015X88MA

Bolt, Hex18 MU01X111MA

Washer19 MU17X118ZMA

Gear, Pinion20 MU1401099MA

Bolt, Hex21 MU01X146MA

E-Ring, Retainer22 MU011X23MA

Pin, Cotter23 MU030X35MA

Retainer, Spring24 MU094131MA

Rack, Steering25 MU1401046E701MA

Washer26 MU17X201MA

Bracket, Axle Front27 MU1401376E701MA

Washer28 MU17X157MA

Axle & Spindle Assembly29 MU1401250E701MA

Bracket, Support30 MU1401059E701MA

Nut, Flange31 MU15X118MA

Wheel, Front32 MU1401381601MA

Washer33 MU17X197MA

Washer34 MU17X157MA

Cap, Hub35 MU094618MA

Bolt36 MU0025X3MA

Washer37 MU17X146MA

Screw38 MU26x270MA

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

309029x11E - 10/30, Heritage Tractor (2007)

TP 400-4456-00-RD-R

Motion Drive

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

0005

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

309029x11E - 10/30, Heritage Tractor (2007)

TP 400-4456-00-RD-R
