THANK YOU FOR CHOOSING

THIS

INFINITY PRODUCT

This product has been designed

deliver great bass performance from a compact, easily installed enclosure. To get the best performance

from your enclosure,

strongly recommend that you entrust installation

a qualified professional. Although these instructions explain

how

install your enclosure in a general sense, they

not show specific installation methodsthat may be required for your particular vehicle.

If you

not

have the necessary tools or experience,

not

attempt

the

installation yourself. Instead, please ask your authorized Infinity car

audio dealer

about

professional installation.

help us serve you better if your enclosure ever requires warranty service, please retain your

original sales receipt and serial number.

INSTALLATION WARNINGS AND

TIPS

INSTALLATION TIPS

• Always wear protective eyewear when using tools.

• Turn offall audio components and other electrical devices before you start. Disconnect the negative(-) lead from yourvehicle's battery.

• Checkclearances on

both

sides

a planned mounting surface. Be sure that screws or wires will

not

puncturebrake lines, fuel lines

wiring harnesses, and that wire routing will

not

interfere with

the

safe operation

the vehicle.

• When making electrical connections, makesure they are secure and property insulated.

• Before drilling

cutting holes, use a utility knife

remove unwanted fabric

vinyl,

keep material from snagging in a drill

bit

saw.

•

not

mount speakers where they will get wet.

CHOOSING A MOUNTINGLOCATION FOR

THE

ENCLOSURE

Choose a mounting location that doesn't interfere with cargo, the fold-down rear seat

the trunk lid. The best location is usually a corner

the trunk

cargo area. Securely mount

the

enclosure

the mounting surface.

WARNING

: Playing loud musicin

automobile can permanently damage your hearing as well as hinder your ability

hear traffic.

Listening

low levels while driving is recommended. HARMAN International accepts no liability for hearing loss, bodily

inJury

property

damage resulting from use

misuse

this product.

lnTinit_y

PRIMUS

1270B

HARMAN

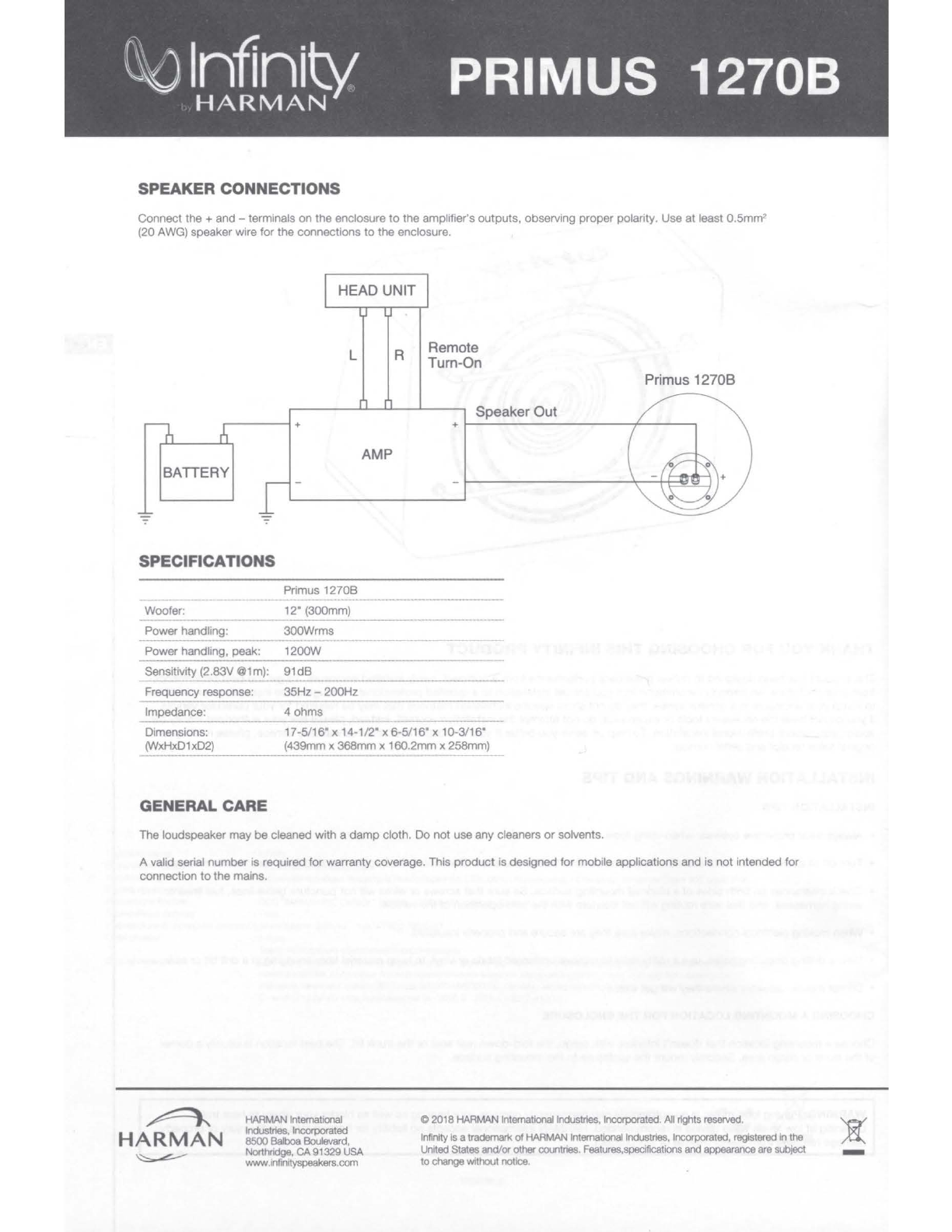

SPEAKER CONNECTIONS

Connect

the+

and -terminals on the enclosure

the amplifier's outputs, observing proper polarity. Use at least 0.5mm'

(20

AWG)

speakerwire for the connections

the enclosure.

HEAD

UNIT

BATTERY

SPECIFICATIONS

Woofer:

Primus

12708

12'

(300mm)

Power handling: 300Wrms

Power handling, peak: 1200W

Sensitivity (2.83V@1m): 91dB

Frequency response: 35Hz-200Hz

AMP

Remote

Turn-On

Speaker Out

Primus 1270B

------------

dance: 4 ohms

Dimensions:

(WxHxDlxD2) 17-5/16'X 14-1/2' X 6-5/16' X 10-3/16'

(439mm x 368mm x 160.2mmx 258mm)

GENERAL CARE

The loudspeaker maybe cleaned with a dampcloth. Do not use any cleaners

solvents.

A valid serial numberis required for warranty coverage. This product is designed for mobile applications and is not intended for

connection

the mains.

HARMAN

lntematoonal

lndustnes, Incorporated

8500Balboa Boulevard,

Northndge, CA91329 USA

www

.iofirntyspeakers

.com

C 2018

HARMAN

lntematoonal

Industries, Incorporated. All rights

reserved.

Infinity is a

trademar1<

HARMAN

lntematoonal

lndustnes, Incorporated, registered

the

United Statesand/orother

countnes.

Features.specifications

and

appearance

are

subject

changewithout notice. -
