HARMAN CBT 1000 and 1000E Quick Guide

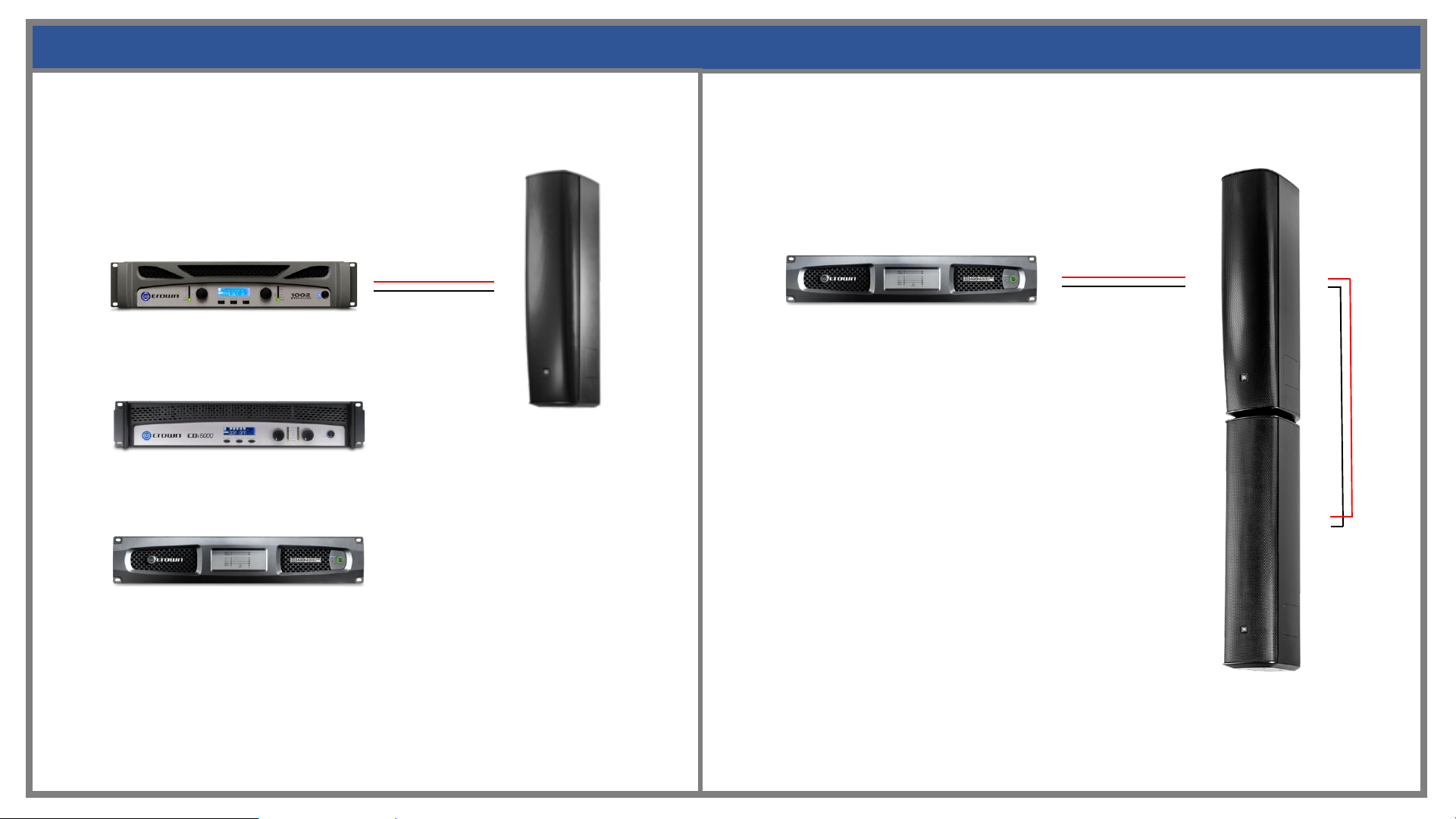

Wiring Guide for 1x CBT 1000 speaker

Connect 1 amplifier channel to each CBT 1000 speaker

Recommended Amplifiers

Crown XTi6002 –2100W @ 4 ohms

(One channel for each CBT 1000)

Crown CDi6000 –2100W @ 4 ohms

(One channel for each CBT 1000)

Crown DCi2x2400N –2400W @ 4 ohms

(One channel for each CBT 1000)

(NL4 or Binding

Post Outputs)

(Barrier Strip

Input)

(Barrier Strip

Outputs)

(Barrier Strip

Outputs)

Amplifier Selection Considerations

•How much power is needed (less powerful amplifiers can be used if you don’t

need all the SPL the speaker is capable of producing. However, pushing a lower-

power amplifier into clipping can damage the speaker).

•How much DSP and which DSP functions are required.

•Whether the amp needs to be networked (DCi-N).

•Project’s budget.

Recommended Amplifier

Crown DCi2x2400N –2400W @ 4 ohms

(One channel for each CBT 1000)

(Barrier Strip

Input)

(Barrier Strip

Outputs)

Note:

•Important –The CBT 1000E must be connected in

parallel with the CBT 1000 and the two of them MUST

be in proper polarity. “+” to “+” and “–” to “–”.

•Other system configurations are available. Please reach

out to your Harman sales rep for details. And exception

request may be required, depending on equipment

utilized.

Wiring Guide for 1x CBT 1000 speaker + 1x CBT 1000E Array

Connect 1 amplifier channel to each CBT 1000 + CBT 1000E array

(Barrier Strip

Input)

CBT 1000

CBT 1000E

HARMAN CBT 1000 and 1000E Quick Guide

DSP Processor Settings for 1x CBT 1000 or for 1x CBT 1000 + 1x CBT1000E Array

High-Pass & Limiter Settings:

•Protective High-Pass: 35 Hz, 24 dB/oct, Linkwitz-Riley

•LevelMax™ Limiter Settings:

•RMS Thresdhold (VRMS): 65V

•Click the “Automatic” Radial Button to set Peak threshold, Peak Release, and

RMS Release to “Auto”

•Transducer Thermal Limiting, Thermal Voltage: 52V

•Thermal Response Time (Sec): 10 Sec

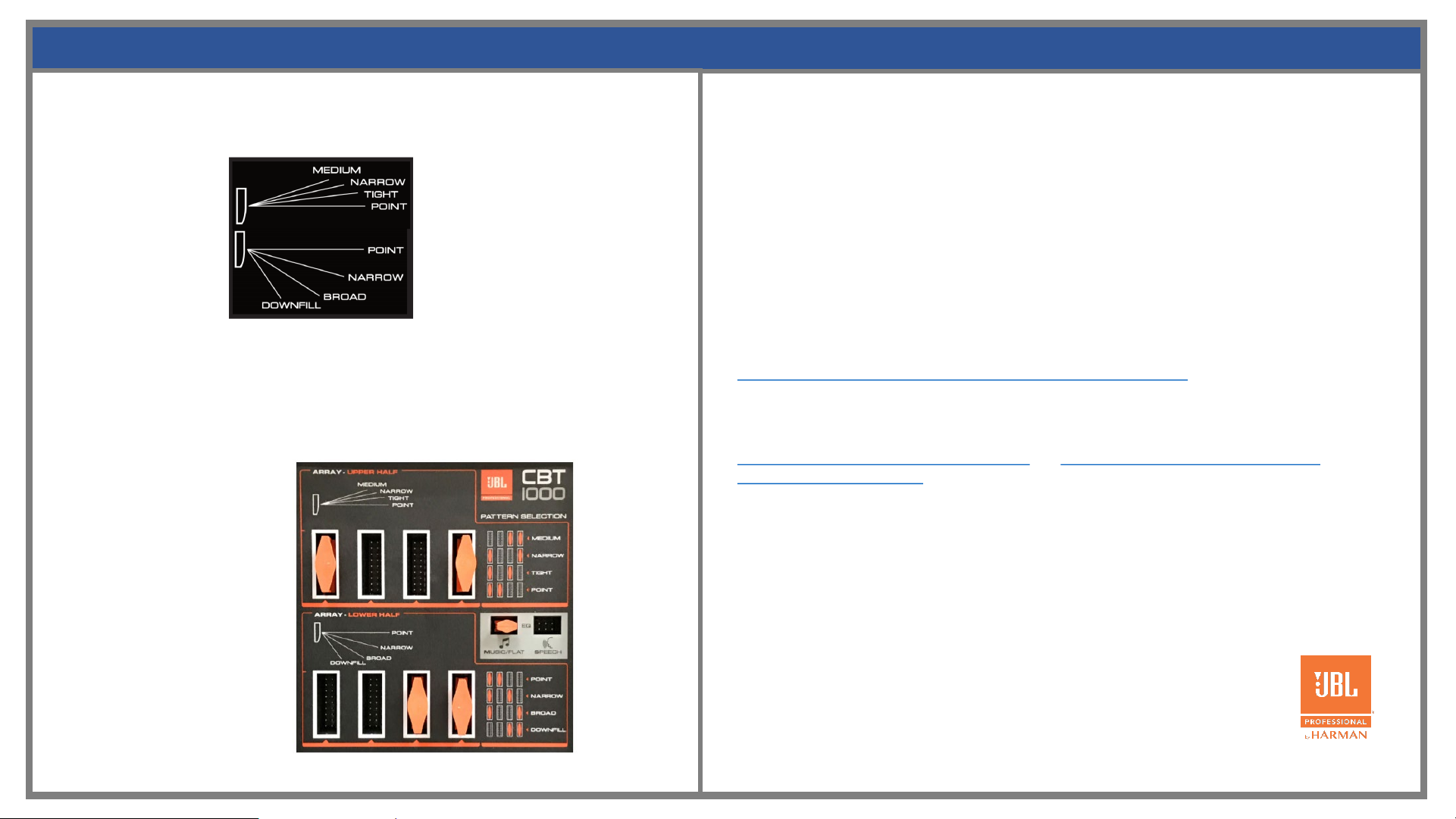

Selectable Coverage Patterns

Upper-Half Coverage Pattern Selections

Lower-Half Coverage Pattern Selections

Coverage Pattern Selection Panel -- Located on side of cabinet; covered by

plate. Remove screws using #1 Phillips-head screwdriver (not included).

Position the orange headers to select the Upper and Lower coverage patterns

and Music/Speech voicing.

(Header position example shown above: Upper Half NARROW pattern setting;

Lower Half DOWNFILL pattern setting; EQ is MUSIC/FLAT setting.)

For recommended on-and off-wall EQ settings, go to:

https://jblpro.com/en-US/site_elements/cbt-1000-1000-e-eq-tunings

For more information about the CBT 1000 and CBT 1000E, go to:

https://jblpro.com/en-US/products/cbt-1000 and https://jblpro.com/en-US/products/cbt-

1000-plus-cbt-1000e-system

08/2020
