ODROID-VU-7-A Plus

Last update:

2020/04/01 10:17 accessory:display:vu_series:vu7a_plus:vu7a_plus http://wiki.odroid.com/accessory/display/vu_series/vu7a_plus/vu7a_plus

http://wiki.odroid.com/ Printed on 2020/05/29 19:13

Speciﬁcations

7-inch TFT-LCD

1024 x 600 pixels hardware resolution, conﬁgurable by software (up to 1920×1080)

5 ﬁnger capacitive touch input (USB ID 16B4:0705)

Power consumption : 800 mA / 5 Volt

Power on/oﬀ tact switch

3.5mm audio jack and diﬀerential L/R speaker port to support HDMI audio output

OSD menu supports with buttons for power management, brightness/contrast/volume

adjustment, etc.

Wide Viewing angle (in degree) : Left 75, Right 75, Up 75, Down 75

Screen Dimensions : 172.9 x 124.3 x 15 mm including buttons and connectors

Viewable screen size : 153.6 x 86.64 mm (active area)

Diagram & Physical Dimensions

2020/05/29 19:13 3/12 ODROID-VU-7-A Plus

ODROID Wiki - http://wiki.odroid.com/

Assembly

You can easily attach the C2 / C1+ board onto the backside of the LCD screen in order to create a

fully integrated system.

Also it's available to connect XU4 / C2 / C1+ using a micro-USB cable and a HDMI cable described in

Option 2.

Option 1

Last update:

2020/04/01 10:17 accessory:display:vu_series:vu7a_plus:vu7a_plus http://wiki.odroid.com/accessory/display/vu_series/vu7a_plus/vu7a_plus

http://wiki.odroid.com/ Printed on 2020/05/29 19:13

Option 2

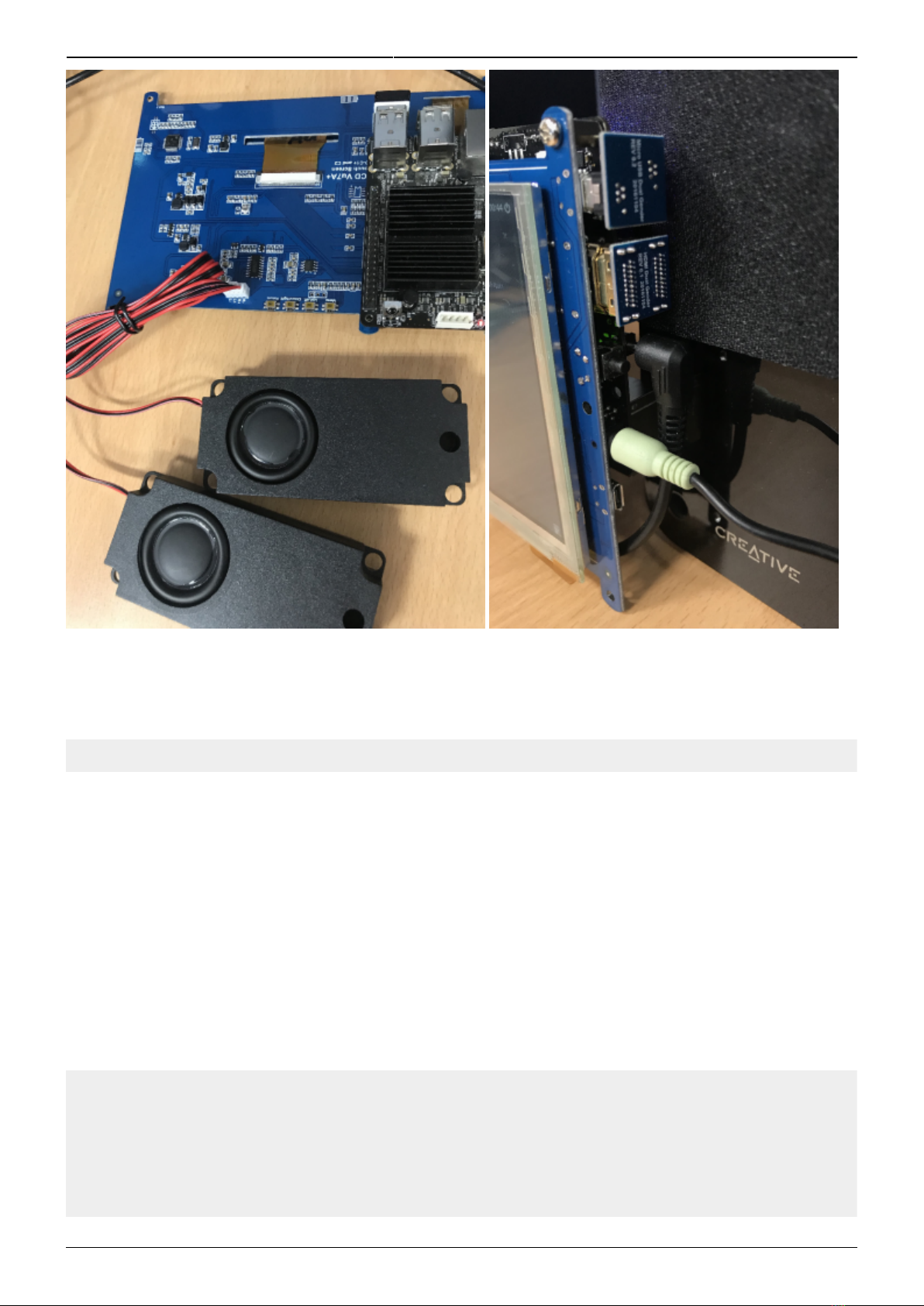

Audio Features

With VU7A+, you can enjoy sound with a stereo speaker or an audio earjack.

Please note that the speaker output turns oﬀ when an earjack is plugged in.

2020/05/29 19:13 5/12 ODROID-VU-7-A Plus

ODROID Wiki - http://wiki.odroid.com/

Last update:

2020/04/01 10:17 accessory:display:vu_series:vu7a_plus:vu7a_plus http://wiki.odroid.com/accessory/display/vu_series/vu7a_plus/vu7a_plus

http://wiki.odroid.com/ Printed on 2020/05/29 19:13

2020/05/29 19:13 7/12 ODROID-VU-7-A Plus

ODROID Wiki - http://wiki.odroid.com/

Software Setting - Ubuntu

sudo vim /media/boot/boot.ini

ODROID-XU4

Auto Detection

With the version 4.14.32-126 or higher version,

XU4 automatically detects the resolution of VU7A+ as 1024×600 with HDMI without any change of

boot.ini.

VU7A+ model provides HDMI functionality, so you don't need modify boot.ini to switch into DVI as you

do with VU7+.

# --- HDMI / DVI Mode Selection ---

# ------------------------------------------

# - HDMI Mode

setenv vout "hdmi"

# - DVI Mode (disables sound over HDMI as per DVI compat)

# setenv vout "dvi"

Last update:

2020/04/01 10:17 accessory:display:vu_series:vu7a_plus:vu7a_plus http://wiki.odroid.com/accessory/display/vu_series/vu7a_plus/vu7a_plus

http://wiki.odroid.com/ Printed on 2020/05/29 19:13

Manual Setting

If you use the lower version than 4.14.32-126, boot.ini modiﬁcation is required as following.

Please uncomment videoconﬁg line for 1024×600 and make sure vout option as hdmi.

# --- Screen Configuration for HDMI --- #

# -----------------------------------------------

# 1024x600 without monitor data using generic information (ODROID VU7+)

setenv videoconfig "drm_kms_helper.edid_firmware=edid/1024x600.bin"

# --- HDMI / DVI Mode Selection ---

# ------------------------------------------

# - HDMI Mode

setenv vout "hdmi"

# - DVI Mode (disables sound over HDMI as per DVI compat)

# setenv vout "dvi"

ODROID-N2/C4

In case of ODROID-N2, display auto detection logic can detect the hdmi resolution and vout option by

default.

So you don't need to edit boot.ini but just keep display_autodetect as true.

# Auto Detection of Monitor settings based on your Screen information

setenv display_autodetect "true"

If it doesn't work with display auto detection mode, please try manual mode.

# Auto Detection of Monitor settings based on your Screen information

setenv display_autodetect "false"

# HDMI Mode

# Resolution Configuration

# setenv hdmimode "1080p60hz"

setenv hdmimode “1024x600p60hz”

### voutmode : hdmi or dvi

setenv voutmode "hdmi"

# setenv voutmode "dvi"

ODROID-C2

In case of ODROID-C2, display auto detection logic can detect the hdmi resolution and vout option by

default.

So you don't need to edit boot.ini but just keep display_autodetect as true.

2020/05/29 19:13 9/12 ODROID-VU-7-A Plus

ODROID Wiki - http://wiki.odroid.com/

# Auto Detection of Monitor settings based on your Screen information

# See: http://odroid.com/dokuwiki/doku.php?id=en:c2_auto_detect_display

setenv display_autodetect "true"

If you use the lower version than 3.14.79-108 (Feb 27, 2017), please set boot.ini as following.

# Resolutions

# setenv m "1080p" # 1080P@60Hz

setenv m “1024x600p60hz”

# HDMI DVI/VGA modes

# By default its set to HDMI, if needed change below.

# Uncomment only a single Line.

setenv vout "hdmi"

ODROID-C1/C1+/C0

To use VU7A+ with ODROID-C1/C1+/C0, you need to conﬁgure boot.ini ﬁle as following.

# Comment default mode 1080p and uncomment 1024x600p60hz

# setenv m “1080p” # 1080P@60Hz

setenv m “1024x600p60hz” # 1024x600

# HDMI DVI/VGA modes

# By default its set to HDMI, if needed change below.

# Uncomment only a single Line.

setenv vout_mode "hdmi"

Software Setting - Android

To use VU7A+ on Android, you have to change resolution of Android to 1024x600p60hz.

Basically, you can change the resolution through ODROID Utility apps.

In ODROID Utility, you can ﬁnd ODORID-VU7 Plus Options from resolution list.

And we also provide manual changing methods.

ODROID-XU4

setenv fb_x_res "1024"

setenv fb_y_res "600"

setenv hdmi_phy_res "1024x600p60hz"

Last update:

2020/04/01 10:17 accessory:display:vu_series:vu7a_plus:vu7a_plus http://wiki.odroid.com/accessory/display/vu_series/vu7a_plus/vu7a_plus

http://wiki.odroid.com/ Printed on 2020/05/29 19:13

ODROID-N2

In case of ODROID-N2, display auto detection mode can adjust hdmi resolution and vout mode by

default.

So you don't need to edit boot.ini.

# Display Auto Detection

# "false" or "true"

setenv display_autodetect "true"

If it doesn't work with display auto detection mode, please try manual mode.

# Resolution Configuration

setenv hdmimode "1024x600p60hz"

# setenv hdmimode "1080p60hz"

### voutmode : hdmi or dvi

setenv voutmode "hdmi"

# setenv voutmode "dvi"

# Display Auto Detection

# "false" or "true"

setenv display_autodetect "false"

ODROID-C2

In case of ODROID-C2, display auto detection mode can adjust hdmi resolution and vout mode by

default.

So you don't need to edit boot.ini.

# Auto Detection of Monitor settings based on your Screen information

# See: http://odroid.com/dokuwiki/doku.php?id=en:c2_auto_detect_display

setenv display_autodetect "true"

If you use the lower version than Android 5.1.1 (v3.3) / 6.0.1 (v2.2), the following setting is required.

# Resolution Configuration

setenv hdmimode "1024x600p60hz"

# setenv hdmimode "1080p60hz"

# HDMI/DVI Mode Configuration

# This will enforce the singal type of display

# "hdmi" - For HDMI interface

# "dvi" - For DVI interface

setenv vout_mode "hdmi"

# Display Auto Detection
