Hanna Instruments TDS 1 Manuel utilisateur

SPECIFICATIONS

Range 0 to 999 ppm (mg/L)

Resolution 1 ppm

Accuracy (@20°C/68°F) ±2% f.s.

Typical EMC Deviation ±1% f.s.

Calibration

Manual, 1 point, through trimmer

Calibration Solution

HI70080 (800 ppm @25ºC)

Temperature Compensation

Automatic, 5 to 50ºC (41 to 122ºF)

Environment

0 to 50ºC (32 to 122ºF); 95% RH

Battery Type 4 x 1.5V alkaline

Battaery Life approx.150 hours

Dimensions 150 x 30 x 21 mm

(5.9 x 1.2 x 0.8")

Weight 70 g (2.5 oz.)

ACCESSORIES

HI 70080P 800 ppm calibration solution,

20 mL sachet, 25 pcs

HI 731326 Calibration screwdriver (20 pcs)

ISTTDS1R4 05/05

www.hannainst.com

TDS1

TDS Meter

with

Automatic

Temperature

Compensation

TDS1

TDS Meter

with

Automatic

Temperature

Compensation

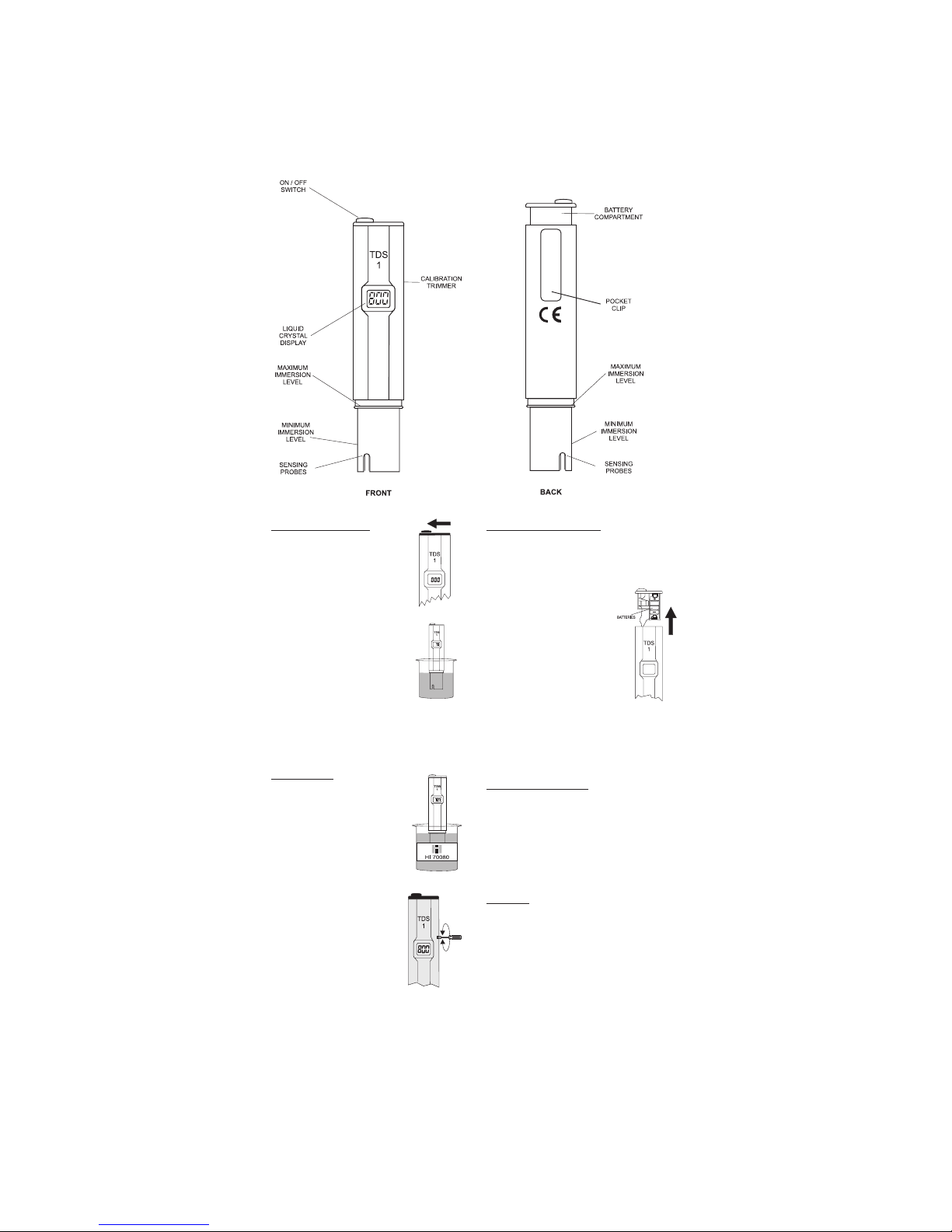

OPERATIONAL GUIDE

• Remove the protective cap

and turn the tester on by

sliding the top switch.

• Immerse the tester into the

solution up to the maxi-

mum immersion level,

without touching the bot-

tom of the beaker.

• Stir gently and wait for the reading to

stabilize. TDS1 automatically compensates

for temperature variations.

CALIBRATION

• Immerse the tester into the

HI 70080 (800 ppm) cali-

bration solution, without ex-

ceeding the maximum im-

mersion level.

• Allow the reading to stabi-

lize and using the supplied

screwdriver adjust the cali-

bration trimmer until the

nominal value of the solu-

tion is displayed.

• Calibration is now complete.

BATTERY REPLACEMENT

When the TDS1 can not be switched on or

the display fades, batteries have to be re-

placed.

Pull out the batteries com-

partment as shown in the

drawing, and replace all four

1.5V batteries, while pay-

ing attention to the correct

polarity.

Batteries should only be replaced in a non

hazardous area and using the battery type

specified in this instruction manual.

Recommendations for users

Before using these products, make sure that they are

entirely suitable for the environment in which they are

used. Operation of these instruments in residential areas

could cause interference to radio and TV equipment. Any

variation introduced by the user to the supplied equipment

may degrade the instrument's EMC performance. To avoid

electrical shock, do not use this instrument when voltages

at the measurement surface exceed 24 Vac or 60 Vdc.

To avoid damage or burns, do not perform any

measurement in microwave ovens.

WARRANTY

This meter is guaranteed for six months against defects

in workmanship and materials when used for its intended

purpose and maintained according to instructions. This

warranty is limited to repair or replacement free of charge.

Damages due to accident, misuse, tampering or lack of

prescribed maintenance are not covered. If service is re-

quired, contact the dealer from whom you purchased the

instrument. If under warranty, report the model number,

date of purchase, serial number and the nature of the

failure. If the repair is not covered by the warranty, you

will be notified of the charges incurred. If the instrument

is to be returned to Hanna Instruments, first obtain a

Returned Goods Authorization Number from the Cus-

tomer Service department and then send it with shipment

costs prepaid. When shipping any instrument, make sure

it is properly packaged for complete protection.
