Hanna Instruments edge DO Manuel utilisateur
DO
®
INSTRUCTION MANUAL
Thank you for choosing a Hanna Instruments product.
Please read this instruction manual carefully before using the instrument.
This manual will provide you with the necessary information for correct use of
the instrument, as well as a precise idea of its versatility.
If you need additional technical information, do not hesitate to e‑mail us at
Dear
Customer,
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent
of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA.
3
TABLE OF CONTENTS
4
4
5
7
9
10
14
18
23
24
26
5
5
8
10
13
16
21
23
25
28
31
28
29
Included ............................................................................................................................
Safety Measures.................................................................................................................
Description.........................................................................................................................
Diagram ............................................................................................................................
Product Diagram........................................................................................................
Probe Diagram...........................................................................................................
Keypad Function ........................................................................................................
Guide to Indicators.....................................................................................................
Setup/Installation...............................................................................................................
Setting Up edge® DO ...................................................................................................
Electrode & Probe Connections.....................................................................................
General Setup............................................................................................................
Logging Function .......................................................................................................
Viewing Logged Data..................................................................................................
PC & Storage Interface................................................................................................
Operational Guide...............................................................................................................
Dissolved Oxygen Setup..............................................................................................
Dissolved Oxygen Probe Diagram.................................................................................
Dissolved Oxygen Meter Configuration..........................................................................
Dissolved Oxygen Calibration.......................................................................................
Dissolved Oxygen Calibration Messages........................................................................
Dissolved Oxygen GLP Information...............................................................................
Dissolved Oxygen Measurements .................................................................................
Maintenance......................................................................................................................
Dissolved Oxygen Probe Maintenance...........................................................................
Troubleshooting Guide................................................................................................
Specifications.....................................................................................................................
Accessories.........................................................................................................................
32
31
34
33
4
INCLUDED
Remove the instrument from the packing material and examine it carefully to make sure that no
damage has occurred during shipping. If there is any damage, please contact your local Hanna
Instruments Office.
Each instrument edge® DO (HI2004) is supplied with:
Bench cradle
Wall cradle
Electrode holder
USB cable
5 VDC Power Adapter
Instruction Manual
Quality Certificate
HI764080: Digital polarographic dissolved oxygen probe with integrated temperature sensor
HI7041S: Electrolyte for DO probe
2 DO membrane caps for HI764080 DO probe
2 replacement O‑Rings for membrane caps
Electrode protective cap
Note: Save all packing material until you are sure that the instrument works correctly. Any
defective item must be returned in its original packing.
SAFETY MEASURES
Before using this product, make sure that it is entirely suitable for your specific application and for
the environment in which it is used.
Operation of this instrument may cause interference to other electronic equipment, requiring the
operator to take steps to correct interference. Any variation introduced by the user to the supplied
equipment may degrade the instrument’s EMC performance.
To avoid damages or burns, do not put the instrument in microwave ovens. For your and the
instrument’s safety, do not use or store the instrument in hazardous environments.
5
DESCRIPTION
edge® DO enables the user to make fast, accurate measurements of dissolved oxygen using one of the
Hanna Instruments edge® DO digital sensors for Dissolved Oxygen. Each digital sensors has a unique
serial number that is automatically identified by the meter. Once connected to the meter, the sensor
is ready to measure dissolved oxygen along with temperature.
The user interface permits you to adapt edge® DO to your exact measurement requirements. The
intuitive design simplifies configuration, calibration, measurement, data logging and transfer of data
to a USB thumb drive or computer. (Every feature and measurement detail is designed to give you
an edge in measurement technology.)
edge® DO is versatile in many ways. The slim meter and probe can be used as a portable device
(using its rechargeable battery) or used in its bench or wall cradles (that also power the meter) as a
line‑powered laboratory instrument.
DIAGRAM
PRODUCT DIAGRAM
• Sleek, clean, intuitive design
• Internal clock and date
• Auto parameter recognition
• Dedicated GLP key
• GLP data included with logged data
• Simplified data transfer to a PC
• Up to 8 hour battery life when used as a portable device
Side & Back view
6
DIAGRAM
1. Liquid Crystal Display (LCD)
2. Capacitive Touch Keypad
3. 3 mm jack input for edge® DO digital
probes
4. Top mounted ON/OFF button
5. Micro USB device connection for power or
PC interface
6. Standard USB host connection for data
transfer to a USB thumb‑drive
7
DO Electrode
• Probes process signal directly for noise free measurements
• Auto sensor recognition
• Store calibration specific data from the last calibration
• Are built with materials suitable for use in chemical analysis
• Have integrated temperature measurement
• Incorporate a 3 mm jack termination
• Unique serial ID in every probe for traceability
DIAGRAM
PROBE DIAGRAM
8
DIAGRAM
KEYPAD FUNCTION
1. CAL/MODIFY ‑ Used to enter and exit calibration mode. In SETUP, used to initiate changes of a
configuration setting.
2. GLP/CFM ‑ Used to display GLP calibration information. In SETUP, used to confirm change made.
In calibration, used to accept calibration points.
3. RANGE/u‑ Used to select measurement range. In SETUP, used to move to right in pick list. In
log RCL, used to view GLP data for a data point.
4. SETUP/CLR ‑ Used to enter/exit SETUP mode. During calibration, used to clear previous
calibration data. In log RCL, used to clear log records.
5. / ‑ Used to scroll through SETUP menu. Used to change selection when modifying a
parameter in SETUP.
6. RCL (Recall) ‑ Used to view logged records or view % log memory used.
7. LOG ‑ Used to log data by manual log on demand or manual log on stability or to
start/stop interval logging.
Note: You can increase/decrease the speed to change the value of a parameter.
Proceed as follows:
Press and hold down the or key, then slide the finger toward the double
apex to increase the speed that a value changes.
9
DIAGRAM
GUIDE TO INDICATORS
1. Mode tags
2. Confirm tag
3. USB connection status
4. Probes symbol
5. Battery symbol
6. Arrow tags, displayed when they are
available
7. Third LCD line, message area
8. Labels
9. Second LCD line, temperature
measurement
10. Temperature units
11. Temp. Compensation status
12. Measurement line
13. Measurement units
14. Stability Indicator
The third line of the LCD (7) is a dedicated message line. During measurement the user may use
the keys to select desired message. Options include date, time, calibration data, battery
charge or no message. If a measurement error or log status change occurs during measurement,
the third line will display a pertinent message.
10
SETUP/INSTALLATION
SETTING UP edge® DO
The main operating modes of edge® DO are setup, calibration, measurement, data logging, and data
export. Follow this general outline of steps to get you started. The following topics are expanded upon
in the sections that follow in this manual.
1. Familiarize yourself with the design features of this unique meter.
2. Decide how the meter will be used and set up the wall or bench cradle in a clean area near
line power.
3. Turn edge® DO on using the ON/OFF button located on the top of the meter.
4. Plug in the probe required for measurement.
5. SETUP the measurement parameters required for the measurement you will be making.
6. Calibrate the sensor/probe.
You are now ready for measurements.

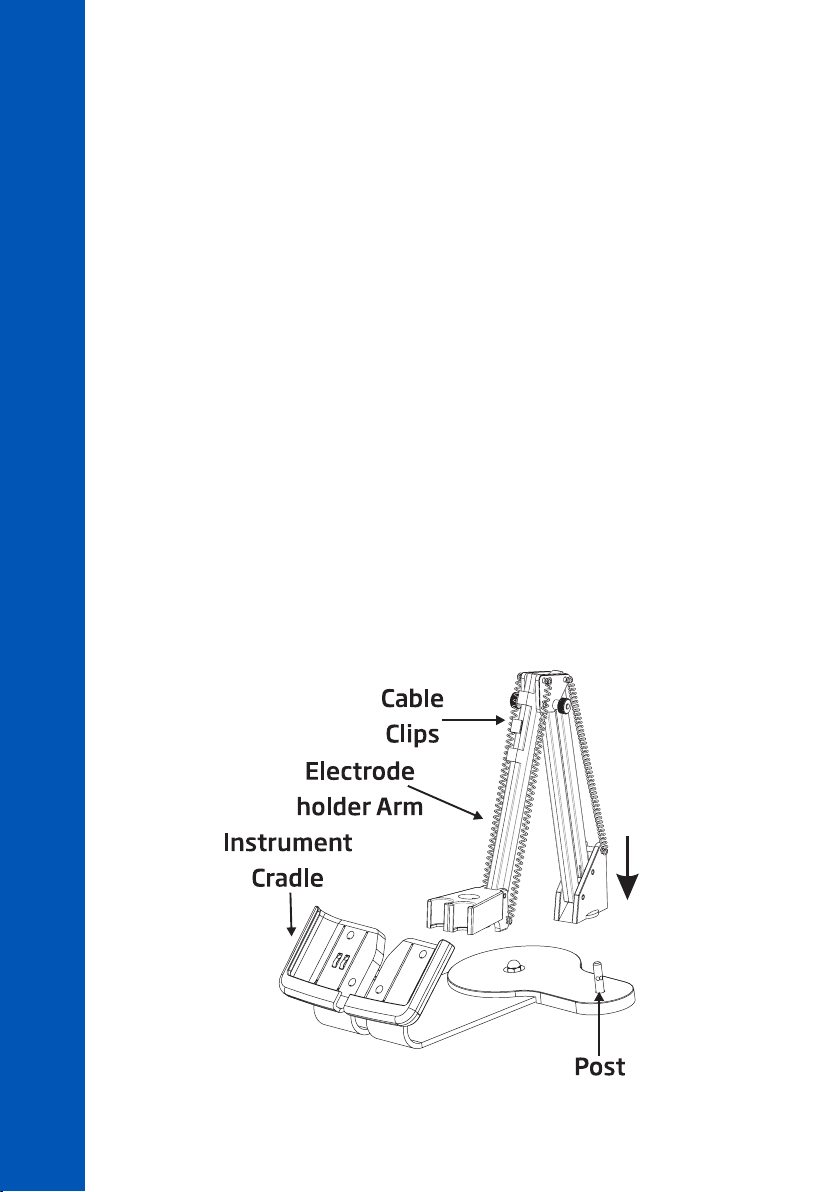

Bench Cradle Setup
Insert electrode holder arm into the post on the pivoting base.
Connect the probe connector to the socket located at the bottom of the instrument.
