Hanlong Unicorn 60X0 Manuel utilisateur

User Manual

Unicorn 60X0

Analog IP Gateway

4 or 8 FXO Ports

Hanlong Technology Co., Ltd

http://www.hanlongtek.com

Hanlong Technology Co., Ltd Unicorn 60x0 User Manual Page 2 of 25

Firmware 1.0.0.29 Last Updated 8/2010

Table of Content

1WELCOME................................................................................................................ 3

1.1 Gateway Unicorn 60x0 Overview .................................................................. 3

1.2 Safety Compliances....................................................................................... 3

1.3 Warranty........................................................................................................ 4

2PACKAGING ............................................................................................................. 4

2.1 Connect The Unicorn 60x0............................................................................ 4

3APPLICATION DESCRIPTION ................................................................................. 6

3.1 Functional Diagram of IP-PBX & Unicorn 60x0............................................. 6

3.2 Unicorn 600x&Unicorn 60x0 Scenario/Toll- Free Calling Between Locations 7

4FEATURES................................................................................................................ 7

4.1 Software Features Overview ......................................................................... 7

4.2 Hardware Specification.................................................................................. 9

5CONFIGURATION GUIDE......................................................................................... 9

5.1 Configuration With Web Browser................................................................... 9

5.1.1 Accessing The Web Configuration Menu.............................................. 9

5.2 End User Configuration............................................................................... 10

5.2.1 Status Page Definitions .......................................................................11

5.2.2 Basic Settings Page ............................................................................11

5.3 Super User Settings .................................................................................... 12

5.3.1 Super Configuration Page Definitions................................................. 13

5.3.2 Profiles ............................................................................................... 14

5.3.3 Configuring The FXO Channels.......................................................... 21

5.4 Saving The Configuration Changes............................................................. 23

5.5 Rebooting From Remote............................................................................. 23

6FIRMWARE UPGRADE........................................................................................... 24

7RESTORE FACTORY DEFAULT SETTINGS.......................................................... 25

8TECHNICAL SUPPORT CONTACT........................................................................ 25

Hanlong Technology Co., Ltd Unicorn 60x0 User Manual Page 3 of 25

Firmware 1.0.0.29 Last Updated 8/2010

1 WELCOME

Thank you for purchasing the Hanlong Unicorn 60x0 IP Analog FXO Gateway. The

Unicorn 60x0 is a cost effective, easy to use and easy to configure IP communications

solution for any business. The Unicorn 60x0 supports popular voice Codecs and is

designed for full SIP compatibility and interoperability with 3rd party SIP providers, thus

enabling you to fully leverage the benefits of VoIP technology, integrate a traditional phone

system into a VoIP network, and efficiently manages communication costs.

This manual will help you learn how to operate and manage your Unicorn 60x0 Analog IP

Gateway and make the best use of its many upgraded features including simple and quick

installation, multi-party conferencing, etc. This IP Analog Gateway is very easy to manage

and scalable, specifically designed to be an easy to use and affordable VoIP solution for

the small – medium business or enterprise.

1.1 Gateway Unicorn 60x0 Overview

The Unicorn 60x0 offers an easy to manage, feature rich IP communications solution for

any small business or businesses with virtual and/or branch locations who want to

leverage their broadband network and/or add new IP Technology to their current phone

system. The Hanlong Enterprise Analog VoIP Gateway Unicorn 60x0 series converts

SIP/RTP IP calls to traditional PSTN calls and vice versa. There are two models - the

Unicorn 6040 and Unicorn 6080, which have either 4 or 8 FXO ports respectively. The

installation is the same for either model.

Caution: Changes or modifications to this product not expressly approved by Hanlong

Technology, or operation of this product in any way other than as detailed by this User

Manual, could void your manufacturer warranty.

Information in this document is subject to change without notice. No part of this document

may be reproduced or transmitted in any form or by any means, electronic or mechanical,

for any purpose without the express written permission of Hanlong Technology.

1.2 Safety Compliances

The Unicorn 60x0 is compliant with various safety standards including FCC/CE. Its power

adaptor is compliant with UL standard.

Warning: use only the power adapter included in the Unicorn 60x0 package. Using an

alternative power adapter may permanently damage the unit.

Hanlong Technology Co., Ltd Unicorn 60x0 User Manual Page 4 of 25

Firmware 1.0.0.29 Last Updated 8/2010

1.3 Warranty

Hanlong has a reseller agreement with our reseller customer. End users should contact

the company from whom you purchased the product for replacement, repair or refund.

If you purchased the product directly from Hanlong, contact your Hanlong Sales and

Service Representative for a RMA (Return Materials Authorization) number. Hanlong

reserves the right to remedy warranty policy without prior notification.

2 PACKAGING

Unpack and check all accessories. The Unicorn 60x0 package contains:

One Unicorn 60x0 VoIP adapter

One universal power supply

One Ethernet cable

2.1 Connect The Unicorn 60x0

Managing the Unicorn 60x0 gateway and connecting the unit to the VoIP network is very

simple. Follow these four (4) steps to connect your Unicorn 60x0 gateway to the Internet

and access the unit’s configuration pages.

1. Connect PSTN Line to the FXO1-FXO8 ports.

2. Insert the Ethernet cable into the WAN port of Unicorn 60x0 and connect the other end

of the Ethernet cable to an uplink port (a router or a modem, etc.)

3. Connect a PC to the LAN port of Unicorn 60x0 for initial configuration or if it is being

used as a router.

4. Plug the power adapter into the Unicorn 60x0 and into a power outlet.

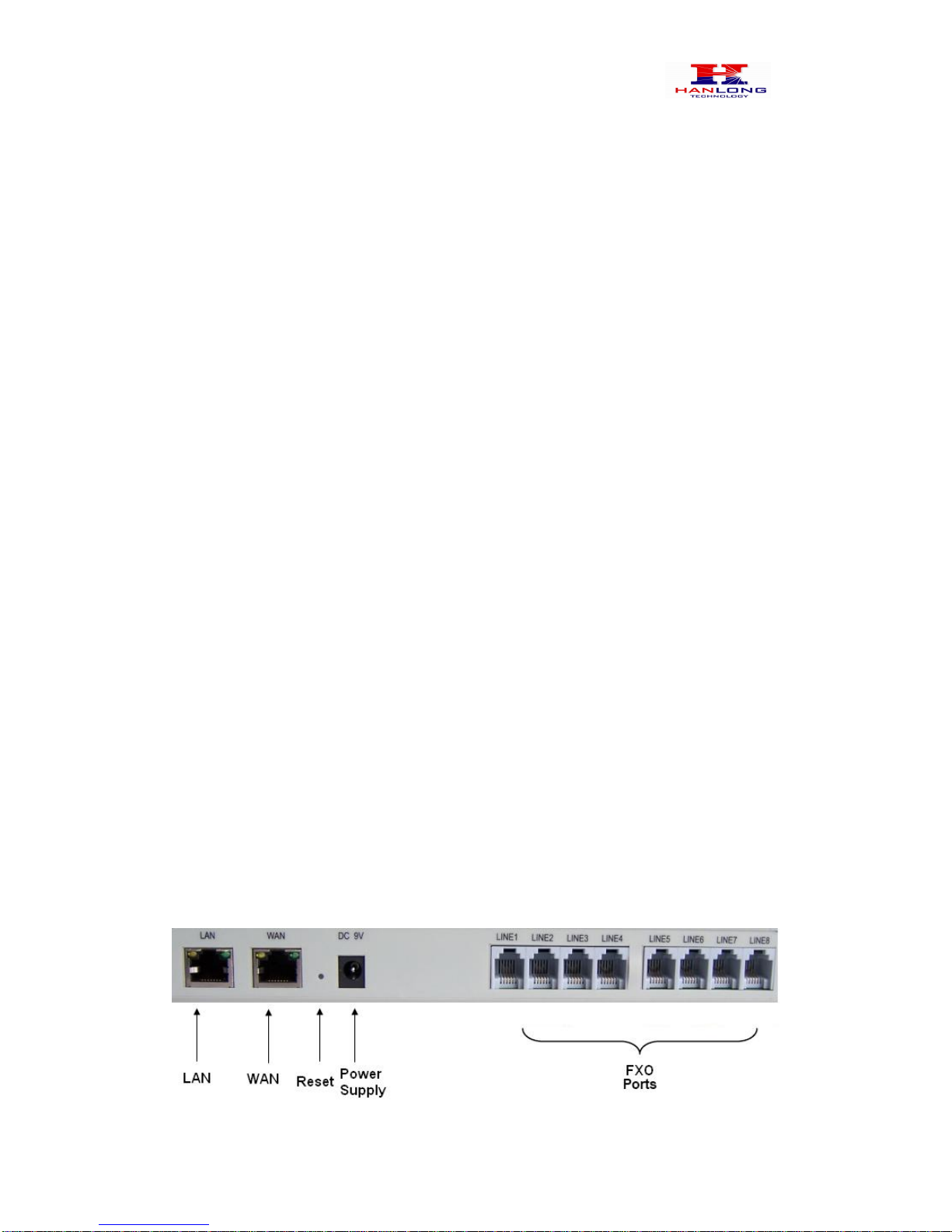

Figure 1: Diagram of Unicorn 60x0 Back Panel

Hanlong Technology Co., Ltd Unicorn 60x0 User Manual Page 5 of 25

Firmware 1.0.0.29 Last Updated 8/2010

TABLE 1: Definitions Of The Unicorn Connectors

LAN (or PC) Connect your PC to this port. It will then be assigned an

IP address from your Router/DHCP Server. The

Unicorn 60x0 acts as a switch only.

WAN (or LAN) Connect to the internal LAN network or Public Internet.

RESET Factory Reset button. Press for 7 seconds to reset

factory default settings.

POWER IN Power adapter connection

FXO1 - FXO8 FXO ports to be connected to physical PSTN lines from

a traditional PSTN PBX or PSTN Central Office.

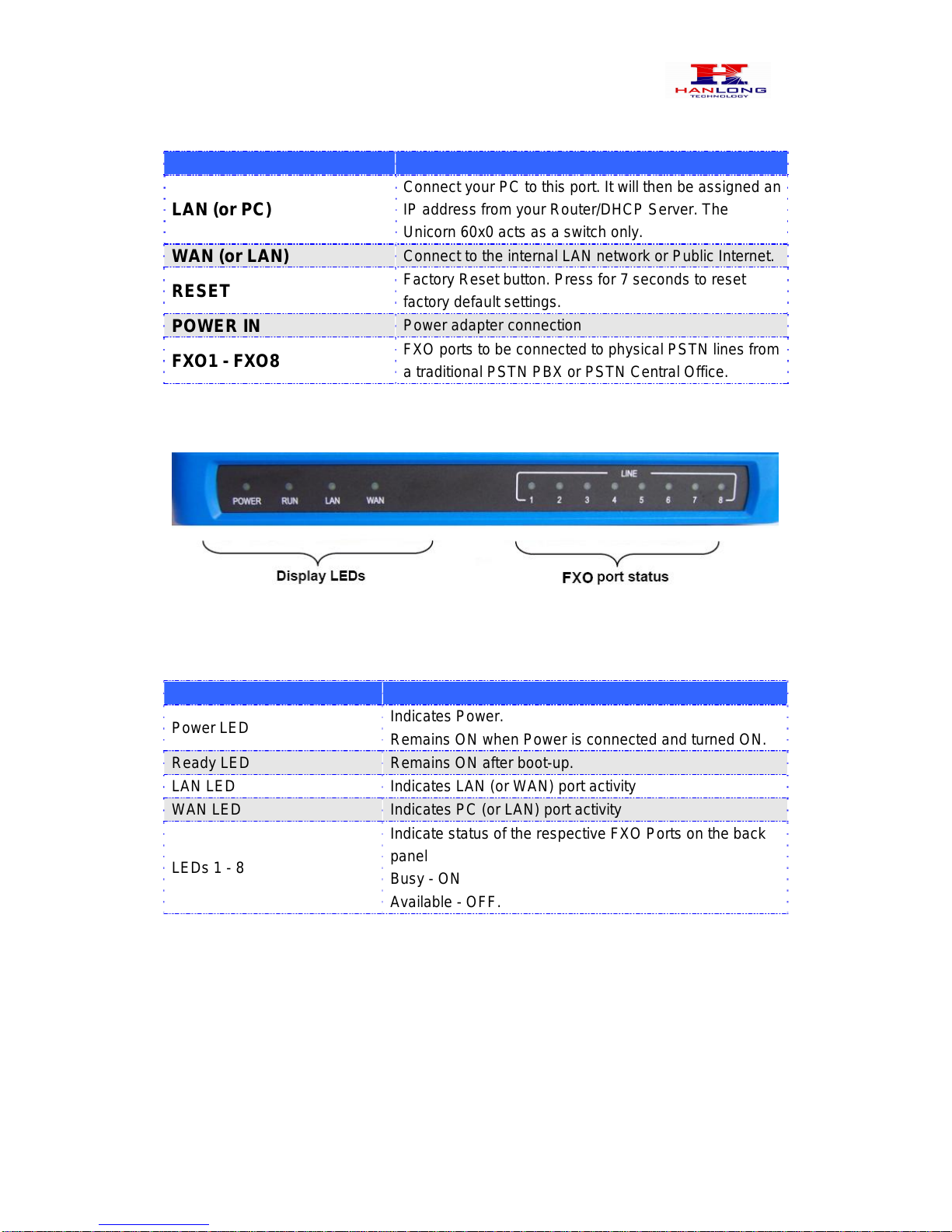

Figure 2: Diagram Of Unicorn 60x0 Display Panel

TABLE 2: Definitions Of The Unicorn Display Panel

Power LED Indicates Power.

Remains ON when Power is connected and turned ON.

Ready LED Remains ON after boot-up.

LAN LED Indicates LAN (or WAN) port activity

WAN LED Indicates PC (or LAN) port activity

LEDs 1 - 8

Indicate status of the respective FXO Ports on the back

panel

Busy - ON

Available - OFF.

NOTE:

All LEDs display green when ON.

During a firmware upgrade or configuration download the following LED pattern will be

observed:

Power, WAN LEDs will be ON. The RUN LED will keep flashing during download and

while the new files are written. The entire process may take between 5 to 15 minutes. The

Hanlong Technology Co., Ltd Unicorn 60x0 User Manual Page 6 of 25

Firmware 1.0.0.29 Last Updated 8/2010

firmware upgrade is complete when you can login into the web configuration pages.

3 APPLICATION DESCRIPTION

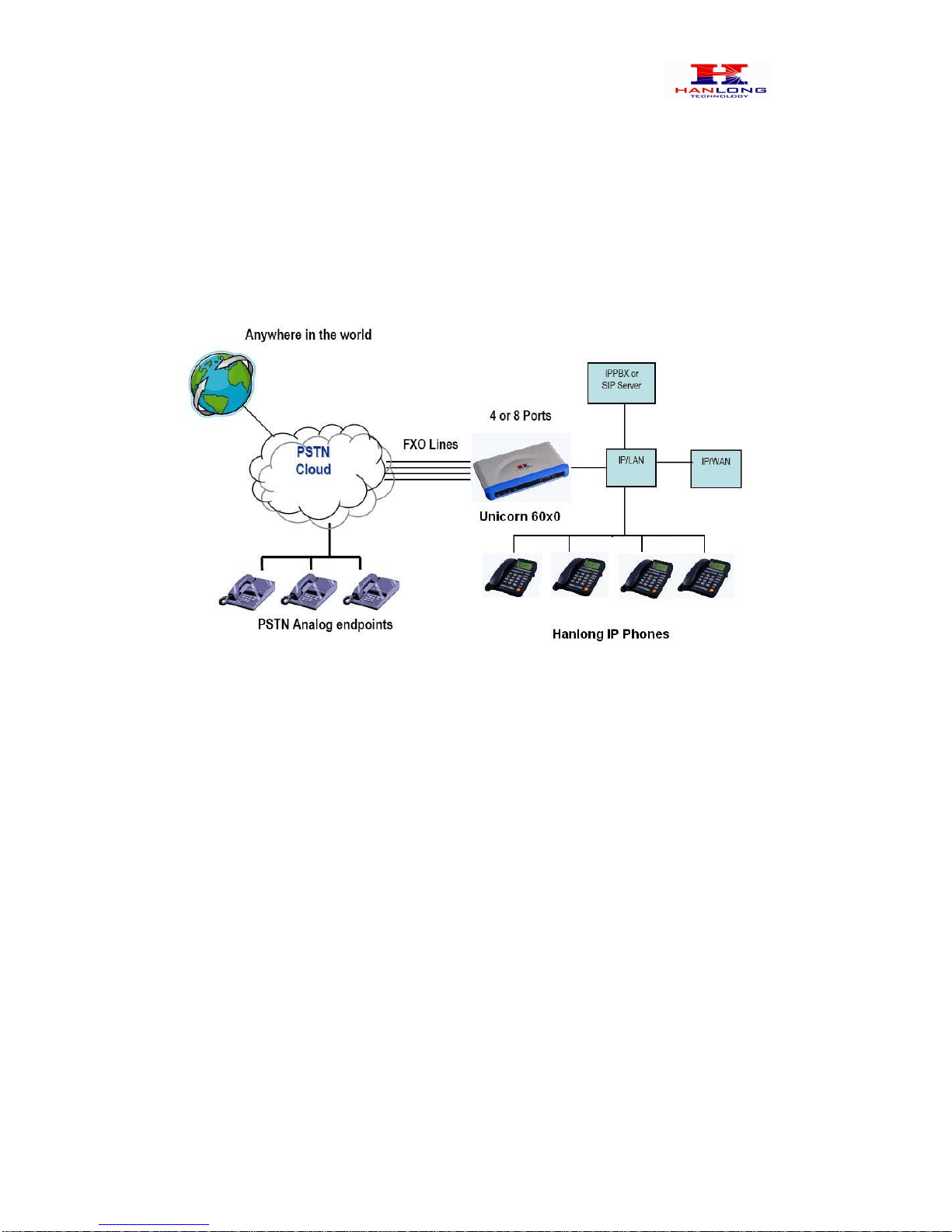

3.1 Functional Diagram of IP-PBX & Unicorn 60x0

Hanlong Technology Co., Ltd Unicorn 60x0 User Manual Page 7 of 25

Firmware 1.0.0.29 Last Updated 8/2010

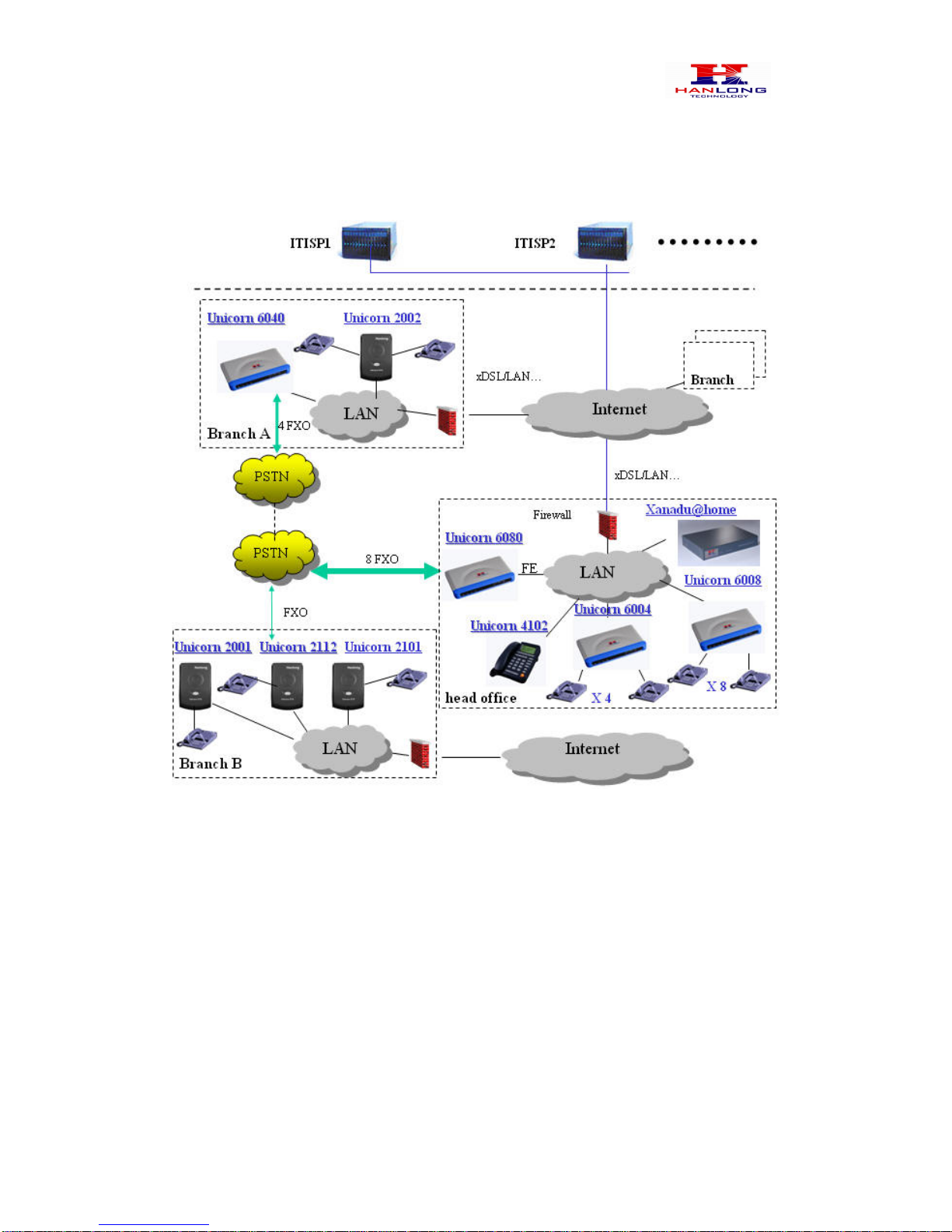

3.2 Unicorn 600x&Unicorn 60x0 Scenario/Toll-

Free Calling Between Locations

4 FEATURES

Unicorn 60x0 is a next generation IP voice and video gateway that features full

interoperability with leading IP-PBXs, SoftSwitches and SIP platforms. The Gateway

series offers superb voice and video quality, traditional telephony functionality, simple

configuration, feature rich functionality and an additional video port that enables the

gateway to act like a video surveillance gateway.

4.1 Software Features Overview

4 and 8 FXO port gateways

External power supply

Hanlong Technology Co., Ltd Unicorn 60x0 User Manual Page 8 of 25

Firmware 1.0.0.29 Last Updated 8/2010

Two RJ-45 ports (switched or routed)

TFTP and HTTP firmware upgrade support

Multiple SIP accounts, multiple SIP profiles (choice of 2 profiles per account)

Supports Audio Codecs: G711U/A, G723, G729A/B and GSM

G.168 – echo cancellation

Flexible DTMF transmission: In Audio, RFC2833, SIP Info or any combination of the 3

Selectable, multiple LBR coders per channel

T.38 compliant

TABLE 3: Unicorn 60x0 Software Features

Unicorn 60x0 FXO Analog Gateway Series

IP settings

Unicorn 6040:

4 ports; 4 SIP accounts w/ choice of 3 SIP Server profiles

Unicorn 6080:

8 ports; 8 SIP accounts w/ choice of 3 SIP Server profiles

Round-robin port scheduling to ensure available lines to

access PSTN networks

Telephone Interfaces 4 or 8 FXO, RJ11

Network Interface Two (2) 10M/100 Mbps, RJ-45

LED Indicators Power and Line LEDs

Voice over Packet

Capabilities G.168 compliant Echo Cancellation, Dynamic Jitter

Buffer, Modem detection & auto-switch to G.711

Voice Compression G.711U, G711A, G.723, G.729A/B, G.726

DHCP Server/Client Switch Mode and PPPoE

Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and

auto-switch to G.711 for Fax Pass-through

QoS Diffserve, TOS, 802.1 P/Q VLAN tagging

IP Transport RTP/RTCP and RTSP

PSTN Signaling FXO Loop start, Current Disconnect.

DTMF Method Flexible DTMF transmission method,

User interface of In-audio, RFC2833, and SIP Info

IP Signaling SIP (RFC 3261)

Provisioning TFTP and HTTP

Control TLS and SIPS (pending)

Management Syslog support,remote management using Web browser

Short and long haul REN3: Up to150 ft on 24 AWG line

Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based

CID

Polarity Reversal / Wink Yes (Detection only). The PSTN lines will need to be

subscribed to PR service from the Service Provider.

EMC Unicorn 60x0: EN55022 Class B, CFR Part 15 Class B,

EN55024;

Hanlong Technology Co., Ltd Unicorn 60x0 User Manual Page 9 of 25

Firmware 1.0.0.29 Last Updated 8/2010

Unicorn 6040: FCC, CE (in addition)

Safety Unicorn 60x0: EN60950-1 Unicorn 6080: UL60950-1 (in

addition)

4.2 Hardware Specification

TABLE 4: Hardware Specification Of Unicorn 60X0

LAN interface 2xRJ45 10/100Mbps

LED 4 or 8 LEDs (GREEN)

Universal Switching

Power Adaptor Input: 100-240V AC, 50/60Hz, 0.5A Max

Output: 9V DC, 2A UL certified

Dimension 225mm (L) x 172mm (W) x 42mm (H)

Weight 0.29 lbs (3.5 oz)

Temperature 32~104°F / 0~40°C

Humidity 10% - 90% (non-condensing)

Compliance FCC, CE

5 CONFIGURATION GUIDE

5.1 Configuration With Web Browser

The Unicorn 60x0 has an embedded Web server that will respond to HTTP GET/POST

requests. It also has embedded HTML pages that allow a user to configure the gateway

through any common web browser.

The GUI interface can be download at bellow:

http://www.hanlongtek.com/books/6080_gui.rar

This gui include bellow pages:

1. SCREENSHOT OF DEVICE STATUS PAGE

2. SCREENSHOT OF BASIC OPTIONS PAGE

3. SCREENSHOT OF SUPPER OPTIONS PAGE

4. SCREENSHOT OF PROFILE 1 PAGE

5. SCREENSHOT OF PROFILE 2 PAGE

6. SCREENSHOT OF FXO PORTS PAGE

5.1.1 Accessing The Web Configuration Menu

The Unicorn 60x0 HTML configuration menu can be accessed via LAN or WAN port:

Hanlong Technology Co., Ltd Unicorn 60x0 User Manual Page 10 of 25

Firmware 1.0.0.29 Last Updated 8/2010

From the LAN port:

1. Directly connect a computer to the LAN port.

2. Open a command window on the computer

3. Type in “ipconfig /release”, the IP address etc. becomes 0.

4. Type in “ipconfig /renew”, the computer gets an IP address in 192.168.22.x segment by

default

5. Open a web browser, type in the default gateway IP address. http://192.168.22.1.

You will see the login page of the device.

From the WAN port:

The WAN port HTML configuration option is disabled by default from factory. To access

the HTML configuration menu from the WAN port:

1. Enable the “WAN Port Web Access” option via IVR option 12.

2. Find the WAN IP address of the Unicorn 60x0 using voice prompt menu option 02.

3. Access the Unicorn 60x0 Web Configuration page by the following URI via WAN port:

http:// Unicorn 60x0 -IP-Address (the Unicorn 60x0 IP-Address is the WAN IP address for

the Unicorn 60x0).

NOTE: If using a web browser to enter the configuration page, strip the leading “0”s

because the browser will parse in octet. (i.e. if the IP address is: 192.168.001.014, please

type in: 192.168.1.14).

5.2 End User Configuration

Once the HTTP request is entered and sent from a Web browser, the user will see a log in

screen. There are two default passwords for the login page:

User Password: Level:

End User Level 1234 Only Status and Basic Settings

Administrator Level admin Browse all pages

FIGURE 3: Screen-Shot Of Unicorn 60x0 Log-In Screen

Table des matières

Autres manuels Hanlong Porte

Hanlong

Hanlong Unicorn 600 Series Manuel utilisateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
