Handson Technology

User Guide

MAX7218 8x8 Dot Matrix Display Module

This is 8x8 (row by column 64x LED) dot matrix LED displays module based on MAX7219

IC. The displays are designed so that they can be mounted in a horizontal chain and can also

be expanded in a vertical plane allowing versatile displays panel to be built. A convenient 3-

wire serial interface connects to all common controller board like Arduino or Raspberry.

Individual dot may be addressed and updated without rewriting the entire display. This

module can be daisy chain to form a display panel for scrolling message board.

SKU: DSP-1172

Brief Data:

Matrix Size: 8x8 ( 64-Dots)

Display Size: 1.3”.

Display Color: Red.

Interface: 3-Wires Serial Interface.

Daisy chain for multiple modules.

Operating voltage: 4.5 ~ 5V.

Module size: 5 x 3.2 x 1.5cm (L x W x H).

Mounting Hole: M3.

www.handsontec.com

MAX7291 Module Matrix Connection:

Arduino Connection Examples:

Now let’s connect the 8×8 LED Matrix module to the Arduino Board. Here’s the circuit schematic:

www.handsontec.com

Connecting Table:

Arduino

MAX7219 Module

VCC

GND

DIN

CLK

Once we wire up the modules we are ready to take a look at the Arduino code of the first example. We will use the

MaxMatrix library which can be downloaded from GitHub.

Copy and paste the below sketch to Arduino IDE and upload to Arduino Uno board:

8x8 LED Matrix MAX7219 Example 01

Based on the following library:

GitHub | riyas-org/max7219 https://github.com/riyas-org/max7219

#include <MaxMatrix.h>

int DIN =7;// DIN pin of MAX7219 module

int CLK =6;// CLK pin of MAX7219 module

int CS =5;// CS pin of MAX7219 module

int maxInUse =1;

MaxMatrix m(DIN,CS,CLK,maxInUse);

char A[] ={4,8,

B01111110,

B00010001,

B01111110,

};

char B[] ={4,8,

B01111111,

B01001001,

B00110110,

};

char smile01[] ={8,8,

B00111100,

B01000010,

B10010101,

B10100001,

B10010101,

B01000010,

B00111100

};

char smile02[] ={8,8,

B00111100,

B01000010,

B10010101,

B10010001,

B10010101,

B01000010,

www.handsontec.com

B00111100

};

char smile03[] ={8,8,

B00111100,

B01000010,

B10100101,

B10010001,

B10100101,

B01000010,

B00111100

};

void setup() {

m.init(); // MAX7219 initialization

m.setIntensity(8); // initial led matrix intensity, 0-15

}

void loop() {

// Seting the LEDs On or Off at x,y or row,column position

m.setDot(6,2,true);

delay(1000);

m.setDot(6,3,true);

delay(1000);

m.clear(); // Clears the display

for (int i=0;i<8;i++){

m.setDot(i,i,true);

delay(300);

}

m.clear();

// Displaying the character at x,y (upper left corner of the character)

m.writeSprite(2,0,A);

delay(1000);

m.writeSprite(2,0,B);

delay(1000);

m.writeSprite(0,0,smile01);

delay(1000);

m.writeSprite(0,0,smile02);

delay(1000);

m.writeSprite(0,0,smile03);

delay(1000);

for (int i=0;i<8;i++){

m.shiftLeft(false,false);

delay(300);

}

m.clear();

}

Once successfully upload, an image will be displayed on the module:

www.handsontec.com

Next let’s take a look at the scrolling text example and see what’s different. Copy and paste the below sketch to

Arduino IDE and upload to Arduino Uno board:

8x8 LED Matrix MAX7219 Scrolling Text Example

Based on the following library:

GitHub | riyas-org/max7219 https://github.com/riyas-org/max7219

#include <MaxMatrix.h>

#include <avr/pgmspace.h>

PROGMEM const unsigned char CH[] ={

3,8,B00000000,B00000000,B00000000,B00000000,B00000000,// space

1,8,B01011111,B00000000,B00000000,B00000000,B00000000,// !

3,8,B00000011,B00000000,B00000011,B00000000,B00000000,// "

5,8,B00010100,B00111110,B00010100,B00111110,B00010100,// #

4,8,B00100100,B01101010,B00101011,B00010010,B00000000,// $

5,8,B01100011,B00010011,B00001000,B01100100,B01100011,// %

5,8,B00110110,B01001001,B01010110,B00100000,B01010000,// &

1,8,B00000011,B00000000,B00000000,B00000000,B00000000,// '

3,8,B00011100,B00100010,B01000001,B00000000,B00000000,// (

3,8,B01000001,B00100010,B00011100,B00000000,B00000000,// )

5,8,B00101000,B00011000,B00001110,B00011000,B00101000,// *

5,8,B00001000,B00001000,B00111110,B00001000,B00001000,// +

2,8,B10110000,B01110000,B00000000,B00000000,B00000000,// ,

4,8,B00001000,B00001000,B00001000,B00001000,B00000000,// -

2,8,B01100000,B01100000,B00000000,B00000000,B00000000,// .

4,8,B01100000,B00011000,B00000110,B00000001,B00000000,// /

4,8,B00111110,B01000001,B01000001,B00111110,B00000000,// 0

3,8,B01000010,B01111111,B01000000,B00000000,B00000000,// 1

4,8,B01100010,B01010001,B01001001,B01000110,B00000000,// 2

4,8,B00100010,B01000001,B01001001,B00110110,B00000000,// 3

4,8,B00011000,B00010100,B00010010,B01111111,B00000000,// 4

4,8,B00100111,B01000101,B01000101,B00111001,B00000000,// 5

4,8,B00111110,B01001001,B01001001,B00110000,B00000000,// 6

4,8,B01100001,B00010001,B00001001,B00000111,B00000000,// 7

4,8,B00110110,B01001001,B01001001,B00110110,B00000000,// 8

4,8,B00000110,B01001001,B01001001,B00111110,B00000000,// 9

2,8,B01010000,B00000000,B00000000,B00000000,B00000000,// :

2,8,B10000000,B01010000,B00000000,B00000000,B00000000,// ;

3,8,B00010000,B00101000,B01000100,B00000000,B00000000,// <

3,8,B00010100,B00010100,B00010100,B00000000,B00000000,// =

3,8,B01000100,B00101000,B00010000,B00000000,B00000000,// >

4,8,B00000010,B01011001,B00001001,B00000110,B00000000,// ?

5,8,B00111110,B01001001,B01010101,B01011101,B00001110,// @

4,8,B01111110,B00010001,B00010001,B01111110,B00000000,// A

4,8,B01111111,B01001001,B01001001,B00110110,B00000000,// B

4,8,B00111110,B01000001,B01000001,B00100010,B00000000,// C

4,8,B01111111,B01000001,B01000001,B00111110,B00000000,// D

4,8,B01111111,B01001001,B01001001,B01000001,B00000000,// E

4,8,B01111111,B00001001,B00001001,B00000001,B00000000,// F

4,8,B00111110,B01000001,B01001001,B01111010,B00000000,// G

4,8,B01111111,B00001000,B00001000,B01111111,B00000000,// H

3,8,B01000001,B01111111,B01000001,B00000000,B00000000,// I

4,8,B00110000,B01000000,B01000001,B00111111,B00000000,// J

4,8,B01111111,B00001000,B00010100,B01100011,B00000000,// K

4,8,B01111111,B01000000,B01000000,B01000000,B00000000,// L

5,8,B01111111,B00000010,B00001100,B00000010,B01111111,// M

5,8,B01111111,B00000100,B00001000,B00010000,B01111111,// N

4,8,B00111110,B01000001,B01000001,B00111110,B00000000,// O

4,8,B01111111,B00001001,B00001001,B00000110,B00000000,// P

4,8,B00111110,B01000001,B01000001,B10111110,B00000000,// Q

4,8,B01111111,B00001001,B00001001,B01110110,B00000000,// R

www.handsontec.com

4,8,B01000110,B01001001,B01001001,B00110010,B00000000,// S

5,8,B00000001,B00000001,B01111111,B00000001,B00000001,// T

4,8,B00111111,B01000000,B01000000,B00111111,B00000000,// U

5,8,B00001111,B00110000,B01000000,B00110000,B00001111,// V

5,8,B00111111,B01000000,B00111000,B01000000,B00111111,// W

5,8,B01100011,B00010100,B00001000,B00010100,B01100011,// X

5,8,B00000111,B00001000,B01110000,B00001000,B00000111,// Y

4,8,B01100001,B01010001,B01001001,B01000111,B00000000,// Z

2,8,B01111111,B01000001,B00000000,B00000000,B00000000,// [

4,8,B00000001,B00000110,B00011000,B01100000,B00000000,// \ backslash

2,8,B01000001,B01111111,B00000000,B00000000,B00000000,// ]

3,8,B00000010,B00000001,B00000010,B00000000,B00000000,// hat

4,8,B01000000,B01000000,B01000000,B01000000,B00000000,// _

2,8,B00000001,B00000010,B00000000,B00000000,B00000000,// `

4,8,B00100000,B01010100,B01010100,B01111000,B00000000,// a

4,8,B01111111,B01000100,B01000100,B00111000,B00000000,// b

4,8,B00111000,B01000100,B01000100,B00101000,B00000000,// c

4,8,B00111000,B01000100,B01000100,B01111111,B00000000,// d

4,8,B00111000,B01010100,B01010100,B00011000,B00000000,// e

3,8,B00000100,B01111110,B00000101,B00000000,B00000000,// f

4,8,B10011000,B10100100,B10100100,B01111000,B00000000,// g

4,8,B01111111,B00000100,B00000100,B01111000,B00000000,// h

3,8,B01000100,B01111101,B01000000,B00000000,B00000000,// i

4,8,B01000000,B10000000,B10000100,B01111101,B00000000,// j

4,8,B01111111,B00010000,B00101000,B01000100,B00000000,// k

3,8,B01000001,B01111111,B01000000,B00000000,B00000000,// l

5,8,B01111100,B00000100,B01111100,B00000100,B01111000,// m

4,8,B01111100,B00000100,B00000100,B01111000,B00000000,// n

4,8,B00111000,B01000100,B01000100,B00111000,B00000000,// o

4,8,B11111100,B00100100,B00100100,B00011000,B00000000,// p

4,8,B00011000,B00100100,B00100100,B11111100,B00000000,// q

4,8,B01111100,B00001000,B00000100,B00000100,B00000000,// r

4,8,B01001000,B01010100,B01010100,B00100100,B00000000,// s

3,8,B00000100,B00111111,B01000100,B00000000,B00000000,// t

4,8,B00111100,B01000000,B01000000,B01111100,B00000000,// u

5,8,B00011100,B00100000,B01000000,B00100000,B00011100,// v

5,8,B00111100,B01000000,B00111100,B01000000,B00111100,// w

5,8,B01000100,B00101000,B00010000,B00101000,B01000100,// x

4,8,B10011100,B10100000,B10100000,B01111100,B00000000,// y

3,8,B01100100,B01010100,B01001100,B00000000,B00000000,// z

3,8,B00001000,B00110110,B01000001,B00000000,B00000000,// {

1,8,B01111111,B00000000,B00000000,B00000000,B00000000,// |

3,8,B01000001,B00110110,B00001000,B00000000,B00000000,// }

4,8,B00001000,B00000100,B00001000,B00000100,B00000000,// ~

};

int DIN =7;// DIN pin of MAX7219 module

int CLK =6;// CLK pin of MAX7219 module

int CS =5;// CS pin of MAX7219 module

int maxInUse =2;

MaxMatrix m(DIN,CS,CLK,maxInUse);

byte buffer[10];

char text[]= "Handson Technology ";// Scrolling text

void setup() {

m.init(); // module initialize

m.setIntensity(15); // dot matix intensity 0-15

}

void loop() {

printStringWithShift(text,100); // (text, scrolling speed)

www.handsontec.com

}

// Display=the extracted characters with scrolling

void printCharWithShift(char c,int shift_speed){

if (c <32)return;

c -= 32;

memcpy_P(buffer,CH +7*c,7);

m.writeSprite(32,0,buffer);

m.setColumn(32 +buffer[0], 0);

for (int i =0;i <buffer[0]+1;i++)

{

delay(shift_speed);

m.shiftLeft(false,false);

}

// Extract the characters from the text string

void printStringWithShift(char*s,int shift_speed){

while (*s != 0){

printCharWithShift(*s,shift_speed);

s++;

}

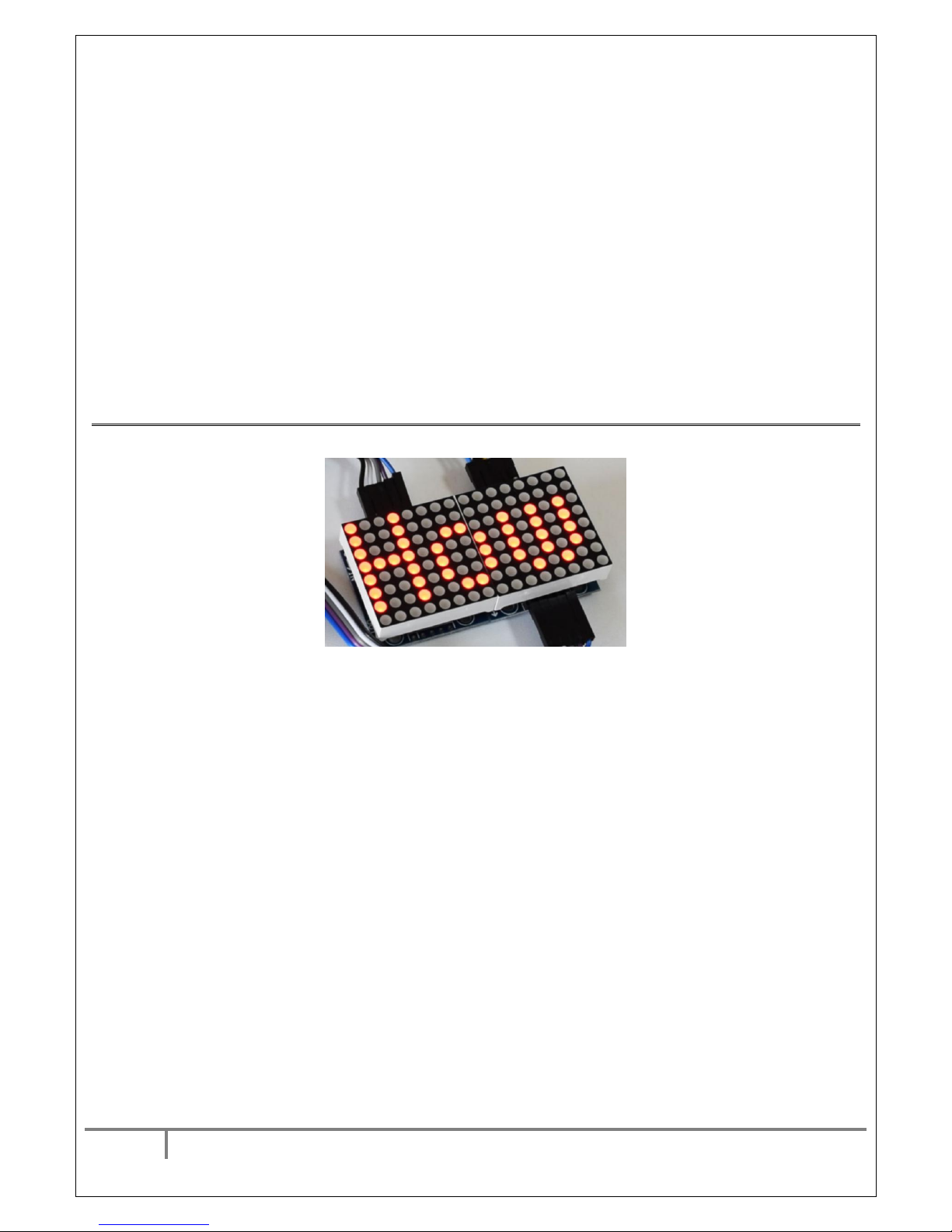

Once successfully upload, a message will be scrolled across the modules.
