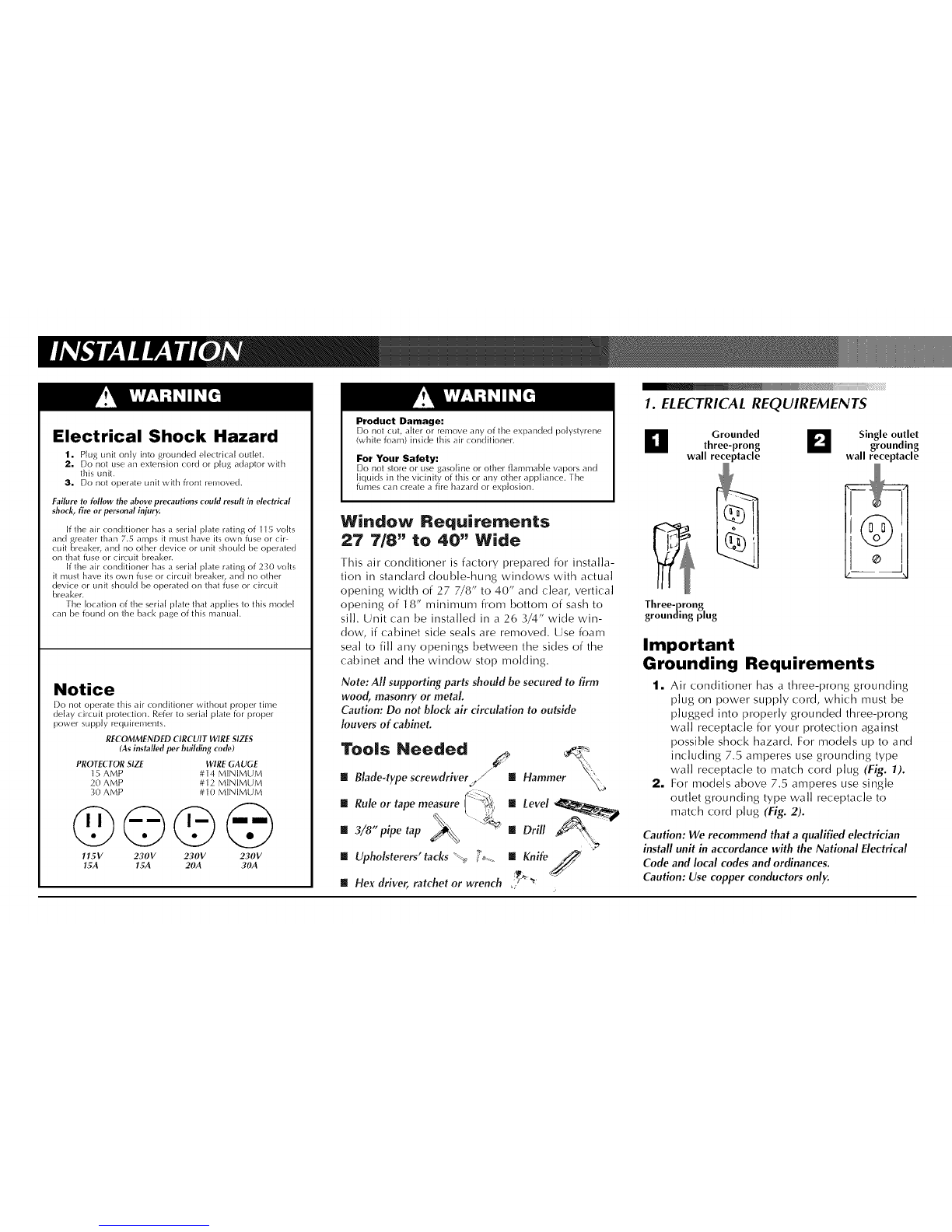

Electrical Shock Hazard
1. Plug unit only imo grounded electrical oufleL
2. Do not use an extension cord or pkb_ adaptor with
this unit.
3. Do not operate unff wffh front renloved.
Failure to follow the above precautions could result in electrical
shock, fire or personal injury.
If the air conditioner has a serial plate rating of 115 volts
and greater than 7.5 anlps ff nlust have its own fuse or (ir-
(uff breaker, and no other device or unit should be operated
on that fuse or _ircuit breaker.
If the air conditioner has a serial plate rating of 2_0 volts
ff nlust have its own fuse or circuff breaker, and no other
device or unff should be operated on that filse or circuff
breaker.
The location of the serial plate that applies to this model
call be found on the back page of this nlanuah
Notice
Do not operate this air conditioner without proper time
delay circuit protection. Refer to serial plate for proper
power supply requirements.
RECOMMENDED CIRCUIT WIRE SIZES
(Asinstalled per building code)
PROTECTORSIZE WIREGAUGE
15 AMP #1d MINIMUM
20 AMP #12 MINIMUM
30 AMP #10 MINIMUM
@©©@
ll5V 230V 230V 230V
15A 15A 20A 30A
Product Damage:
Do not cut, alter or remow! any of the expanded polystyrene
(whffe foam) inside this air conditioner.
For Your Safety:
Do not store or use gasoline or other flanlmable vapors and
liquids in the vicinffy of this or any other appliance. The
fumes call create a fire hazard or explosion.
Window Requirements
27 W8" to 40" Wide
This air conditioner is factory prepared for installa-
tion in standard double-hung windows with actual
opening width of 27 7/8" to 40" and clear, vertical
opening of 18" nfinin/um from bottom of sash to
sill. Unit can be installed in a 26 3/4" wide win-
dow, if cabinet side seals are removed. Use foam
seal to fill any openings between the sides of the
cabinet and the window stop molding.
Note: All supporting parts should be secured to firm
wood, masonry or metal
Caution: Do not block air circulation to outside
louvers of cabinet.
Too|s Needed ,_ ,_,
[] Blade-type screwdriver j// Hamme
[] Rule or tape measure [] Level
[] 3/8"pipe tap >_ [] Drill
[] Upholsterers'tacks "%3 ii_'__ [] Knife /_//
¢:. ,,//Y
[] Hex drive_ ratchet or wrench ) "
1. ELECTRICAL REQUIREMENTS
Grounded DSingle outlet
three-prong grounding
wall receptacle wall receptacle
Three-prong
grounding plug
Important
Grounding Requirements
1. Air conditioner has a three-prong grounding
plug on power supply cord, which must be
plugged into properly grounded three-prong
wall receptacle for your protection against
possible shock hazard. For models up to and
including 7.5 amperes use grounding type
wall receptacle to match cord plug (Fig,. 1).
2. For models above 7.5 amperes use single
outlet grounding type wall receptacle to
match cord plug (Fig. 2).
Caution: We recommend that a qualified electrician
install unit in accordance with the National Electrical
Code and local codes and ordinances.
Caution: Use copper conductors only.
