Hakko Electronics 933 Manuel utilisateur

ヒーター交換取扱説明書

No.

A1232(933/934 用 )

危険







     



  

    

       







● 



●     



● 



      







    

 

 







 

 









        

 











  





● 





 

















曲げる

2020.3

MA00225XZ200330

WARNING

Grounding wire

connected to back.

Heater Tube

64mm

Model

933/934

Specification

100, 110V

220~240V

Number

052

140

Bend

CAUTION

Solder the wires so that the solder in the lead hole

can be seen from both sides of the board. Insert the

heater lead (RED) from the opposite of IC.

F. Cut away the unneeded portion of the lead

wires and then cover the heater terminal with

the heater tube.

G. Securely insert the grounding spring into the

round sleeve on the opposite side from the lead

wire.

H. Replace the board along the groove on the grip,

making sure that the temperature button socket

is facing the right direction.

I. Reassemble by following the disassembly

procedure in reverse, and adjust the CAL to

calibrate the unit.

-When calibrating the soldering iron,use a new tip

as the temperature of a used tip may be lower

than normal due to deterioration.

-Do not set the temperature above 480℃ during

the CAL adjustment, as this may damage the unit.

1. After confirming that the power is off, pull out

the currently inserted button and insert the

desired one.

2. Pull back the handle cover to expose the CAL

adjustment hole.

3. Insert the plug of the power cord into the outlet.

The heater power lamp will begin blinking when

the soldering iton has reached the set temper-

ature.

4. While measuring the tip temperature; with a tip

thermometer, adjust the CAL using straight-

edge(-)screw driver. Turning the CAL clockwise

increase the temperature; turning it counter-

clockwise decrease the temperature.

If you have the P.W.B. with the hole for sensor

lead (blue) is located 2mm away from the edge,

please bend the sensor lead as shown in the figure

below. Then cover the heater tube.

Temp. Calibration

Sensor(Blue)

Heater(Red)

Number (052 or 140)

CAUTION

INSTRUCTIONMANUAL

FORREPLACING

THEHEATINGELEMENT

No.A1232(100V), No.A1272(110V),

No.A1273(220V), No.A1274(230V),

No.A1275(240V)

Always remove the power plug from the

outlet and wait for the soldering iron to

cool completely before replacing parts

or performing maintenance. Leaving the

unit plugged in during these operations

is dangerous and may result in electric

shock, failure, or reduced performance.

Replacing the Heating

Element

A. Remove the temp. button.

B. Remove the nut and disassemble the tip section.

C. Remove the screws and then remove the nipple.

D. Carefully pull out the heating element and

P.W.B., then remove the grounding spring.

E. Place a new heating element on the board as

shown in the figure below and solder it into

place. Check the number printed on the new

heating element. Errors in replacement may

result in failure or accident.

Ce manuel convient aux modèles suivants

Autres manuels Hakko Electronics Outils électriques

Hakko Electronics

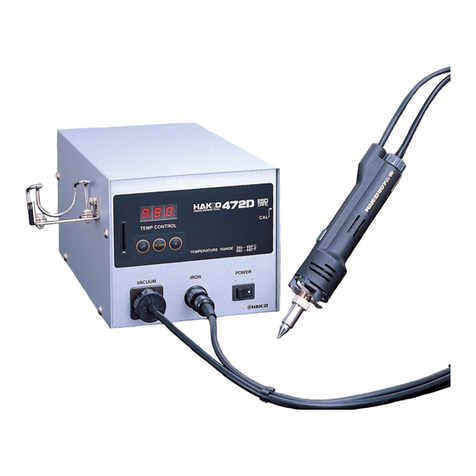

Hakko Electronics 807 Manuel utilisateur
