Haier HBCN05EBB - Beverage Centers - 4.6 cu. ft.... Manuel utilisateur

Entertainment Center

Centre de Divertissement

Cava de Vinos

User Manual

Model # HBCN05EBB, HBCN02EBB

Guide de l’Utilisateur

Modéle # HBCN05EBB, HBCN02EBB

Manual del Usuario

Para Modelo de # HBCN05EBB, HBCN02EBB

Quality •Innovation •Style

(HBCN05EBB)

(Features will vary per model)

IMPORTANT SAFEGUARDS

1) Read all of the instructions before using this appliance.

2) Use this appliance only for its intended purpose as described in this use and

care guide.

3) This entertainment center must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the

installation section.

4) Never unplug your entertainment center by pulling on the power cord.

Always grasp the plug firmly and pull straight out from the outlet.

5) Repair or replace immediately, all electric service cords that have become

frayed or otherwise damaged. Do not use a cord that shows cracks or abra-

sion damage along its length, the plug or the connector end.

6) Unplug your entertainment center before cleaning or before making any

repairs. Note: If for any reason this product requires service, we strongly

recommend that a certified technician performs the service.

7) If your old entertainment center is not being used, we recommend that you

remove the doors and leave the shelves in place. This will reduce the

possibility of danger to children.

8) This entertainment center should not be recessed or built-in an enclosed

cabinet. It is designed for freestanding installation only.

9) Do not operate your entertainment center in the presence of explosive fumes.

10) Your entertainment center was NOT designed to store perishable foods. Store

only bottled or canned beverages.

SAVE THESE INSTRUCTIONS

DANGER

English

Table Of Contents

PAGE

R4-6

Unpacking your entertainment center 4

Leveling your entertainment center 4

Proper Air Circulation 4

Electrical requirements 5

Use of extension cords 5

Install Limitations 5

Door Reversal 6

E7-8

General features 7

Adjustable temperature dial 7

Entertainment center insterior shelves 7

Normal operating sounds 8

G9-10

Cleaning and Maintenance 9

Defrosting 10

Power interruptions 10

Vacation & moving care 10

G11

Y12

Thank you for using our Haier product.

This easy-to-use manual will guide you

in getting the best use of your

entertainment center.

Remember to record the model and

serial number. They are on a label in

back of the entertainment center.

Model number

Serial number

Date of purchase

Staple your receipt to your manual.

English

Knowing Your Entertainment Center

Parts and Features

1. Thermostat Dial

(location varies per model)

2. Coated Storage Shelves (style and

quantity vary with model)

3. See-through Glass Door

4. Recessed Door Handle

5. Work Top

English

(HBCN05EBB)

(HBCN02EBB)

English

Installing Your Entertainment Center

Unpacking your Entertainment Center

1. Remove all packaging material. This includes the base and all adhesive tape

holding the entertainment center accessories inside and outside.

2. Inspect and remove any remains of packing, tape or printed materials before

powering on the entertainment center.

Leveling your Entertainment Center

• Your entertainment center has 2 leveling legs which are located at the bottom

of your entertainment center. After properly placing your entertainment center

in its final position, you can level your entertainment center.

• Leveling legs can be adjusted by turning them clockwise to raise your

entertainment center or by turning them counterclockwise to lower your

entertainment center. The entertainment center door will close easier when the

leveling legs are extended.

Proper Air Circulation

• To assure your entertainment center works at the maximum efficiency it was

designed for, you should install it in a location where there is proper air circu-

lation and electrical connections.

• The following are recommended clearances around the entertainment center:

Sides……………3/4 "(19mm)

Top....................2" (50mm)

Back..................2" (50mm)

English

Electrical Requirement

• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with

proper grounding to power the entertainment center.

• Avoid the use of three plug adapters or cutting off the third grounding in order

to accommodate a two plug outlet. This is a dangerous practice since it pro-

vides no effective grounding for the entertainment center and may result in

shock hazard.

Use of Extension Cords

• Avoid the use of an extension cord because of potential safety hazards under

certain conditions. If it is necessary to use an extension cord, use only a 3-wire

extension cord that has a 3-blade grounding plug and a 3-slot outlet that will

accept the plug. The marked rating of the extension cord must be equal to or

greater than the electrical rating of the appliance.

Install Limitations

• Do not install your entertainment center in any location not properly insulated

or heated e.g. garage etc. Your entertainment center was not designed to

operate in temperature settings below 55˚ Fahrenheit.

• Select a suitable location for the entertainment center on a hard even surface

away from direct sunlight or heat source e.g. radiators, baseboard heaters,

cooking appliances etc. Any floor unevenness should be corrected with the

leveling legs located at the bottom.

English

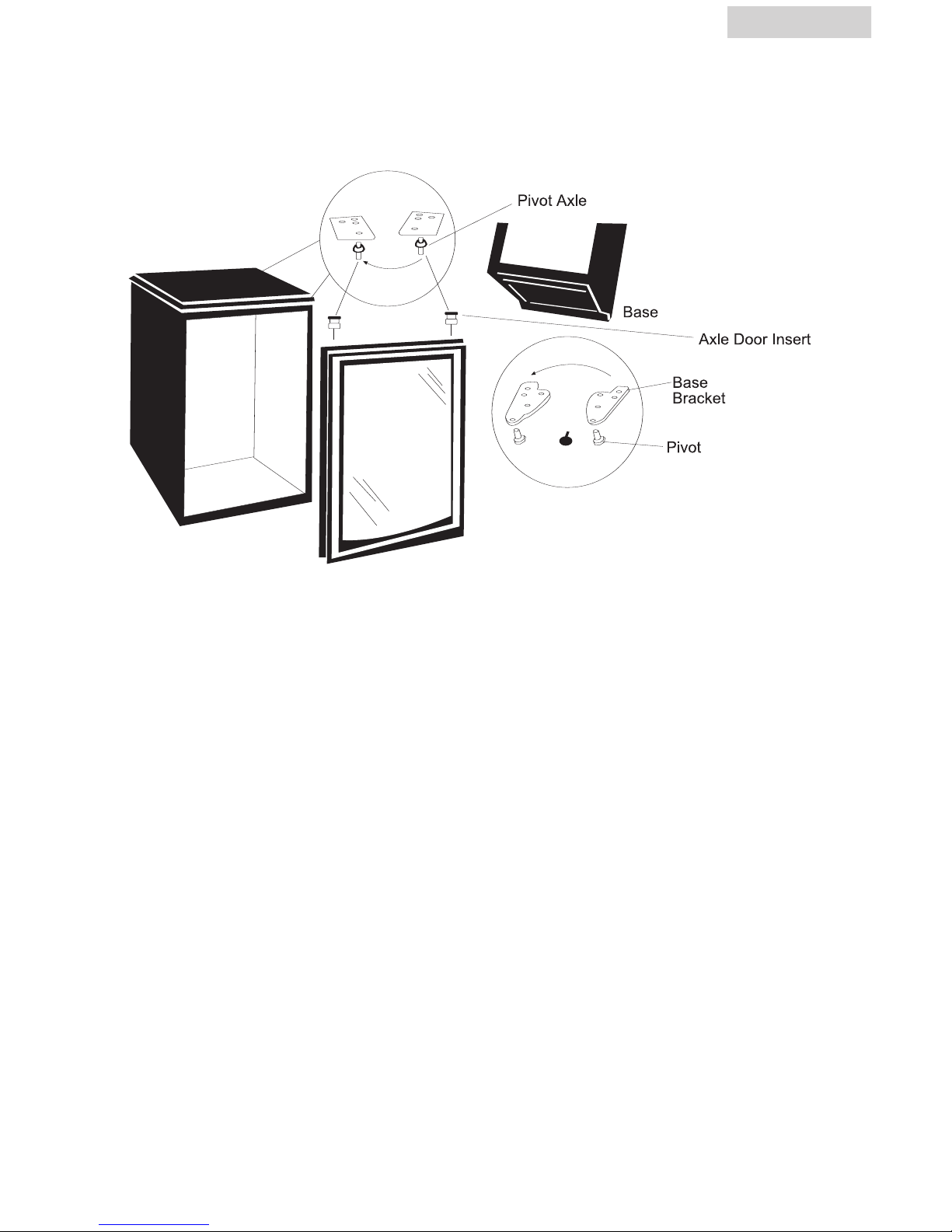

Door Reversal Instructions

(HBCN05EBB Only)

Your entertainment center is built with a reversible door. You have the choice of

either opening it from the left or the right side. In order to reserve the opening

direction of your door, please follow these simple instructions.

Tilt the entertainment center backwards. Secure the rear from sliding. Tape the

door to the cabinet to prevent from falling.

1. Remove the 3 hexagonal screws from base bracket.

2. Remove the pivot holding the bottom of the door.

3. Separate the door from the cabinet and remove the pivot axle from the upper

side of the door. Remove and reinstall upper and lower axle door inserts to

opposite side.

4. Install the pivot axle to the opposite side.

5. Re-attach the door to the cabinet and secure with tape.

6. Attach the base bracket to the opposite side

7. Install the bottom pivot aligning with the lower pivot insert on the door. Attach

the 3 hexagonal screws to base bracket.

8. Remove tape.

9. As the unit was tilted, wait 24 hours before plugging it in.

English

Entertainment Center Features & Use

General Features

Adjustable Temperature Dial:

(location varies per model)

Your entertainment center will automatically maintain the

temperature level you select. The temperature control dial

has 3 settings plus off. MIN is the warmest. MAX is the cold-

est. Turning the dial to OFF stops cooling in the entertain-

ment

center. At first, set the dial to MED and allow 24 hours to

pass before adjusting the temperature to your needs.

1. Located on the rear near bottom for model HBCN02EBB.

2. Located on the interior of the unit on right side for model HBCN05EBB.

(

)

Entertainment Center Interior Shelves

(Shelves will vary per model purchased)

TToorreemmoovveeoorrrreeppllaacceeaaffuullll--wwiiddtthhsslliiddee--oouuttsshheellff::

1. Gently tilt the shelf up and slide forward until the shelf has been

completely removed.

2. To replace the shelf, gently slide the shelf back.

English

Normal Operating SoundsYou May Hear

• Boiling water, gurgling sounds or slight vibrations that are the result of

the refrigerant circulating through the cooling coils.

• The thermostat control will click when it cycles on and off.

Warning: To avoid electric shock always unplug your

entertainment center before cleaning. Ignoring this

warning may result in death or injury.

Caution: Before using cleaning products, always read and

follow manufacturer’s instructions and warnings to

avoid personal injury or product damage.

General:

• Prepare a cleaning solution of 3-4 tablespoons of

baking soda mixed with warm water. Use sponge or

soft cloth, dampened with the cleaning solution, to

wipe down your entertainment center.

• Rinse with clean warm water and dry with a soft

cloth.

• Do not use harsh chemicals, abrasives, ammonia,

chlorine bleach,concentrated detergents, solvents or

metal scouring pads. SOME of these chemicals may

dissolve, damage and/or discolor your entertain-

ment center.

• Clean door gaskets every three months according to

general instructions. Gaskets must be kept clean and

pliable to assure a proper seal.

• Petroleum jelly applied lightly on the hinge side of

gaskets will keep the gasket pliable and assure a

good seal.

Door Gaskets:

Proper Entertainment Center Care

and Cleaning

Cleaning and Maintenance

English
