Front Load Washing Machine

FRONT LOAD WASHING MACHINE

Service Manual

Suited model:

Features

300mm diameter porthole, door may be open at a 180 degrees.

Class-A energy-saving; Homocentric tubs with higher energy efficiency

Multi-gear speed controller

Unique gasket design featuring no residual water hidden inside

Delay time adjustive

Large wash load capacity 5kg,Europe standard ABC

Serial Number:

SM-HMS1000TV 01

Version: 1.00 Edition: 2006-6

Model:HMS1000TVE

HMS1000TVE

Front Load Washing

Page 1

1. Contents----------------------------------------------------------------------------------------1

2. Product code illumination and series introduction-----------------------------------2

3. Features ---------------------------------------------------------------------------------------3

4. Specification ----------------------------------------------------------------------------------4

5. Safety --------------------- ---------------------------------------------------------------------6

6. Installation ------------------------------------------------------------------------------------9

7. Net dimension -------------------------------------------------------------------------------11

8. Names of the parts-------------------------------------------------------------------------12

9. Operational functions----------------------------------------------------------------------13

10. Program description table -------------------------------------------------------------15

11. Error display and troubleshooting----------------------------------------------------16

12. Wiring circuit ------------------------------------------------------------------------------24

13. Exploded view and list of parts-------------------------------------------------------25

Model:HMS1000TVE

Front Load Washing Machine

Page 2

PRODUCT CODE ILLUMINATION AND SERIES INTRODUCTION

Model code rule description

Model identification

Examples

It represents HMS series appearance with big window 180 opening window 1000rpm

spin speed.Spin speed is adjustive from 400 to 1000 rpm,and alse exclude spin(indicate"0")

temprature is also adjustive,you can it•s controlledby computer.

alse choose cold water.

HMS 1000 T V E

ABCDE

HMS1000TVE

A˖Serial code

B˖Max spin speed

C˖Temprature adjustive

D˖

E˖

Spin speed adjustive

Computer control

Model:HMS1000TVE

Front Load Washing Machine

Page 3

FEATURES

300mm diameter porthole, door may be open at a 180 degrees.

Facilitate view of wash process, facilitate unloading and easy to use with large porthole.

Multi-gear speed controller

According to different costuming you can slect corresponding spin speed from 400 to 1000 rpm.

Unique gasket design featuring no residual water hidden inside.

By the unique gasket washing machine can left no residual water hidden between outer drum and

board.

Model:HMS1000TVE

Front Load Washing Machine

Page ː

SPECIFICATION

Proposal 2006 New Sensor

Front load washing machines HMS1000TVE

Brand position center upper frame of door / chromed sticker

Model number serigraphy right top corner control panel

On white: silver / On silver : black or dark grey

1. Product identification 



Description of appliance Washing machine

Type of appliance (FS = standing, BI = built-in) FS

Supplier own brand Haier

Supplier bar code EAN

Mares computer code 

Commercial Brand / Model 

Commercial bar code EAN 

2. Key-Features



Energy efficiency class A

Washing performance class B

Spin efficiency class C

Programs n° 11

Capacity Kg Max. 5

Spin speed (max. / optional) rpm 1000-0

Noise level dB(A) 71

Energy consumption per wash circle * kWh 0.95

Water consumption* l <49

Residual dampness (spin result) %56%

Spin speed selector switch (steps) rpm 1000/800/600/400/0

Spin speed variator (stepless) rpm

Adjustable thermostat (water temp. adjust from -

to)°C 80 -

Drum capacity dry laundry / water kg / l 5/49

Auto water level adjust (depending on volume of filled in laundry) AWL

Washing time (max.) min 124(TBC)

Washing temperatures (program-controlled) °C 30/40/60/80

Certification's (CE / ISO 9001 / ISO 9002) CE / ISO 9001

Approvals (VDE/GS / TÜV/GS / IMQ) TÜV/GS (Rhl.)

*EN60456(60°C cycle, full load without pre-wash)



COLD 

3. Basics data



Unit dimensions (H x W x D) cm 86x48.5x59.5

Net weight kg 66

Voltage/frequency V/Hz 220-230V~50Hz

Input power / main fuse (intensity) W/A 1800/10

Work top / removable /

Control M = electromechanical, E=electronic,

F= fuzzy E

Drum S= stainless steel / Z= zinc coated S

Tub P= Polyprop./ S= stainless steel P

Door: 

aesthetic (R=round,Y= big eye, Q=

square) R

Diameter cm 30

Outer door frame S= stainless steel / M

= metal / P= plastic



Inner door G= glass / P=

plastic G

Detergent compartments n° 3

Removable compartment for liquid detergent -

Model:HMS1000TVE

Page

Front Load Washing

Delay timer (from - to) h0.5-24

Self cleaning suds pump 

Water inlet hose 

Water drain hose -

Adjustable feet n° 4

4. Safety systems



Auto door lock ADL

Motor overheating protection MOP

No heating without water NHW

Auto water cool-down (before drain 80°C boiled water) AWC

Water return protection WRP

Acqua Stop kit -

Child protection



5. Programs



1) Strong action /cotton cycles n°

2) Normal action / synthetics n°

3) Delicate action / wooll cycles n°

Pre-wash / wash 

Quick wash / super quick wash 

Rinse / soften 

Delicate / hand wash 

Wool / cashmere 

Soak / spin 

ƽ/ƽ

Drain 

Easy ironing



Optional function keys (additional program settings)



ON/OFF button



Half load -

Fussy -

Spin exclusion -

Spin speed selection rpm

High water level -

No Soak -

Rinse stop -

Delicate -

Cold wash

Delay Timer

Extra Rinse

⧏

Load Select

⧏

Easy Ironning

⧏

Temperature selection

5kg wash

⧏

Prewash

ƽƽ

ƽ

ƽƽ



Model:HMS1000TVE

Front Load Washing Machine

Page 6

Matters Needing Attention

.A separate earthed socket is required for the

power supply. The washing machine must be

positioned so that the plug is accessible.

2. Hold the plug and not the electric cable

when unplugging the washing machine.

3.Fuses in the power circuit should be rated for 15A.

If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

4. Do not touch or use the washing machine bare-

footed or when the hands or feet are wet.

5.Do not use flammable detergent or dry clean

ing agent; do not use flammable spray in

close vicinity to the washing machine; do not

remove or insert the plug in the presence of

flammable gas.

6. The door of the washing machine will become hot

during the heating process. Avoid contact with the

door during the heating process. For safety, keep

children away from the washing machine.

Model:HMS1000TVE

Front Load Washing

Page 7

9.The carpet must not obstruct the ventilation

openings in the base of the washing machine.

.The washing machine should not be install-

ed outdoors or in a damp place. In the

event of water leakage or splashes allow

the machine to dry naturally.

10.Keep away from heat sources and direct sun-

light to prevent plastic and rubber components

from aging.

11.During installation, ensure that the electric

cable is not trapped by the washing machine

and avoid damage to the electric cable.

During Use

1. Before use, check the joints of the filling hose, the

tap and the drainage hose for possible problems

from water pressure fluctuations. If joints are loose

or there is leakage, turn off the tap and repair. Do

not use the washing machine until the hoses are

properly fixed.

Keep the door slightly open when the washing

machine is not in use to prevent formation of

odors; do not cover the washing machine with

plastic cover so that inside dampness cannot

be kept in.

Matters Needing Attention

Model:HMS1000TVE

Front Load Washing

Page 8

3. Do not place heavy, heating source or wet

articles on the top of the washing machine.

4. Do not hot wash foam rubber or sponge-like

materials.

6. Do not open the detergent distribution drawer

during the wash cycle..

7. The door is fitted with a self-lock device and will not open until

2~3 minutes after the washing machine stops. Do not force

the door open. Do not open the door if water level can reach

the porthole.

8.After each wash program, turn off the tap to

prevent leakage; and unplug the washing

machine and wipe clean the lower part of

the porthole.

Steel wires in bras will pop

out during washing; never

wash bras containing steel

wires.

5. Before washing, do up zippers, buttons and

clothes straps and put small articles, such as

socks, laces or bras, into a washing bag or a

pillow.

Matters Needing Attention

Model:HMS1000TVE

Front Load Washing

Page 9

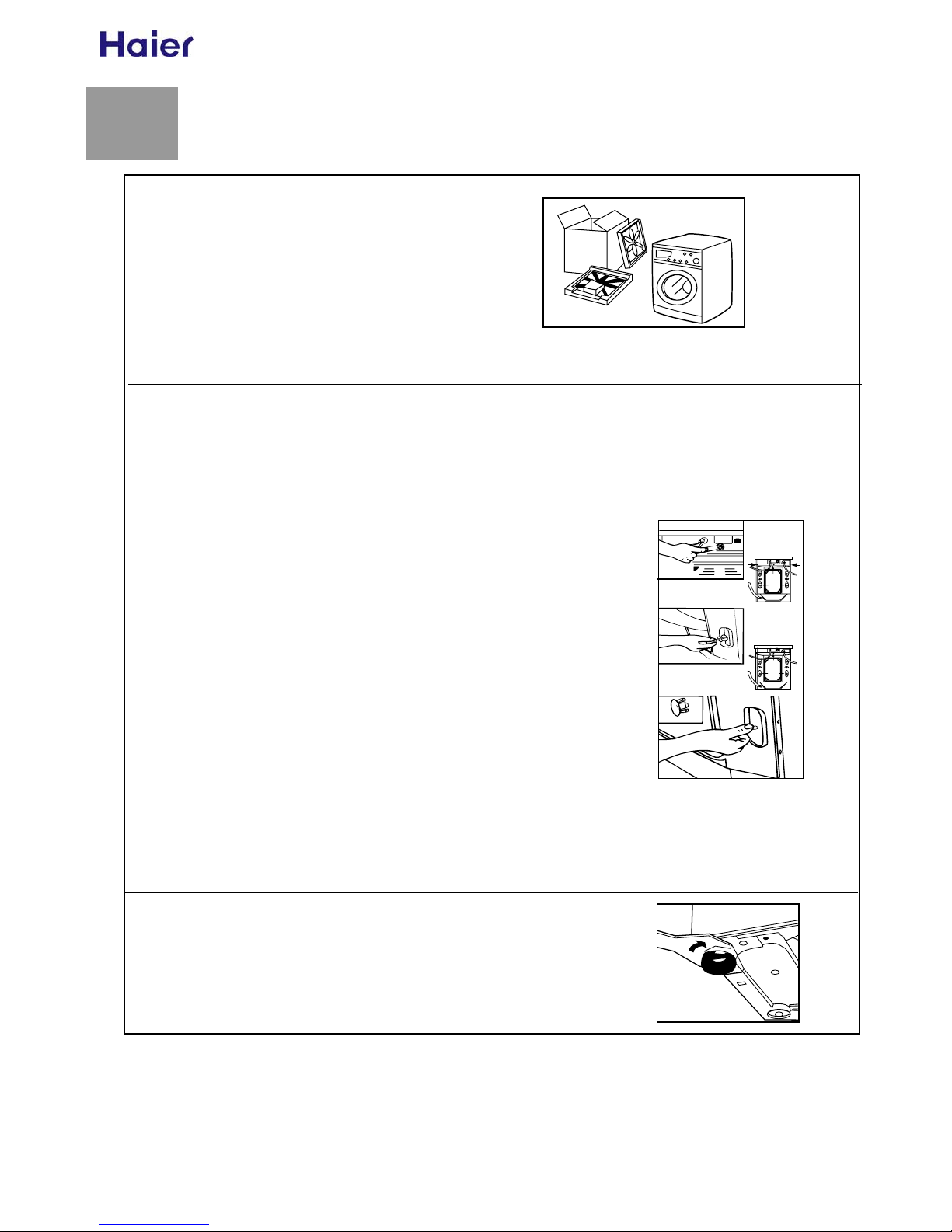

Fi g

Dismantle the packing bolts as shown in Fig. 2.

The packing bolts are designed for clamping anti-vibration components

inside of the washing machine during the transportation process.

Beforeuse:

1. Remove the back plate;

2. Remove the three packing bolts on the back plate and take out the

rubber hose;

3. Replace the back plate;

4. Fill the holes left by the packing bolts with plastic plugs.

(Attention: The packing bolts and rubber hose should be kept in a safe

place for later use)

Fig

Adjusting the washing machine

There are adjustable feet under the bottom of the washing machine.

Before use, the washing machine should be adjusted, as shown in

Fig. 3, so that it is level.

Fig.

Installation

Model:HMS1000TVE

Machine

5HPRYHDOOWKHSDFNLQJPDWHULDOVLQFOXGLQJWKHIRDPEDVH

WRSUHYHQWYLEUDWLRQGXULQJXVHDVVKRZQLQ)LJ

8SRQRSHQLQJRIWKHSDFNDJHZDWHUGURSVPD\EHVHHQRQWKH

SODVWLFEDJDQGWKHSRUWKROH7KLVLVQRUPDOSKHQRPHQRQ

UHVXOWLQJIURPZDWHUWHVWLQWKHIDFWRU\

Autres manuels pour Thermocool HMS1000TVE

Table des matières

Autres manuels Haier Rondelle

Haier

Haier HLP21 Manuel utilisateur

Haier

Haier LMA0120WPAB0 Manuel utilisateur

Haier

Haier HWM80-0528 Manuel utilisateur

Haier

Haier HW60-1001 Manuel utilisateur

Haier

Haier HWF80BW1 Manuel utilisateur

Haier

Haier XPB55-13S Manuel utilisateur

Haier

Haier Mini magical child XQBM23-12 Manuel utilisateur

Haier

Haier WMQ-12.P Manuel utilisateur

Haier

Haier HU-HA501 Guide de l'utilisateur

Haier

Haier HWM95-187S Manuel utilisateur

Haier

Haier HWM120-01 Manuel utilisateur

Haier

Haier HWF5000AW Instructions de montage

Haier

Haier HBF1255TVE Manuel utilisateur

Haier

Haier WD9900 Manuel utilisateur

Haier

Haier HW150-BP14986E Manuel utilisateur

Haier

Haier HW-D1050TVE Manuel utilisateur

Haier

Haier HWM90-0713S Manuel utilisateur

Haier

Haier HK1270TVEME Manuel utilisateur

Haier

Haier HLP021 - PULSATOR Portable Washer Manuel utilisateur

Haier

Haier Thermocool HMS1000TVE Manuel utilisateur

Haier

Haier HWD80-BP14636S Manuel utilisateur

Haier

Haier Mini magical child XQBM23-12 Manuel utilisateur

Haier

Haier XPB11-LA Guide de l'utilisateur

Haier

Haier XPB80-35 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
