Names of the parts

Top lid, I

Detergent box

Location of lint filter

Control panel seat

Inner tub

Control panel film

Pulsator

Cabinet

Lower cabinet

Top lid, II

Adjustable foot

Power cord

Drain hose

Fixing foot

(three)

Water absorption cushion Water inlet valve

Handle

Drain hose hanging hole

Back cover

Level meter

Meaning and description of the symbols

Contents marked with that symbol are actions forbidden

to perform. Performing of those action may result in damage of

the machine or influence the personal safety of the users.

Contents marked with that symbol are related to the

safety of the product and the personal safety of the users.

Please operate in strict conformity to the contents.

Warning sign

Forbidden sign

The ventilation

holes at the bottom

Soft object

Safety precautions

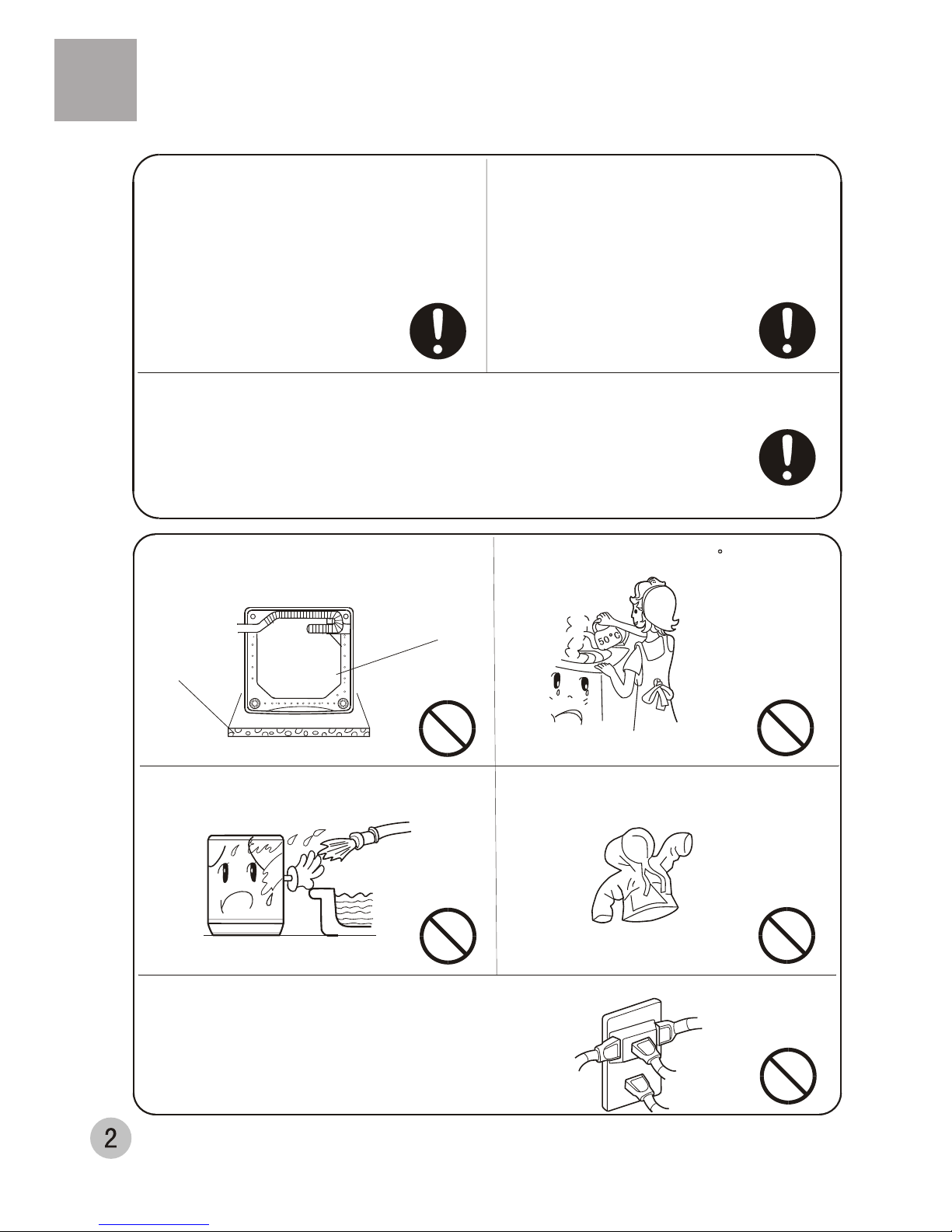

Do not put the machine at damp place like

the bathroom. Never wash it with water.

In case the washing machine is installed on ground with

carpet, do not block the ventilation hole with carpet.

Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the

plugging into the receptacle is loose, do not use the plug any more.

Do not wash water-proof laundries like the raincoat,

bike covers etc. to avoid abnormal vibrations in spinning.

Do not use water hotter than 50 C .

Please plug the power plug on special

receptacle. Be sure to use three-pins

power receptacle.Ensure that the earthing

prong of the power receptacle is earthed

reliably. Use leakage protector if possible.

In normalusage of the washing machine,

the power plug shall be ready to be pulled

or plugged with hand. Be sure to pull the

plug off and close the water faucet in

following cases: power failure, delivering

the machine, setting the machine idle or

cleaning the machine. Do not plug

or pull the power plug with wet hand.

Do not bend, stretch, twist, bind the power cord by force,

or reform it. Do not press or clamp it with heavy items. If the

power cord and power plug are bad, or the receptacle is loose,

be sure to have it replaced by the technicians of ourspecial shop

or our agent, or the after-sales service department for the sake

of avoiding any risk. Keep the prong of the power plug clean.

If dustis found on the power plug, please wipe it offwith dry cloth.

Do not stretch hands into the working machine.

It is dangerous even if the rotation is slow.

Take special care of the children.

Do not decompose, repair or alter the machine

by yourself.

Do not put any hot or heavy items (such as the kettle

with hot water) on the washing machine

Do not wash laundries with volatile materials

(such as thinner, petrol etc.).

Keep the machine away from direct sunlight and

heat source like the heater.

The handicapped or children without care shall not

use the machine.

The lint filter shall be kept in good condition, and

installed to proper position. If the lint filter is lost

or damaged, please contact the local after-sales

service department of our company.

Benzene

Safety precautions

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Installation and adjustment

Install the lint filter

After opening the package, please take out the

lint filter from the document bag and install it

into the Filter frame of the inner tub. See to the right Figure.

Lint filter

Filter frame

The largest allowed slope of the shank base of the machine is 2 . The slanting or rough ground will result in

unstable running or stoppage of the machine. Please adjust it with following methods:

Confirm it's horizontal

Hang the plumb to confirm it's

horizontal

Adjust the Installation position

Adjust the adjustable foot

(1) To twist theadjustable foot atthe right frontof

the cabinet (front the sight of front),please first

lift up theside of thefoot slightly, loosen the

adjustable nut, andtwist the foot.

(2) Fasten thenut after adjustment.

Loosen Fasten

High Low

adjustable nut

adjustable foot

Confirm it's horizontal:

If the bulb of the level meter at the balance display

position is inside the standard circle, it indicates that

the machine is horizontal. Otherwise you need to

adjust the adjustable leg of the machine.

Air bubble

Standard circle

Suitable Not suitable

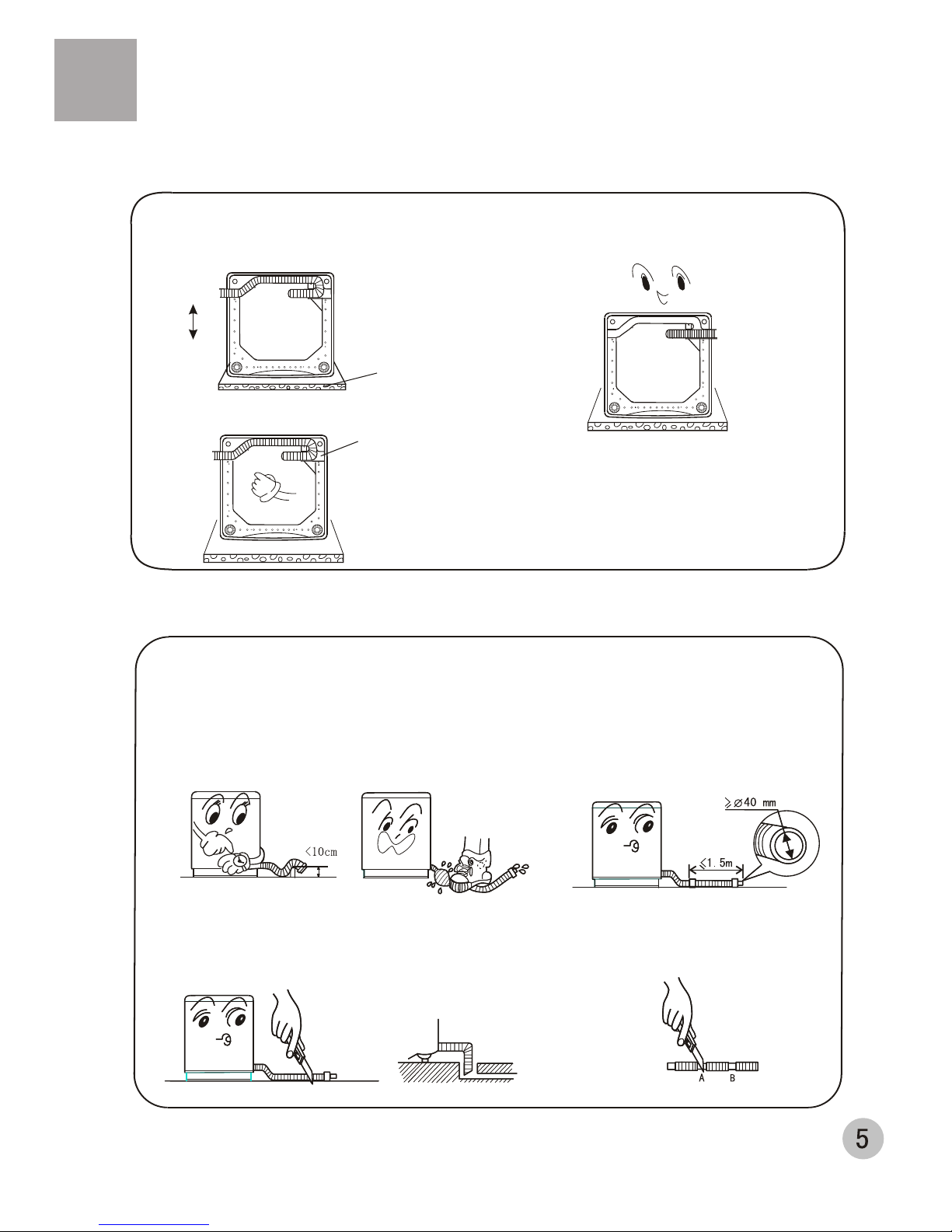

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not ramp or press the drain hose.

3.If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 40mm, and the length shall

not exceed 1.5m.

1.Lean the machinedown gently withthe front

surface facing theground.

3.Extend the drain hose from the left side. Push the

drain hose into the groove with hands.

2.Pull out the drain hose from the groove at the left side.

Back

Front

Soft item

Use groove at

this side after

direction changing

How to change the direction of the drain hose

Usage of the drain hose

The drain hoseshall drain smoothly

If the extrahose is toolong, cut it

either atA orat B point.

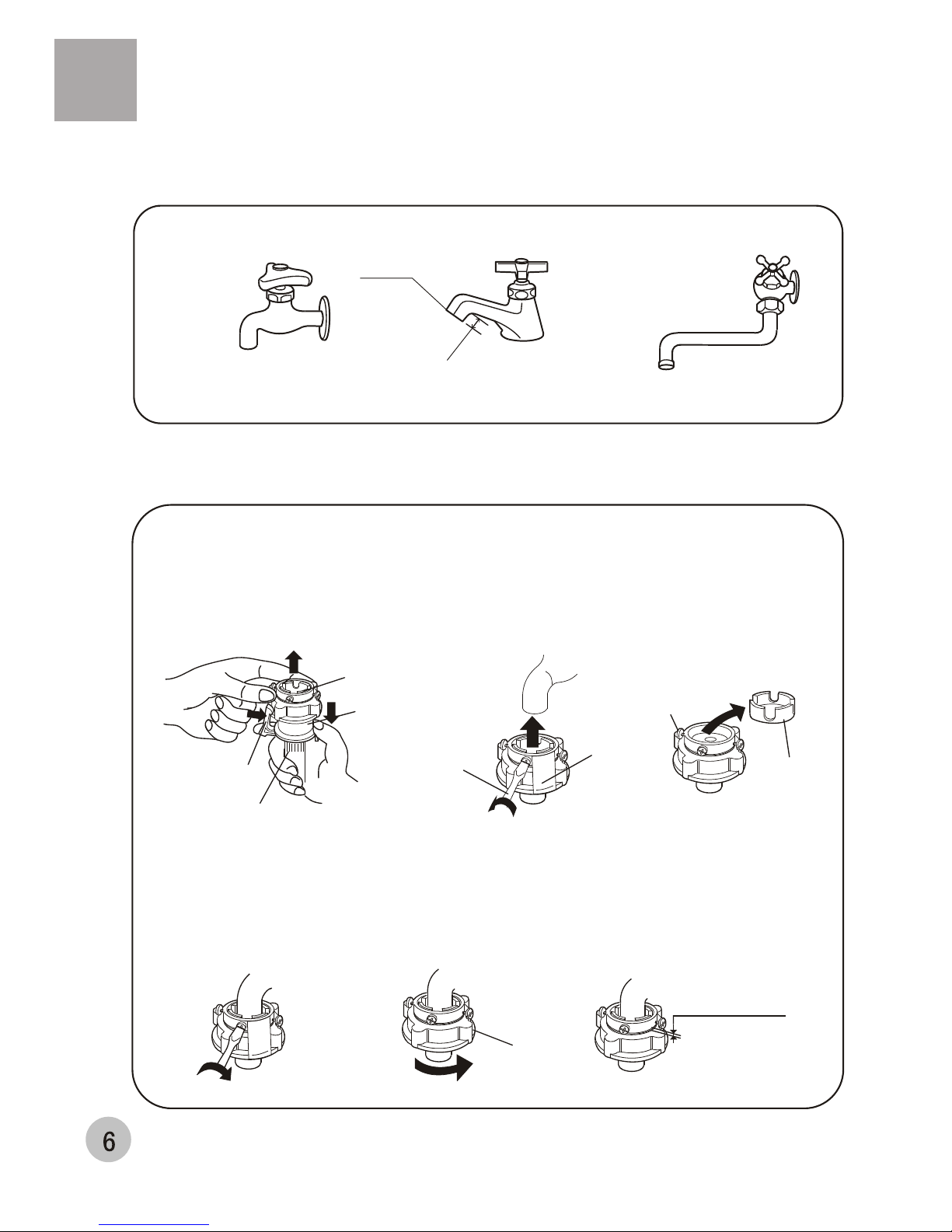

The exit end face of the faucet

Confirm the water faucet

Connection between the water inlet hose jointer and the water faucet

water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.

2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.

See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen

the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth, otherwise

it may leak water. See to Figure 3.)

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the

water inlet hose component. See to Figure 1.

3.Fasten the four screws evenly. See to Figure 4.

>10mm

about 4mm after twisting

Remark: .Before twisting the fastening nut, the threading is 4mm above the upper

surface of the nut. After twisting, the threading is less than 2mm above the upper

surface of the nut. See to Figure 6

About above 2mm after twisting

water inlet hose jointerwater inlet hose jointer

Screw knife

Screw

Bushing

Nameplate

Screw nut

water inlet hose Figure 1

Figure 4

Figure 2

Figure 5

Figure 3

Figure 6

Slider

Lock level

Install the water inlet hose

4 Take off the nameplate. Twist the fastening nut as per the indication of the figure

to seal up the exit end face of the faucet. See to Figure 5.

Connection between the water inlet hose and the washer

Dismantle the water inlet hose

Connection between the jointer of the water inlet hose and the

water inlet hose

Check the connection between the jointer of the water inlet hose

and the water faucet

1.Do not take off the water absorption cushion. Please check if the

cushion is dropped or damaged before each usage. If it happens

please contact our after-sale department immediately.

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

1.Push down the slider. Insert the water inlet hose into the jointer.

2 Hang the lock lever to the jointer. Release the slider till a click sound is heard.

Locking level

Slider

water absorption cushion.

nut of the waterinlet hose

the jointer of the water inlet hose

Slider

Locking level

jointer of the waterinlet valve

1. Close the water faucet.

2. Press the locking lever. Push down the slider. Then pull of the water inlet hose.

If the machine is used frequently, the jointer of the water inlet hose can be kept

on the faucet to prevent damaging the fixing screw.

2 Put the nut of the water inlet hose on the valve jointer.

3 Fasten the nut. Swing it gently to confirm if it's suitable.

4.Before each usage please check if the connection

between the jointer of the water inlet hose and the

water faucet, and the installation of the water inlet

hose are firm, so as to prevent dropping from

improper installation position.

1 Preparation before washing

Pay attention to followings before washing the laundries

Preparation before washing

1.Connect the water inlet hose. Open the water faucet.

2.Confirm that the washing machine is earthed reliably.

Then insert the power plug into the receptacle. The

earth terminal shall not link to gas pipeline and

faucet water pipeline.

3.Put up the drain hose.

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like mud or dust.

For the parts with heavy soil, please apply detergent on them in advance, which

can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn it over before

putting in.

f. Do not put those laundries polluted by chemicals into the washing machine directly.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier Rondelle

Haier

Haier HWM90-D0658 Manuel utilisateur

Haier

Haier HWM40-AS Manuel utilisateur

Haier

Haier HWM110VA Manuel utilisateur

Haier

Haier HWM75-0713S Manuel utilisateur

Haier

Haier GWT460AW Manuel utilisateur

Haier

Haier HLTW500axw Manuel utilisateur

Haier

Haier HWM75-B12266 Manuel utilisateur

Haier

Haier XQS50-28 Manuel utilisateur

Haier

Haier HBF600TE Manuel utilisateur

Haier

Haier XPM20-A Manuel utilisateur

Haier

Haier RWT350AW Manuel utilisateur

Haier

Haier HW80-B1439 Manuel utilisateur

Haier

Haier HWM-802P Manuel utilisateur

Haier

Haier HN500TX Manuel utilisateur

Haier

Haier Twin-tub Washing Manuel utilisateur

Haier

Haier HD800TX Manuel utilisateur

Haier

Haier JW-G42A Manuel utilisateur

Haier

Haier HW-E1050TVE Manuel utilisateur

Haier

Haier HWM55-918P Manuel utilisateur

Haier

Haier HWD80-BP14636S Manuel utilisateur

Haier

Haier HW-C1260TVE ME-U Manuel utilisateur

Haier

Haier HW90-B1439 Manuel utilisateur

Haier

Haier HW-D1070TVE Manuel utilisateur

Haier

Haier HW75-B12756 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
