Haier Mini magical child XQBM23-12 Manuel utilisateur

Mini magical child

Names of the parts.............the 2nd cover

Safety precautions .......................1

Introduction of the special functions.........3

Installation and adjustment ..................3

Install the water inlet hose............5

Preparation before washin g .............7

Put in the la undrie s .........................8

Add the detergent .......................9

Use the operation buttons ................10

Close the top lid .....................14

Washing fin ished ... ... ... ... ... ... ... ... ... .1 4

Disposal after washin g ....................15

Trouble shooting·Answer to question.....16

Packing list·After-sales service .......................17

Specification.......................the back cover

Contents

Before using

Using process

·Please read this manual carefully before use.

·Please retain it attentively for future reference.

User's manual

Computerized Automatic

Washing Machine

“Hand-wash Type Mini

Magical Boy Instant Wash,

Much Cleaner”

XQBM23-12

Meaning and description of the symbols

Honorable users,

Thanks for your choosing Haier products.

Haier products integrate high-tech, precision frontier science and possess the best quality

among simila r products. To facilitate your operation, please read the manual carefully and

operate this machine according to it.

Haier's star-level service is always accompanying you. No matter what problems you meet

in use please do not hesitate to contact us by the telephone number and address on the

certificate of warranty. We are at your service all the time.

Thanks again for your choosing and introducing Haier products.

Haier-sincere forever!

Before Using

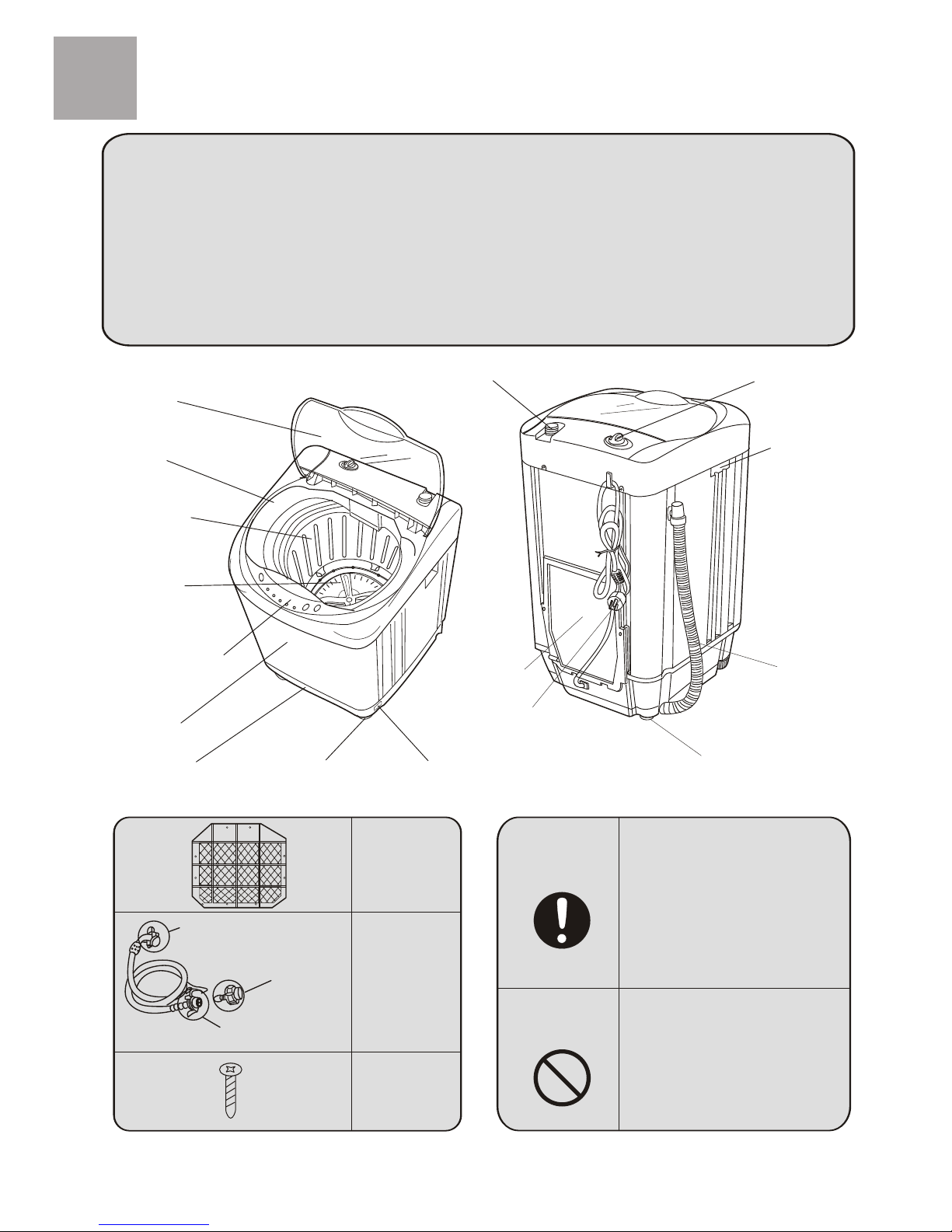

Names of the parts

the end connecting to

the water inlet hose jointer

the end connecting to

the washing machine

jointer connecting the

water inlet hose and

the water faucet

Warning sign

Forbidding sign

Contents marked with that symbol

are related to the safety of the

product and the personal safety

of the users. Please operate in

strictconformity to the contents,

otherwise it may cause damage

of the machine or injure the

personal safety of the user.

Contents marked with that symbol

are actions forbidden to perform.

Performing of those actions may

result in damage of the machine

or injure the personal safety of

the user.

Accessories

bottom plate

(one)

water inlet hose

(one)

Water inlet

hose jointer

(one)

ST4X16

tapping screws

(8 purchase)

Top lid

Control panel

seat

Inner tub

Pulsator

Control panel

film

Cabinet

Cabinet,lower Adjustable foot

Power cord

Drain

hose

Handle

Back cover

Fixed foot(3 pcs)

Water level knob

Water inlet valve

Adjustable foot seam

Earth

Before Using

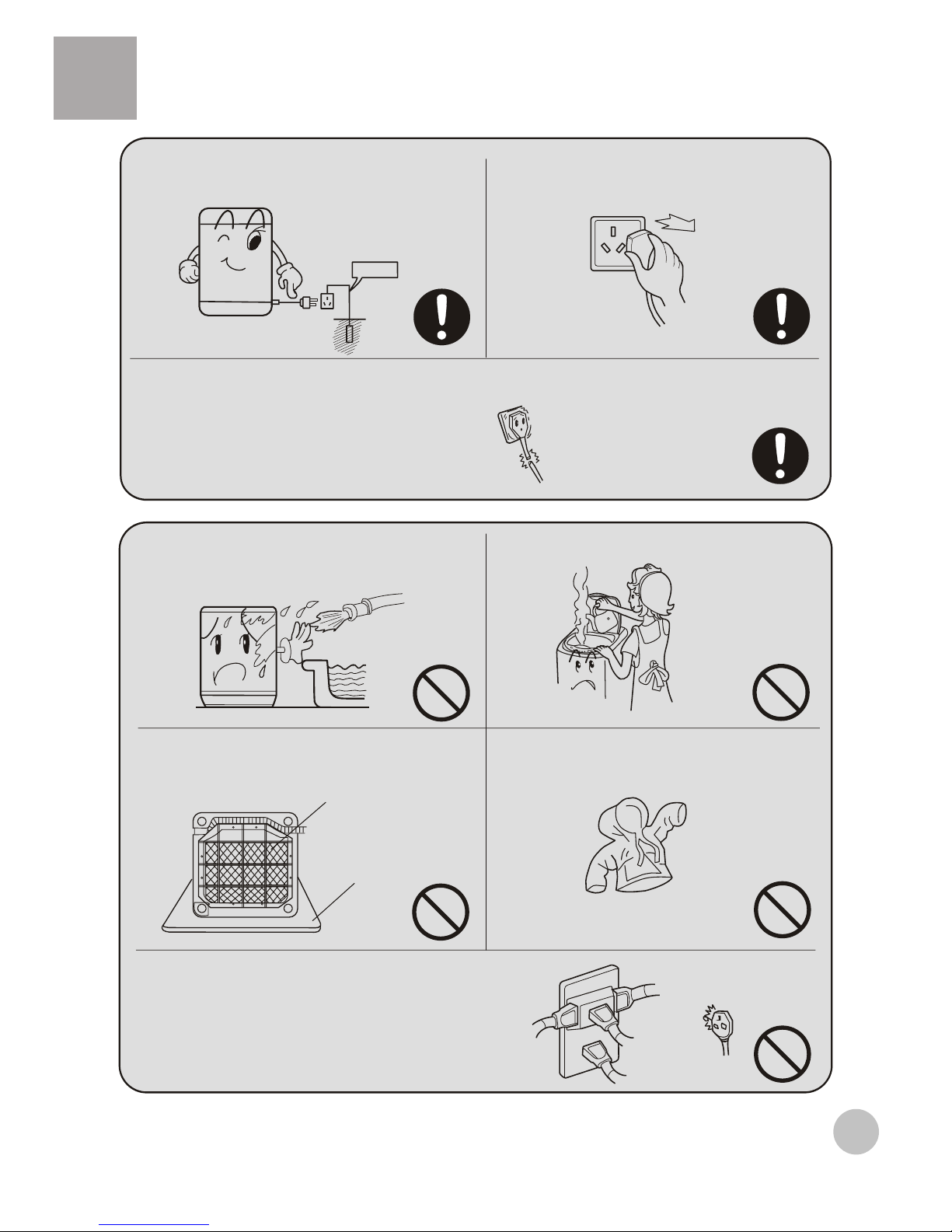

Safety precautions

Be sure to use three-phase power receptacle.

Ensure that the earth terminal of the power

receptacle is earthed reliably.

If the power line is bad, to avoid risk it is required to have it replaced by the technicians

of our special shop or our agent or the after-sale service department. Keep the pin of

the power plug clean.

Be sure to pull the plug off when the

machine is idle or when cleaning the

machine.

Do not put the machine at damp place like

the bathroom. Never wash it with water.

Do not use water hotter than 50℃.

In case the washing machine is installed

on ground with carpet, do not block the

ventilation hole with carpet.

soft items

The ventilation holes

at the bottom

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

50 C

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

Before Using

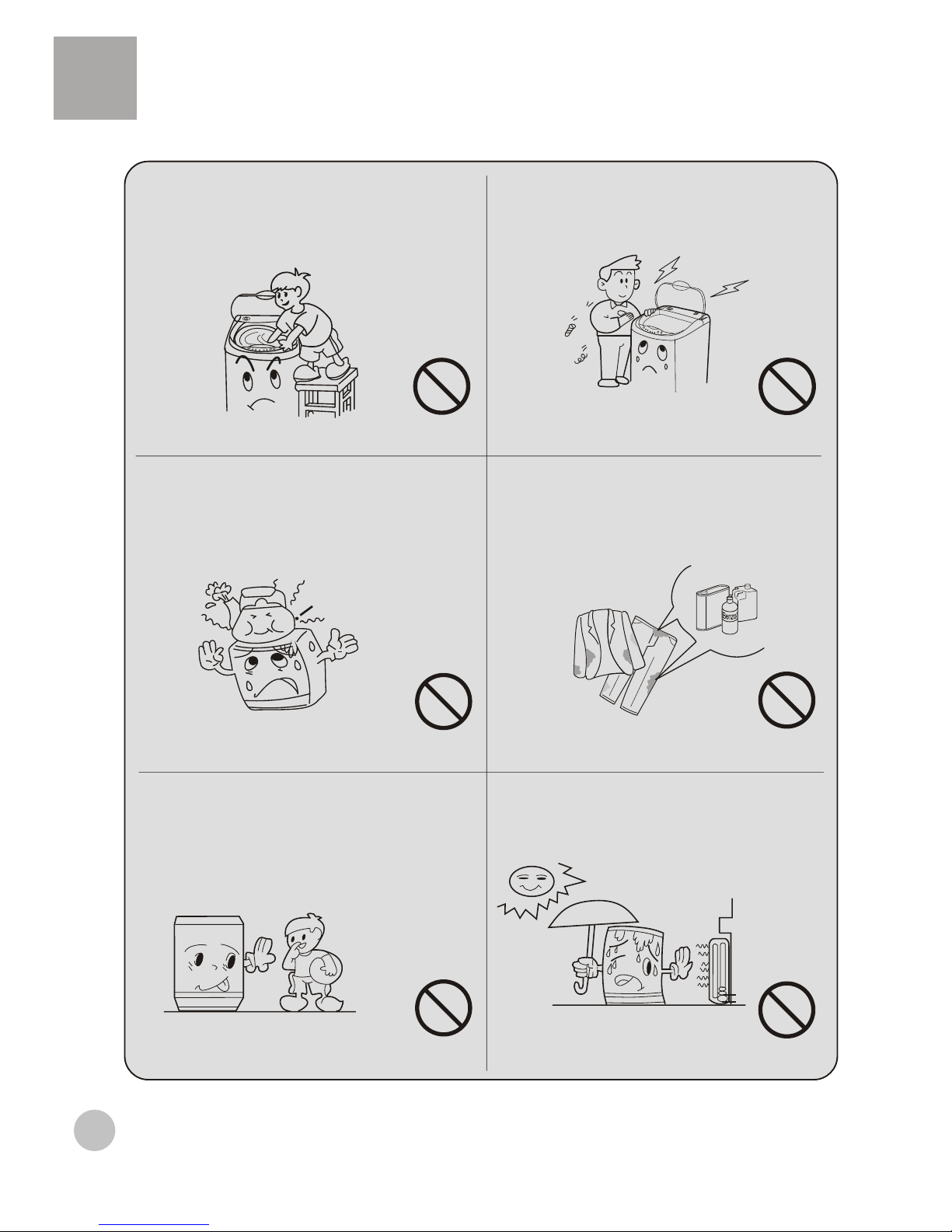

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

erPtol

hnnT ier

The largest allowed slope of the shank base of the machine is 2°. The slanting or

rough ground will result in unstable running or stoppage of the machine. Please

adjust it with following methods:

Confirm it's horizontal:

Adjust the adjustable foot:

Hang the lead line to confirm if it is horizontal.

Install the bottom plate

After you open the package, please lean

the washing machine gently down on soft

items ( like the towel cloth, blanket, etc. ).

Install the bottom plate to the bottom of

the machine with the eight screws by

a cross screwdriver, then lift the machine

up gently. See to the figure:

Adjust the installation position

soft items

Bottom plate Screw

Loosen Fasten

High Low

adjustable nut

adjustable foot

Before Using

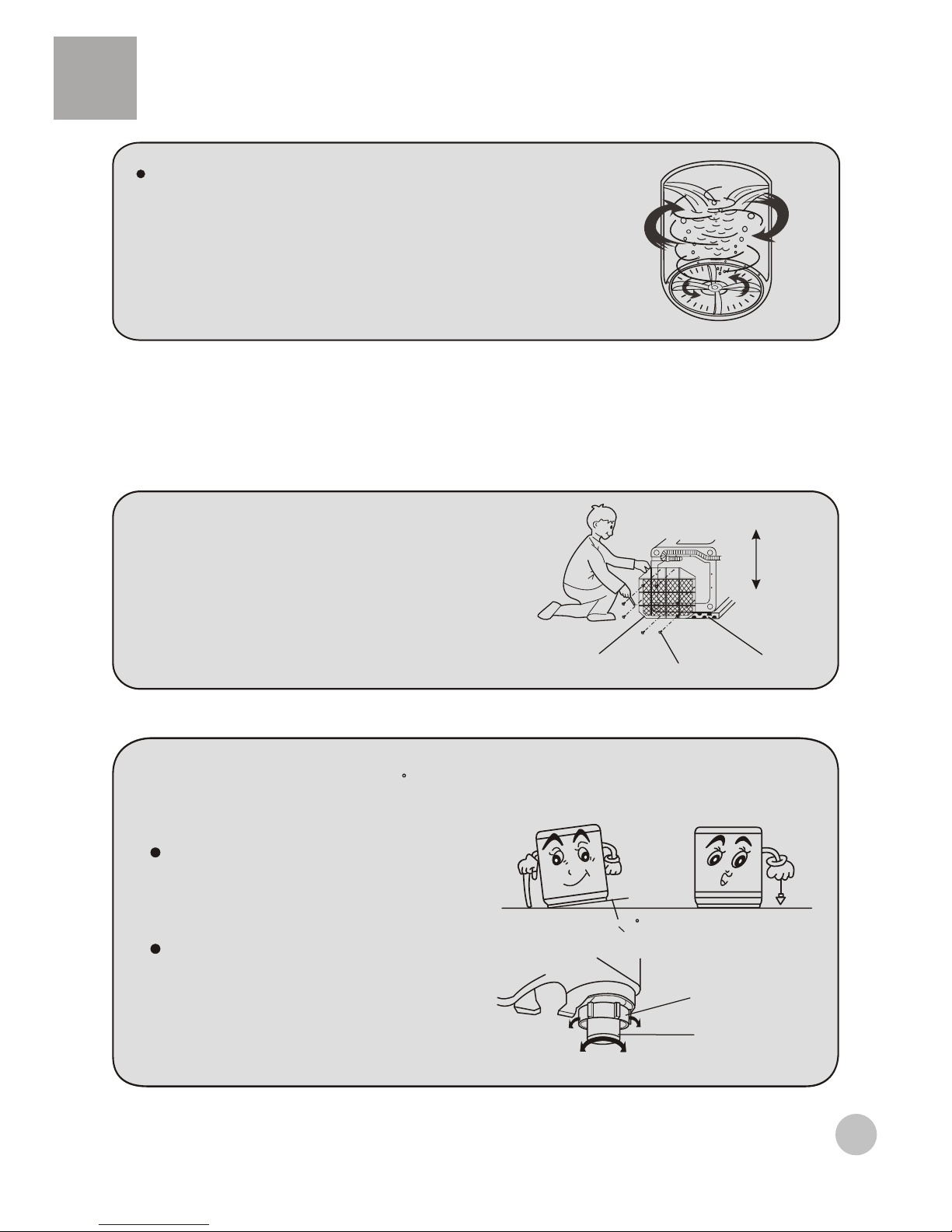

Introduction of the special functions

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual. It is

very important to your security and correct operating the machine.

Back

Front

1.To twist the adjustable foot, please first

lift up the side of the foot slightly, loosen

the adjustable nut, and twist the foot.

2.Fasten the nut after adjustment.

Hand-wash type wash:

The inner tub and pulsator rotate to opposite

directions during washing to form current like the

hand-wash moving. At the same time the washing

effect is improved significantly because the wall of the

inner tub also acts in washing.

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not ramp or press the drain hose.

3.If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 30mm, and the length shall

not exceed 1.5m.

If the extra hose is too long, cut it

either at A or at B point.

1.Lean the machine down gently with the front

surface facing the ground. Loosen the eight

screws by a cross screwdriver.

3.Extend the drain hose from the left side. Push the

drain hose into the groove with hands.

4.Install the bottom plate (as per indicated before),

then lift the machine up gently.

2.Pull out the drain hose from the groove at the

right side.

Back

Front

Bottom plate

Soft item

Use groove at

this side after

direction changing

Page 3

Push the drain hose

into the groove with

hands at this point

<10cm

> 26mm

<1.5m

Before Using

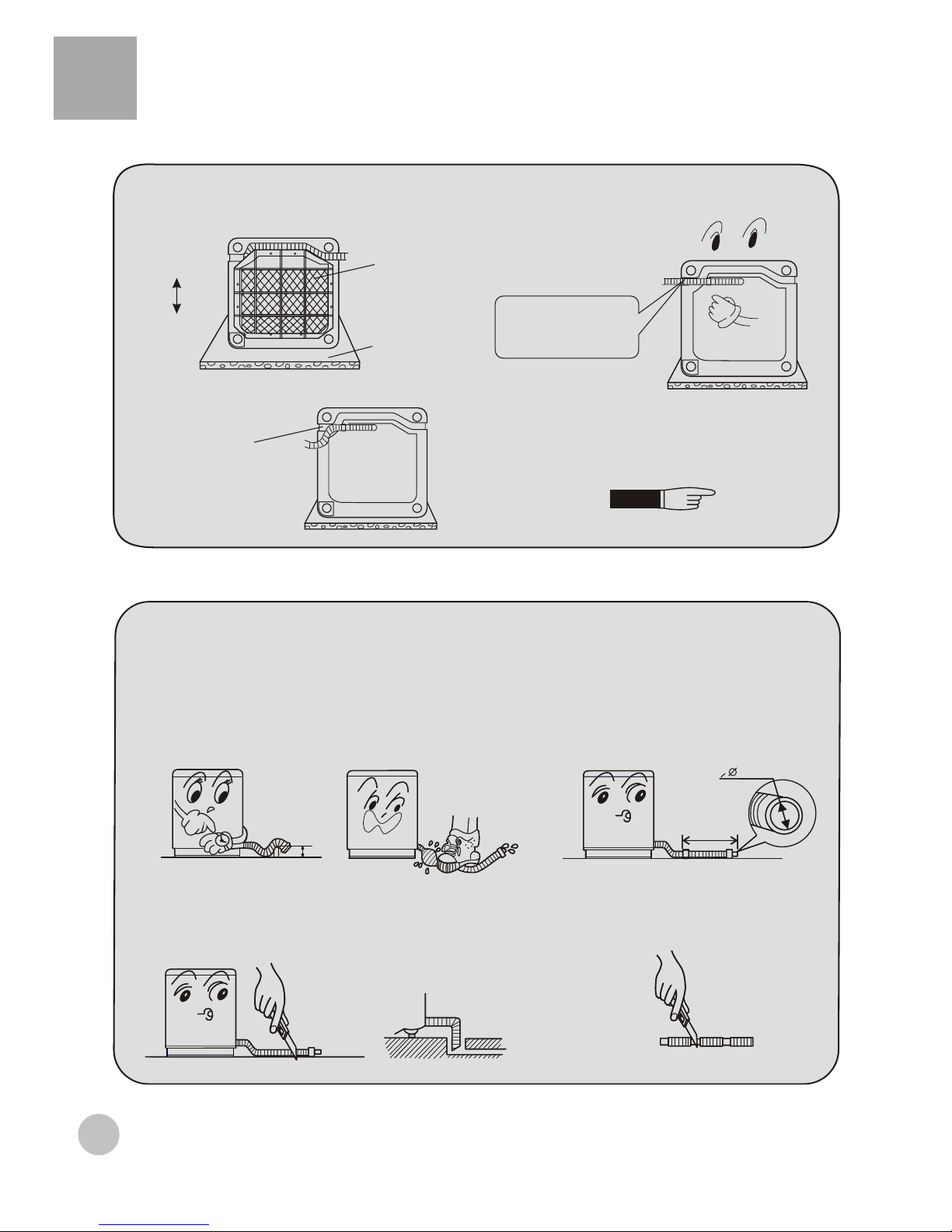

How to change the direction of the dr ain hose

Usage of the drain hose

The drain hose shall drain smoothly

Water faucet,suitable Water faucet,not suitable

It is required that the front end shall be longer than 10cm.

The outlet end surface of the faucet shall be flat and smooth. If not please file it

to avoid leakage.

2.Loosen the screw till the water faucet can be accessed. Put the jointer of the water

inlet hose on the faucet. See to Figure 2. (If the faucet is too large and the jointer can

not be set on the water faucet, please loosen the four screws and take out the

bushing in the jointer. See to the figure.)

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet

hose jointer from the water inlet hose component. See to Figure 1.

Remarks: Before installation, the threading is 4mm above the upper surface of

the nut. After installation, the threading is 2mm above the upper surface of the

nut. See to Figure 6.

4.Take off the nameplate. Twist the fastening nut as per the indication of the figure to

seal up the outlet end surface of the faucet. See to Figure 5.

3.Fasten the four screws evenly. See to Figure 4.

>10mm

Outlet end surface

Nut

About 4mm before twisting

About below 2mm after twisting

Screw

Screwdriver Mark label

Liner

Figure 2

Figure 5

Figure 1

Figure 4

Figure 3

Figure 6

Slider

Water inlet pipe jointer

Water inlet pipe

Locking lever

Before Using

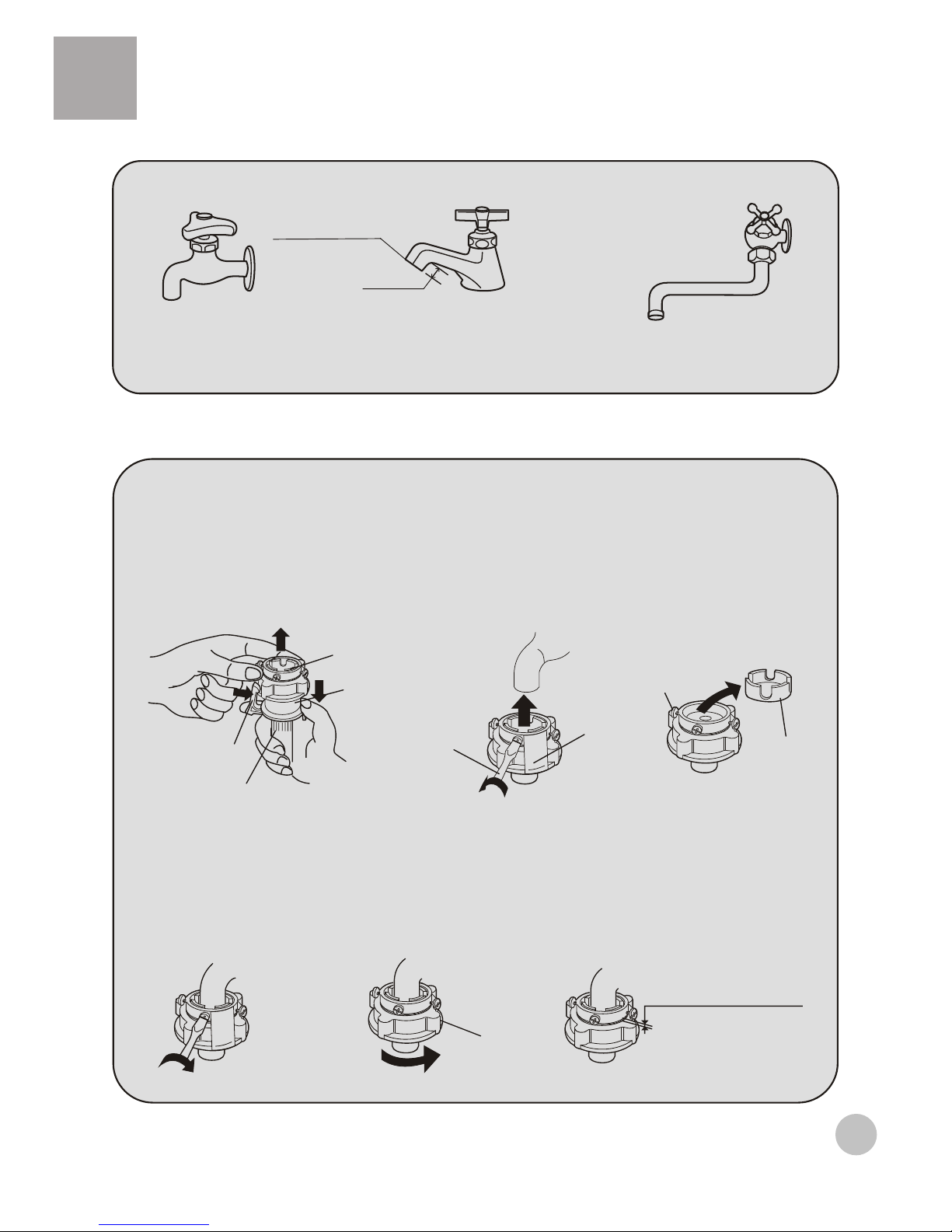

Install the water inlet hose

Confirm the water faucet

Connection between the water inlet hose jointer and

the water faucet

1.Do not take off the water absorption

cushion. Please check if the cushion

is dropped or damaged before each

usage. If it happens please contact

our after-sale department immediately.

2.Put the nut of the water inlet hose on

the valve jointer.

3.Fasten the nut. Swing it gently to

confirm if it's suitable.

1.Close the water faucet.

2.Press the locking lever. Push down the slider. Then

pull of the water inlet hose. If the machine is used

more than once every week, the jointer of the water

inlet hose can be kept on the faucet to prevent

damaging the fixing screw.

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

4.Before each usage please check if

the connection between the jointer

of the water inlet hose and the water

faucet, and the installation of the

water inlet hose are firm, so as to

prevent dropping from improper

Installation position.

1.Push down the slider. Insert the

water inlet hose into the jointer.

2.Hang the lock lever to the jointer.

Release the slider till a click

sound is heard.

Locking lever

Slider

Water absorption cushion

Nut of the water inlet hose

Jointer of the water inlet valve

Slider

Jointer of the

water inlet hose

Locking lever

Before Using

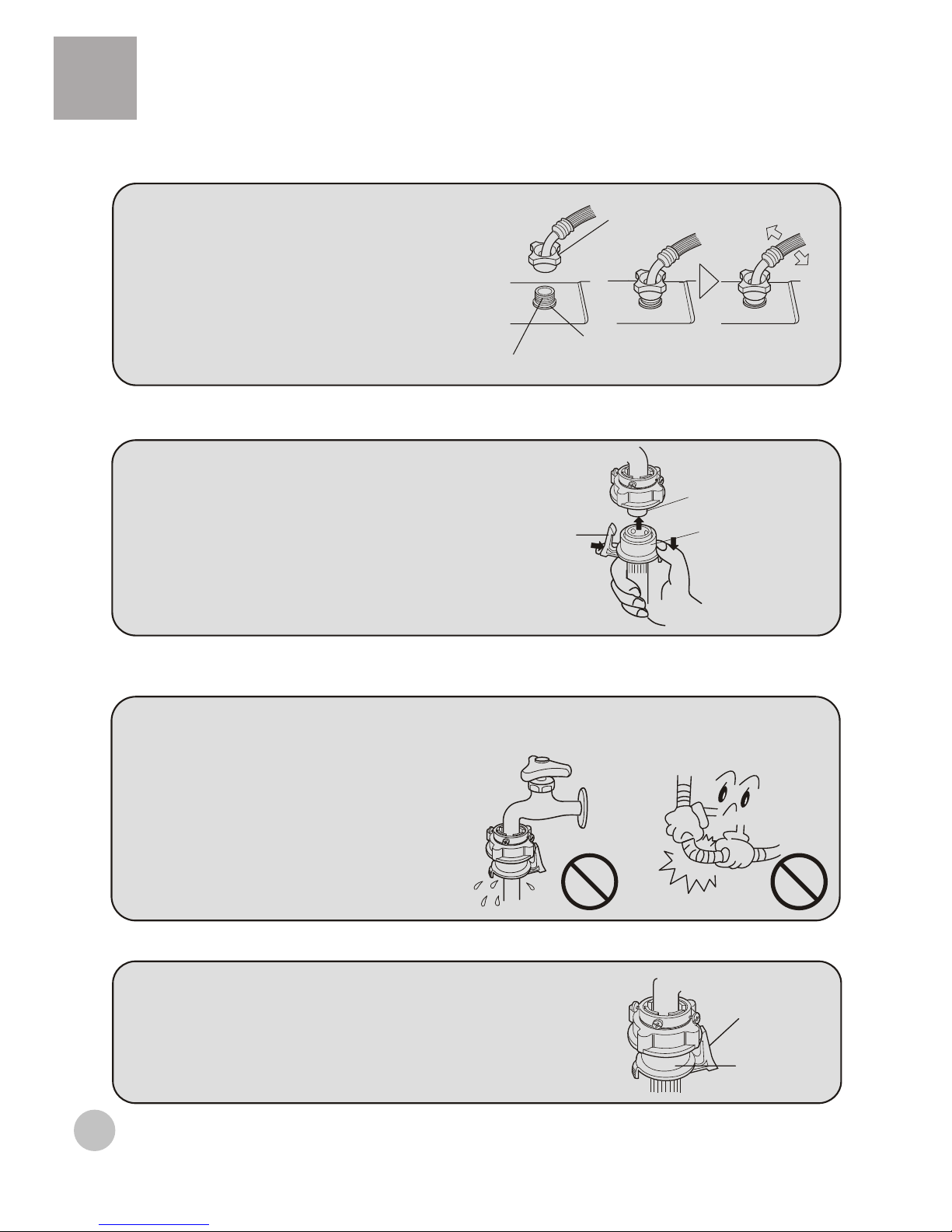

Connection between the water inlet hose and the

washing machine

Connection between the jointer of the water inlet

hose and the water inlet hose

Check the connection between the jointer of the

water inlet hose and the water faucet

Dismantle the water inlet hose

Confirm if

there's special

requirment for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion,please

put the laundries

with buttons into

other laundries.

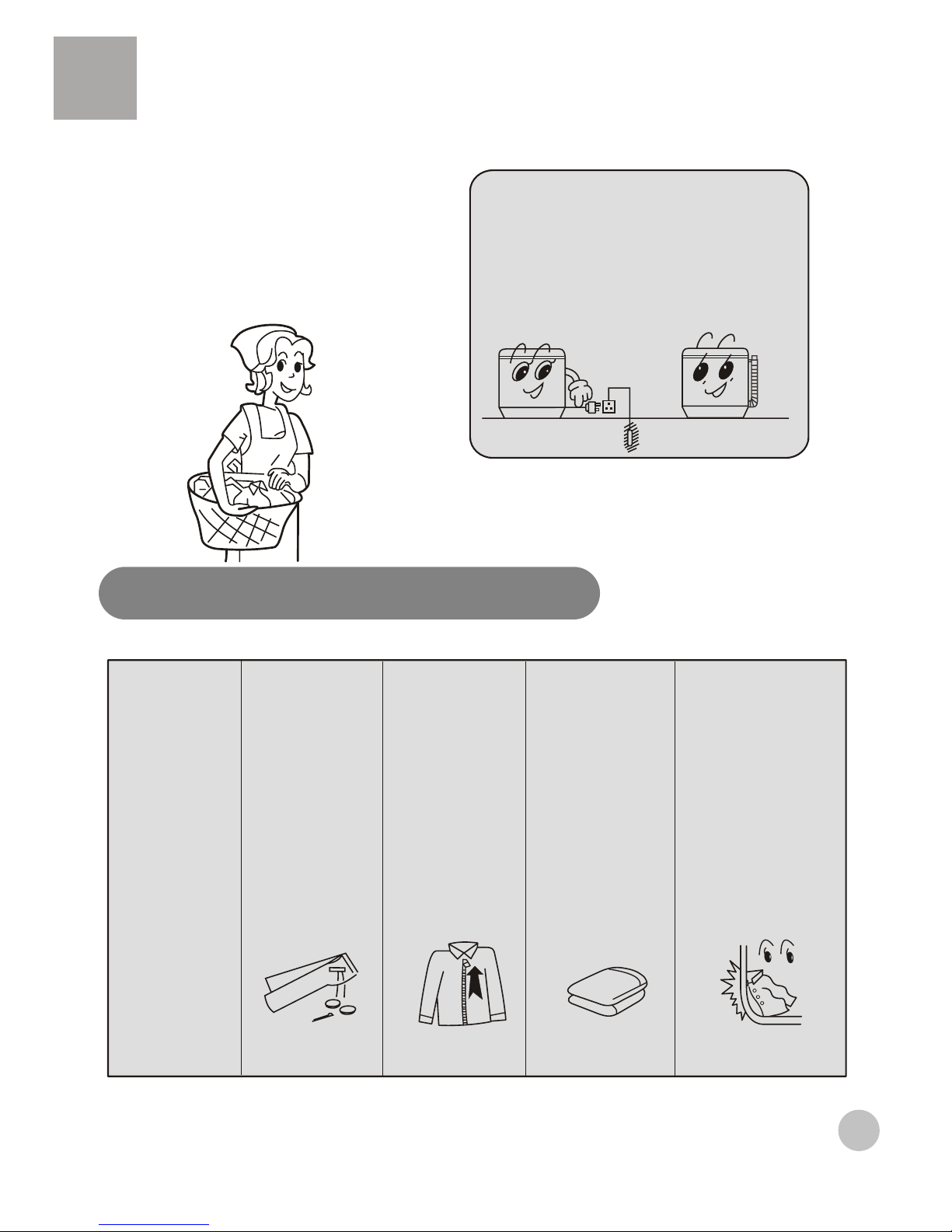

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is

earthed reliably . Then insert the power

plug into the receptacle. Do not connect

the earth terminal to the gas pipe and

tap water pipe.

3.Put down the drain hose.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

Using process

1 Preparation before washing

Pay attention to followings before washing the laundries

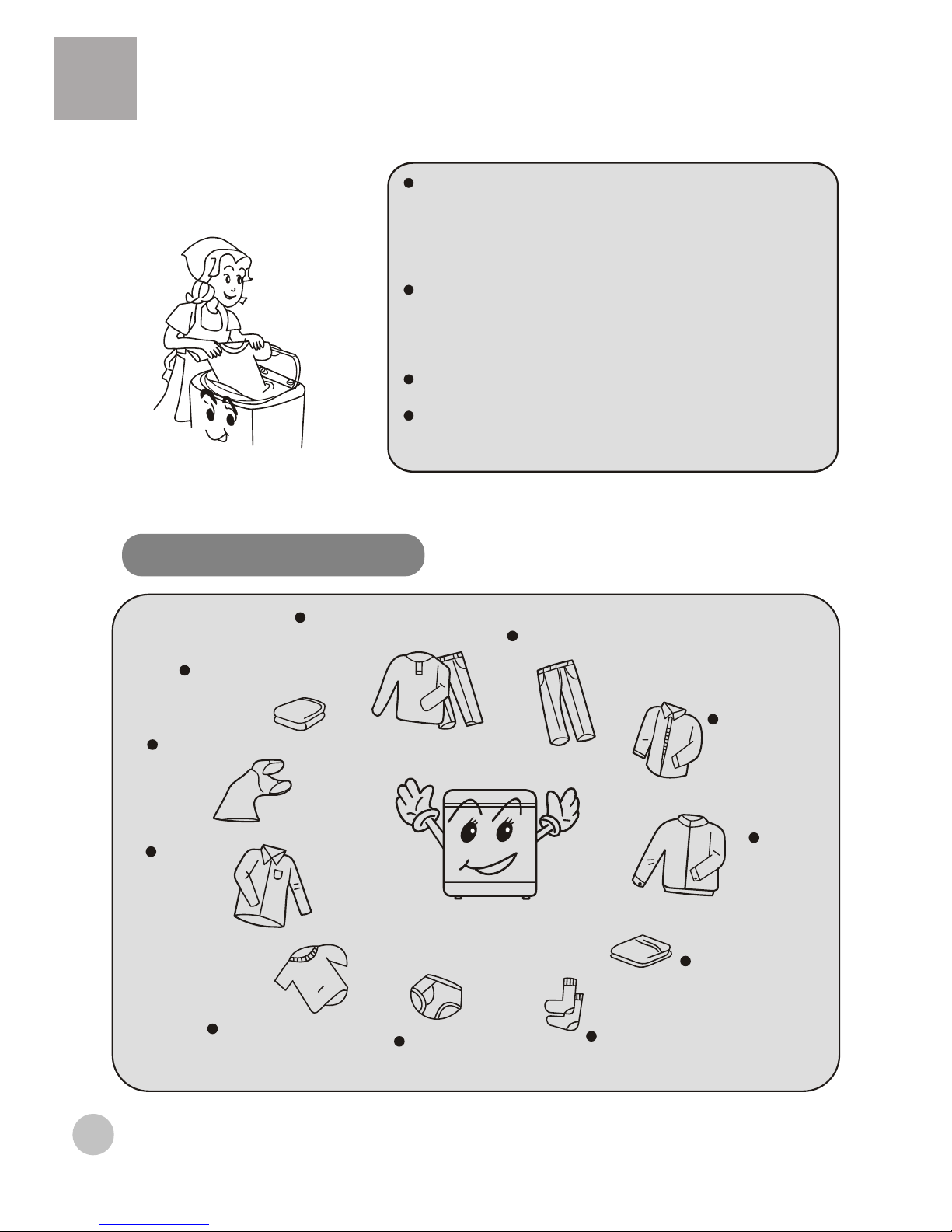

Reference weight of the laundries:

working suit（up,down）

jeans（about 800g）

The capacity of washing and spinning of the

machine refer to the largest weight of the standard

laundries under dry conditionthat can be washed or

spinned in one time. One time washing quantity

shall be lower than the rated capacity. The largest

capacity of this machine is 2.3kg.

The thickness, size, type of the cloth will influence

the actual washing capacity. It is suitable for one

time washing to put in reasonable amount of

laundries and the laundries can be turned round in

washing.

Do not select "High" water level for laundries small

than 0.5kg, so as to avoid splashing of water.

To wash thin laundries like the stocking, silk etc.,

please first put them into washing bag (which can

be purchased separately) before wash.

blending coat

（about 800g ）

shirt jacket

single bed sheet

socking

underpants

undershirt

pajamas

blanket

（cotton,about 900g ）

（cotton,about

300g）

（cotton,about

800g）

（cotton,about 600g ）

（blending,about 50g）

（cotton,about 70g ）

（cotton,about 180g ）

（about 200g）

Using process

2 Put in the laundries

（cotton,about 1120g）

Autres manuels pour Mini magical child XQBM23-12

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier Rondelle

Haier

Haier HWM150-0623S Manuel utilisateur

Haier

Haier HWM70-1203D Manuel utilisateur

Haier

Haier HW80-B14979 Manuel utilisateur

Haier

Haier HW-E1060TVE Manuel utilisateur

Haier

Haier HWM110-0713S Manuel utilisateur

Haier

Haier HLPW028AXWP Manuel utilisateur

Haier

Haier HWM85-728 Manuel utilisateur

Haier

Haier HW70-B1486-F Manuel utilisateur

Haier

Haier HWM78-0528T Manuel utilisateur

Haier

Haier HWD-D1200TXVEME Manuel utilisateur

Haier

Haier HW70-1003DS Manuel utilisateur

Haier

Haier HWM20-0701 Manuel

Haier

Haier HWM80-27S Manuel utilisateur

Haier

Haier HNS1000TVE Manuel utilisateur

Haier

Haier HSW-70S1 Manuel utilisateur

Haier

Haier XQB60-91BF Manuel utilisateur

Haier

Haier HW-B1070 Manuel utilisateur

Haier

Haier HWM90-96A Manuel utilisateur

Haier

Haier HW55-1010 Manuel utilisateur

Haier

Haier HLT364XXQ - Genesis Washer Manuel utilisateur

Haier

Haier HM1400TX Guide de l'utilisateur

Haier

Haier HLP21E - Pulsator Wash With Tub Manuel utilisateur

Haier

Haier HWM95-261NZP Manuel utilisateur

Haier

Haier HWT08AN1 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
