Haier HWM95-261NZP Manuel utilisateur

HWM95-261NZP

CONTENTS PAGE

Product overview

Safety precaution

Installation and adjustment

. Please read the manual carefully before using machine.

. The explanation right of the manual is owned by our

company.

. The outward appearance of the product depends on the

actual model.

Preparation

Operational guidance

Washing process

Cleaning and maintenance

Questions and answers

Specification

Product overview

Big lid

Detergent box lid

Big balance ring

Big tub

Lint filter

Major frame

Big lid-lock

Power key

Small lid

Small lid-lock

Small balance ring

Small tub

Control panel

Hinge

Shelf plate

Storage cabinet door

Shelf base

Cabinet

Back cover

Power line

Water inlet valve

Drain hose

Drain hose hook

Adjusting foot

Don’t put the washing machine in the place

where it can not be drained.

Please don’t use the washing machine

near the gas tank and other flammable

or explosive gases and liquids.

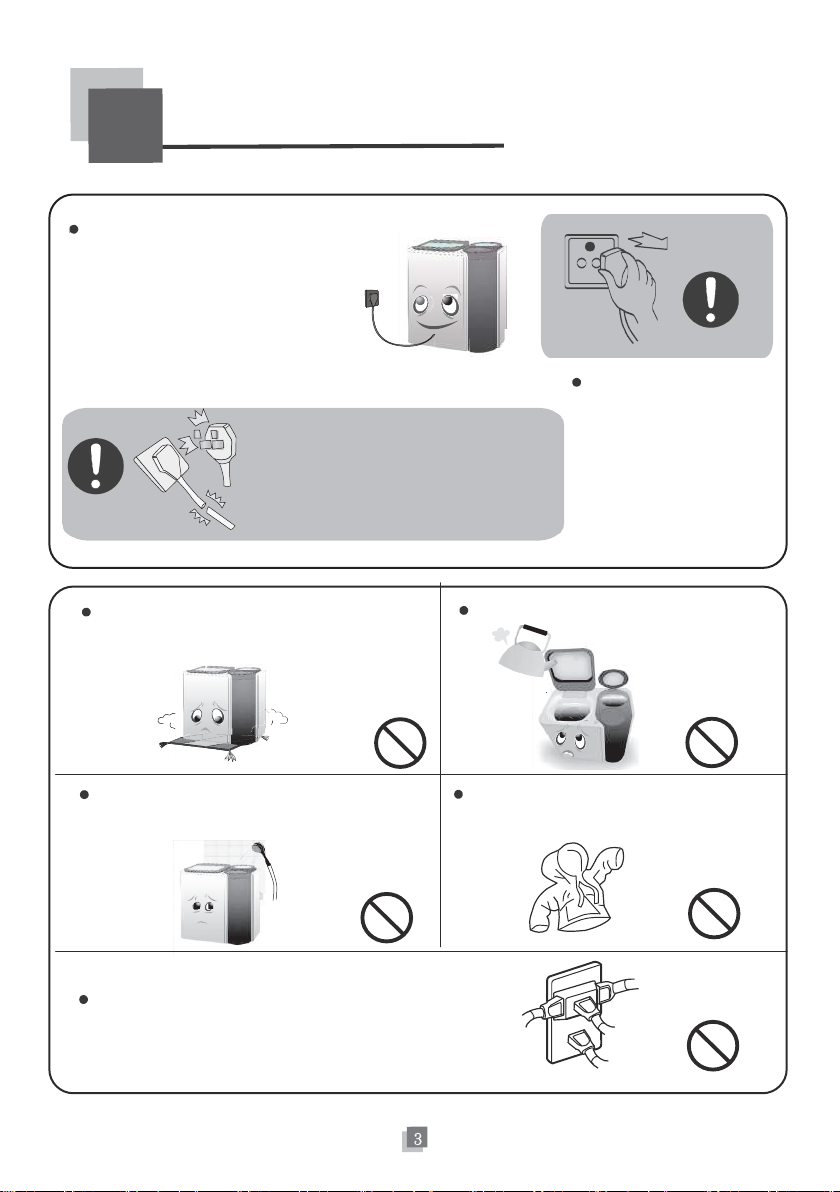

Safety Precaution

When the machine is

working, you shouldn’t

unplug the power plug

or switch another power

supply. Please don’t plug

or unplug the power plug

by your wet hands.

Please don’t bend, stretch, rotate,strap the

power line or make heavy objects on it. If

there is some damage on the plug, it must

be replaced by our company’s special

maintenance or after-sale service staff, in

order to avoid danger.

Please put the power plug into the

single phase three pole 220V AC

power socket,and the grounding end

of the socket must be reliable

grounded. If the user’s household

electricity can’t meet the safety

requirement (e.g. There is no

grounding wire), it must be handled

by the professionals.

The washing machine shouldn’t be placed on

the airtight carpet.

Please don’t use hot water above 50

degree Celsius.

The washing machine shouldn’t be installed in

the bathroom or other moist places, and never

flush it with water.

Washing the raincoat, car hood and other

water proof clothing are prohibited.

Do not use the same socket with other electrical appliance,

if the plug and the socket is with loose, please don’t use.

Safety precaution

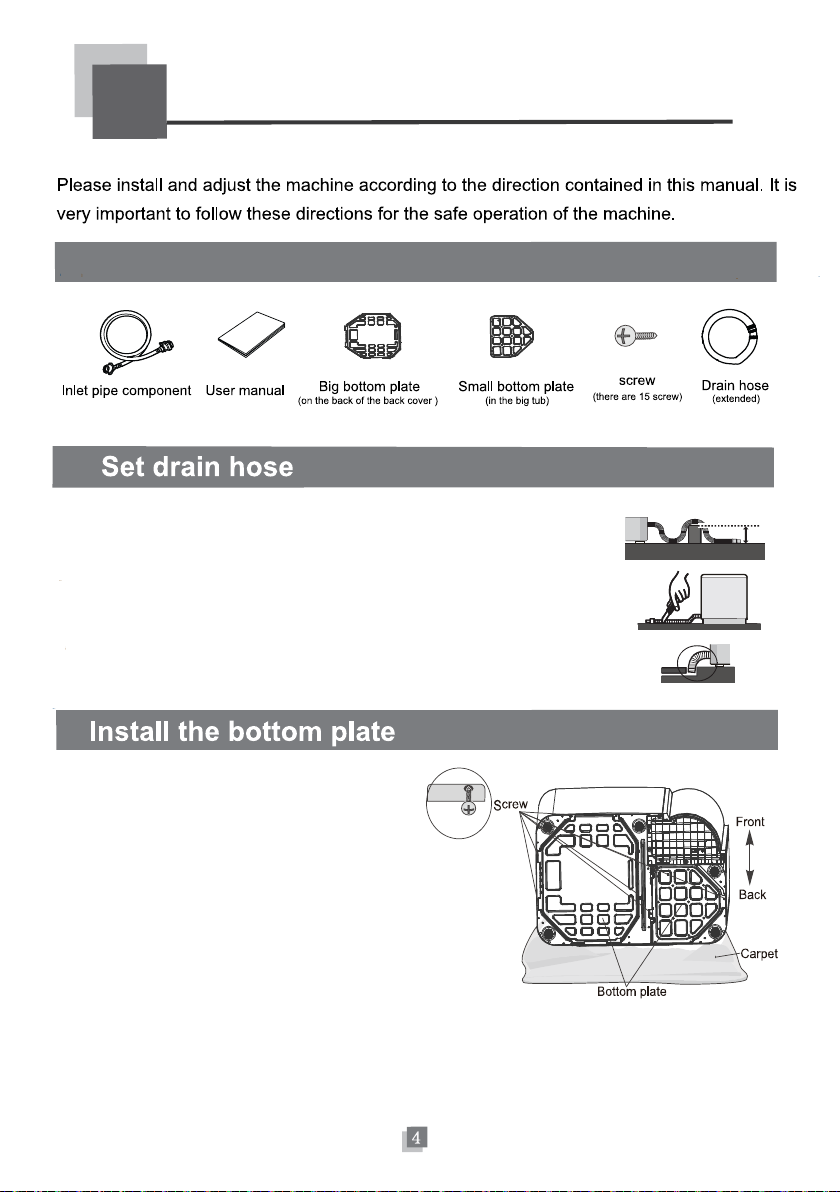

Check the attachment

It can prevent the rats from entering the

machine to destroy the wires.

Assemble steps:

.Lay the washing machine face up, and ensure its

back is not attrited;

.Place the plate onto the bottom of the machine, and

secure it to the bottom of the machine with screws;

.Once all the screws are tightened and the plate is

secured, return the washing machine to its standing

position.

Please set the drain hose as follows:

Please set the height of the drain hose not more than 10cm.

Once exceed the limited height, it will result in poor drainage or no drainage.

Do not trample the drain hose.

If the drain hose is too long, you can cut it as your needs; if it is too short,

please use the drain hose(extended) in the attachment to lengthen the drain

hose.

Installation and adjustment

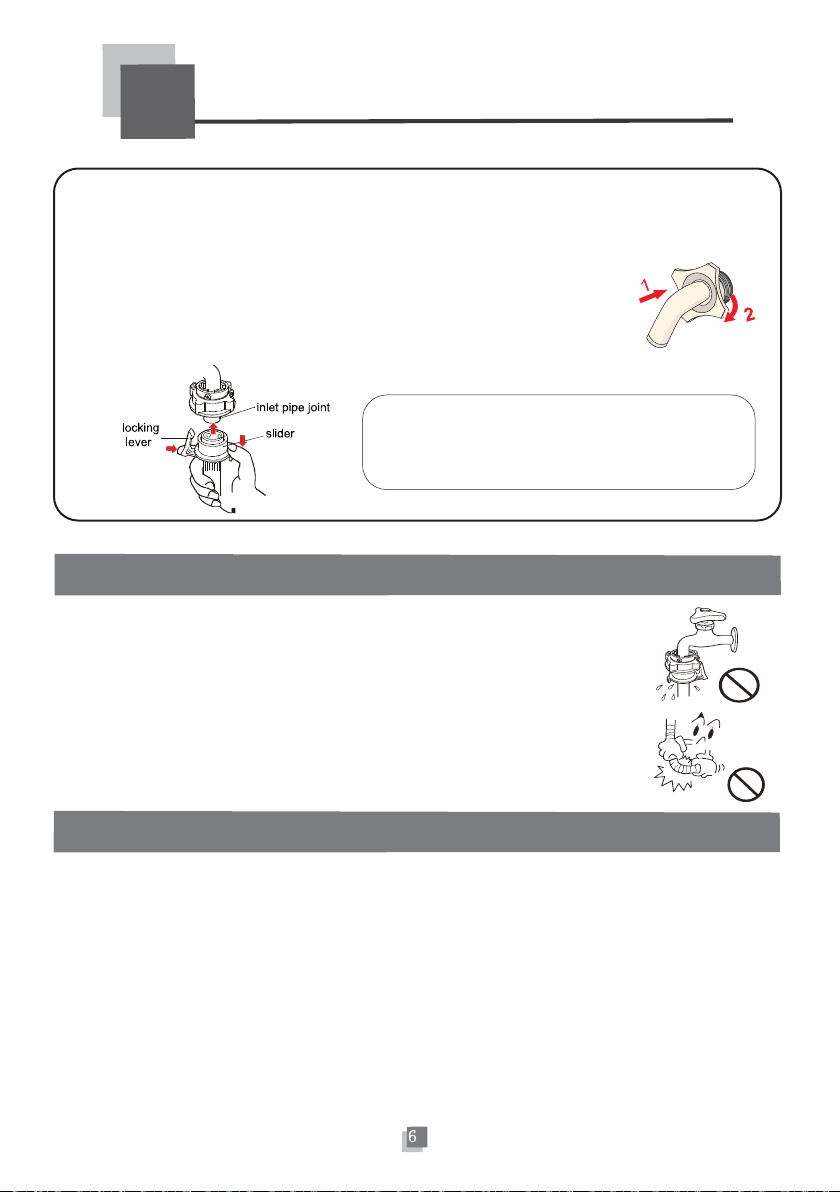

Connection of water inlet pipe

Smoothly placed the washing machine can reduce the noise

and vibration, please adjust the washing machine to be smooth

before use it.

.Loosen the locked nut with a wrench.

Adjust the washing machine to be smooth by adjusting the height of

the foot (Totally 5 feet). ).

Tighten the locked nut by a wrench along the rotating direction after

adjusting the feet to be smooth.

The distance between washing machine and wall is at least 5cm.

The maximum allowable tilted angle of washing machine‘s

supportable surface is 20 degree.

Please use the new water inlet pipe attached to you, the old can not be reused.

a. Choose the right faucet b.Take off the water inlet pipe joint

The front end length of faucet is more than

10mm, and the outlet side is smooth, in order

to avoid leaking.

①Press and hold the lower end of the locking lever.

②Press down the slider and take off the water inlet

pipe joint.

c. Install the water inlet pipe joint

①Uncover the tag.

②Adjust the nut and make it to expose

3-4 threads.

③Loosen the four screws on the water inlet pipe joint

until the joint can be put on the faucet.

④If the water inlet pipe joint can’t be put on the faucet,

remove the bushing.

⑤Tighten the four screws evenly, and then tighten the

nut until the water isn’t penetrated.

Installation and adjustment

d. The connection of water inlet

pipe and its joints

①Press down the slider and insert

the water inlet pipe to its joints.

②Make the locking lever to hook

the joint of the water inlet pipe

and put down the slider until hear

”bang”.

e. The connection between water inlet pipe

and the washing machine

①Put the nut of the water inlet pipe

joint into the water inlet the upper

part on the washing machine.

②Tighten the nut of the water inlet

pipe joint to the right and confirm

that it is in place.

Note:

If the water-absorbent pad is loose or damaged,

please contact the company’s after-sale service

department.

Check the installation status of the water inlet pipe

Check before switching on the power

1. Check whether the connection of the water inlet pipe is firm.

2. After installing, open the regulator and check whether leaking water.

3. Do not bend the inlet pipe strongly.

4. Before using the washing machine, please check and confirm that

the connection between the regulator and the water inlet pipe is

firm.

1. Check that whether the socket could withstand the washing machine‘s maximum power

load. But for security, the socket’s maximum safe current should not less than the

maximum load current of the power line plug.

2. Check that whether the power supply voltage meets the required values.

3. Check that whether the socket is in conformity with the plug of the washing machine.

If not, replace the socket or the power line to make it consistent. If need to replace the

power line, it should be done by the professional or you need to contact the special

maintenance point of the company.

Installation and adjustment

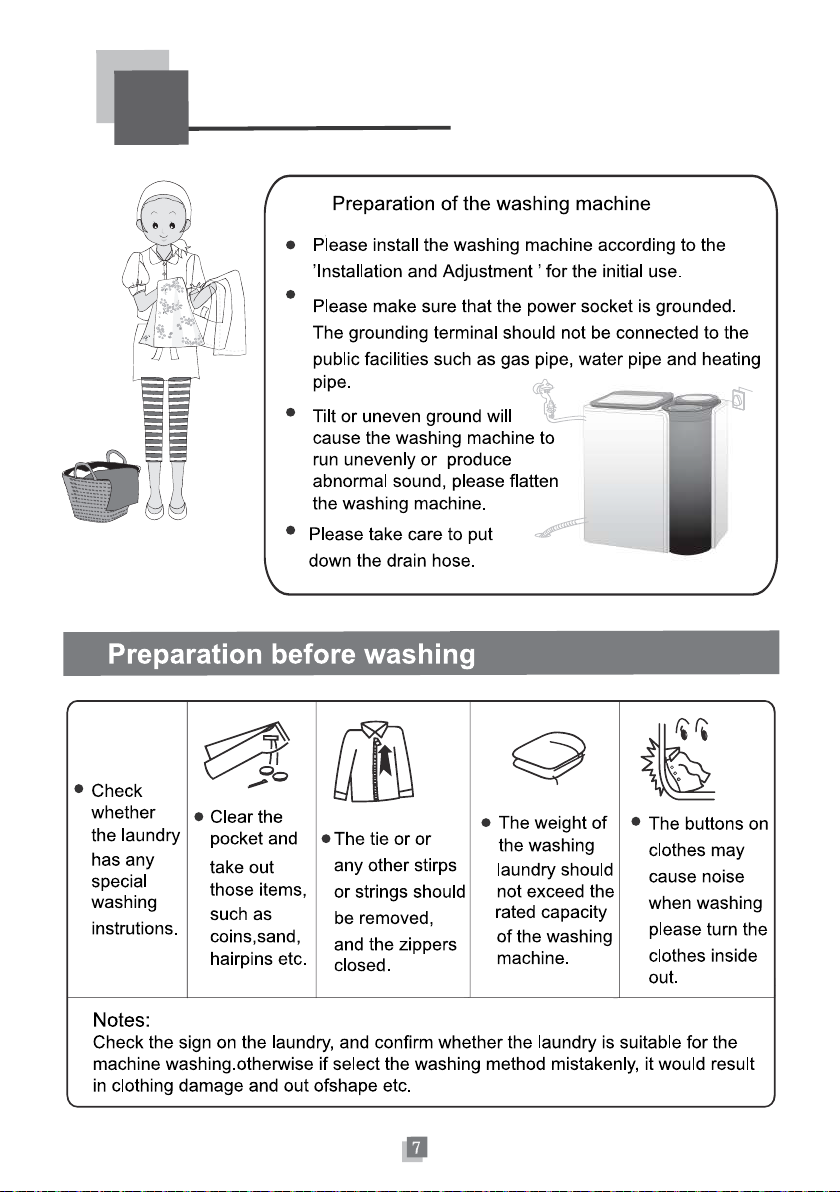

Preparation

Notes

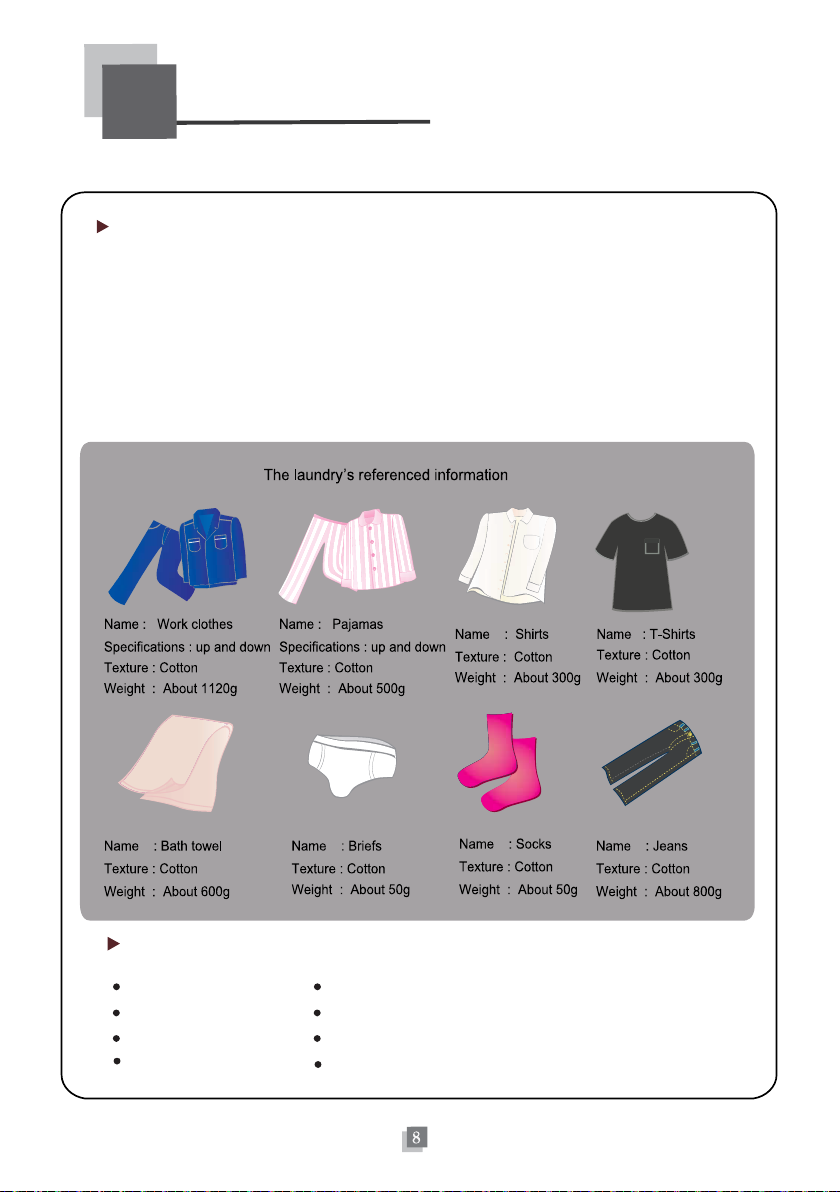

Washable laundry

The capacity of washing and spinning is the maximum weight of washing and spinning

the laundry.

The weight of soaking, washing,rinsing and spinning for big tub is 7Kg and below (In

Wool program the capacity of washing is 1Kg and below).

The weight of washing, rinsing and spinning for small tub is 2.5Kg and below (In Underwear

program the capacity of washing is 1.5Kg and below).

The big tub is suitable to wash work clothes, shirts, coats, jeans, bed clothes and so on.

The small tub is suitable to wash underwear clothes, briefs, pajamas and so on.

Leather products

water proof clothes

Non washed clothes

Decorated things

Tie, suit and premium coats

Clothes using twisting silk(generally has the shuttled pattern)

Silk clothes

Artificial silk, copper and ammonia fiber and its mixture

Non washable laundry

Preparation

Operational guidance

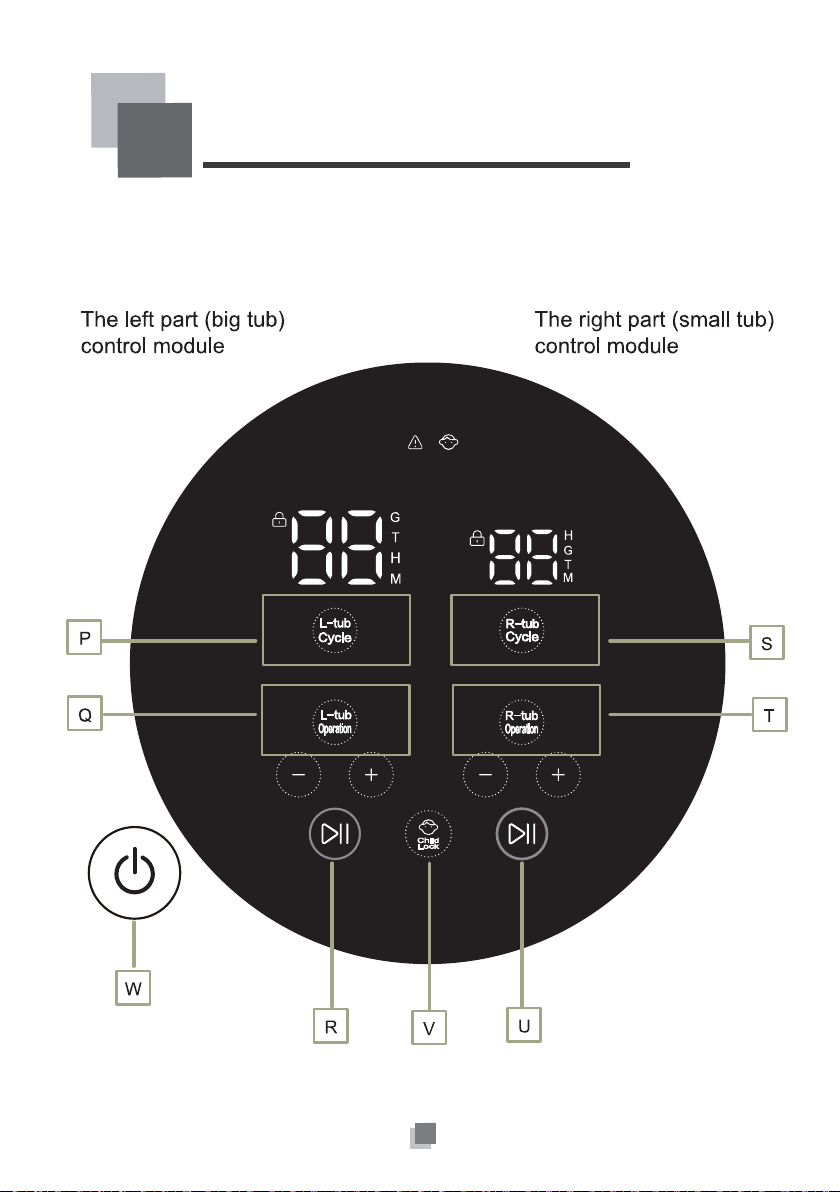

The control panel module

Strong

Quick

Delicate

Standard

Normal

Duvet

Wool

Tub

Clean

Water

Level

Delay

Soak

Wash

Rinse

Spin

Normal

Kids

Underwear

Quick

Delicate

Standard

Wash

Rinse

Spin

Water

Level

Delay

Remain

Delay
