Twin-tub Washing Machine User's manual

This manual is for

Please read this manual

carefully before using.

Retain it for future reference.

Contents

Safety precautions

Installation and adjustment

Preparation before washing

The musts in washing

Usage of the detergent

Washing sequence

Disposal after washing

Packing list *Specification

Names of the parts

Trouble-Shooting *Answers to question

Water-filling entrance

Wash timer

Wash selector

Drain selector

Control panel

Bypass channel

Overflow filter

Water level adjusting lever

water-filling translation

Drain hose

Pulsator

Cabinet handle

Wash tub

Base frame

Lint filter

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Cabinet

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

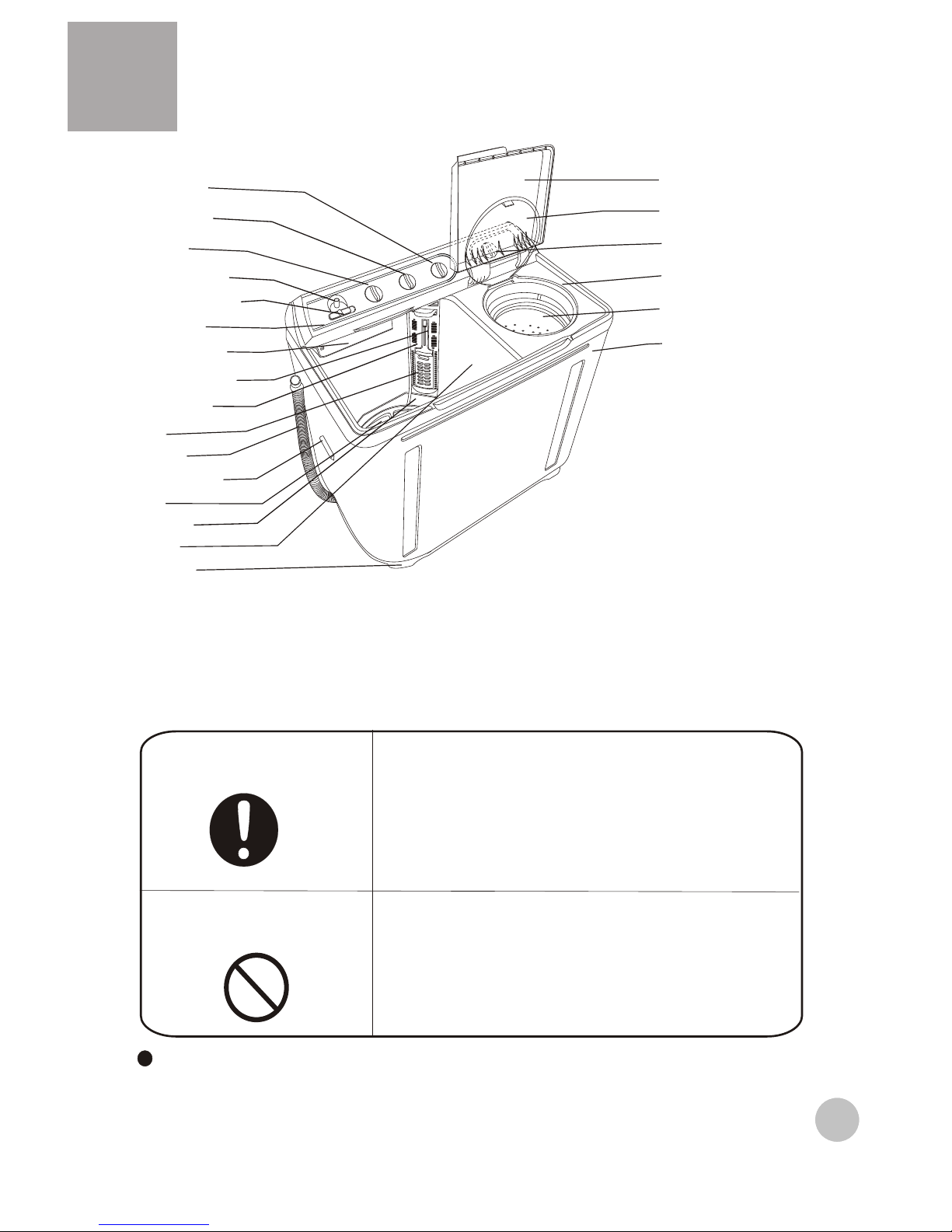

Names of the parts

Notes: All illustrations in this Manual are given for reference only. Your products and

accessories may show differences from these illustrations due to our

continuous improvement.

Valve cover

50 C

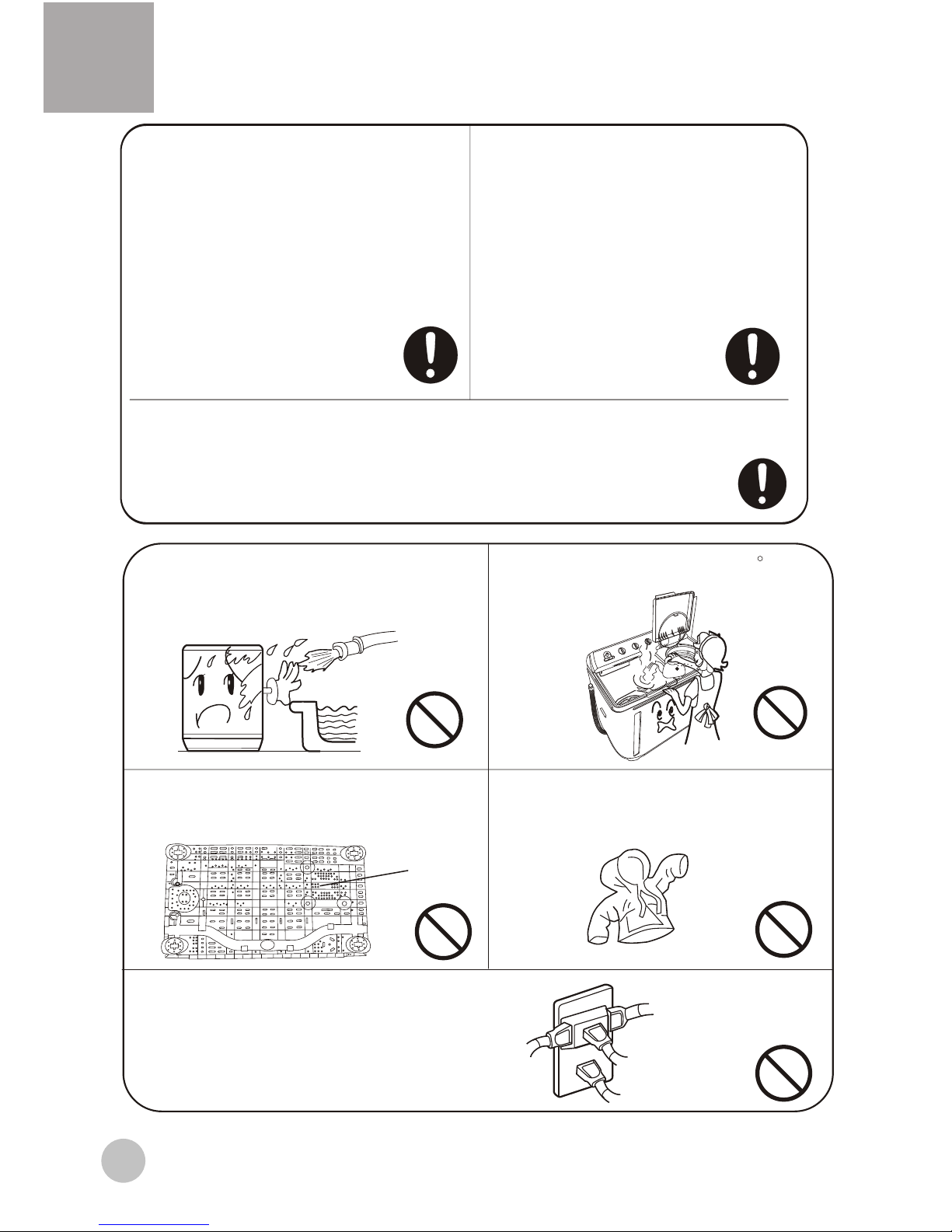

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage. Be sure to use single-phase

three pins receptacle. The earthing

terminal of the receptacle must be

earthed reliably. If possible, please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians of our special shop or the after-sale service department.

Keep the pin of the power plug clean.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Ventilation hole at

the bottom of the

washing machine

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

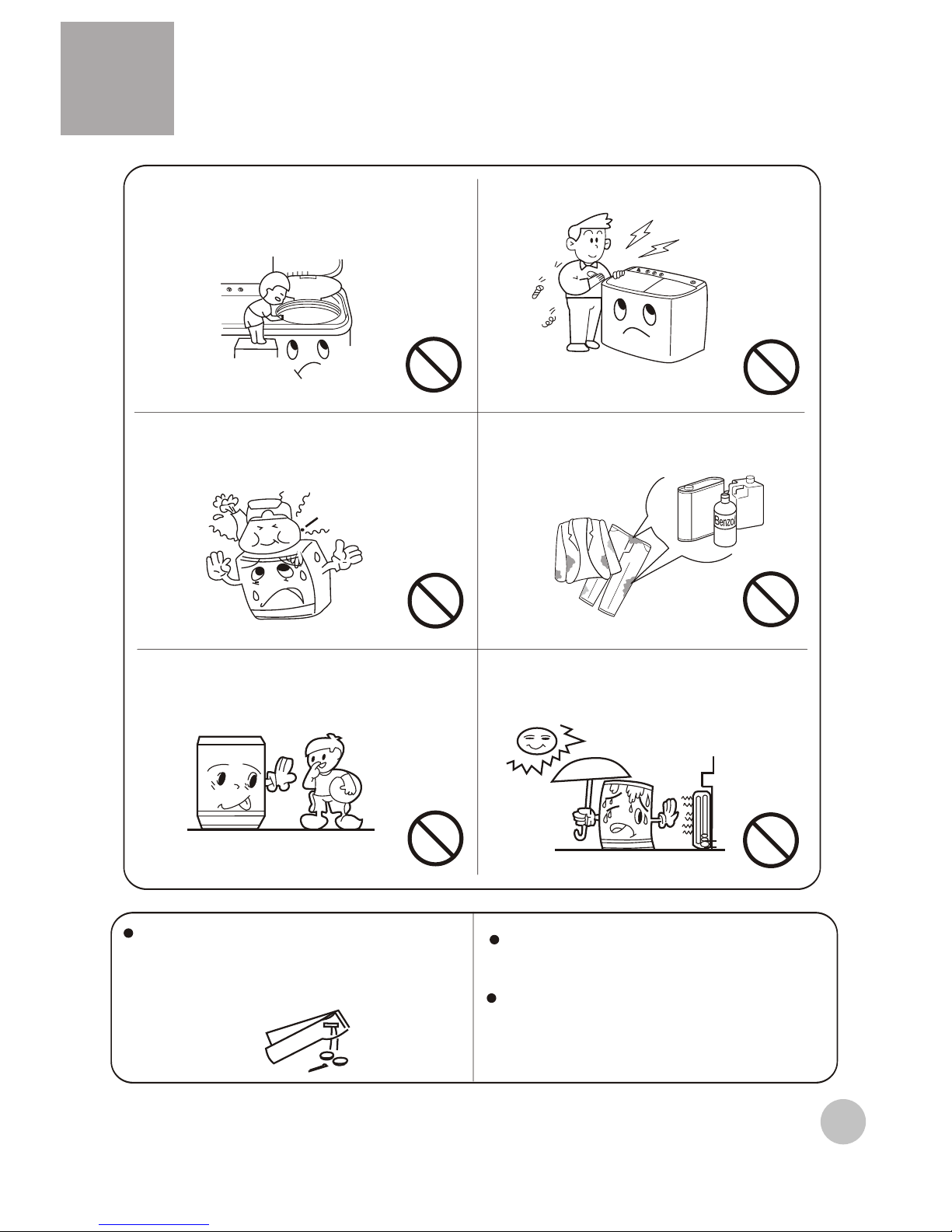

Safety precautions

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Handicapped or children without care

shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

h nn

T i er

To protect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign ma terials before washing.

Please che ck if the wat er faucet is op en ,

and if the connection of the wat er inlet

pipe is proper.

It is sugge sted to us e foa mless was hing

po wde r.

Put the undersi de of the lint filter into overflow filter

then push the upside into overflow filter

，

After installation, please refer that the lint filter

installed to the right station, otherwise the lint

filter may be fallen off when washing, influencing

your use.

overflow filter

lint filter

Installation and adjustment

Please install and adjust the machine according to the requirement of

the manual. It is very important to your security and correct operating

the machine.

Install the lint filter

If the extra hose is too long, cut it either

at point A or B.

<10cm

> 40mm

<1.5m

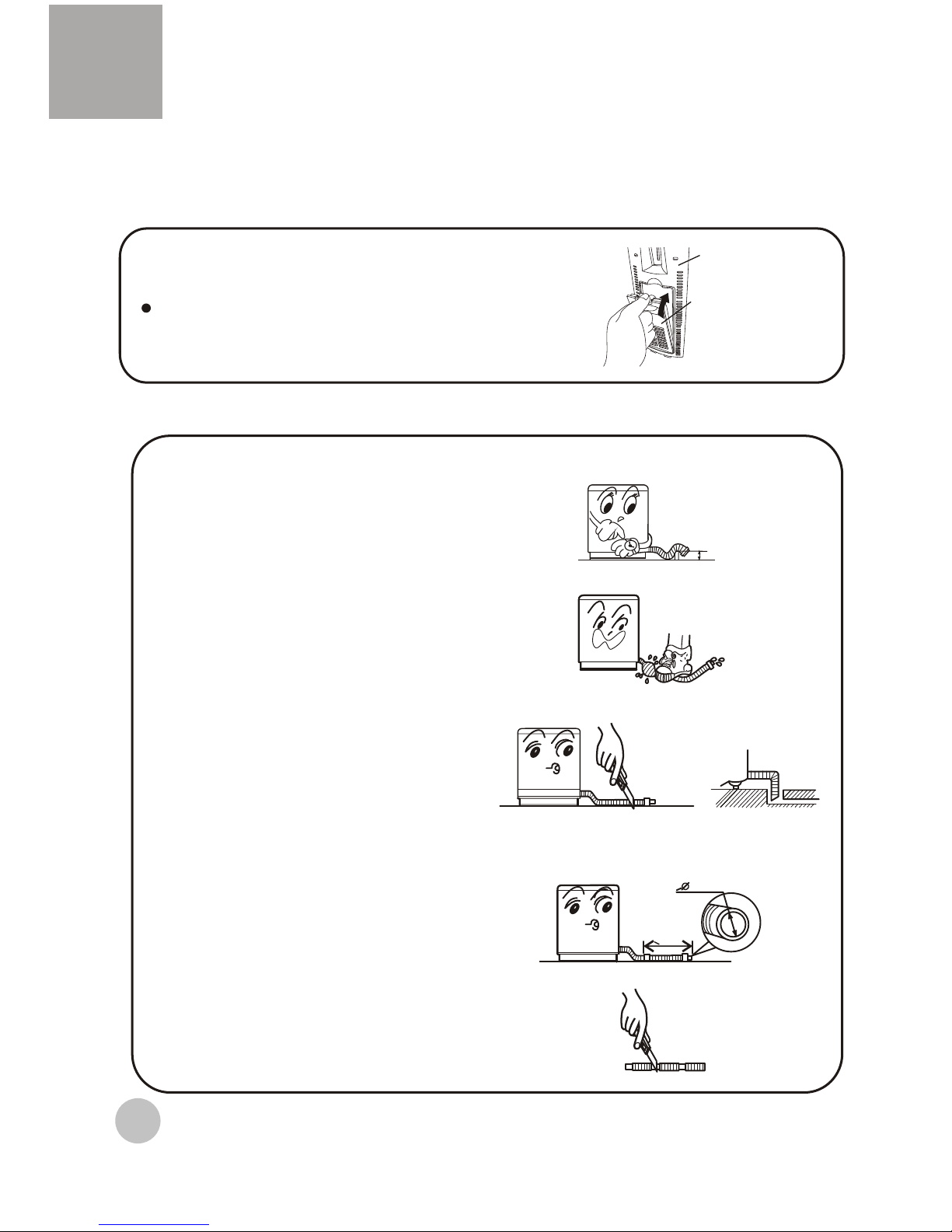

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be

less than 10 cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not tramp or press the drain hose.

3.If the drain hose is too long, cut it at mid point.

To make smooth drainage, cut the front end of

the hose slantingly.

4.If extra drain hose is needed , please make

separate purchase. The inner diameter of the

extra hose shall not less than 40mm, and the

length shall not exceed 1.5m.

Insert the water inlet hose into the water-filling

entrance on the control panel

To dismantle the water inlet pipe,

just push the control handle as indicated in the

figure and pull it out

（

）

How to change the direction of the drain hoses

Figure 1 indicates the ex factory installation

position of the drain hose.

Put soft items on the ground. Lean the machine

down gently with the front surface facing the

ground. Take off the drain hose from the cabinet.

Take the hose out of the fixing groove.

(See to Figure 2).

Embed the drain hose into the groove

along the side of the spin tub in the order

of (1)~(3), heading for the side of the

spin tub. (See to Figure 3).

Embed the drain hose into the

groove with hands. Take care not

to damage the drain hose in

fastening the fixing clamp.

Figure 1

Figure 2

Figure 3

Embed into the

groove in turn

Extend the drain hose from the side of spin tub

Soft item

Extend to the

spin tub side

Back

Front

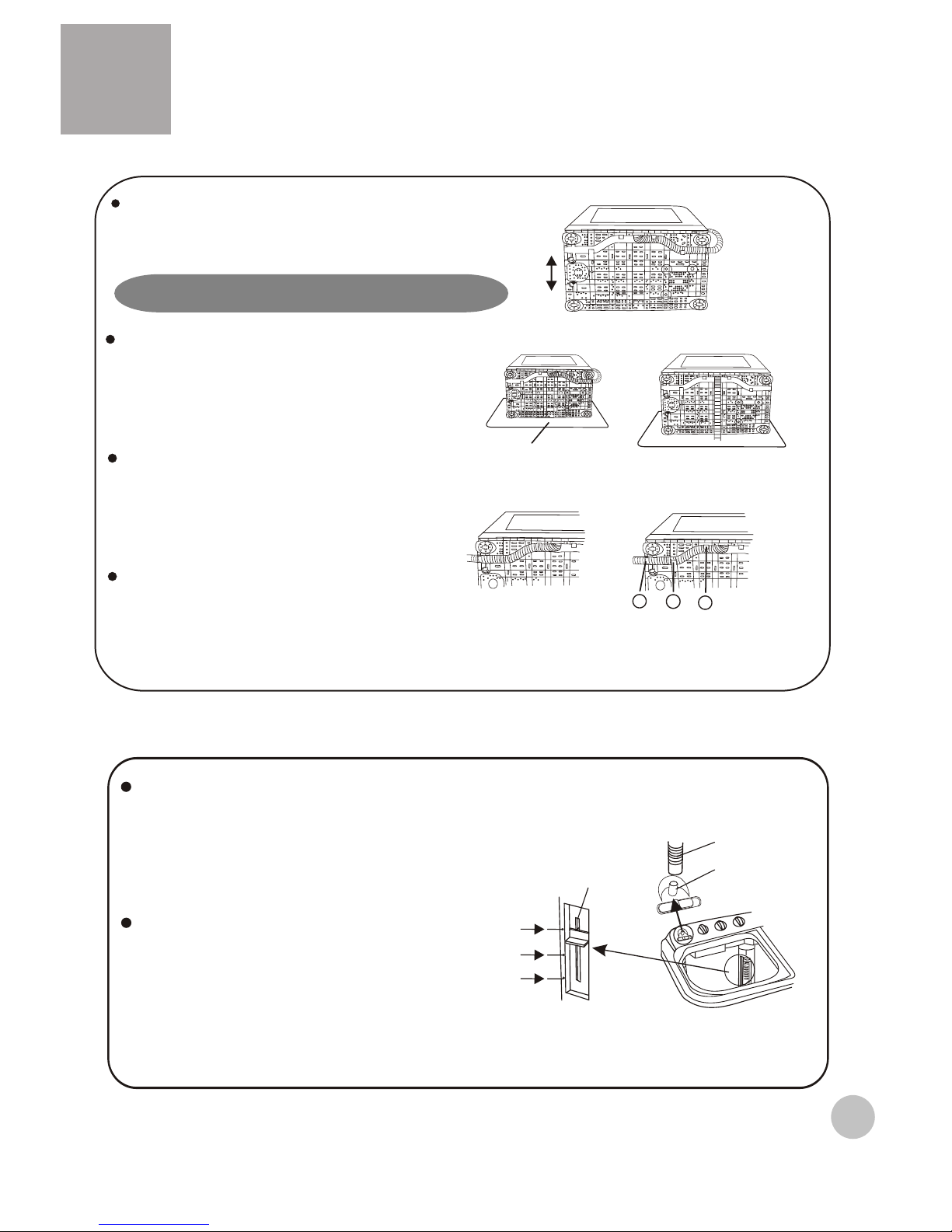

Install the water inlet hose; Select the water level

Select water level according to the

quantity of the laundries.

Set the water level adjusting lever

to needed line.

Water inlet hose

Water inlet

Maximum Max

Minimum Min

Medium Med

Water level

indicator

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose .

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

Preparation before washing

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

洗涤物的参考重量

The capacity of washing and spinning of the

machine refer to the largest weight of the

standard laundries under dry condition that can

be washed or spinned in one time. Laundries

quantity in one washing cycle shall be lower

than the rated capacity.

The thickness ,size , type of the cloth will influ-

ence the actual washing capacity. It is suit-

able to put in reasonable amount of laundries

and the laundries can be turned round in wash-

ing for one time washing.

Do not select " Maximum " water level for

few laundries , so as to avoid splashing of water.

The musts in washing

How to use the whitener

Fill water to decided level. Dilute

the whitener with container.

Pour it slowly into thewashing tub.

Avoid using whitener on laun-

dries with color or pattern as they

are prone to lose color.

The whitener shall not touch

the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30

seconds to dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing

powder:

1.Prepare warm water of 30 C and a

container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for

the usage and quantity of the

whitener.

For powder whitener, please

dissolve it before using.

It is suggested not to use high sudsingdetergent.

How to use the washing powder

Usage of the detergent

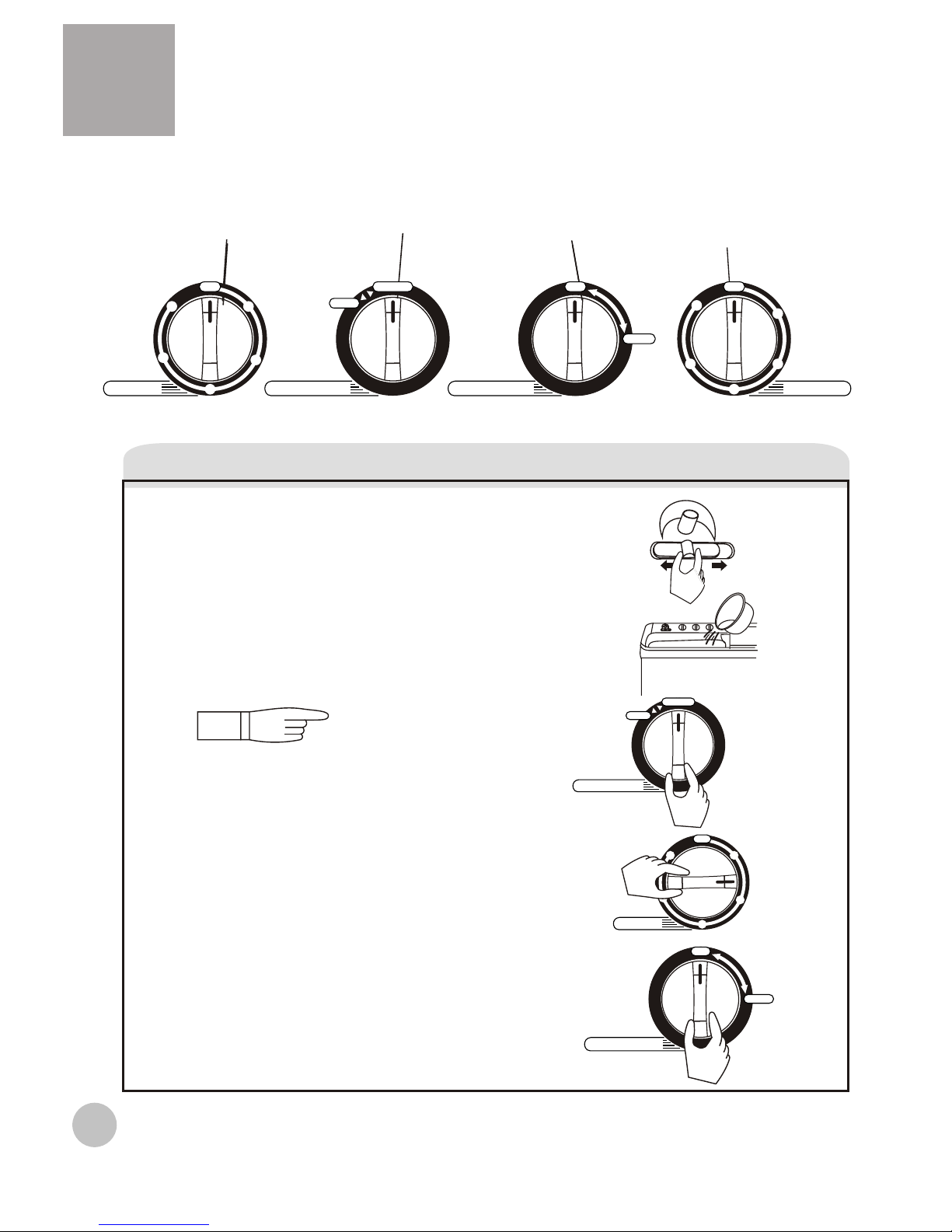

1、Fill selection

(1) Set fill selection to “Wash side”.（Figure 1）

(2 )Adjust water level rod to a position as needed.

2、Fill water and add solved powder detergent until

water reaches a suitable level.

It begin to wash to dispense detergent uniformly.

3、Put in the wash load, and supplement water

as necessary.

4、Select intensity

Select Normal, intense or Jeans water flow

intensity according to wash load.

5、Select wash time

Select wash time according to wash load.

6、After completion of wash, please set drain

switch at Drain position.

INLET SELECTOR

WASH SPI N

（Intensity can be standard,

or soft)

Spin timer

Wash timer

Wash selector

(If to set less than 2 min,

you should first surpass 6 min

and then turn back.)

（If to set less than 1 min, in

order to ensure long service life,

please first surpass 2 min and

then turn back）

Drain selecor

（Do not set drain switch

on Drain position during

washing)

Washing sequence

止水

强

WASH TIMER

WASH SELECTOR

SPIN TIMER

DRAIN SELECTOR

STANDAR D

SO FT

OF F

DRA IN

OF F

Wash

Page 7

（Figure 3）

Figure 1

Figure 5

Figure 3

Figure 4

Figure 2

（Figure 4）

(Figure 5)

WASH TIMER

OFF

强

WASH SELECTOR

STANDARD

SOFT

止水

DRAIN SELECTOR

OFF

DRAIN

Autres manuels pour HWM150-0623S

Table des matières

Autres manuels Haier Rondelle

Haier

Haier HMS1260TVE Manuel utilisateur

Haier

Haier SBM600T Manuel utilisateur

Haier

Haier HVS1000 Manuel utilisateur

Haier

Haier HW-D1260TVE Manuel utilisateur

Haier

Haier HK1007TVE/ME Manuel utilisateur

Haier

Haier HBF600T Manuel utilisateur

Haier

Haier HW90-B14939S8 Manuel utilisateur

Haier

Haier HWM130-0713S Manuel utilisateur

Haier

Haier HWM55-0528 Manuel utilisateur

Haier

Haier HSW-BD70A Manuel utilisateur

Haier

Haier XPB88-LS Manuel utilisateur

Haier

Haier HLTW600AXW Manuel utilisateur

Haier

Haier XPB65-27QGS Manuel utilisateur

Haier

Haier HWM60-111S Manuel utilisateur

Haier

Haier HWM75-113S Manuel utilisateur

Haier

Haier HLP21E - Pulsator Wash With Tub Manuel utilisateur

Haier

Haier LMA0120WPAB0 Manuel utilisateur

Haier

Haier HWM85-0566 Manuel utilisateur

Haier

Haier JW-K51A Manuel utilisateur

Haier

Haier HWM33-200F Manuel utilisateur

Haier

Haier HWM33-200D Manuel utilisateur

Haier

Haier HWM90-7288 Manuel utilisateur

Haier

Haier HWM60-0523S Manuel utilisateur

Haier

Haier WD-8888-71 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
