Twin-tub Washing Machine naUser's ma u l

This manual is for

XPB70-111S

XPB70-112S

HWM70-111S

HWM70-112S

Special number:0030806263

Please read this manual

carefully before using.

Retain it for future reference.

Contents

Safety precautions

Installation and adjustment

Preparation before washing

The musts in washing

Usage of the detergent

Washing sequence

Disposal after washing

Packing list *Specification

Names of the parts

Trouble-Shooting *Answers to question 15

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

Names of the parts

Buzzer

Water-filling entrance

Water inlet selector handle

Wash selector

Wash timer

Control panel

Overflow filter

Quick water-filling entrance

Drain hose hook

Water level adjusting lever

Lint filter(Installed by user)

Pulsator

Wash tub

Drain hose

Wash tub cover

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Cabinet

Base frame

Note：Different machine,the form of cortrol panel is

different.

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage.Be sure to use single-phase

three pins receptacle.The earthing

terminal of the receptacle must be

earthed reliably.If possible,please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned orwhen it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians ofour special shop or the after-sale service department.

Keep the pin of the power plug clean.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Ventilation hole at

the bottom of the

washing machine

50 C

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Safety precautions

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Handicapped or children without care

shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Th nn

ier

To protect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the wat er faucet is open,

and if the connection of the wat er inlet

pipe is proper.

It is suggested to use foamless was hi ng

powde r.

Overflow filter

Lint filter

If the extra hose is too long, cut it either

at point A or B.

<10cm

> 30mm

<1.5m

Installation and adjustment

Please install and adjust the machine according to the requirement of

the manual. It is very important to your security and correct operating

the machine.

Install the lint filter

After opening the package,please take out the lint

filter from the document bag,install it to the overflow

filter of the wash tub.See to the figure.

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be

less than 10cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not tramp or press the drain hose.

3.If the drain hose is too long, cut it at mid point.

To make smooth drainage, cut the front end of

the hose slantingly.

4.If extra drain hose is needed , please make

separate purchase. The inner diameter of the

extra hose shall not less than 30mm, and the

length shall not exceed 1.5m.

How to change the direction of the drain hoses

Figure 1 in dic ates th e ex fa ctory in sta ll atio n

position of th e drain hose.

Extend the drain hose from the side of spin tub.

Tak e off th e drain hose fr om th e hanging hole

of th e cabinet. Pull the drain hose fix in g hook

outwards gently to take out the drain hose

from the two fix ing hooks. (As per Figure 2)

Rotate th e drain hose fix in g hook fo r 90 to take it

out fro m the insta ll atio n hole (As per Figure 3).

Pull the fix ing hook outwards slig htly. Inlay th e

drain hose in to the fix ing hooks relia bly along

the groove at spin tub side, and make it extend

towards spin tu b side.

Insta ll th e tw o drain hose fix ing hooks ta ken

out into the in stall atio n hole at th e other side

of the base frame (to aim at th e in stallatio n

hole accurately you can lean the washing

machine forward slightly ).Then rotate

for 90 (As per Figure 4).

Extend the drain hose from the rear side

Tak e out th e drain hose from th e fix ing hook. Extend it from the rear side

(When the drain hose is extended from th e rear side, it can be hung on the

point fo r drain hose at th e two sides of th e cabinet.) (See to Figure 6).

Figure 1 Drain hose

fix ing hook

Figure 2

Drain hose

fixing hook

Pull outwards

slightly

Side sectional view

Fixing hook

installation hole

Drain hose

Tak e off

the drain hose

Figure 3

Tak e off th e fix ing

hook downwards

Rotate the fixing

hook for 90

Figure 4

Insert the fixing hook into the

installa tio n hole upwards

Rotate th e fix ing

hook fo r 90

to fix it

Figure 5 Figure 6

Then hang the drain hose into the hanging hole at

the spin tub side. (As per Figure 5).

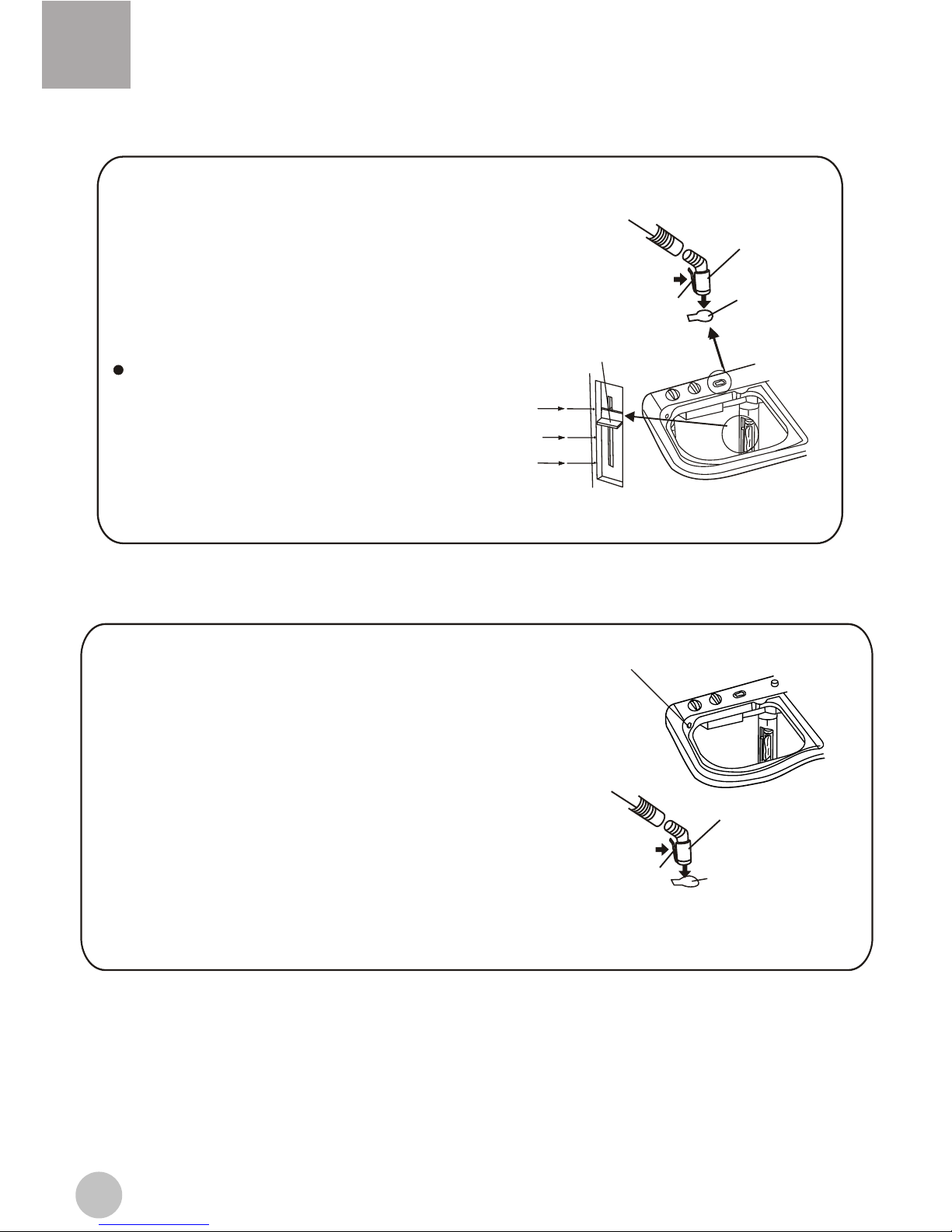

Install the water inlet hose; Select the water level

Select water level according to the

quantity of the laundries.

Set the water level adjusting lever

to needed line.

Quick water-filling entrance

You can fill water into the wash tub directly

through this entrance. It can reduce the

humidity inside the control panel significantly

and prolong the operating life of the components.

Quick water-filling entrance

Insert the water inlet hose into the water-filling

entrance, then push the water-filling jointer into

the quick water- filling entrance. (To dismantle

the water inlet pipe, just push the control handle

as indicated in the figure and pull it out)

Water inlet hose

Water inlet jointer

Control handle

Push

Quick water-filling entrance

Use the new water inlet hose provided

with the machine to connect to the

water faucet.Old hose sets should

not be reused.

Water inlet hose

Water inlet jointer

Control handle

Push

Water inlet

Maximum Max

（about 55L）

（about 46L）

（about 36L）

Minimum Min

Medium Med

Water level

indicator

Insert the water inlet hose into the water-filling

entrance on the control panel, then push the

water-filling jointer into the entrance on the

control panel. (To dismantle the water inlet pipe,

just push the control handle as indicated in the

figure and pull it out)

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose .

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

Preparation before washing

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

洗涤物的参考重量

The capacity of washing and spinning of the

machine refer to the largest weight of the

standard laundries under dry condition that can

be washed or spinned in one time. Laundries

quantity in one washing cycle shall be lower

than the rated capacity.

The thickness ,size , type of the cloth will influ-

ence the actual washing capacity. It is suit-

able to put in reasonable amount of laundries

and the laundries can be turned round in wash-

ing for one time washing.

Do not select " Maximum " water level for

laundries less than 2.4kg, so as to avoid

splashing of water.

The musts in washing

How to use the whitener

Fill water to decided level. Dilute

the whitener with container.

Pour it slowly into thewashing tub.

Avoid using whitener on laun-

dries with color or pattern as they

are prone to lose color.

The whitener shall not touch

the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30

seconds to dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing

powder:

1.Prepare warm water of 30 C and a

container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for

the usage and quantity of the

whitener.

For powder whitener, please

dissolve it before using.

It is suggested not to use high sudsingdetergent.

How to use the washing powder

Usage of the detergent

Ce manuel convient aux modèles suivants

Autres manuels Haier Rondelle

Haier

Haier HWM100-FD10829 Manuel utilisateur

Haier

Haier WD-8888-71 Manuel utilisateur

Haier

Haier HW60-1201S Manuel utilisateur

Haier

Haier B1000TX Manuel utilisateur

Haier

Haier HWM110-0713S Manuel utilisateur

Haier

Haier HLP455E Manuel utilisateur

Haier

Haier HT1006TXVE Manuel utilisateur

Haier

Haier HWM100-1678ES5 Manuel utilisateur

Haier

Haier HWM80-113S-Fiji Manuel utilisateur

Haier

Haier HWM150-0623S Manuel utilisateur

Haier

Haier HWM70-FD10829 Manuel utilisateur

Haier

Haier XQG50-QF800 Manuel utilisateur

Haier

Haier XPB60-111S Manuel utilisateur

Haier

Haier HMS1260TVE Manuel utilisateur

Haier

Haier HWM-G42A Manuel utilisateur

Haier

Haier HWM110-0566 Manuel utilisateur

Haier

Haier LMA6120WPBB0 Manuel utilisateur

Haier

Haier PFL510W-u Manuel utilisateur

Haier

Haier HWM90-0713S Manuel utilisateur

Haier

Haier HW80-B14266 Manuel utilisateur

Haier

Haier HLP23E - Electronic Touch Pulsator Ing Portable Washing... Manuel utilisateur

Haier

Haier HWM50-0528 Manuel utilisateur

Haier

Haier HW80-BP12929 Manuel utilisateur

Haier

Haier HW85-B1486NZP Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
