Full Automatic Washing Machine

User's manual

This manual is for

Please read this manual

carefully before using.

Retain it for future reference.

HWM50-10

User's manual

0030805169G

HWM50-10B

Names of the parts...............................................................................................1

Safety precautions .............................................................................................2

Installation and adjustment ...................................................................................4

Install the water inlet hose....................................................................................6

Preparation before washing .................................................................................8

Put in the laundries ..............................................................................................9

Usage of the detergent ........................................................................................9

Use the operation buttons ..................................................................................10

Close the top lid .................................................................................................13

Finish washing ....................................................................................................13

Disposal after washing .......................................................................................14

Trouble shooting Answer to question.............................................................15

Packing list Specification...................................................................................16

Contents

Meaning and description of the symbols

Names of the parts

Warning sign

Forbidden sign

Contents marked with that symbol are related to the safety

of the product and the personal safety of the users. Please

operate in strict conformity to the contents, otherwise it may

cause damage of the machine or injure the personal safety

of the user.

Contents marked with that symbol are actions forbidden to

perform. Performing of those actions may result in damage

of the machine or injure the personal safety of the user.

Adjustable foot

Fixed foot (3)

ack cover

Cabinet

Drain hose

Control panel

film

Control panel

Filter cover

Pulsator

Inner tub

Detergent box

Top lid B

Handle

Water valve

Top lidA

Hanging hole

for the drain

hose

Water absorption

cushion

Adjustable foot

stick

Notice label

(Installed by user)

Lint filter

Safety precautions

Do not damage the power cord, bend ,extend, twist, bind or alter it by force. Do not press or

nip it with weight. If the power cord or the power plug is bad, or the power plug becomes

flexible, to avoid risk it is required to have it replaced by

the technicians of our special shop or the after-sale

service department. Keep the pin of the power plug

clean, if the power plug is polluted with dust, please

wipe with dry cloth carefully.

The power cord plug should be convenient

to be pluged in or pluged out with hand

while the washing machine runs normally.

Be sure to pull the plug out and close the

water tap when the machine is idle, when

moving the machine, or when cleaning

the machine. Do not use wet hand to insert

or pull out the power plug.

In case the washing machine is installed

on ground with carpet, do not block the

ventilation hole with carpet.

Do not let the machine share one receptacle with other

electric appliances. If the power plug is damaged, or

the plugging into the receptacle is loose,

do not use the plug any more.

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not use water hotter above 50 C .

Do not put the machine at damp place like

the bathroom. Never wash it with water.

Not put wet laundries on the control panel.

Please plug the plug on special receptacle

with rated voltage. Be sure to use single-

phase three pins receptacle. Ensure the

earthing prong of the power receptacle is

earthed reliably. Use leakage protector if

possible.

soft items

The ventilation holes

at the bottom

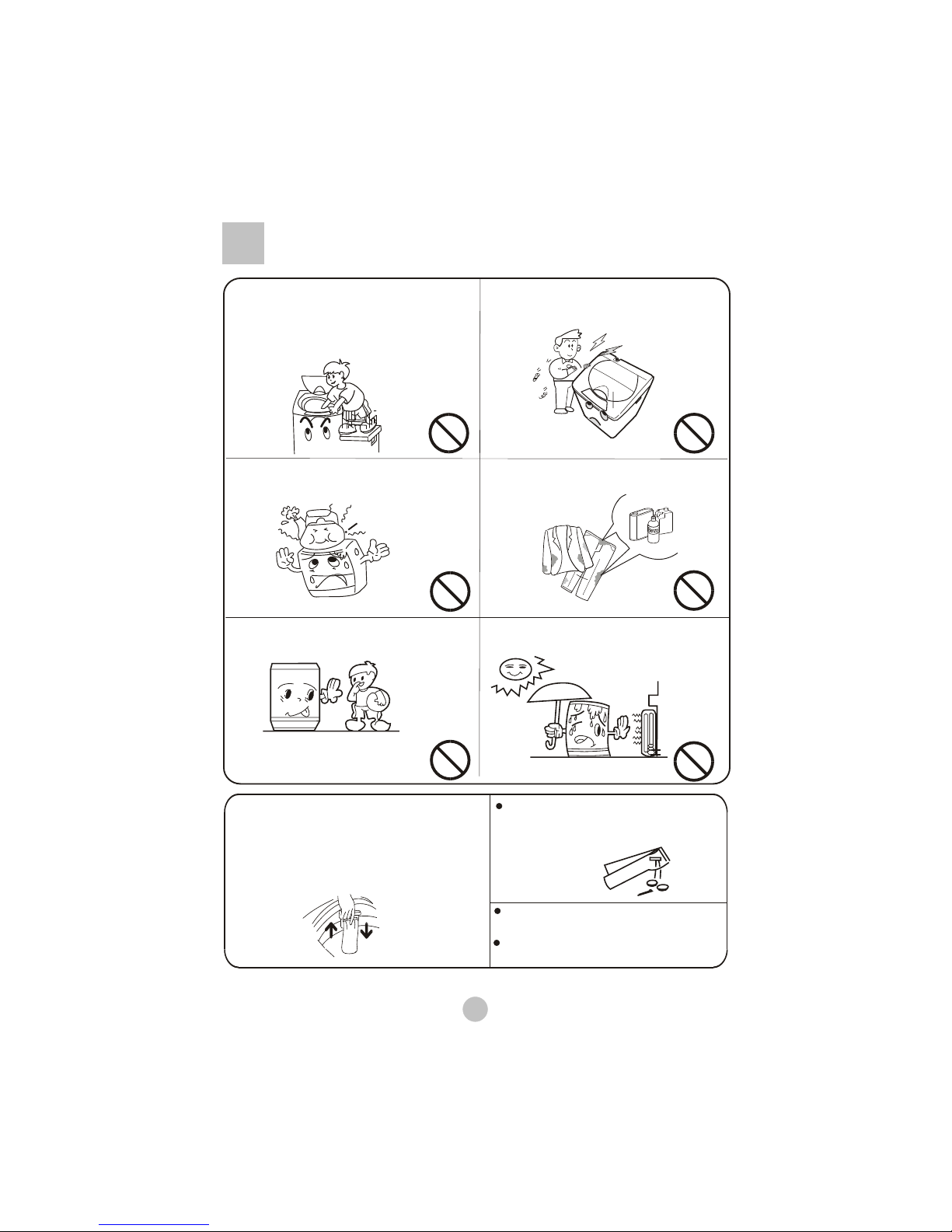

Safety precautions

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children. Do not let the children

climb the washing machine.

Petrol

Thinner

Dismantle Install

To prevent the lint inside the tub from blocking

the cascade outlet during washing, please

keep the lint filter in good condition, and

install it to proper position. If the lint filter

is lost or damaged, please contact the local

after-sales service department of our company.

Toprotect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet is open,

and if the connection of the water inlet

pipe is proper.

It is suggested to usefoamless washing

powder.

Installation and adjustment

The largest allowed slope of the

shank base of the machine is 2 .

The slanting or rough ground will

result in unstable running or

stoppage of the machine. Please

adjust it with following methods:

Adjust the adjustable foot:

Install the bottom plate

After you open the package, please lean

the washing machine gently down on soft

items ( like the towel cloth, blanket, etc. ).

Install the bottom plate to the bottom of the

machine with the seven screws by a cross

screwdriver, then lift the machine up gently.

See to the figure:

Adjust the installation position

Please install and adjust the machine according to the requirement of the manual. It is

very important to your security and correct operating the machine.

Push the lint filter downward to

location for lint filter.

1.To twist the adjustable foot, please

first lift up the side of the foot slightly,

loosen the adjustable nut, and twist

the foot.

2.Fasten the nut after adjustment.

Loosen Fasten

High Low

adjustable nut

adjustable foot

Back

Front

Install the lint filter

Soft items

Bottom plate

Screw

How to change the direction of the drain hose

1.Dismantle the back cover of the washing

machine.

3.Dismantle the protecting cover of the

drain outlet at the other side (method

the same as the bushing). Install the

bushing as per indicated in Figure 4.

4.Extend the drain hose from the other

side. Fix the drain hose onto the base

frame with the drain hose frame. (As

indicated in Figure 5)

5.Install the protecting cover of the drain

outlet at the other side as per indicated

in Figure 6.

Drain outlet

protecting cover

Drain hose bushing Drain hose bushing

Figure 1

Figure 4

Figure 5

Figure 6

Drain hose

bushing

Take off

Drain hose

bushing claw

Cabinet

Figure 2

Figure 3

Inner

Press

Outer

2.Put down the drain hose. Take off the

drain hose frame. As indicated in Figure

1, put the drain hose into the cabinet.

Then stretch one hand into the cabinet

to nip the claw of the drain hose bush-

ing to remove the claw from original

position. Take off the drain hose bush-

ing with the other hand. (As indicated in

Figure 2 and 3).

Drain hose frame

Outer

drain

hose

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not trample or press the drain hose.

If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 30mm, and the length shall

not exceed 1.5m.

5.If the extrahose is too long, cut it

either atA or at B point.

Usage of the drain hose

The drain hoseshall drain smoothly

Water tap,suitable Water tap,not suitable

It is requiredthat the front end shall be longer than 10mm.

The outlet endsurface of the tap shall be flat and smooth. If not please file it to

avoid leakage.

2.Loosen the screw till the water tap can be accessed. Put the jointer of the water

inlet hose on the tap. See to Figure 2. (If the tap diameter is too large and the jointer

can not be set on the water tap, please loosen the four screws and take out the

bushing in the jointer. See to the figure3.)

1.Press the lower end of the lock lever and push down the slider. Take off the water

inlet hose jointer from the water inlet hose component. See to Figure 1.

Remarks: Before twistingthe fastening nut, the thread is4mm above the

upper surface ofthe nut. After twisting the fastening nut, the thread is 2mm

above the uppersurface of the nut. See toFigure 6.

4.Take off the nameplate. Twist the fastening nut as per the indication of the figure.

See to Figure 5.

3.Fasten the four screws evenly. See to Figure 4.

>10mm

Outlet end surface

Nut

About 4mm before twisting

About below 2mm after twisting

Screw

Screwdriver Mark label bushing

Figure 2

Figure 5

Figure 1

Figure 4

Figure 3

Figure 6

Slider

Water inlet pipe jointer

Water inlet pipe

Locking lever

Install the water inlet hose

Confirm the water tap

Connection between the water inlet hose jointer and

the water tap

1.Do not takeoff the water absorption

cushion. Please check if the cushion

is dropped or damaged before each

usage. If it happens please contact

our after-sale department immediately.

2.Put the nutof the water inlet hose on

the valve jointer.

3.Fasten the nut.Swaying it gently to

confirm if it's suitable.

1.Close the watertap.

2.Press the lockinglever. Push down the slider. Then

pull off the water inlet hose. If the machine is used

more than onceevery week, the jointer of thewater

inlet hose canbe kept on the tap toprevent

damaging the fixingscrew.

1.Push down theslider. Insert the

water inlet hoseinto the jointer.

2.Hang the locklever to the jointer.

Release the slidertill a click

sound is heard.

Locking lever

Slider

Water absorption cushion

Nut of the water inlet hose

Jointer of thewater inlet valve

Slider

Jointer of thewater

inlet hose

Locking lever

Connection between the water inlet hose and the

washing machine

Connection between the jointer of the water inlet

hose and the water inlet hose

Check the connection between the jointer of the

water inlet hose and the water tap

Take down the water inlet hose

1.Swaying the hosegently to confirmif it is fastened stable.

2.After installation, openthe tap tocheck if it leaks.

3.Do not bendthe hose withoverstrain.

4.Before each usageplease check if

the connection between the jointer

of the water inlet hose and the water

tap, and the installation of the

water inlet hose are firm, so as to

prevent dropping from improper

Installation position.

Preparation before washing

Confirm if

there's special

requirement for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

Preparation before washing

1.Connect the water inlet hose and open the

water tap .

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth ter-

minal to the gas pipe and tap water pipe.

3.Put down the drain hose.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

Pay attention to followings before washing the laundries

a. Please check if the laundries are applicable for washing.

b. Separate those not colorfast from other laundries.

c. For laundries not water absorbing, please put them into water with hands.

d. For laundries with much soil, please remove the soil first. You can add detergent on the

part with serious soil directly. It is much easier to remove the soil by that mean.

e. For laundries likely to get lint ball or with long fiber, please first turn the inside out before

putting them into the water.

f. Do not put the laundries polluted with chemicals directly into the washing machine.

For those small laundries ,laundries likely to be twisted or worn, and woolen laundries,

please put them into mesh bag before washing.

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

Autres manuels pour HWM50-10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier Rondelle

Haier

Haier HLT20E Manuel utilisateur

Haier

Haier HW70-14F2B Manuel utilisateur

Haier

Haier HW80-B14266 Manuel utilisateur

Haier

Haier LCA4120WPAB0 Manuel utilisateur

Haier

Haier HW70-1401 Manuel utilisateur

Haier

Haier HW80-B1486 Manuel utilisateur

Haier

Haier KPB70-113S-P Manuel utilisateur

Haier

Haier RWT150AW Instructions de montage

Haier

Haier HW-E1470TVE Manuel utilisateur

Haier

Haier HWM33-200E Manuel utilisateur

Haier

Haier HA800TX Guide de l'utilisateur

Haier

Haier HW120-B14686 Series Manuel utilisateur

Haier

Haier HK1270TVEME Manuel utilisateur

Haier

Haier HWMP55-918 Manuel utilisateur

Haier

Haier XPB72-276S Manuel utilisateur

Haier

Haier XQG60-HA800TX(M), XQG60-HA1000 Guide de l'utilisateur

Haier

Haier HW80-BD1626 Manuel utilisateur

Haier

Haier HBF800TE Manuel utilisateur

Haier

Haier HMS1400TXVE Manuel utilisateur

Haier

Haier HW50-810 Manuel utilisateur

Haier

Haier LMD6124PBCS0 Manuel utilisateur

Haier

Haier HWMP55-918 Manuel utilisateur

Haier

Haier HWM1070KFL Manuel utilisateur

Haier

Haier HWD 105-B14959S8U1 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
