Haier BW1500W Manuel utilisateur

Fully automatic washing machine

User's manual

This manual is for

BW1500W

Please read this manual carefully before using.

Retain it for future reference.

Contents

Names of the parts

Safety precautions

Trouble-shooting Answer to question

Packing list Specification

Installation and adjustment

Preparation before washing

Put in the laundries

Add the detergent

Use the operation knobs and buttons

Installation the water inlet hose

Disposal after washing

Finish washing

Close the top lid

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

Warning sign

Names of the parts

Meaning and description of the symbols

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damageof the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Top lid, I

Detergent box

Location of lint filter

Control panel seat

Inner tub

Control panel film

Pulsator

Cabinet

Lower cabinet

Top lid, II

Adjustable foot

Power cord

Drain hose

Fixing foot

(three)

Water absorption cushion Water inlet valve

Handle

Drain hose hanging hole

Back cover

Level meter

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage.Be sure to use single-phase

three pins receptacle.The earthing

terminal of the receptacle must be

earthed reliably.If possible,please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians of our special shop or the after-sale service department.

Keep the pin of the power plug clean.

Earth

The ventilation

holes at the bottom

Soft object

Do not put the machine at damp place like

the bathroom. Never wash it with water.

In case the washing machine is installed on ground with

carpet, do not block the ventilation hole with carpet.

Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the

plugging into the receptacle is loose, do not use the plug any more.

Do not wash water-proof laundries like the raincoat,

bike covers etc. to avoid abnormal vibrations in spinning.

Do not use water hotter than 50 C .

Safety precautions

Do not stretch hands into the working machine.

It is dangerous even if the rotation is slow.

Take special care of the children.

Do not decompose, repair or alter the machine

by yourself.

Do not put any hot or heavy items (such as the kettle

with hot water) on the washing machine

Do not wash laundries with volatile materials

(such as thinner, petrol etc.).

Keep the machine away from direct sunlight and

heat source like the heater.

The handicapped or children without care shall not

use the machine.

The lint filter shall be kept in good condition, and

installed to proper position. If the lint filter is lost

or damaged, please contact the local after-sales

service department of our company.

Benzene

Install the bottom plate

Adjust the installation position

Soft items

Bottom plate Screw

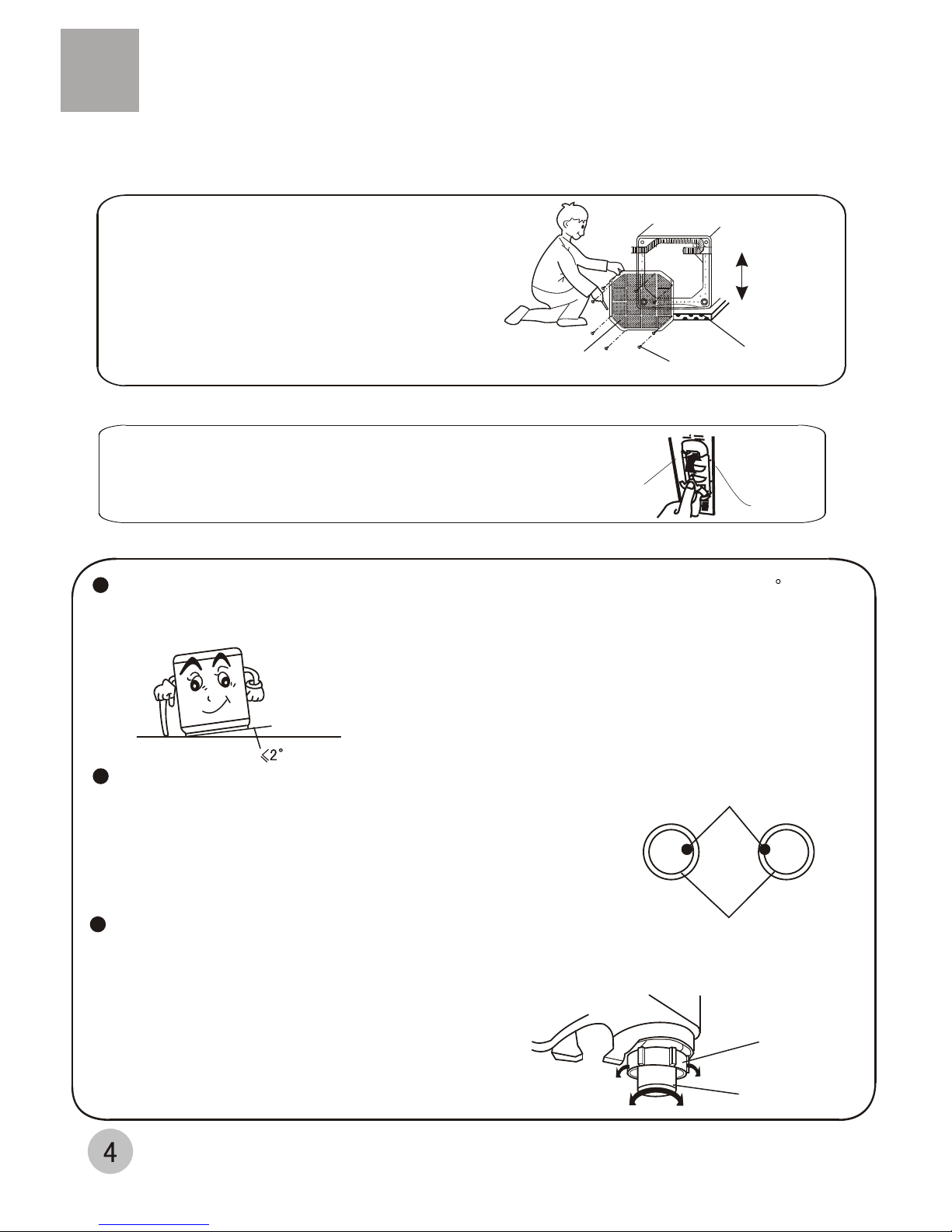

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual. It is

very important to your security and correct operating the machine.

Back

Front

After openingthe package, pleaselean the

washing machine gently down on soft items

(like towel cloth, blanket, etc.). Install the

bottom plate to the bottom of the machine

with eight screws by a cross screwdriver,

then lift the machine up gently. See to the

figure:

Loosen Fasten

High Low

Adjustable nut

Adjustable leg

The largest allowable slope of the shank base of the machine is 2 .

The slanting or rough ground will result in unstable running or

stoppage of the machine. Please adjust it with following methods:

Confirm it's horizontal:

Adjust the adjustable leg:

If the bulb of the level meter at the balance display

position is inside the standard circle, it indicates that

the machine is horizontal. Otherwise you need to

adjust the adjustable leg of the machine.

1.To twist the adjustable leg, please first lift up the

leg side slightly, loosen the adjustable nut, and

then twist the leg.

2.After adjustment, fasten the nut.

Air bubble

Standard circle

Suitable Not suitable

Install the lint filter

After opening the package, please take out the

lint filter from the document bag and install it

into the Filter frame of the inner tub. See to the right figure.

Lint filter

Filter frame

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not ramp or press the drain hose.

3.If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 30mm, and the length shall

not exceed 1.5m.

1.Lean the machine down gently with the front

surface facing the ground.

3.Extend the drain hose from the left side. Push the

drain hose into the groove with hands.

2.Pull out the drain hose from the groove at the left side.

Back

Front

Soft item

Use groove at

this side after

direction changing

Usage of the drain hose

The drain hose shall drain smoothly

If the extra hose is too long, cut it

either at Aor at B point.

4.Install the bottom plate (as per indicated

before), then lift the machine up gently.

Page 4

How to change the direction of the drain hose

Install the water inlet pipe

Connection between the water inlet hose jointer and the water faucet

Water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The outlet end surface of the faucet shall be flat and smooth. If not, please file it smooth to avoid leakage.

2. Loosen the four screws of the water inlet hose jointer till the water faucet can be accessed. Then set the water inlet hose

jointer on the faucet. See to Figure 2. If the faucet is too large and the jointer cannot be set on, please loosen the four

screws and take out the bush inside the jointer. See to Figure 3.

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the

water inlet hose component. See to Figure 1.

3. Fasten thefour screws ofthe water inlethose jointer evenly. See toFigure 4.

About 4mm after twisting

Remark: .Before installation, the threading is 4mm above the upper surface of the nut.

After installation, the threading is 2mm above the upper surface of the nut..

About above 2mm after twisting

Water inlet hose jointer

Screw knife

Screw

Bushing

Nameplate

Screw nut

Water inlet hose Figure 1

Figure 4

Figure 2

Figure 5

Figure 3

Figure 6

Slider

Lock level

Install the water inlet hose

4. Take off the nameplate.Twist the fastening nut as per the indication of the figure

to seal up the exit end face of the faucet. See to Figure 5.

Connection between the water inlet hose and the washing machine

1 Do not takeoff the waterabsorption cushion. Pleasecheck

if the cushion isdropped or damaged eachtime before using.

If it happens so,please duly contact ourafter-sale service

department.

2 Set the nutof the water inlethose on the waterinlet valve jointer.

3 Fasten the nut.Swing it gently toconfirm if it's fastenedwell.

Water absorption cushion.

Water inlet

hose nut

Water inlet valvejointer

Dismount the water inlet hose

Connection between the water inlet hose jointer and the water inlet hose

Check the connection between the water inlet hose jointer and the

water faucet

1.Swing the hosegently to checkif it is fastened stably.

2.After installation, open thefaucet to check ifit leaks water.

3.Do not bend thehose by force.

4.Each time before using,please check if theconnection

between the water inlethose jointer and thewater faucet,

and the installation ofthe water inlet hoseisfirm, so as

to avoid dropping owingto improper installation.

1. Push downthe slider.Plug the waterinlet hose intothe jointer.

2. Hang thelock lever ontothe jointer.Release

the slider tilla click soundis heard.

Lock level

Slider

The water inlet

hose jointer

Slider

Locking level

1. Close thewater faucet.

2 .Press thelock lever andpush down theslider. Thenpull off the

water inlet hose.If the machineis used more than once every

week, the waterinlet hose jointercan remain onthe faucet to

avoid damaging thefastening screws.

1 Preparation before washing

Preparation before washing

1.Connect the water inlet hose. Open

the water faucet.

2.Confirm that the washing machine is

earthed reliably. Then insert the

power plug into the receptacle. The

earth terminal shall not link to gas

pipeline and faucet water pipeline.

3.Put down the drain hose.

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

Table des matières

Autres manuels Haier Rondelle

Haier

Haier WM-1270TVE Manuel utilisateur

Haier

Haier HWM70-9288 Manuel utilisateur

Haier

Haier HW75-BD12756NZP Manuel utilisateur

Haier

Haier JW-K33F Manuel utilisateur

Haier

Haier HWM75TLA Manuel utilisateur

Haier

Haier XQB100-96 Manuel utilisateur

Haier

Haier HWM65-187S Manuel utilisateur

Haier

Haier HWM60-Z918 Manuel utilisateur

Haier

Haier I-Pro 7 Series Manuel utilisateur

Haier

Haier JW-K60B Manuel utilisateur

Haier

Haier HW110-B14979S8EU1 Manuel utilisateur

Haier

Haier HWM100-FD10829 Manuel utilisateur

Haier

Haier XQG6511SU - Front-Load Washer/Dryer Combo Manuel utilisateur

Haier

Haier HW-C1260TVE ME-U Manuel utilisateur

Haier

Haier JW-W30C Manuel utilisateur

Haier

Haier HW80-IM12826TNZP Manuel utilisateur

Haier

Haier HWM105-826S6 Manuel utilisateur

Haier

Haier HWF5000AW Instructions de montage

Haier

Haier HWM100-113S Manuel utilisateur

Haier

Haier HWM120-0523S Manuel utilisateur

Haier

Haier HW60-1211N Manuel utilisateur

Haier

Haier HDS1260TVE Manuel utilisateur

Haier

Haier HBS800TXV Manuel utilisateur

Haier

Haier HM500TX Guide de l'utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
