Haier HWM110-9188DD Manuel utilisateur

Automaticwashingmachine

This manual is for

HWM110-9188DD

User's manual

Please read this manual

carefully before using.

Retain it for future reference.

Names of the parts 1

Safety precautions 2

Installation and adjustment 4

Preparation before washing

Put in the laundries

Usage of detergent

Usage of the Operation Buttons 10

Close the top lid 14

Finish washing 14

After washing 15

Trouble shooting answer to question 16

Packing list

Specification the back cover

the back cover

Contents

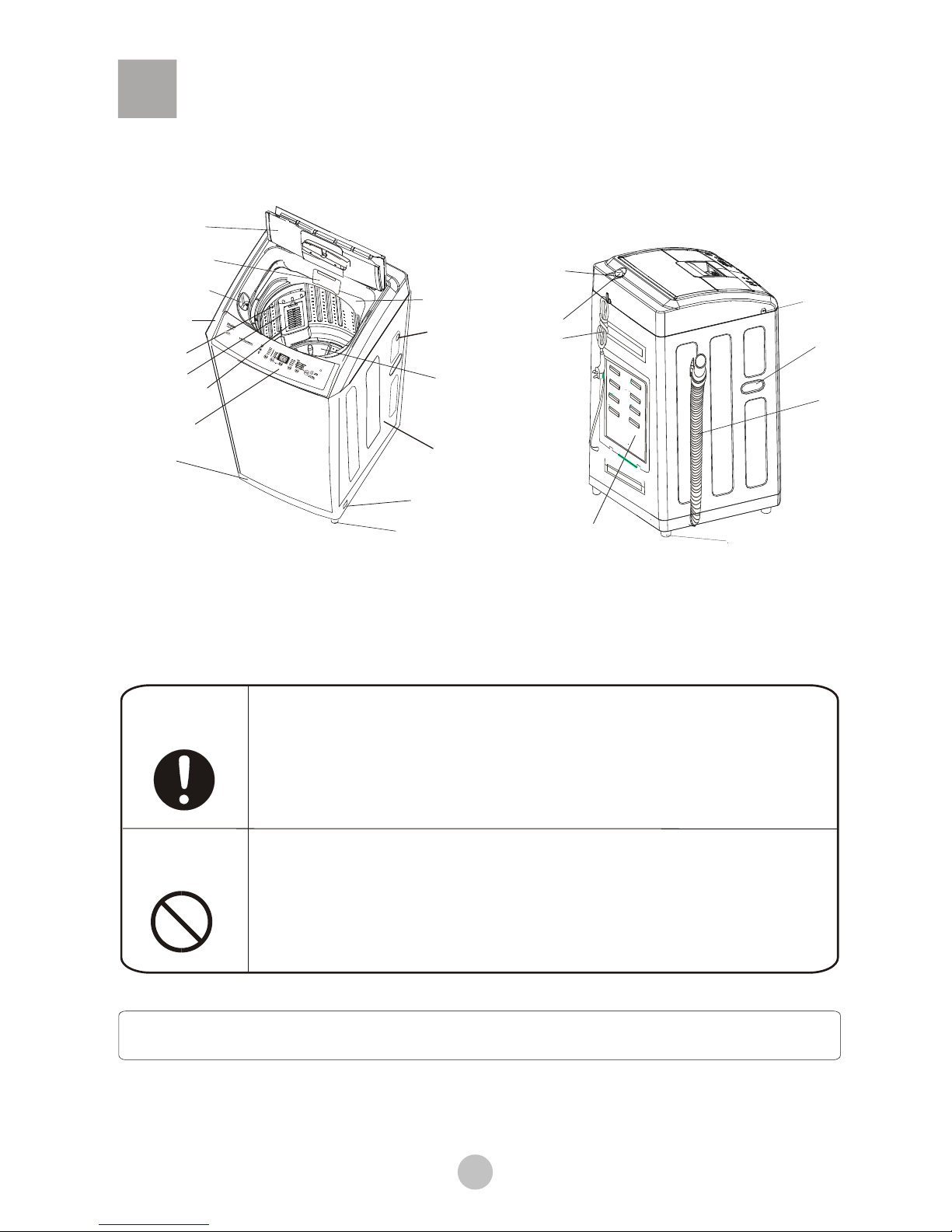

Names of the parts

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related to the safety of the product and

the personal safety of the users. Please operate in strict conformity to the

contents, otherwise it may cause damage of the machine or injure the personal

safety of the user.

Contents marked with that symbol are actions forbidden to perform. Performing

of those actions may result in damage of the machine or injure the personal

safety of the user.

Please understand theshapes of thewashing machine andaccessories may bedifferent

from the sketchfigures in thismanual due toproduct improvement.

Outer tub cover

ÄÚ²¿¹¹ÔìºÍ²¿¼þÃû³Æ

Detergent box

Handle

Top lid component

Filter frame

Lint filter

Inner tub

Pulsator

Cabinet

Adjustable leg

Adjustable leg film

Base frame

Power cord

Drain hose

Back cover

Water inlet valve

Water absorption

(3 pieces)

Fixed leg

Control pannel

Liquid detergent inlet

Panel

Hook

Screw cover

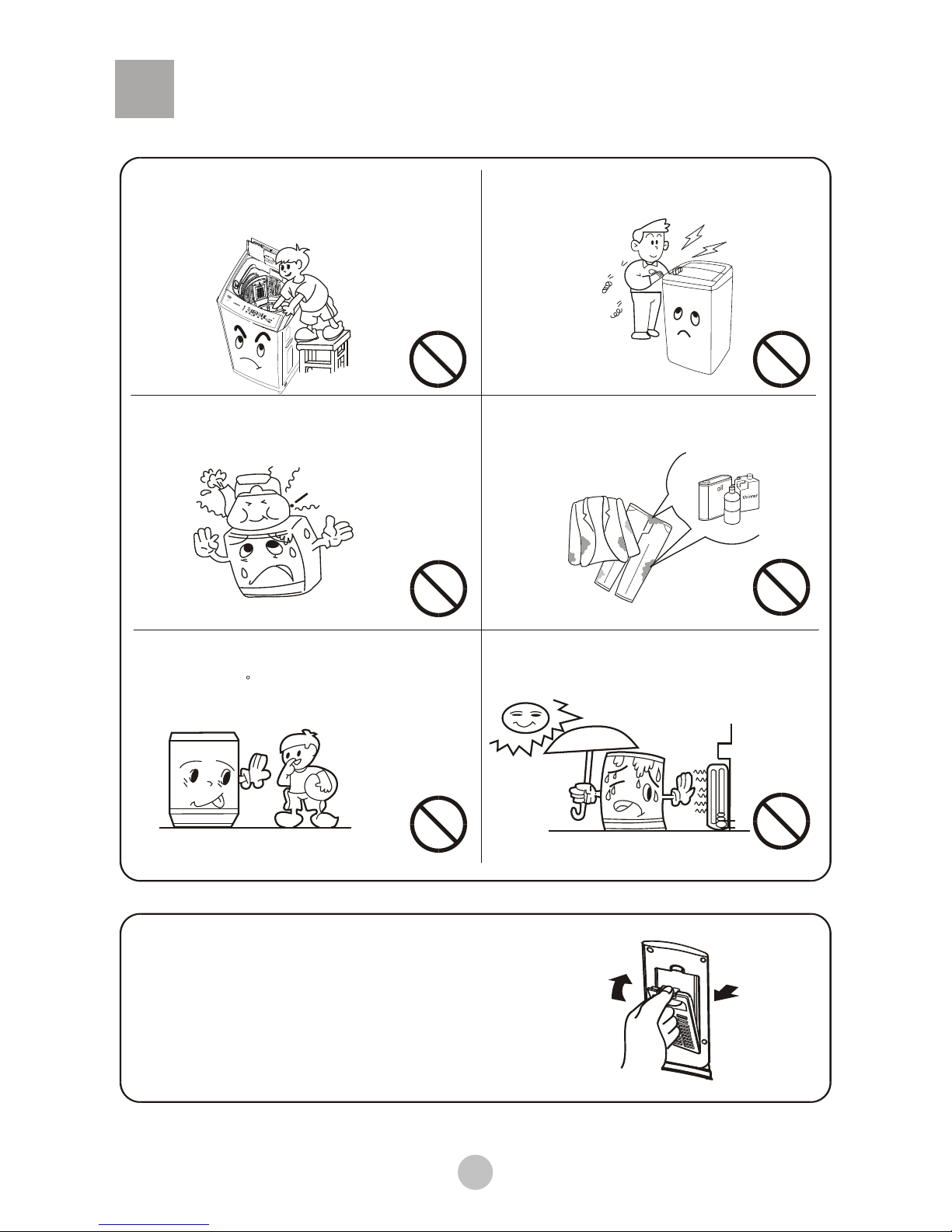

Safety precautions

Do not stretch hands into the working machine.

It is dangerous even if the rotation is slow.

Take special care of the children.

Do not decompose, repair or alter the machine

by yourself.

Do not put any hot or heavy items (such as the kettle

with hot water) on the washing machine

Do not wash laundries with volatile materials

(such as thinner, petrol etc.).

Keep the machine away from direct sunlight and

heat source like the heater.

The handicapped or children without care shall not

use the machine.

The lint filter shall be kept in good condition, and

installed to proper position. If the lint filter is lost

or damaged, please contact the local after-sales

service department of our company.

Benzene

Install

Dismantle

Safety precautions

Soft object

Do not put the machine at damp place like the bathroom.

Never wash it with water. Not put wet laundries on the

control panel.

In case the washing machine is installed on ground with

carpet, do not block the ventilation hole with carpet.

Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the

plugging into the receptacle is loose, do not use the plug any more.

Do not wash water-proof laundries like the raincoat,

bike covers etc. to avoid abnormal vibrations in spinning.

Do not use water hotter than 50 C .

The ventilation

holes at the bottom

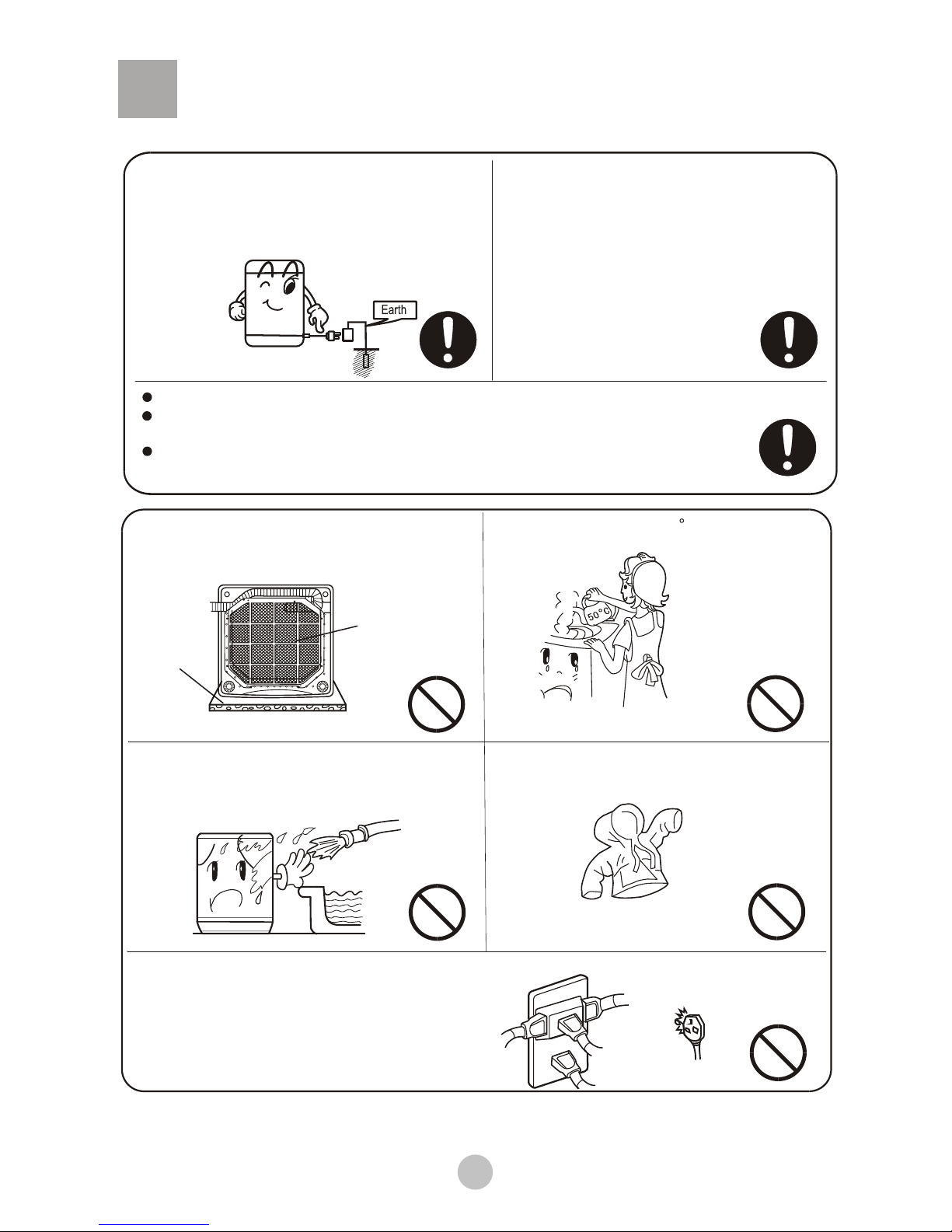

Please plug the power plug on special receptacle.

Be sure to use three-pins power receptacle. Ensure

that the earthing prong of the power receptacle is

earthed reliably. Use leakage protector if possible.

The washing machinemust be positioned so that

the plug is accessible.Be sure topull the plug off

and close thewater faucet infollowing cases:

power failure, delivering the machine, setting the

machine idle orcleaning the machine.Do not plug

or pull thepower plug with wet hand.

Do not bend ,extend, twist, bind by force. Do not press or nip it with weight.

Keep the pin of the power plug clean, if the power plug is polluted with dust, please wipe with

dry cloth carefully.

If the power cord or the power plug is bad, to avoid risk it is required to have it replaced by

the technicians of our special shop or our customer care agent.

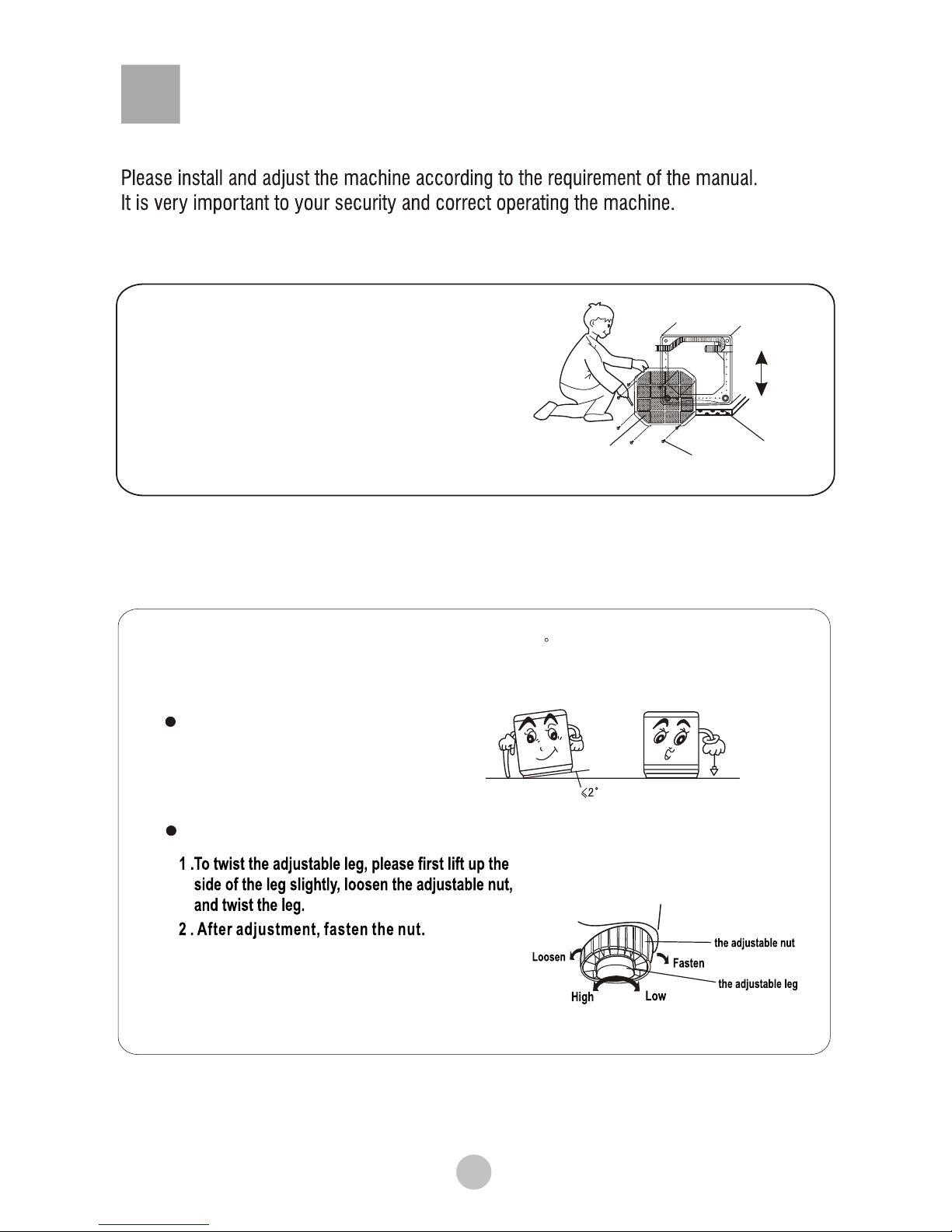

Adjust the installation position

Confirm it's horizontal:

Hang the lead line to confirm

if it is horizontal.

Adjust the adjustable foot:

Installation and adjustment

Back

Front

Screw

Bottom plate Soft items

Install the bottom plate

After opening thepackage, please lean

the washing machinegently down onsoft

items(like to welcloth,blanket,etc.).Install

the bottom plateto the bottomof the

machine with eight screws by across

screwdriver, thenlift the machine up

gently. See to thefigure:

The largest allowed slope of the base of the machine is 2 . The slanting or rough ground will

result in unstable running or stoppage of the machine. Please adjust it with following methods:

¡ã

<10cm

<1.5m

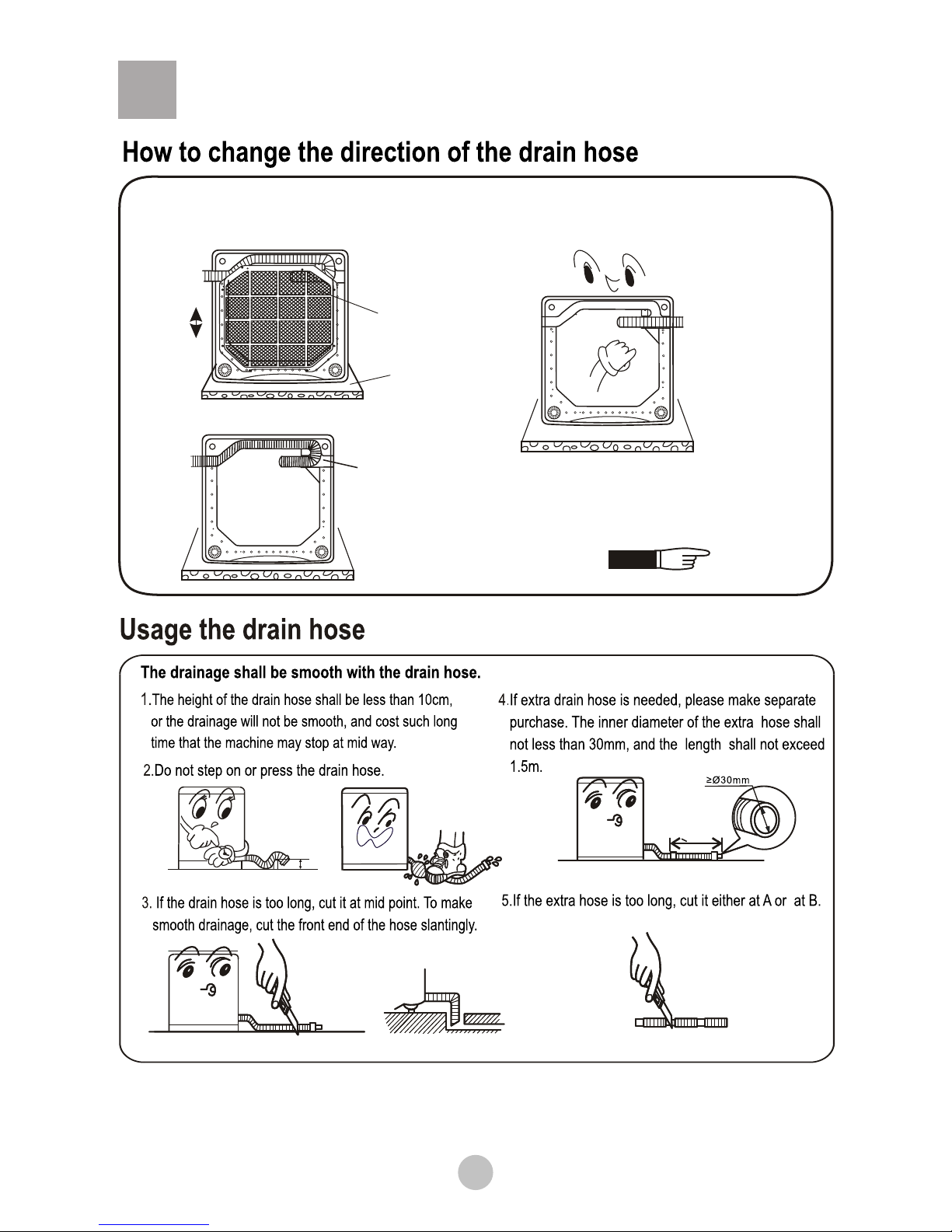

1.Lean the machinedown gently withthe front

surface facing theground.

3.Extend the drain hose from the left side. Push the

drain hose into the groove with hands.

2.Pull out the drain hose from the groove at the left side.

Back

Front

Soft item

Use groove at

this side after

direction changing 4.Install the bottomplate(as per indicatedbefore),

then lift themachine up gently.

Page4

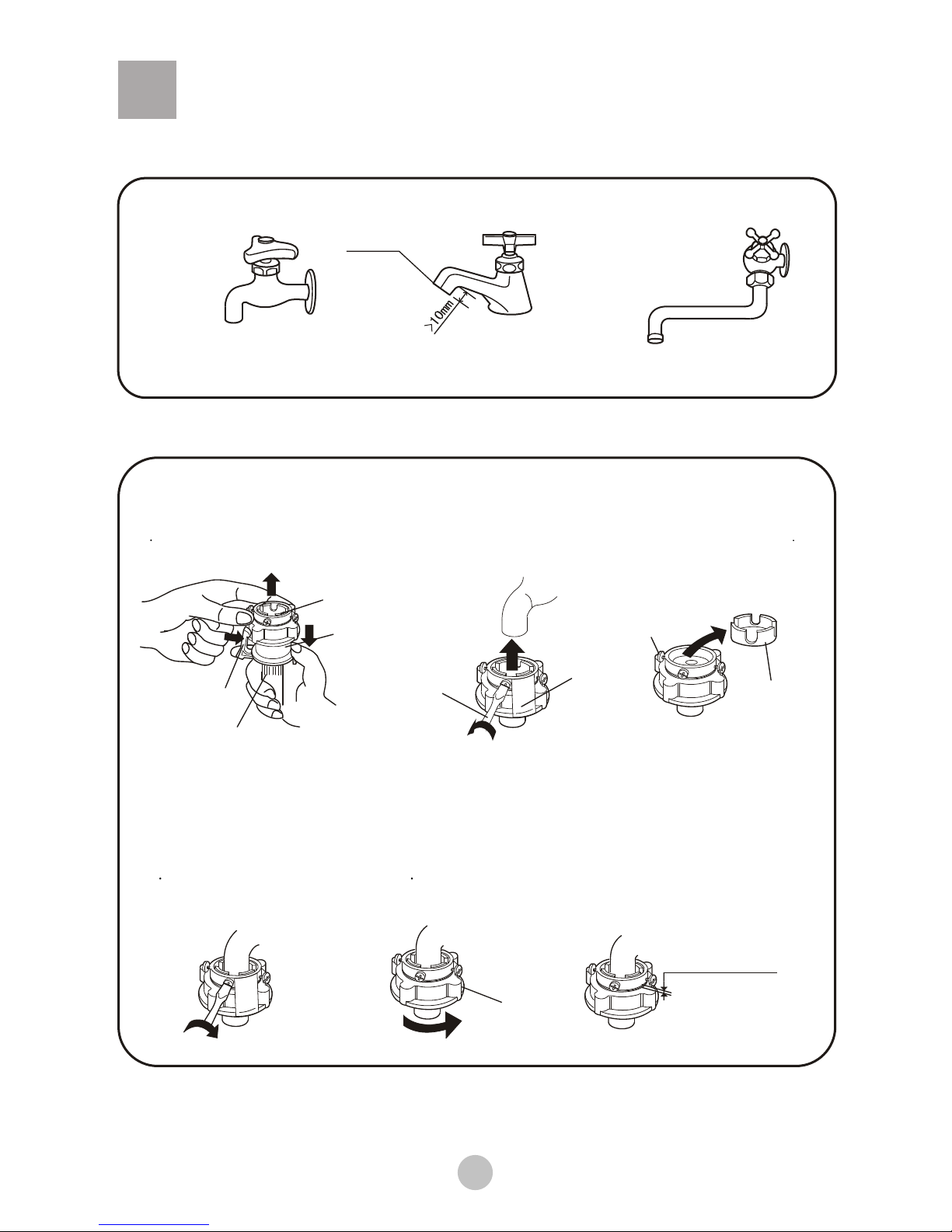

The exit end face of the faucet

Confirm the water faucet

Connection between the water inlet hose jointer and the water faucet

water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.

3 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.

See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen

the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth, otherwise

it may leak water. See to Figure 3.)

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the

water inlet hose component. See to Figure 1.

4 Fasten the four screws evenly. See to Figure 4..

5 Twisting the fastening nut, See to Figure 5 After twisting, the threading is less than 2mm above the upper

surface of the nut.

water inlet hose jointerwater inlet hose jointer

Screw knife

Screw

Bushing

Nameplate

water inlet hose Figure 1 Figure 2 Figure 3

Slider

Lock level

2 Take off the nameplate. Make sure the threading is 4mm above the upper surface of the nut. See to Figure 6

about 4mm after twisting

About above 2mm after twisting

Screw nut

Figure 4 Figure 5 Figure 6

If the threading is less than 4mm above the upper surface of the nut. please loosen the screws

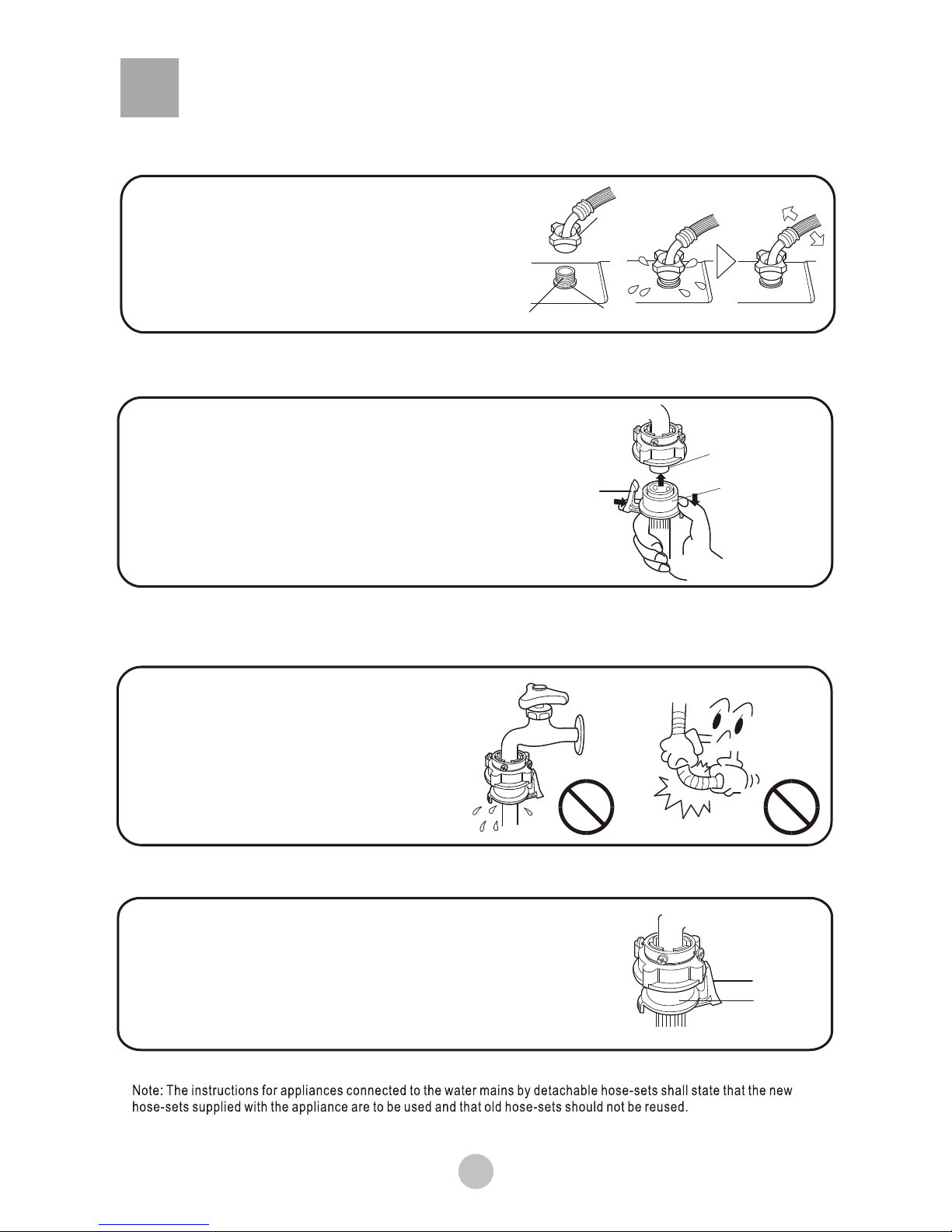

Connection between the water inlet hose and the washer

Dismantle the waterinlet hose

Connection between the jointer of the water inlet hose and the water inlet hose

Check the connection between the jointer of the water inlet hose and the water faucet

1.Do not take off the water absorption cushion. Please check if the

cushion is dropped or damaged before each usage. If it happens

please contact our after-sale department immediately.

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

1.Push down the slider. Insert the water inlet hose into the jointer.

2 Hang the lock lever to the jointer. Release the slider till a click sound is heard.

Locking level

Slider

water absorption cushion.

nut of the water inlethose

the jointer of the water inlet hose

Slider

Locking level

jointer of the water inletvalve

1. Close the water faucet.

2. Press the locking lever. Push down the slider. Then pull of the water inlet hose.

If the machine is used frequently, the jointer of the water inlet hose can be kept

on the faucet to prevent damaging the fixing screw.

2 Put the nut of the water inlet hose on the valve jointer.

3 Fasten the nut. Swing it gently to confirm if it's suitable.

4.Before each usage please check if the connection

between the jointer of the water inlet hose and the

water faucet, and the installation of the water inlet

hose are firm, so as to prevent dropping from

improper installation position.

Preparation before washing

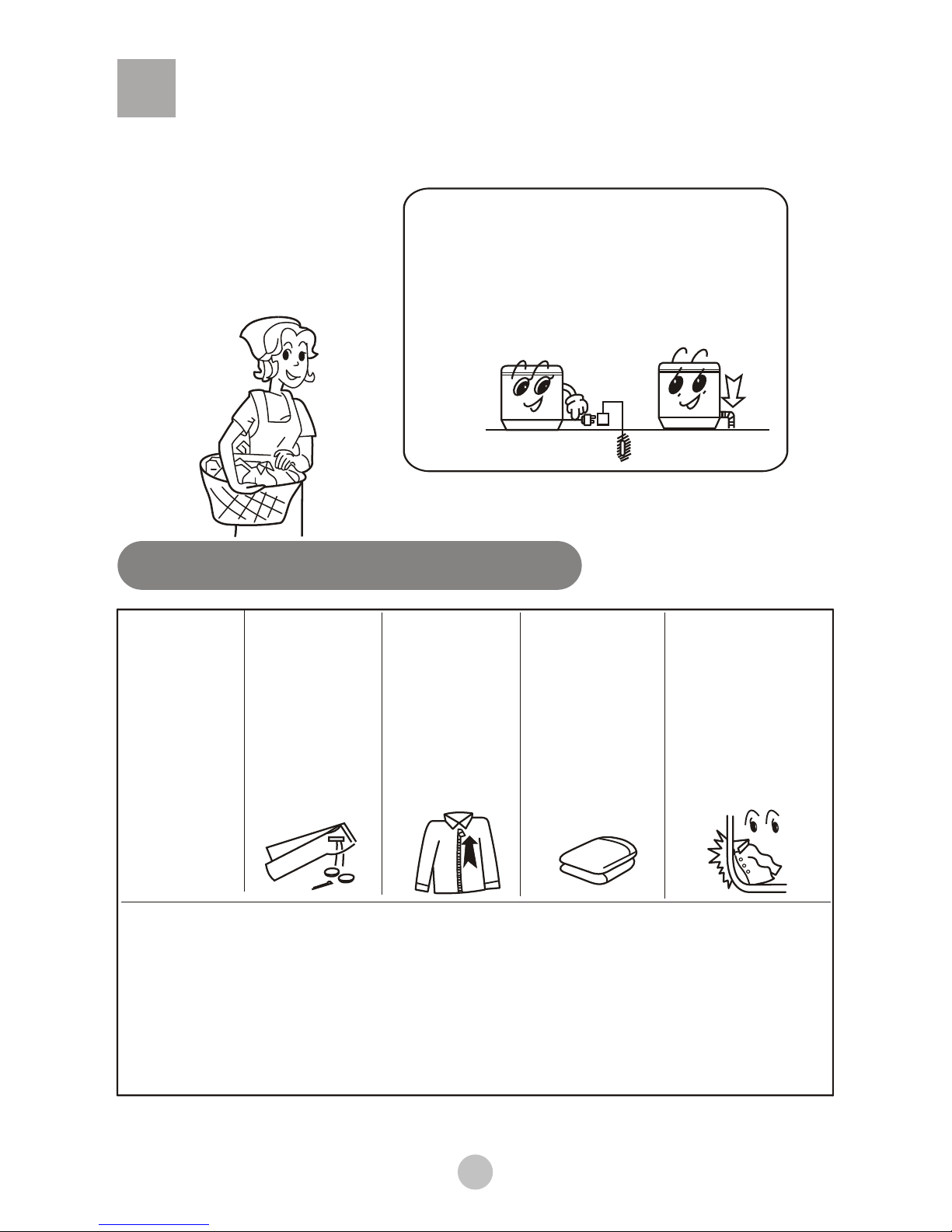

Pay attention to followings before washing the laundries

Preparation before washing

1.Connect the water inlet hose. Open the water faucet.

2.Confirm that the washing machine is earthed reliably.

Then insert the power plug into the receptacle. The

earth terminal shall not link to gas pipeline and faucet

water pipeline.

3.Put down the drain hose.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that arenot colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like mud or dust.

For the parts with heavy soil,please apply detergent on them inadvance, which

can make it easier to removethe soil.

e. For thoselaundries that may get lint ball and those with long fur,turn it over before

putting in.

f. Do not put those laundriespolluted by chemicals into the washing machine directly.

Check if thelaund-

ries has special

requirement on

washing

Clear the pocket.

Takeout the coins,

Sand,hairpins,etc.

Tie the longstrips;

fasten the buttons;

close zippers.

The quantity ofthe

laundries shall not

be too large. Stretch

and loosen thelaun-

dries before putting

them in thetub.

When the pulsator is

running, the buttons of

the laundries may cause

noise. For the sake of

discretion, please put the

laundries with buttons into

other laundries.
