Haier HW120-BP14959S8 Manuel utilisateur

User manual

Washing machine

HW120-BP14959S8

Thank You

Legent

Warning – Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put

the packaging in applicable containers to recycle it.

Help to recycle waste of electrical and electronic ap-

pliances. Do not dispose appliances marked with this

symbol with the household waste. Return the product

to your local recycling facility or contact your munici-

pal office.

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions

contain important information which will help you get the best out of the appliance and

ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and

proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make

sure you also pass this manual so that the new owner can become familiar with the

appliance and safety warnings.

Disconnect the appliance from the mains supply. Cut off the mains cable and dispose

f it. Remove the door catch to prevent childrenandpets to get closed inthe appliance.

Risk of injury or suffocation!

WARNING!

Content

1-Safety information................................................................................................ 4

2-Product description.............................................................................................. 7

3-Control panel....................................................................................................... 8

4-Programmes.......................................................................................................11

5-Daily use.............................................................................................................12

6-Eco-friendly washing..........................................................................................17

7-Care and cleaning..............................................................................................18

8-Troubleshooting..................................................................................................21

9-Installation..........................................................................................................24

10-Technical data................................................................................................. 28

1-Safety information

WARNING!

Make sure this is not transport damage.

Make sure all transport bolts are removed.

Remove all packing and keep out of children’s reach.

Handle the appliance always with at least two persons because it is hea-

vy.

Daily use

Before first use

This appliance can be used by children aged from 8 years and above a-

nd persons with reduced physical, sensory or mental capabilities or lack

of experience and konwledge if they have been given supervision or in-

struction concerning use of the appliance in a safe way and understand

the hazards involved.

Before switching on the appliance for the first time read the following safety

hints!

Keep away children under 3 years of age from the appliance unless they

are constantly supervised.

Children shall not play with the appliance.

Pull up zips, fix loose threads and take care for small items to prevent l-

aundry from being entangled. If necessary, use an appropriate bag or n-

et.

Do not let children or pets come close to the appliance when the door is

open. Store washing agents out of reach of children.

Do not press or use the appliance when barefoot or with wet or damp h-

ands or feet.

Do not cover or encase the appliance during operation or afterwards to

allow any moisture or dampness to evaporate.

Do not place heavy objects or sources of heat or damp on top of the ap-

pliance.

Do not use or store flammable detergent or dry cleaning agent in close

vicinity to the appliance.

Do not use any lammable sprays in close vicinity to appliance.

Do not wash any garments treated with solvents in the appliance without

having dried them previously in the air.

1-Safety information

WARNING!

Daily use

Do not remove or insert the plug in the presence of flammable gas.

Do not hot wash foam rubber or sponge-like materials.

Do not wash any laundry which is polluted with flour.

Do not open detergent drawer during any wash cycle.

Do not press the door during the washing precess, it gets hot.

Do not open the door if the water level is visibly over the port hole.

Do not force the door to open. The door is fitted with a self-lock device and

will open shortly after the washing procedure is ended.

Switch off the appliance after each wash programme and before under tak-

ing any routine maintenance and disconnect the appliance from the electri-

cal supply to save electriaity and for safety.

Hold the plug, not the cable, when unplugging the appliance.

Maintenance/cleaning

Make sure children are supervised if they carry out cleaning and maintena-

nce.

Disconnect the appliance from the electrical supply before undertaking any

routine maintenance.

Keep the lower part of the porthole clean and open door and detergent dr-

awer if appliance is not in use to prevent odours.

Do not use water spray or steam to clean the appliance.

Replace a damaged supply cord only be the manufacturer, its service age-

nt or simiarly qualified persons in order to avoid a hazard.

Do not try to repair the appliance by yourself. In case of repair please cont-

act our customer service.

Installation

The appliance should be placed in a well-ventilated place. Ensure a locati-

on which allows opening the door fully.

Never install the appliance out doors in a damp place, or in an area which

may be prone to water leaks such as under or near a sink unit. In the event

of a water leak cut power supply and allow the machine to dry naturally.

1-Safety information

Intended use

This appliance is intended for washing machine-washable laundry only. Any-

time follow the instructions given on the label of each garment label. It is not

intended for commercial or industrial use.

Changes or modifications to the device are not allowed. Unintended use may

cause hazards and loss of all warranty and liability claims.

WARNING!

Installation

Installor use the appliance only where the temperature is above 5 °C.

Do not place the appliance directly on a carpet, or close to a wall or furn-

iture.

Do not install the appliance in direct sunlightor in the near of heat sourc-

es (e.g. stoves, heaters).

Make sure that the electrical information on the rating plate agrees with

the power supply. If it does not, contact an electrician.

Do not use multi-plug adapters and extension cables.

Make sure only the delivered electric cable and hose set are used.

Make sure not to damage the electric cable and the plug. If damaged ha-

ve it replaced by an electrician.

Use a separate earthed socket for the power supply which is easy acce-

ssible after installation. The appliance must be earthed.

Make sure the hose joints and connections are firm and there is no leak-

age.

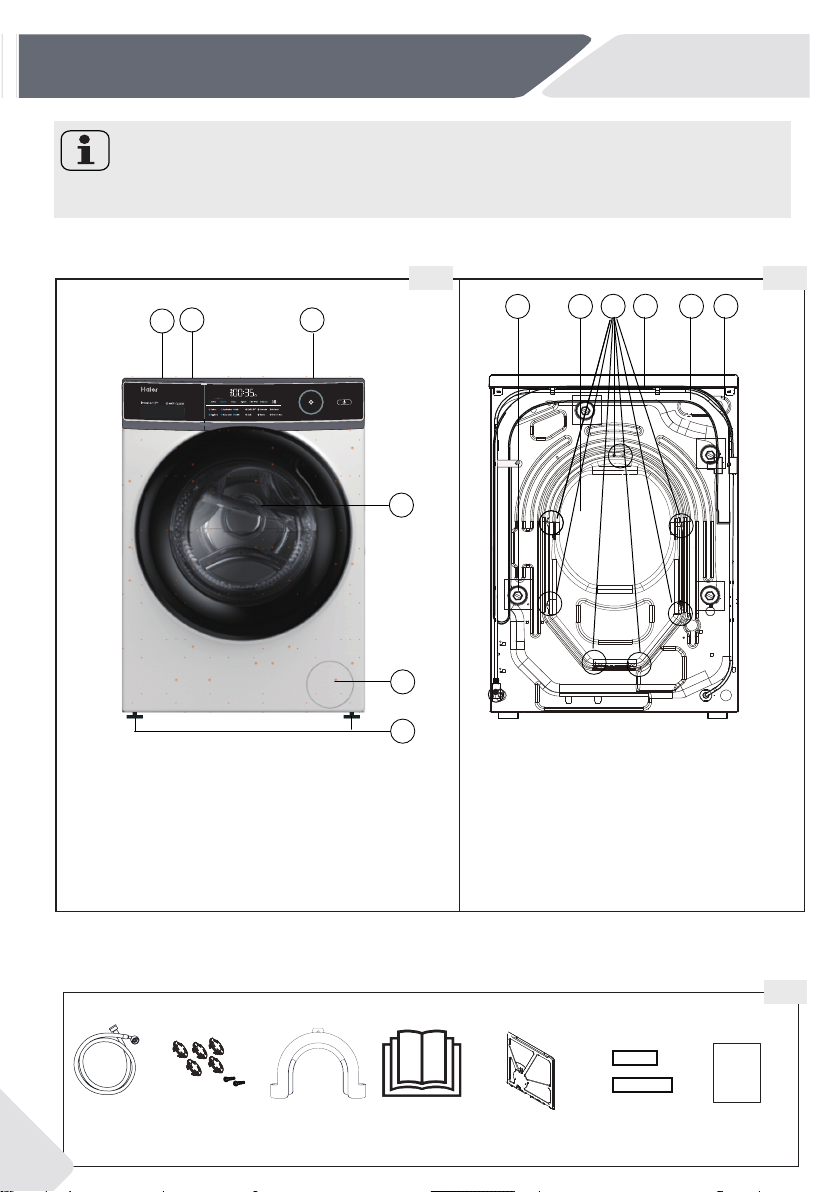

2.1 Picture of appliance

Front (Fig. 2-1): Rear side (Fig. 2-2):

2.2 Accessories

Check the accessories and literature in accordance with this list (Fig.2-3):

Note:

1 Detergent/Softener drawer

Control panel

Worktop

4 Door

5 Filter cover

6 Adjustable feet

1 Transportation bolts (T1-T4)

2 Backcover

Backcover screws（7 EA）

4 Power cord

5 Water inlet valve

6 Drain hose

2-1 2-2

2-3

2-Product description

Inlet hose

assembly

5 Blanking

plugs+2 screws Drain hose

bracket User manual Warranty card

Warranty card

Bottom plate

Due to technical changes and different models,the illustrations in the following ch-

apters may differ from your model.

123 4 5 6

Noise reduc-

tion pads

3-Control panel

Note : Acoustic signal

Infollowing cases an acoustic signal sounds:

▶when pressing a button

▶at the end of programme

▶in case of failures

The acoustic signal can be deselected if necessary; see DAILY USE.

2 Programme selector

3 Display

4 Detergent / Softener drawer

5 Function buttons

“Start/Pause” button

“Power” button

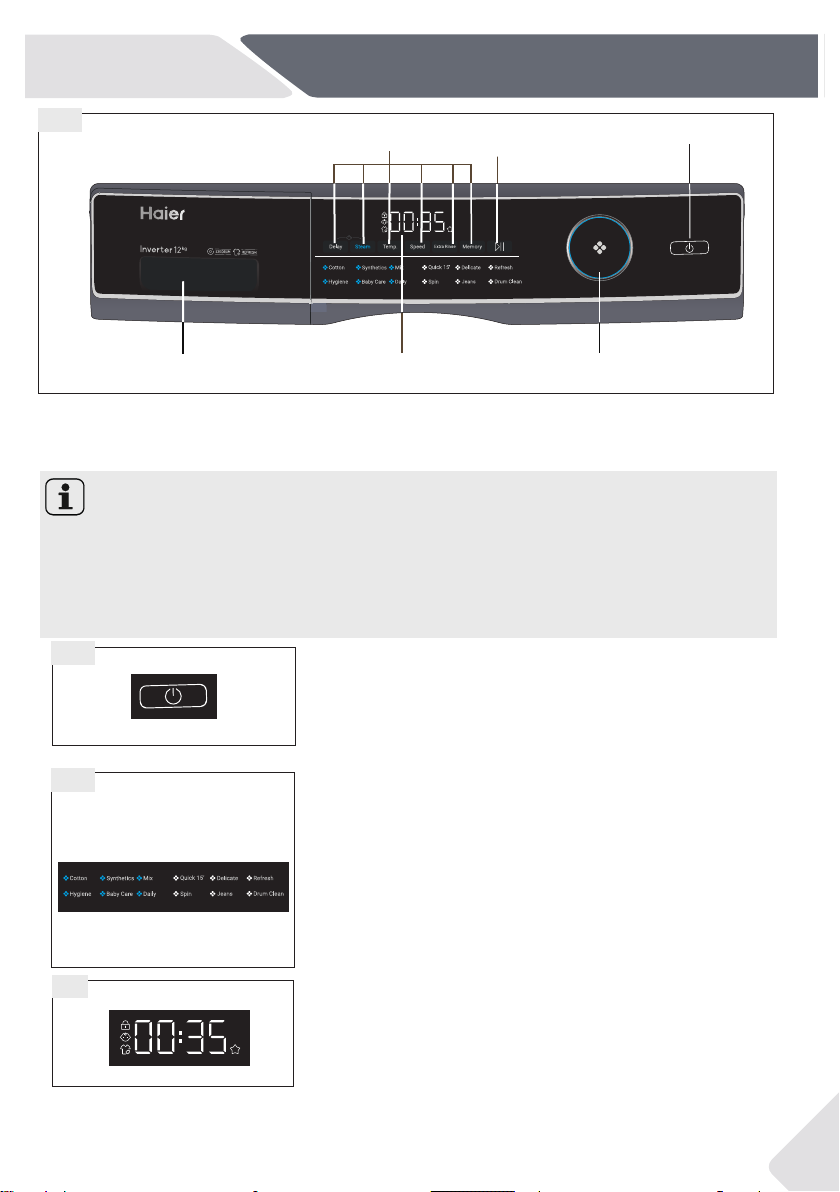

3.2 Programme selector

By turning the knob (Fig. 3-3), one of 12 programmers

can be selected, related LED will light up.

3.3 Display

The display (Fig. 3-4) shows following information:

▶Washing time

▶End time delay

▶Favorites

Locking the door

Child lock

▶

3.1 “Power” button

Touch this button (Fig.3-2) gently to swicth on, the di-

splay is shining, Press it again for about 2 seconds to

swicth off. If no panel element or progranmme is acti-

vated after a while machine will shut down automatic-

ally.

3-1

3-2

3-3

3-4

4 2

3-Control panel

3.5 Function buttons

The function buttons(Fig. 3-6) enable additional op-

tions in the selected programme before programme

starts. The related indicators are displayed.

If a button has multiple options, the desired option

can be selected by touching the button sequentially.

3.5.1-Function button “Delay”

Note: Factory settings

To get best results in each programme Haier has well defined specific default set-

tings. If there is no special requirement, dafault settings are recommended.

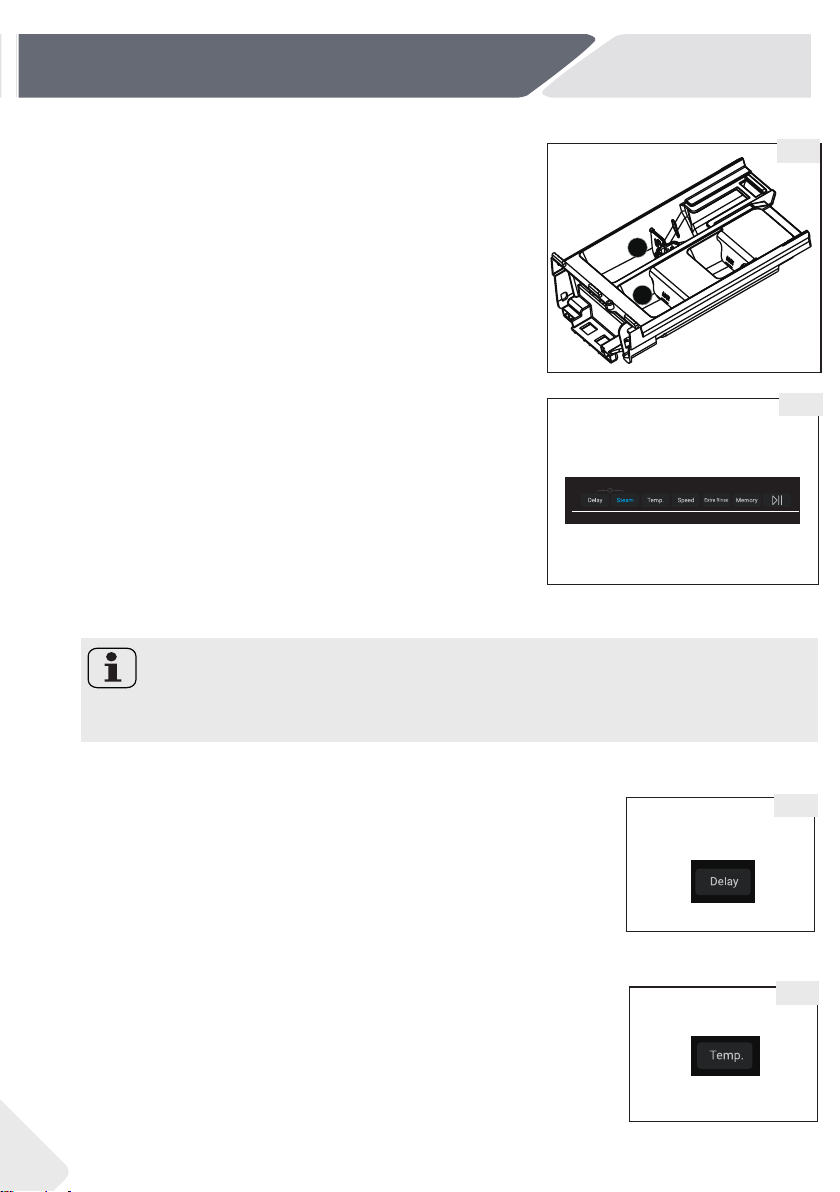

3.4 Detergent drawer

Open the drawer, two compartments can be seen

The recommendation on the type of detergents is s-

uitable for the various washing temperatures, please

refer to the manual of detergent.

3.5.2-Function button “Temp.”

2 Compartment 2: Softener, Conditioning agent etc.

1 Compartment 1:Podwer or Liquid detergent for

programme.

Press this button (Fig.3-7) to start the programme with a

delay. End time delay could be increase in steps of 30

minutes from 0.5-24h. When you select the delay, the to-

tal time will default to be longer than the programme run time.

For example, display off 6:30 means end of programme

cycle will be in 6 hours and 30 minutes. Press “Start/Pause”

button to activate the time delay.

Press this button (Fig. 3-8) to change the washing temp-

erature of the programme. If no value is illuminated the

water will not be heated.

(Fig. 3-5):

3-6

3-5

3-8

3-7
