Double Drive

Fully Automatic Washing Machine

User’s manual

HWM65-1128NZP

HWM75-1128NZP

Please read this manual carefully before using.

Retain it for future reference.

Names of the parts ...................................................................3

Safety precautions ....................................................................4

Installation and adjustment .......................................................6

Install the water inlet hose ........................................................9

Preparation before washing ....................................................11

Put in the laundries .................................................................12

Use the operation buttons.......................................................13

Disposal after washing............................................................17

Trouble-shooting answer to question ......................................18

Packing List ............................................................................19

Speciﬁcations .........................................................................19

Contents

Names of the parts

Meaning and description of the symbols



Water absorption gasket



Power cord



Back cover



Fixed foot



Cabinet handle

Drain hose

Top lid component 

Inner cover

Detergent box 

Inner tub





Outer tub cover

Balance ring



Control panel seat

Hook



Filter cover



Pulsator



Lint lter



Front control board



Adjustable foot



Cabinet



Adjustable foot label(2 pieces)



Base frame



Water inlet valve

































Warning sign Contents marked with that symbol are related to the safety of the

product and the personal safety of the users. Please operate in

strict conformity to the contents, otherwise it may cause damage

of the machine or injure the personal safety of the user.

Forbidden sign Contents marked with that symbol are actions forbidden to

perform. Performing of those actions may result in damage of the

machine or injure the personal safety of the user.















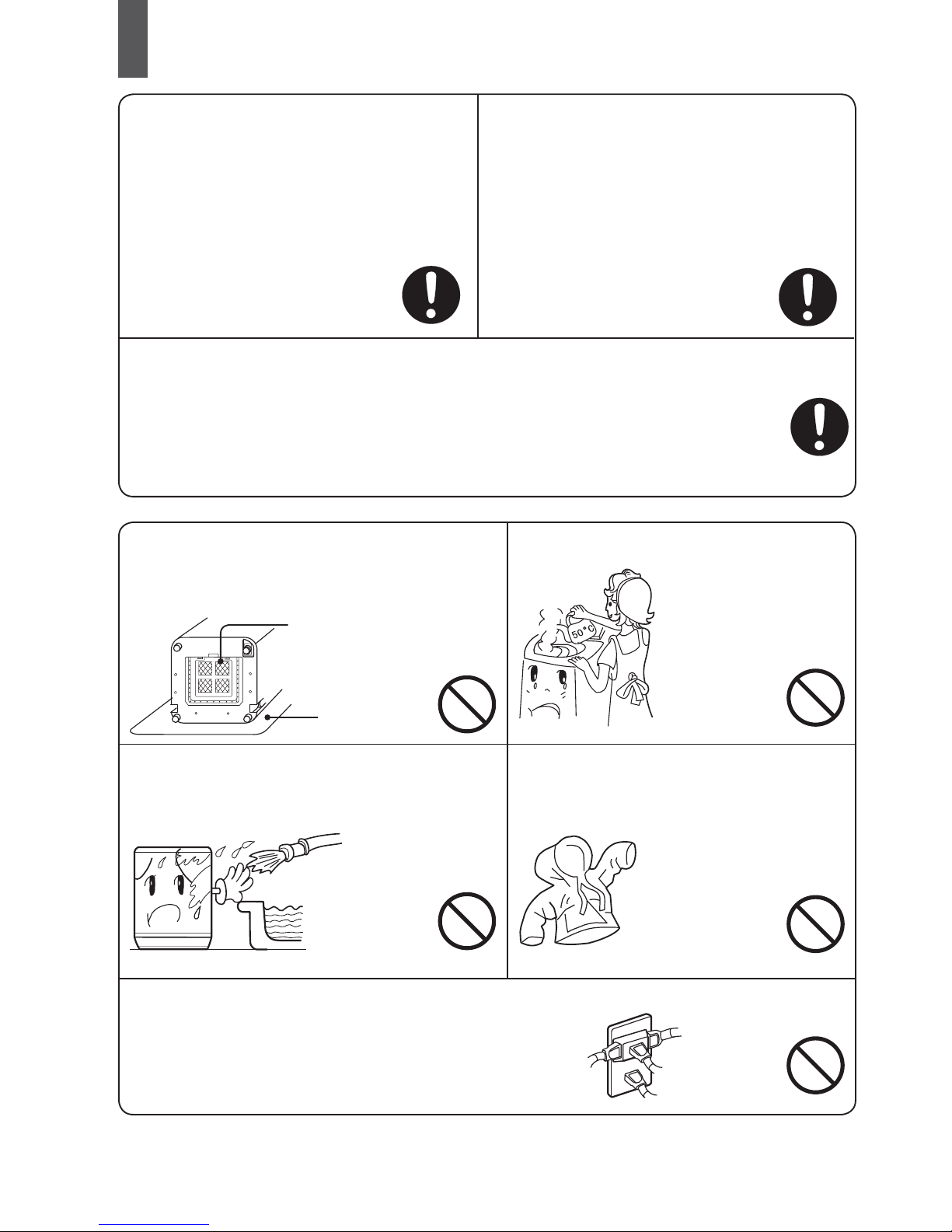

Safety precautions

Please plug the plug on special

receptacle

with rated voltage. Be sure to use

singlephase three pins receptacle.

Ensure the earthing prong of the power

receptacle is earthed reliably. Use

leakage protector if possible.

The power cord plug should be convenient

to be pluged in or pluged out with hand

while the washing machine runs normally.

Be sure to pull the plug out and close the

water tap when the machine is idle, when

moving the machine, or when cleaning the

machine. Do not use wet hand to insert or

pull out the power plug.

Do not bend ,extend, twist, bind by force. Do not press or nip it with weight.●

Keep the pin of the power plug clean, if the power plug is polluted with dust,●

please wipe with dry cloth carefully.

If the power cord or the power plug is bad, to avoid risk it is required to have●

it replaced by the technicians of our special shop or our customer care agent.

In case the washing machine is installed

on ground with carpet, do not block the

ventilation hole with carpet.

Carpet

The ventilation holes

at the bottom

Do not use water hotter than 50 °C .

Do not put the machine at damp place like

the bathroom. Never wash it with water.

Not put wet laundries on the control panel.

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle with other

electric appliances. If the power plug is damaged, or

the plugging into the receptacle is loose,

do not use the plug any more.

Please keep the lint lter in good condition,

and install it to proper position during

washing. If the lint lter is lost or damaged,

please contact the customer

care agent of our company.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

To protect your laundries and washing

machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before

washing.

Please check if the water faucet is open, and if the connection of the water inlet pipe is

proper.

It is suggested to use foamless washing powder.

To change the direction of drain pipe, please contact the customer care agent of our

company.

Please don’t use the washer in the environment below 0°C; if the washer has been

stored below 0°C, please be sure to ensure the washer is placed under the room

temperature for 2~4 hours and then use otherwise the washing effects may be

lowered or the washer may be damaged.

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such as

the kettle with hot water) on the washing

machine.

Petrol

Thinner

Install

Dismantle

Do not put hand into the rotating tub. It is

dangerous even if the rotation speed is slow.

Take special care of the children. Keep

children away from the washing machine to

avoid them climbing on.

This appliance is not intended for

use by persons (including

children) with reduced physical,

sensory or mental capabilities, or

lack of experience and knowledge,

unless they have been given

supervision or instruction concerning

use of the appliance by a person

responsible for their safety.

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual. It is

very important to your security and correct operating the machine.

1. Open the top lid of the washing machine.

2. Put the inner cover component on the outer tub cover, aiming the inner cover shaft to

the installation hole of the corresponding outer tub cover shaft groove.

3. Firstly insert the inner cover shaft of one side into the corresponding outer tub cover

shaft groove, then push the another inner cover shaft into the corresponding outer

tub cover shaft groove. Please install to designated position to guarantee there are

no dropping or abnormal sound in opening and closing of the inner cover, and the

operation shall be smooth. Do not dismount the inner cover component after washing.

After you open the package, please lean the washing machine gently down on soft items

(like the towel cloth, blanket, etc. ).

Install the bottom plate to the bottom of the machine with the eight screws by a cross

screwdriver, then lift the machine up gently. See to the ﬁgure:

Install the inner cover component

Install the bottom plate

Outer tub cover

Inner cover shaft Inner cover shaft

Outer tub cover shaft groove Outer tub cover shaft groove

Inner cover component

I enlarged view

II enlarged view

Figure 1 Figure 2

Bottom plate Soft items

Front

Back

Two claws at the bottom

cover shall be inserted in

two bar-shaped holes in

the stand. Make sure the

claws are ﬁrmly in place.

Fasten the bottom plate

to base frame with one

screw.

The drainage shall be smooth with the drain

hose.

Usage of the drain hose

<10cm

1. The height of the drain hose shall be less

than 10cm, or the drainage will not be

smooth, and cost such long time that the

machine may stop at mid way.

3. If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4. If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 30 mm, and the length shall

not exceed 1.5 m.

4. If the extra hose is too long, cut it

either at A or at B.

2. Do not step on or press the drain hose.

<1.5m

> 30mm

Adjust the adjustable foot:●

To adjust the washing machine, please ﬁrst

lift up the front of the machine slightly, then

twist the adjustable foot on the both side.

The largest allowed slope of the

shank base of the machine is 2°. The

slanting or rough ground will result

in unstable running or stoppage of

the machine. Please adjust it with

following methods:

Adjust the installation position

Conﬁrm it’s horizontal:●

Hang the lead line to check if

it is horizontal.

+LJK /RZ

How to change the direction of the drain hose

1. Please lean the washing maching gently down on soft items,such as towel, cloth,

blanket, etc.(as indicated in Figure 1)

2. Dismantle the bottom plate.(as indicated in Figure 2)

3. Nip the end of the drain hose and remove the hook of xing the drain hose.(as

indicated in Figure 3)

4. Put your hand into the washing machine and undraw the drain hose clamp. Extend the

drain hose in other side and x it with the clamp. (as indicated in Figure 4)

5. Install the bottom plate and the hook of xing the drain hose.

Figure 1 Figure 2 Figure 3 Figure 4

Take off the

drain pipe clip

HWM65-1128NZP

HWM75-1128NZP

Remarks: In order to make sure of the correct of installation, it is suggested to change

the direction of the drain hose with our company serviceman.

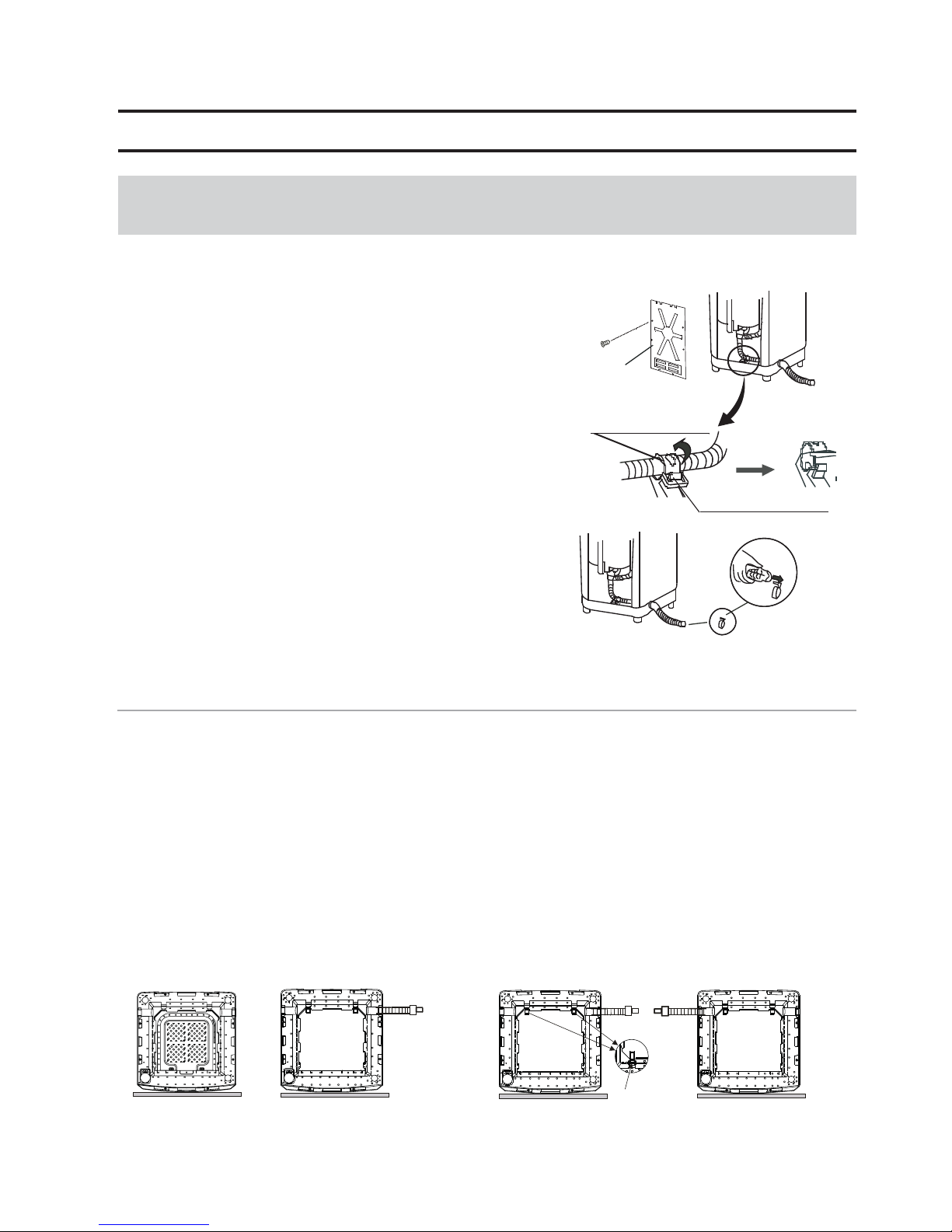

1.Dismantle the back cover of the washing machine.

2.Press the spring lamination lightly and pull the top

segment of the drain hose decumbent then put

down the drain hose from the drain hose frame.

3.Put down the drain hose, squeeze the drain hose

lightly and take off the hook, put the drain hose into

the cabinet. Take off the small baffle which installed

on the other drain outlet and install it on the side

which won't install the drain hose.

4.Extend the drain hose from the other side and install

it on the base by the drain hose frame

5.Install the back cover.

Back cover

Drain hose frame

Spring lamination

Connection between the water inlet hose jointer and the water

faucet

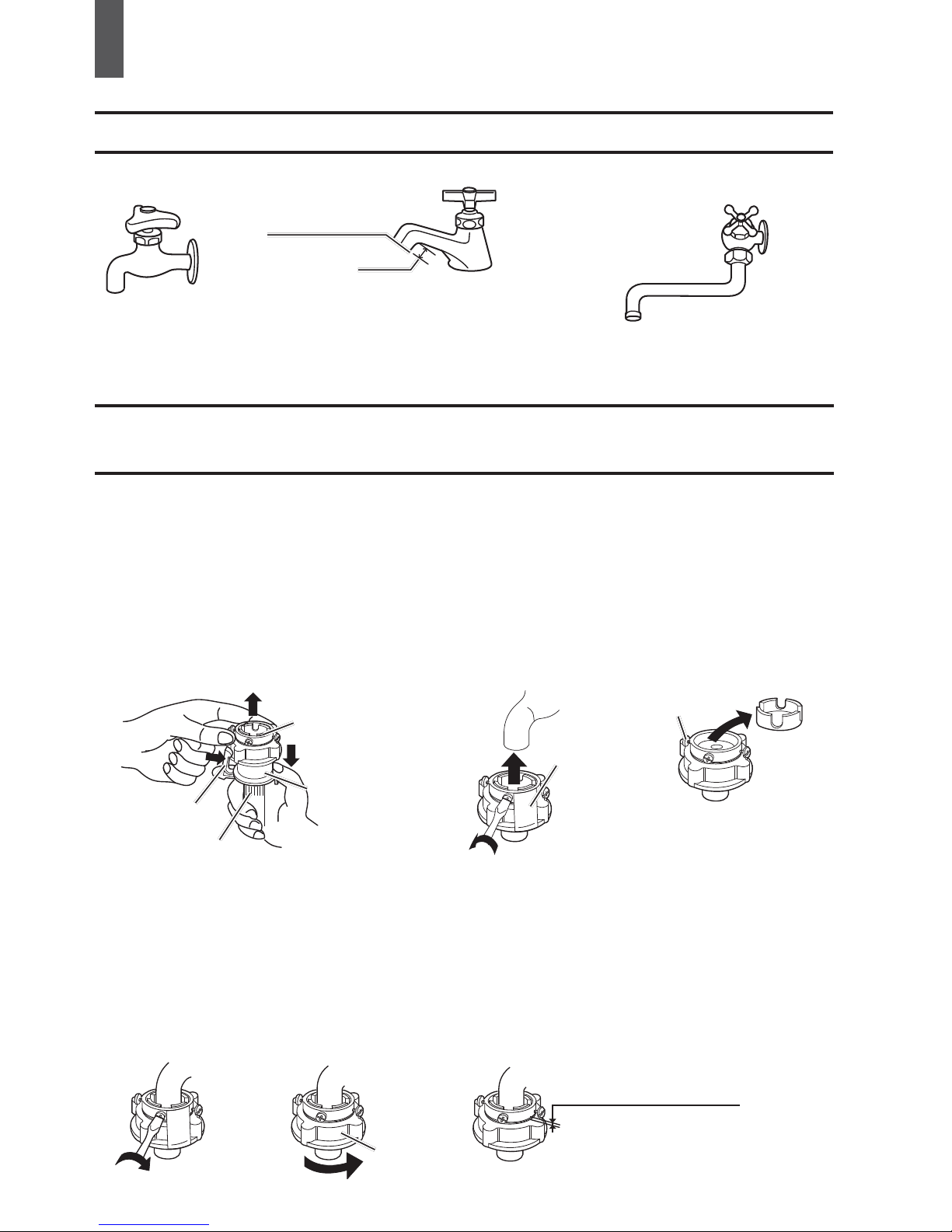

Install the water inlet hose

Conﬁrm the water faucet

Water tap, suitable

Outlet end surface

>10mm

Water tap, not suitable

It is required that the front end shall be longer than 10mm.

The outlet end surface of the tap shall be ﬂat and smooth. If not please ﬁle it to avoid

leakage.

Press the lower end of the lock lever and push down the slider. Take off the water inlet1.

hose jointer from the water inlet hose component. See to Figure 1.

Loosen the screw till the water faucet can be accessed. Put the jointer of the water2.

inlet hose on the faucet. See to Figure 2.

(If the faucet is too large and the jointer can not be set on the water faucet, please

loosen the four screws and take out the bushing in the jointer. The front end of the

faucet must be smooth, otherwise it may leak water. See to Figure 3.)

Figure 1

Lock lever

water inlet

hose jointer

Slider

water inlet hose

Figure 2

Screw knife

Sign plate

Figure 3

Screw

Bushing

Fasten the four screws evenly. See to Figure 4.3.

Take off the nameplate. Twist the fastening nut as per the indication of the ﬁgure to4.

seal up the exit end face of the faucet. See to Figure 5.

Remarks: Before installation, the threading is 4mm above the upper surface of the nut.

After installation, the threading is 2mm above the upper surface of the nut.

See to ﬁgure 6.

Figure 4 Figure 5

Nut

Figure 6

About 4mm before twisting

About below 2mm after twisting

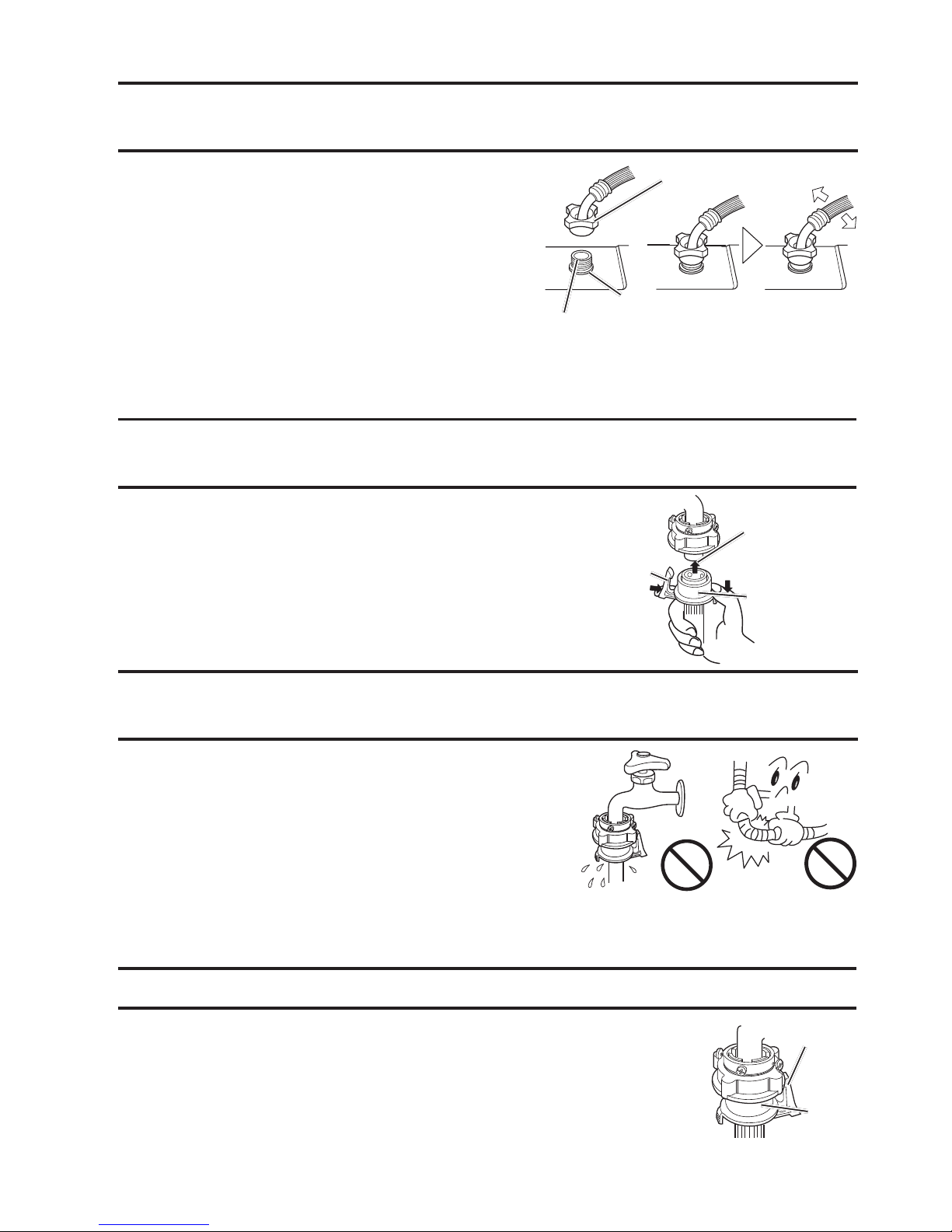

Do not take off the water absorption cushion.1.

Please check if the cushion is dropped or

damaged before each usage. If it happens

please contact our after-sale department

immediately.

Put the nut of the water inlet hose on the valve2.

jointer.

Fasten the nut. Swing it gently to conﬁrm if it’s suitable.3.

Push down the slider. Insert the water inlet hose into1.

the jointer.

Hang the lock lever to the jointer.2.

Release the slider till a click sound is heard.

Connection between the water inlet hose and the

washing machine

Connection between the jointer of the water inlet hose and the

water inlet hose

Jointer of the water

inlet hose

Slider

Locking lever

Nut of the water inlet hose

Water absorption cushion

Jointer of the water inlet valve

Swing the hose gently to conﬁrm if it is fastened1.

stable.

After installation, open the tap to check if it leaks.2.

Do not bend the hose with overstrain.3.

Before each usage please check if the connection4.

between the jointer of the water inlet hose and the

water tap, and the installation of the water inlet hose

are ﬁrm, so as to prevent dropping from improper Installation position.

Close the water faucet.1.

Press the locking lever. Push down the slider. Then pull off the2.

water inlet hose. If the machine is used more than once every

week, the jointer of the water inlet hose can be kept on the tap to

prevent damaging the ﬁxing screw.

Check the connection between the jointer of the water inlet

hose and the water faucet

Dismantle the water inlet hose

Locking lever

Slider

The new hose-sets supplied with the appliance are to be used and

that old hose-sets should not be reused.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier Rondelle

Haier

Haier XQB60-C Manuel utilisateur

Haier

Haier XPB55-23BS Guide de l'utilisateur

Haier

Haier HWM138VA Manuel utilisateur

Haier

Haier HW80-B14876N Manuel utilisateur

Haier

Haier HWM72-27S Manuel utilisateur

Haier

Haier HMS1000TVE/ME Manuel utilisateur

Haier

Haier XQB100-96 Manuel utilisateur

Haier

Haier HW-D860TVE Manuel utilisateur

Haier

Haier HW-C1070TVEME Manuel utilisateur

Haier

Haier HWM150-0623S Manuel utilisateur

Haier

Haier HWM68-0523K Manuel utilisateur

Haier

Haier HT1006TXVE Manuel utilisateur

Haier

Haier HWF5300AW Instructions de montage

Haier

Haier HT1200TXVE Manuel utilisateur

Haier

Haier HWM70-113S Manuel utilisateur

Haier

Haier JW-K42F Manuel utilisateur

Haier

Haier HWM170-B278S6 Manuel utilisateur

Haier

Haier HWM85-0713SW Manuel utilisateur

Haier

Haier HW-B1470TVE-F Manuel utilisateur

Haier

Haier HWM80-828A Manuel utilisateur

Haier

Haier HW-C1260TVE-E Manuel utilisateur

Haier

Haier HWM70-0588 Manuel utilisateur

Haier

Haier HM760TX Manuel utilisateur

Haier

Haier ONX-1010 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
