Haier HWM80-187S Manuel utilisateur

Twin-tubwashingmachine

Model:HWM80-187S

SERVICEMANUAL

Thisserviceinformation is designedforexperienced repair technicians only and is not designedforusebythegeneral public.

It doesnot containwarnings or cautions to advise non-technicalindividuals of potentialdangers in attempting to service a product.

Productspowered by electricityshould be serviced or repaired only by experienced professionaltechnicians.Anyattempt to service

or repair theproduct or products dealtwith in thisserviceinformation by anyoneelsecould result in serious injury or death`

WARNING

C2015Haierwashing Machine

Allrights reserved. Unauthorizedcopyingand distributionis a violation of law.

OrderNumber: TL1506S001V1.1

Chapter 1: CONTENTS

1.Contents 1

4. Safety precondition 4

5.5

6.6

6noitallatsnidnaeltnamsiD.1-6

9ecivreSselas-retfAninoitnettAfostnioP.2-6

7. 10

01noisnemidteN.1-7

11strapemaN.2-7

21dohtemkcehcdnaecivresecnanetniaM.8

8- 1. Wash parts 12

8- 2. Spin parts 13

8- 3. Spin parts 14

71.9

10. Wiring diagram 18

Features 2

3. Specifications 3

Warning and cautions

Installation and accessory parts

Trouble-shooting Answer to question

Appearance brief introduction

Service Manual

Model NO:HWM80-187S

Issue

Rev.

Features

Full plastic cabinet

Full plastic twin-tub integrated with cabinet,

no rustiness for be affected with damp.

Choose water current and washing time

Choose spinning time

Separate washing and spinning

Full plastic washing tub and spinning tub

Concavo-convex on veins in Tub side

Special drain lid

Wide range voltage design,not be afraid of fluctuating.

Unique Wash-board design ,more clean

Chapter 2: FEATURES

Service Manual

Model NO:HWM80-187S

Issue

Rev.

Chapter 3: SPECIFICA TIONS

Service Manual

Model NO:HWM80-187S

Issue

Rev.

Model HWM80-187S

Free standing

Built under x

EAN code 6901570080918

Energy efficiency class

Features for use

Wash capacity kg 8.0

Spin capacity kg 6.0

Level/Volume L Maximum/58 Medium/49 Minimum/43

Preset H x

Residual da mpness % <115

Control modeltime r

controller x

Normal c omputerizedx

Fuzzy computerizedx

Frequency conversion x

Service fe atures

Programs 2

Short cycle x

Inlet heating select x

Heating selection x

Spinning cycle (selector) x

Spinning cycle (variable) x

Start/Pause x

Automatic balancing x

Aesthetics—

Cabinet materialP=Plastic/Z=Zincking/C=Cold ) P

Rolled stainless steelx

Inner drum(stainless steel=s/plastic=p)P

Drain typedown

Door (glass=g / plastic=p) x

Adjustable feet x

Technical data

Voltage/frequency V/Hz220/50

Washpower W 370

Spin power W 150

Special function x

Air-Bubble x

Feet wheel

Water fall currentx

Dimension s (measurements)

Height / built under mm 945

Width mm 786

Depth / with open door mm 455

Dimension s packed ( measurements packed)

Height mm 995

Width mm 835

Depth mm 503

Net weight kg About 20

Gross weightkg About 24

20'Container load Sets 60

40'Container load Sets130

40H'Container load Sets160

Note:""FOR AVAILABLE,"x" FOR NOT AVAILABLE "-"FOR NOT APPLICABL E

Chapter 4: safety precondition

Please insert the power cord into

special receptacle with rated vol-

tage. Be sure to use single-phase

three pins receptacle. The earthing

terminal of the receptacle must be

earthed reliably. If possible, please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians of our special shop or the after-sale service department.

Keep the pin of the power plug clean.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Ventilation hole at

the bottom of the

washing machine

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Warning sign

Forbidding sign

Contents marked with that symbol are actions forbidden to perform.

Performing of those actions may result in damage of the machine

or injure the personal safety of the user.

Contents marked with that symbol are related to the safety of the

product and the users.Please operate in strict conformity to the contents.

Service Manual

Model NO:HWM80-187S

Issue

Rev.

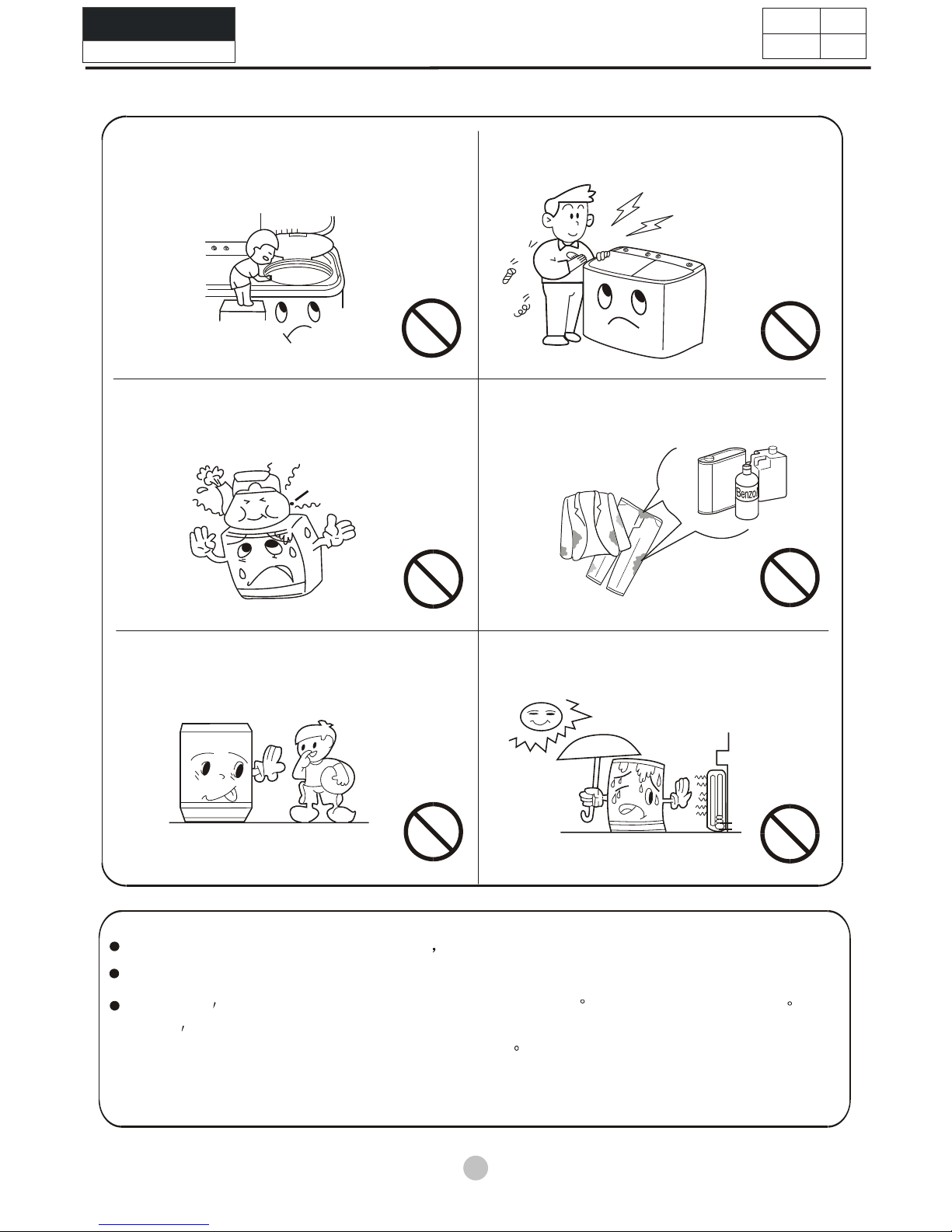

Chapter 5: WARNING AND CAUTIONS

Please don

t use the washer in the environment below 0 C. If the washer is below 0 C, the

washer

s water inlet system and draining system will be frozen ,then result in the damaged

of the whole machine. If the washer has below 0 C, please be sure to ensure the washer is

placed under the room temperature for 2~4 hours and then use .

It is suggested to use foamless washing powder.

Please put down the drain hose before washing and connect the water inlet pipe properly.

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Handicapped or children without care

shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

Service Manual

Model NO:HWM80-187S

Issue

Rev.

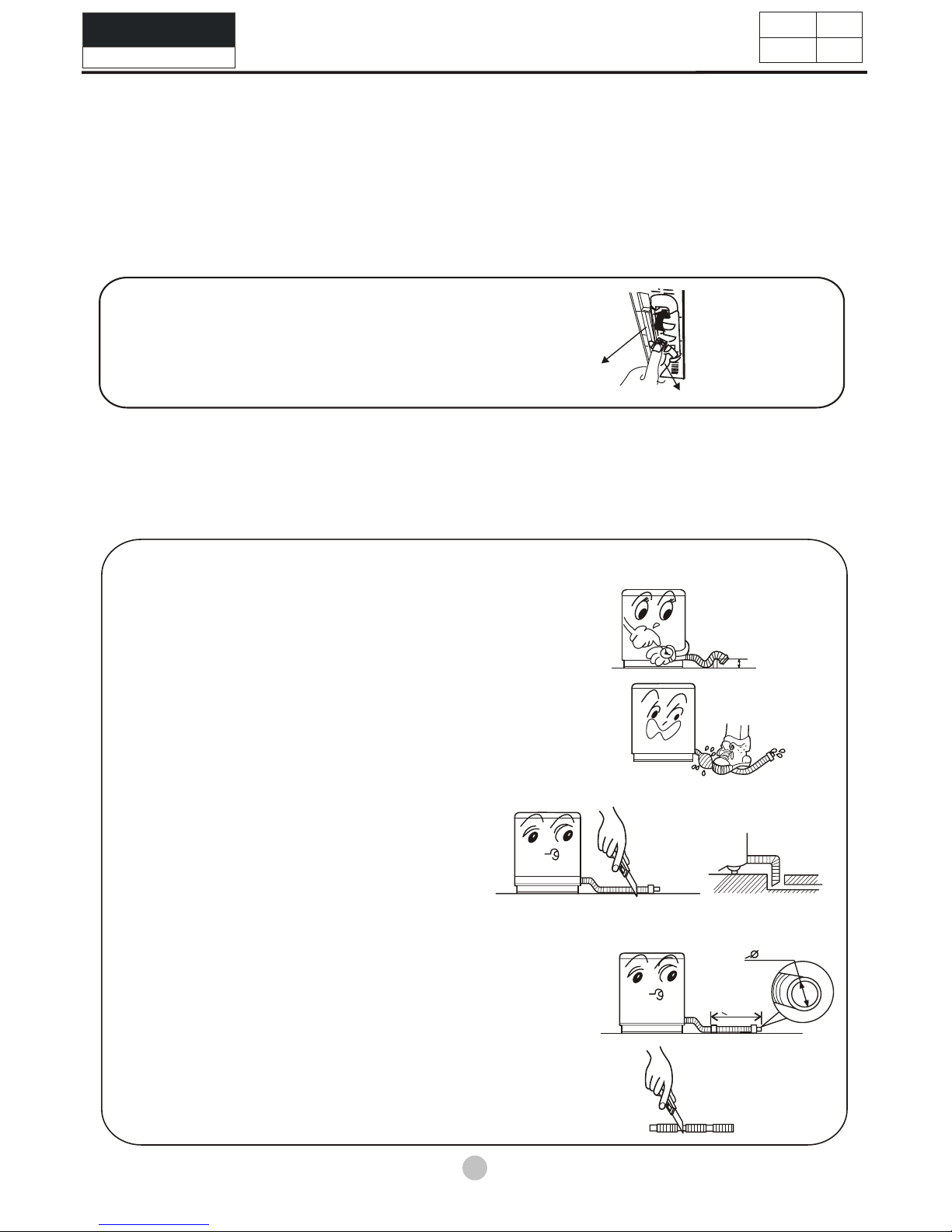

Chapter 6: INSTALLATION AND ACCESSORY PARTS

5. If the extra hose is too long, cut it either

at point A or B.

> 30mm

<1.5m

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be

less than 10cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not tramp or press the drain hose.

3.If the drain hose is too long, cut it at mid point.

To make smooth drainage, cut the front end of

the hose slantingly.

4.If extra drain hose is needed , please make

separate purchase. The inner diameter of the

extra hose shall not less than 30mm, and the

length shall not exceed 1.5m.

<10cm

Overflow filter

Lint filter

Please install and adjust the machine according to the requirement of

the manual. It is very important to your security and correct operating

the machine.

Install the lint filter

After opening the package,please take out the lint

filter from the document bag,install it to the overflow

filter of the wash tub.See to the figure.

Usage of the drain hose

6.1 Dismantle and installation

Figure 1

Service Manual

Model NO:HWM80-187S

Issue

Rev.

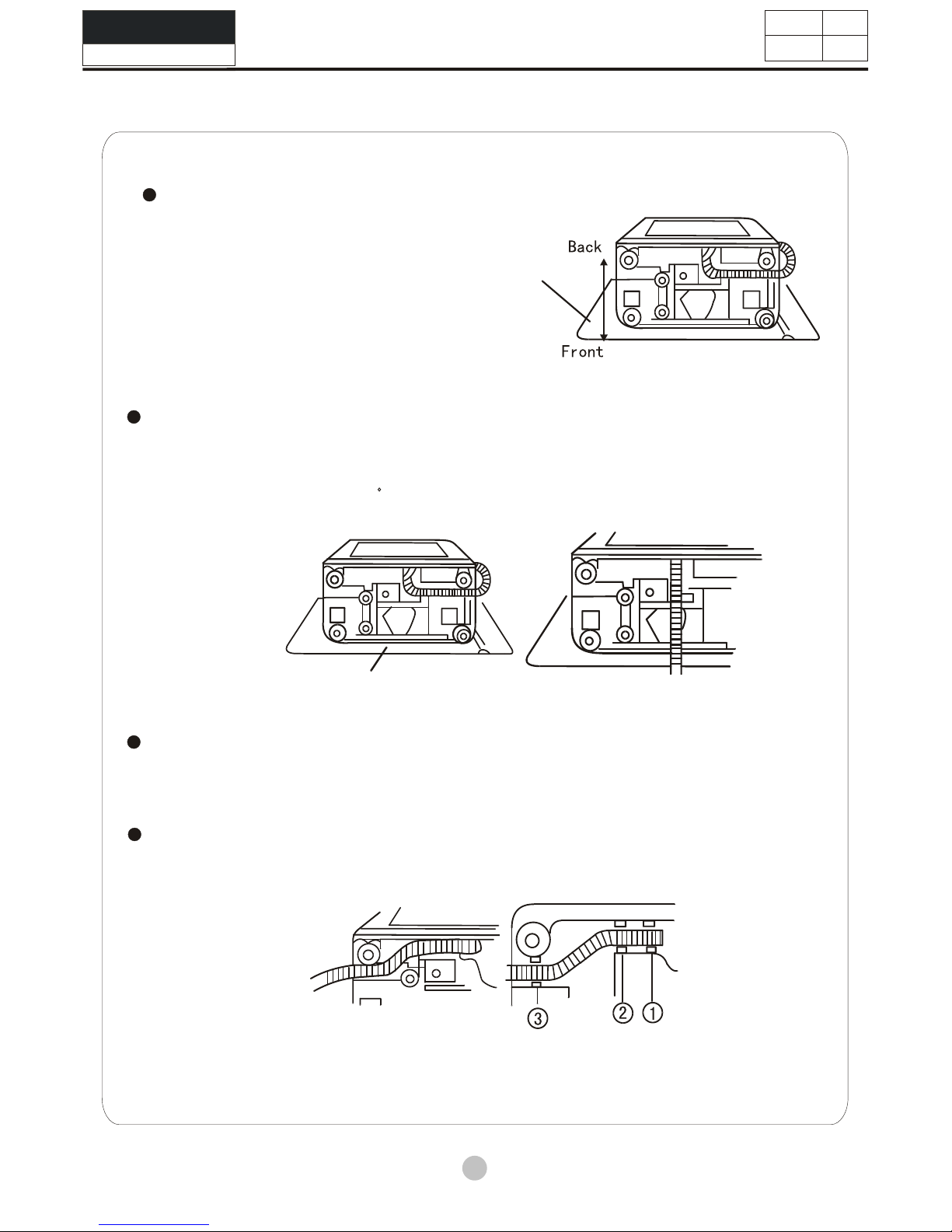

Figure 2 indicates the ex factory installation

position of the drain hose.

Figure 2

Soft item

Extend the drain hose from the side of spin tub.

Put soft items on the ground. Lean the machine

down gently with the front surface facing the

ground. Take off the drain hose from the cabinet.

Take the hose out of the fixing groove.

(See to Figure 3).

Embed the drain hose into the groove along the side

of the spin tub in the order of (1)~(4), heading for the

side of the spin tub. (See to Figure 3).

Embed the drain hose into the groove with

hands. Ta ke care not to damage the drain

hose in fastening the fixing clamp.

Soft item

Figure 3

Figure 4

Embed into the

groove in turn

Extend to the

spin tub side

Service Manual

Model NO:HWM80-187S

Issue

Rev.

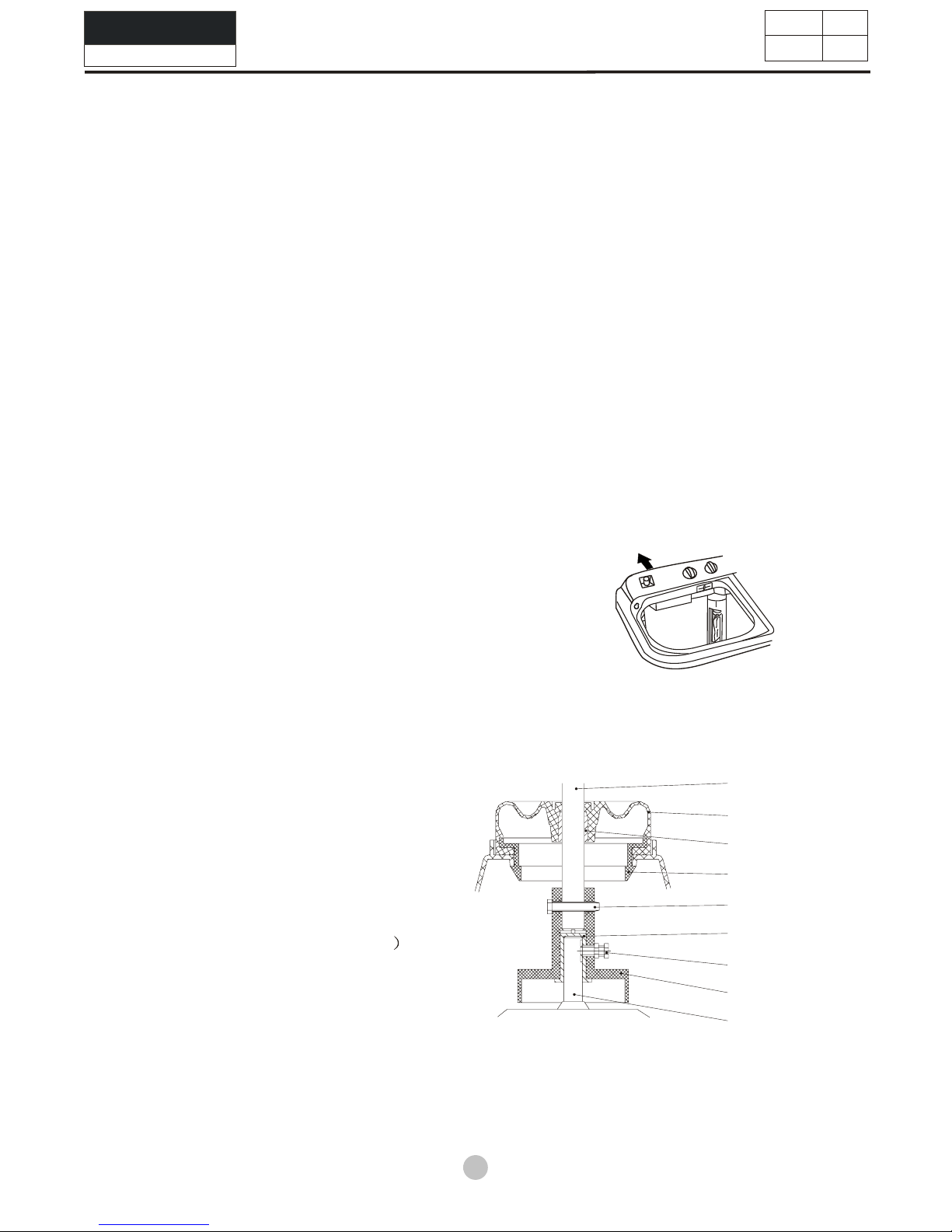

Spin tub shaft

Bearing seat

Figure 6

Oilite bearing

Inner lining of

the bearing seat

Fastening screw

Fastening screw of

the brake wheel

Inner lining of the

brake wheel

Brake wheel

Spin motor shaft

Dismantling and installation of the control panel component

Loosen the fastening screws. Pull towards the direction

indicated in the figure to dismantle the control panel. In

installation the beard shall lock into the installation hole

of the major frame. (Figure 5)

Dismantling and installation of

the spin tub

Dismantle the Major frame component.

Loosen the fastening screw of the spin tub

shaft. The spin tub then can be taken out.

In installation, be sure to inlay the bulge of

the inner lining of the brake wheel into the

groove of the spin tub shaft. (Figure 6

Figure 5

Dismantling and installation of the base frame

Dismantle the back cover. Loosen the wires. Loosen the

fastening screw of the spin tub shaft. Separate the shaft

from the brake wheel. Loosen the brake hook. Take off

the brake cable frame from the installation groove of the

twin-tub. Take off the V-belt. Take out the drain hose from

the groove of the base frame. Loosen the fastening screw

between the base frame and the cabinet to dismantle the

base frame component.

Service Manual

Model NO:HWM80-187S

Issue

Rev.

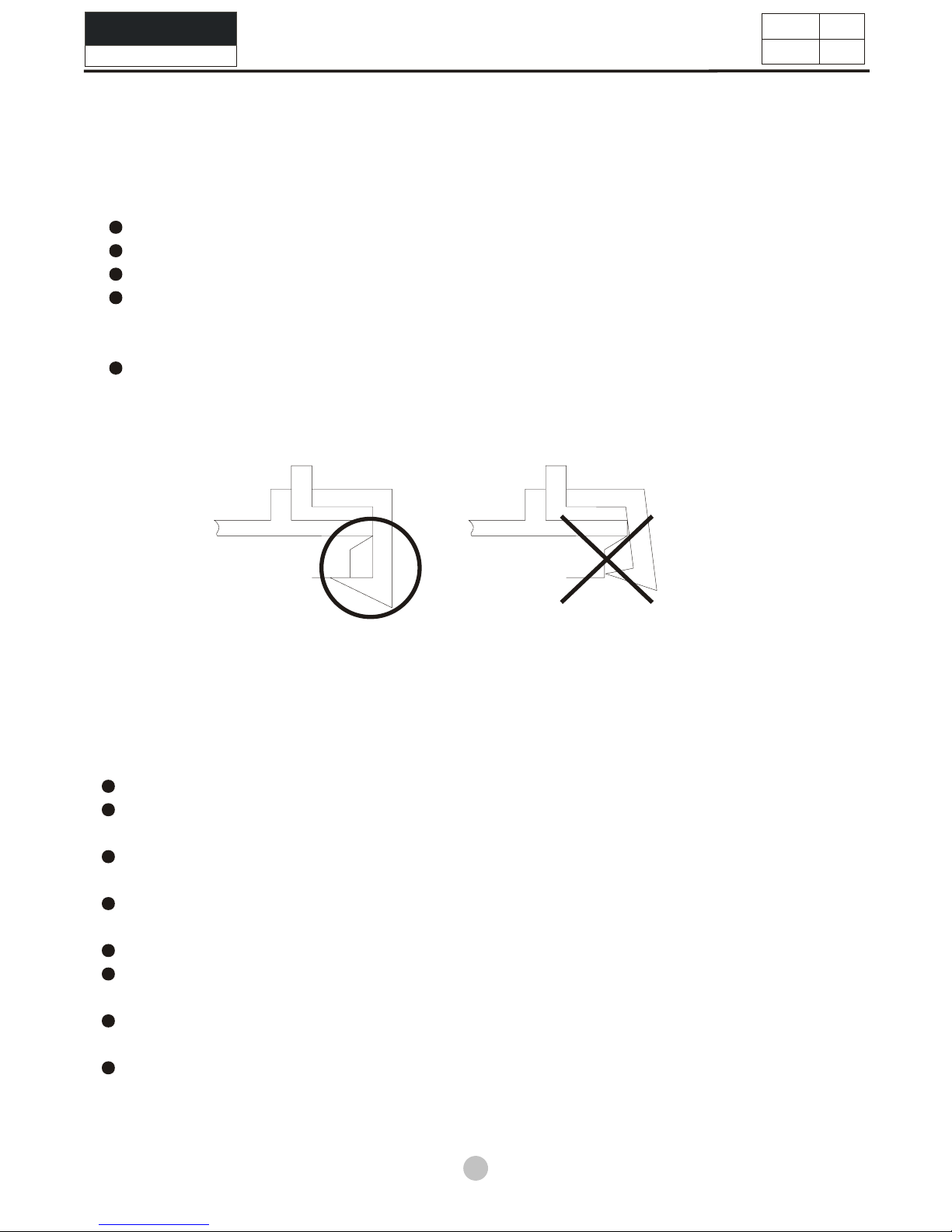

Dismantling and installation of the bearing seat

Once the bearing seat is taken off, it can not be utilized again. Therefore do not dismantle

it as far as possible. In case that it has to be replaced, please dismantle it as per following

sequence, then install a new bearing seat.

Dismantle the spin tub . Then pull out the bearing seat.

Cut off the inner lining claw inside the bearing seat with cutting pliers and take it out.

Install the new bearing seat and inner lining.

The bearing seat is an inlay component. Be sure to aim the claw of the inner lining at the

hole of the tub then push it in. Please use suitable tools and add even pressure around

the tub.

After inlay the bearing seat, check if the claw is installed to proper position from the outside

of the twin-tub (Figure 7).

Figure 7

Right Wrong

6.2 Points of Attention in After-sales Service

Be sure to switch off the power during dismantling or repair.

Be sure to use insulated wiring terminals and insulation box in connection of the wires, and

crimp and fix to proper position with suitable tools.

In welding connections with electric iron, be sure to twist the wires before welding, and insulate

with insulation tapes.

In welding the wires with electric iron, be sure not to touch the resin part and insulation part of

each switch.

The inlay connection wires and terminals shall not be loose or drop.

Do not make the wires touch the moving parts like the belt, pulley of the motor, brake bar etc.

Do not make the wires touch the sharp edges and high-temperature area.

In case that there are metal parts with the wires, do not make the wires touch the metal parts.

Insulation materials are needed between them.

After assembly, the washing machine shall act normally. Check if it leaks and if the sound and

vibration are normal.

Service Manual

Model NO:HWM80-187S

Issue

Rev.

Autres manuels pour HWM80-187S

Table des matières

Autres manuels Haier Rondelle

Haier

Haier LCA4120WPAB0 Manuel utilisateur

Haier

Haier XPB135-LA Manuel utilisateur

Haier

Haier HNS1460TVE-FD Manuel utilisateur

Haier

Haier HG1000TXVE Manuel utilisateur

Haier

Haier HW07-CP1439 Manuel utilisateur

Haier

Haier HWM130-9188 Manuel utilisateur

Haier

Haier HW80-B14266 Manuel utilisateur

Haier

Haier HWM60-15P Manuel utilisateur

Haier

Haier HT1006TXVE Manuel utilisateur

Haier

Haier HK1007I/ME Manuel utilisateur

Haier

Haier HW80-B1486 Manuel utilisateur

Haier

Haier HWM110-23BS Manuel utilisateur

Haier

Haier HW70-B14266 Manuel utilisateur

Haier

Haier HWM88-113S Manuel utilisateur

Haier

Haier HWM 80-200 S Manuel utilisateur

Haier

Haier HWM70-10A Manuel utilisateur

Haier

Haier HWM70-928NZP Manuel utilisateur

Haier

Haier HWM55-918P Manuel utilisateur

Haier

Haier XPB60-0713S Manuel utilisateur

Haier

Haier HW70-B14636N Manuel utilisateur

Haier

Haier BEWM1000H Mode d’emploi

Haier

Haier XQBM30-22 Manuel utilisateur

Haier

Haier HWM96-0613S Manuel utilisateur

Haier

Haier HW80-BP12929 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
