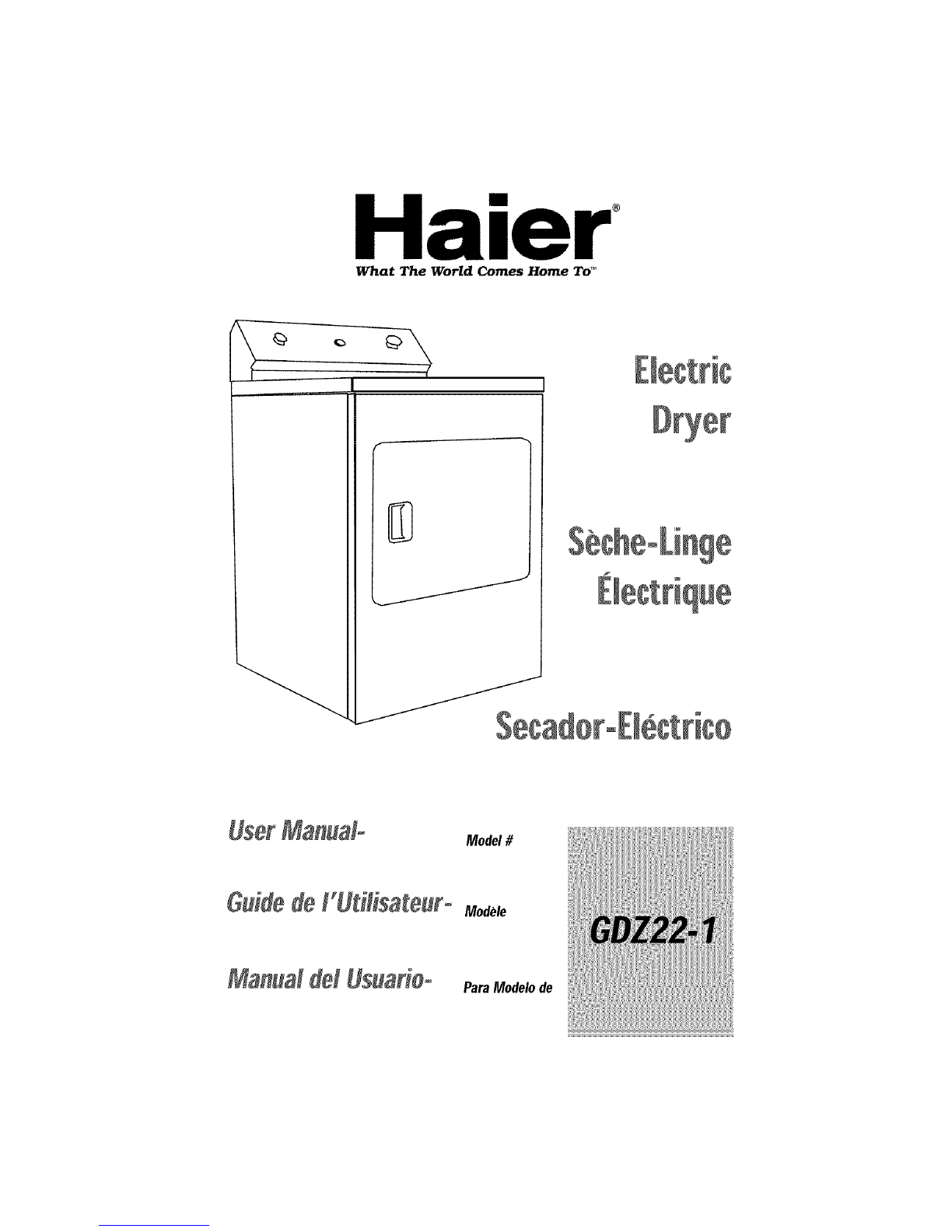

Haier GDZ22-1 Manuel utilisateur

Haier

What The World Comes Home To '_

UserManual- Mo_l#

GuidedeI'Utitisateur° Mode_

Manual del Usuario° p_ Modulode

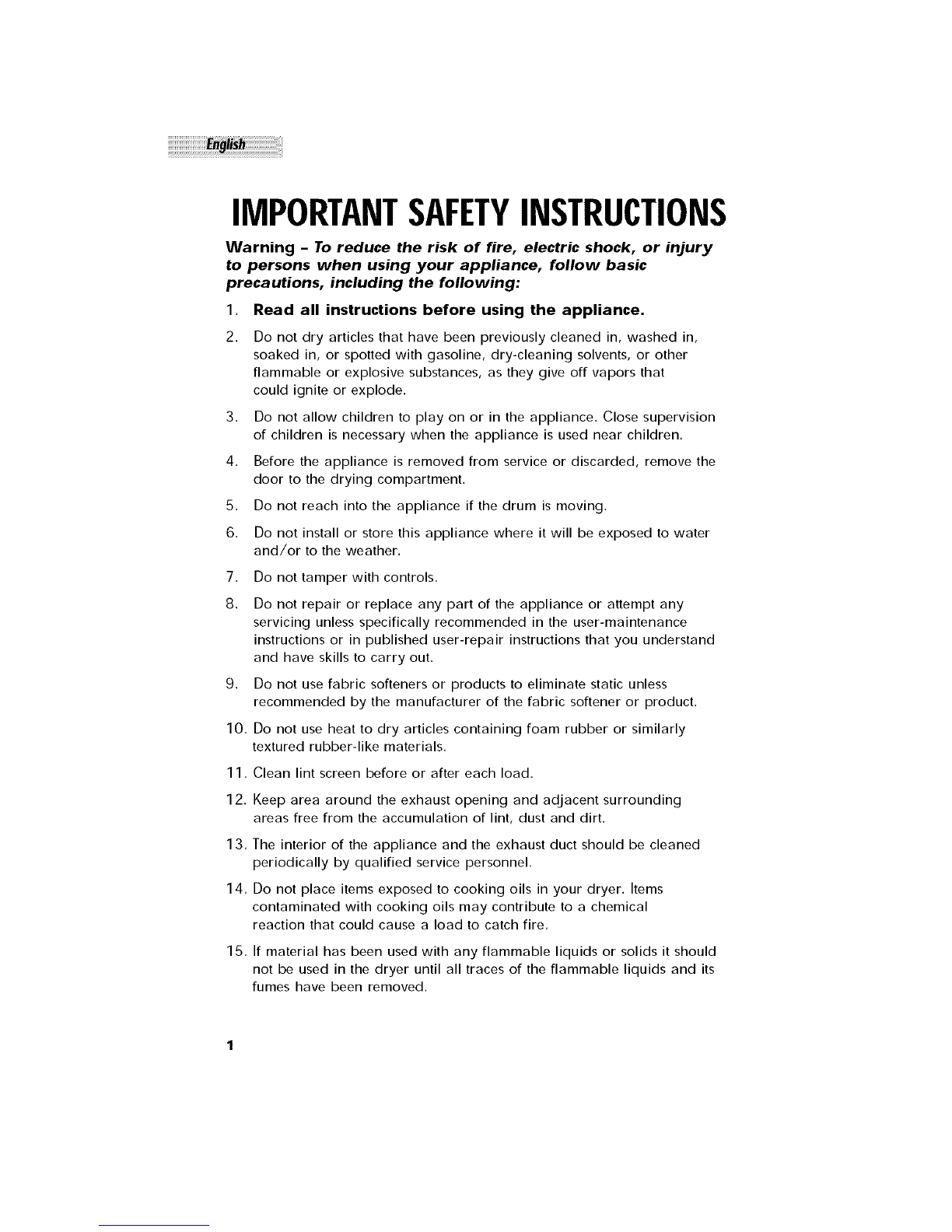

IMPORTANTSAFETYINSTRUCTIONS

Warning - To reduce the risk of fire, electric shock, or injury

to persons when using your appliance, follow basic

precautions, including the following:

1. Read all instructions before using the appliance.

2. Do not dry articles that have been previously cleaned in, washed in,

soaked in, or spotted with gasoline, dry-cleaning solvents, or other

flammable or explosive substances, as they give off vapors that

could ignite or explode.

3. Do not allow children to play on or in the appliance. Close supervision

of children is necessary when the appliance is used near children.

4. Before the appliance is removed from service or discarded, remove the

door to the drying compartment.

5. Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be exposed to water

and/or to the weather.

7. Do not tamper with controls.

8. Do not repair or replace any part of the appliance or attempt any

servicing unless specifically recommended in the user-maintenance

instructions or in published user-repair instructions that you understand

and have skills to carry out.

9. Do not use fabric softeners or products to eliminate static unless

recommended by the manufacturer of the fabric softener or product.

10. Do not use heat to dry articles containing foam rubber or similarly

textured rubber-like materials.

11. Clean lint screen before or after each load.

12. Keep area around the exhaust opening and adjacent surrounding

areas free from the accumulation of lint, dust and dirt.

13. The interior of the appliance and the exhaust duct should be cleaned

periodically by qualified service personnel.

14. Do not place items exposed to cooking oils in your dryer. Items

contaminated with cooking oils may contribute to a chemical

reaction that could cause a load to catch fire.

15. If material has been used with any flammable liquids or solids it should

not be used in the dryer until all traces of the flammable liquids and its

fumes have been removed.

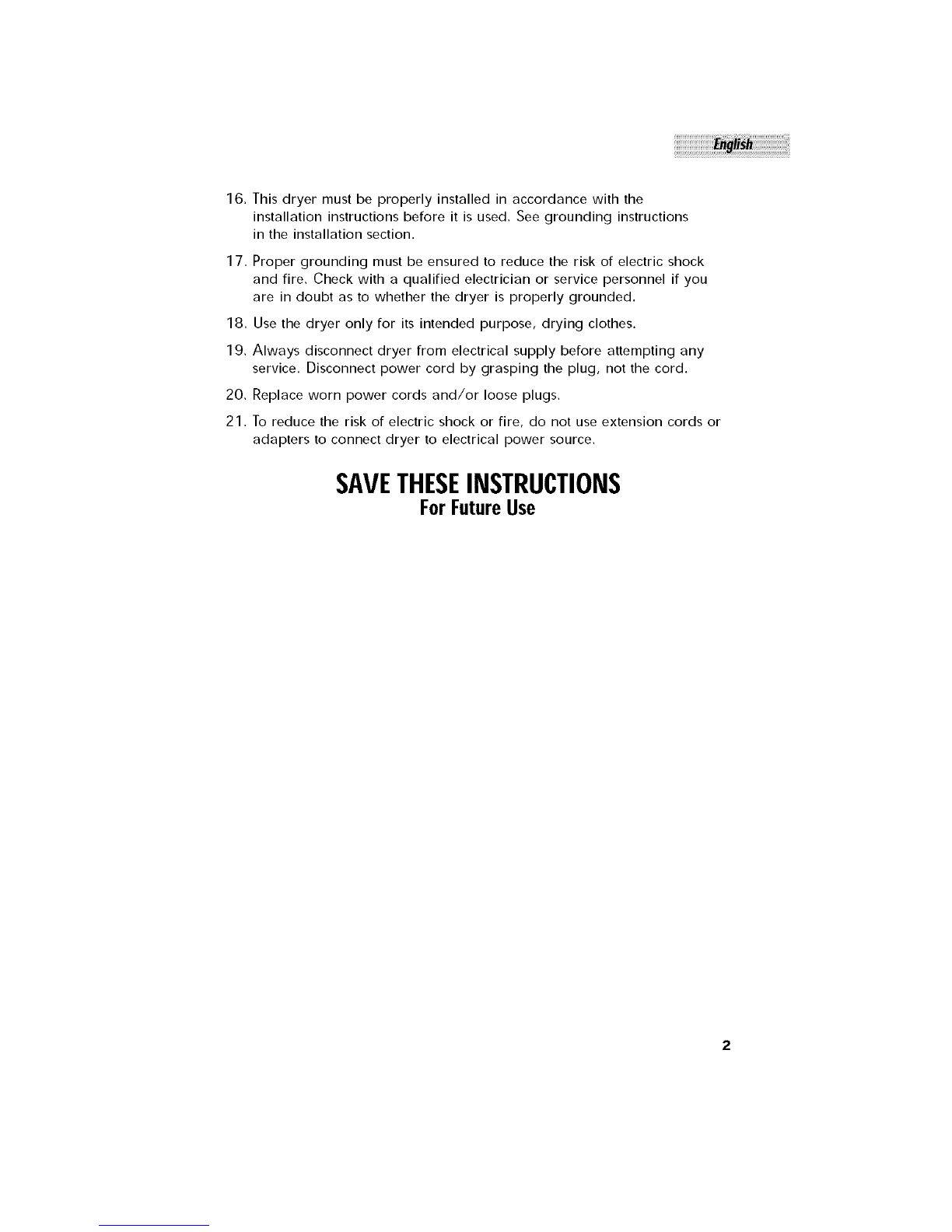

16.Thisdryermustbeproperlyinstalledinaccordancewiththe

installationinstructionsbeforeit isused.Seegroundinginstructions

intheinstallationsection.

17.Propergroundingmustbeensuredtoreducetheriskofelectricshock

andfire.Checkwithaqualifiedelectricianorservicepersonnelifyou

areindoubtastowhetherthedryerisproperlygrounded.

18.Usethedryeronlyforitsintendedpurpose,dryingclothes.

19.Alwaysdisconnectdryerfromelectricalsupplybeforeattemptingany

service.Disconnectpowercordbygraspingtheplug,notthecord.

20.Replacewornpowercordsand/orlooseplugs.

21. To reduce the risk of electric shock or fire, do not use extension cords or

adapters to connect dryer to electrical power source.

SAVETHESEINSTRUCTIONS

ForFutureUse

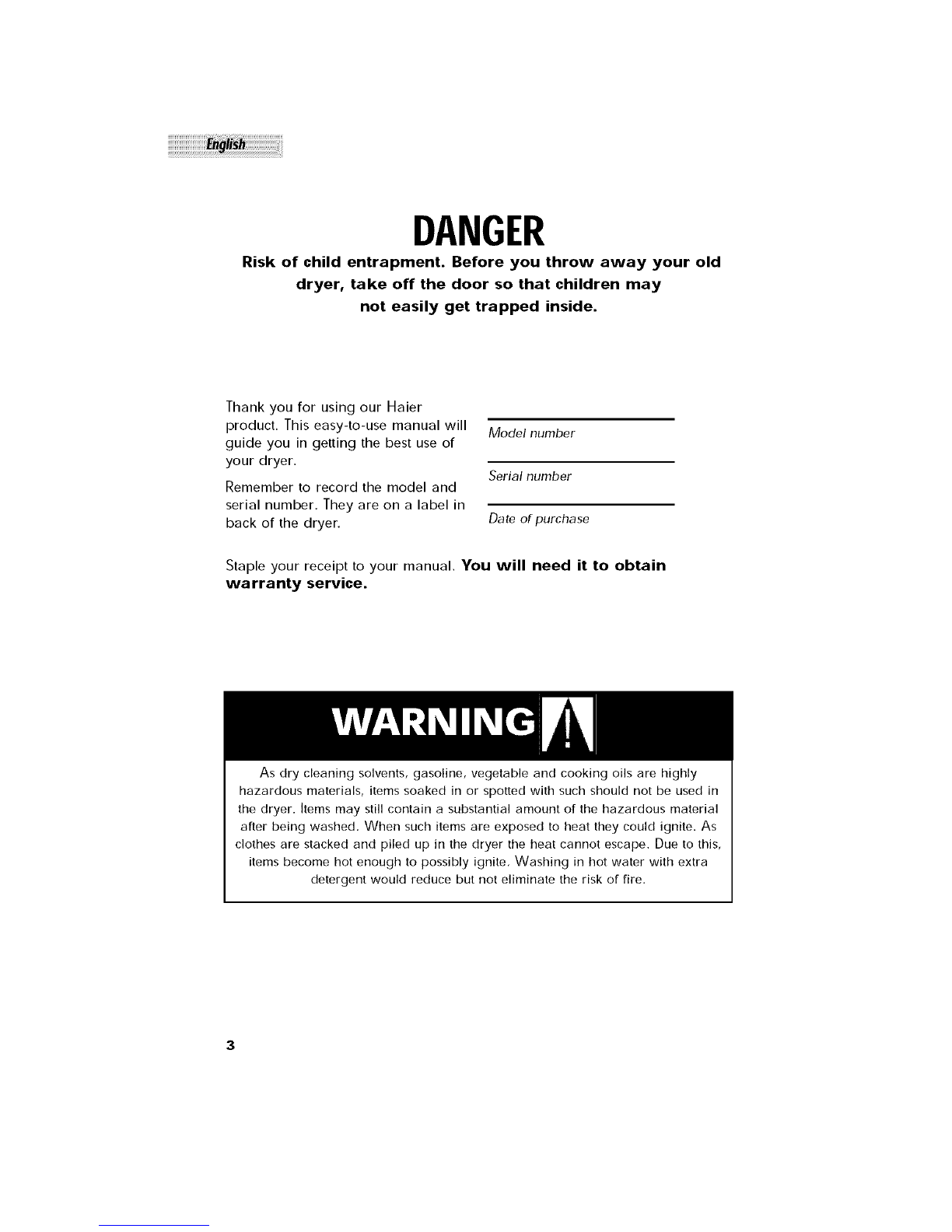

DANGER

Risk of child entrapment. Before you throw away your old

dryer, take off the door so that children may

not easily get trapped inside.

Thank you for using our Haler

product. This easy-to-use manual will

guide you in getting the best use of

your dryer.

Remember to record the model and

serial number. They are on a label in

back of the dryer.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain

warranty service.

As dry cleaning solvents, gasoline, vegetable and cooking oils are highly

hazardous materials, items soaked in or spotted with such should not be used in

the dryer, items may still contain a substantial amount of the hazardous material

after being washed. When such items are exposed to heat they could ignite. As

clothes are stacked and piled up in the dryer the heat cannot escape. Due to this,

items become hot enough to possibly ignite, Washing in hot water with extra

detergent would reduce but not eliminate the risk of fire,

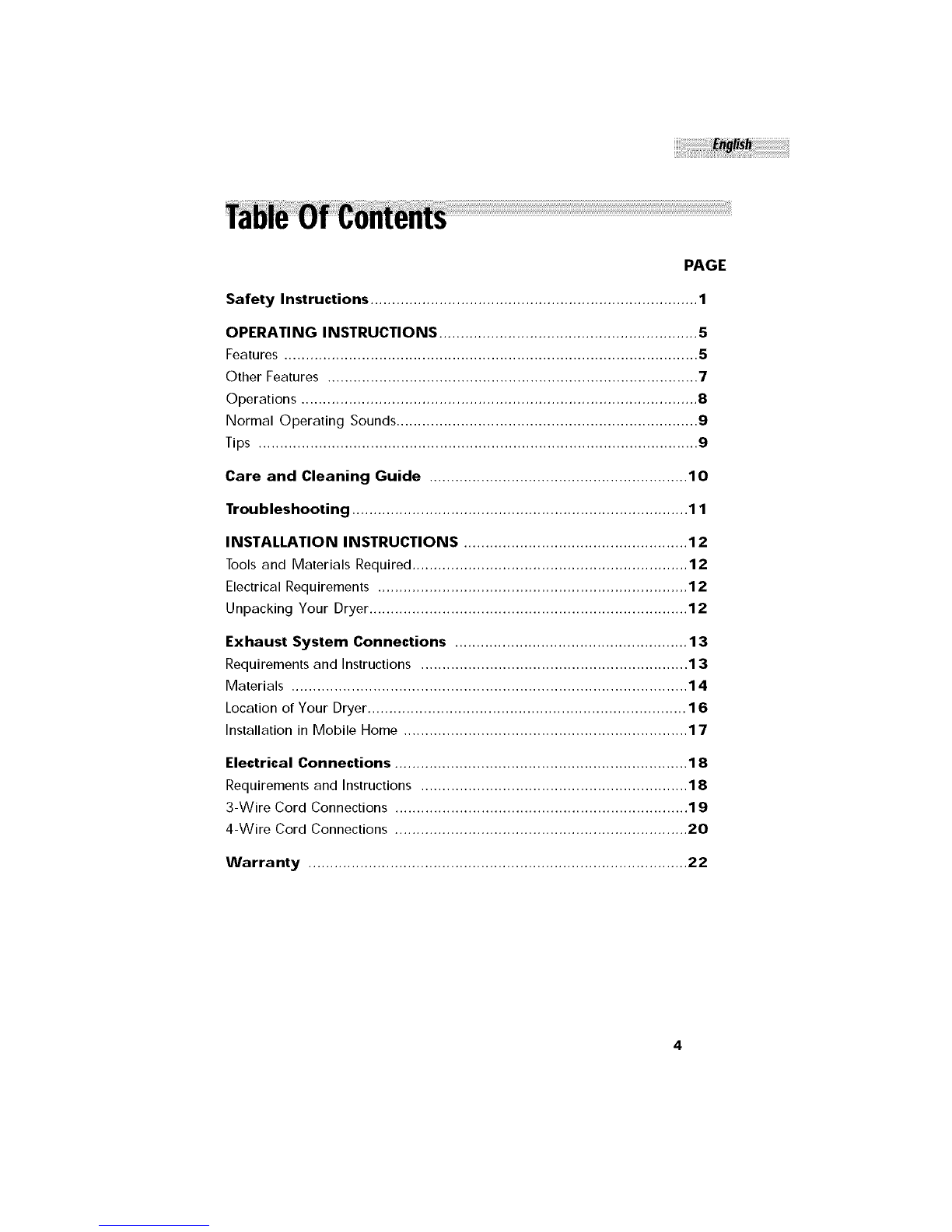

PAGE

Safety Instructions ............................................................................ 1

OPERATING INSTRUCTIONS ............................................................ 5

Features ................................................................................................ 5

Other Features ...................................................................................... 7

Operations ............................................................................................ 8

Normal Operating Sounds ...................................................................... 9

Tips ...................................................................................................... 9

Care and Cleaning Guide ............................................................ 10

Troubleshooting .............................................................................. 11

INSTALLATION INSTRUCTIONS .................................................... 12

Tools and Materials Required ................................................................ 12

Electrical Requirements ........................................................................ 12

Unpacking Your Dryer .......................................................................... 12

Exhaust System Connections ...................................................... 13

Requirements and Instructions .............................................................. 13

Materials ............................................................................................ 14

Location of Your Dryer .......................................................................... 16

Installation in Mobile Home .................................................................. 17

Electrical Connections .................................................................... 18

Requirements and Instructions .............................................................. 18

3-Wire Cord Connections .................................................................... 19

4-Wire Cord Connections .................................................................... 20

Warranty ........................................................................................ 22

WARNING: To reduce the risk of of fire, electric shock or injury to persons, read

the IMPORTANT SAFETY INSTRUCTIONS before operating this dryer,

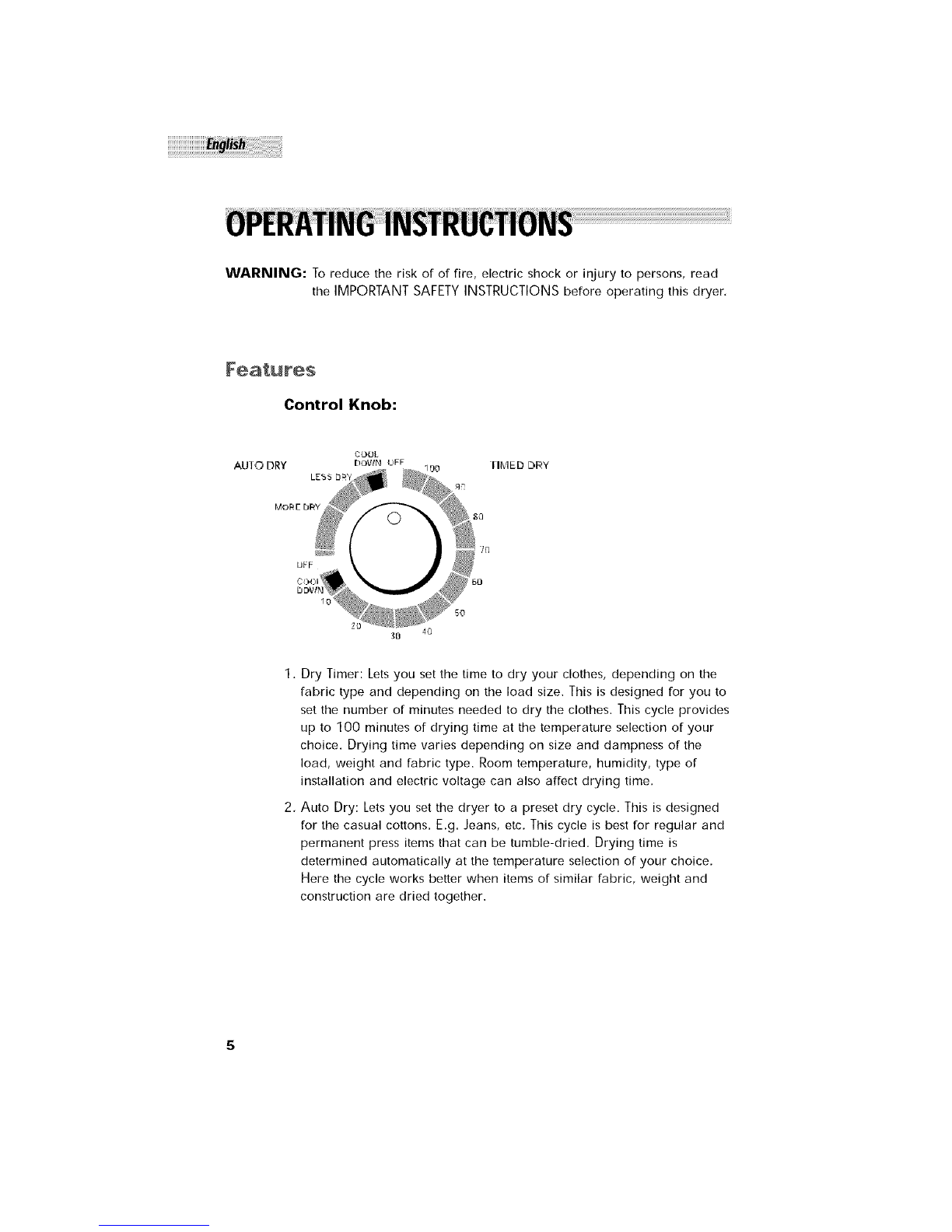

Control Knob:

CDOL

3D 40

1. Dry Timer: Lets you set the time to dry your clothes, depending on the

fabric type and depending on the load size. This is designed for you to

set the number of minutes needed to dry the clothes. This cycle provides

up to 1OO minutes of drying time at the temperature selection of your

choice. Drying time varies depending on size and dampness of the

load, weight and fabric type. Room temperature, humidity, type of

installation and electric voltage can also affect drying time,

2, Auto Dry: Lets you set the dryer to a preset dry cycle. This is designed

for the casual cottons. E.g. Jeans, etc, This cycle is best for regular and

permanent press items that can be tumble-dried. Drying time is

determined automatically at the temperature selection of your choice,

Here the cycle works better when items of similar fabric, weight and

construction are dried together.

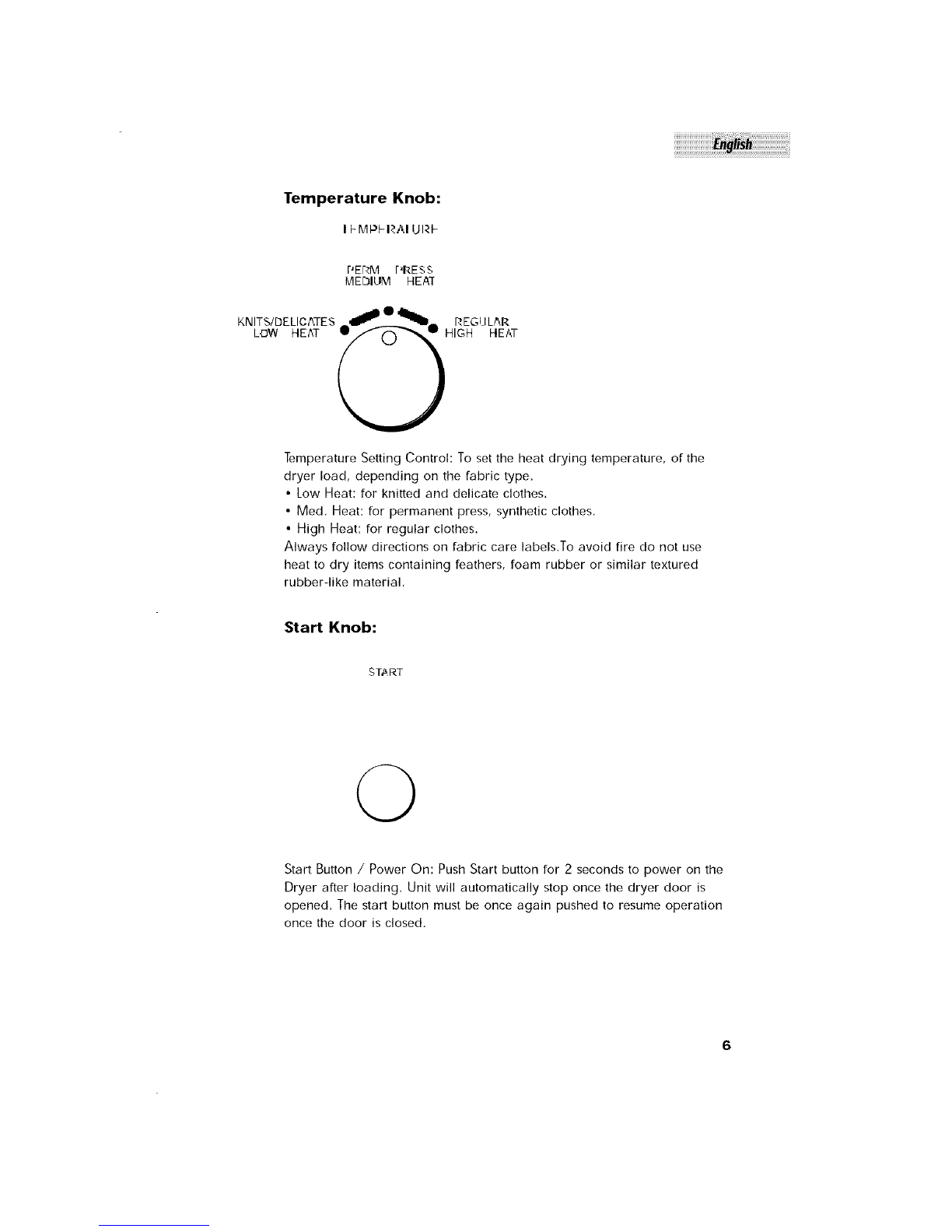

Temperature Knob:

I FMI-:'FRAI IJI._F

PERM F_RESS

MEDIUM HEA'f

Temperature Setting Control: To set the heat drying temperature, of the

dryer load, depending on the fabric type.

• low Heat: for knitted and delicate clothes.

• Med, Heat: for permanent press, synthetic clothes,

• High Heat: for regular clothes.

Always follow directions on fabric care labels.To avoid fire do not use

heat to dry items containing feathers, foam rubber or similar textured

rubber-like material,

Start Knob:

START

Start Button /Power On: Push Start button for 2 seconds to power on the

Dryer alter loading. Unit will automatically stop once the dryer door is

opened. The start button must be once again pushed to resume operation

once the door is closed.

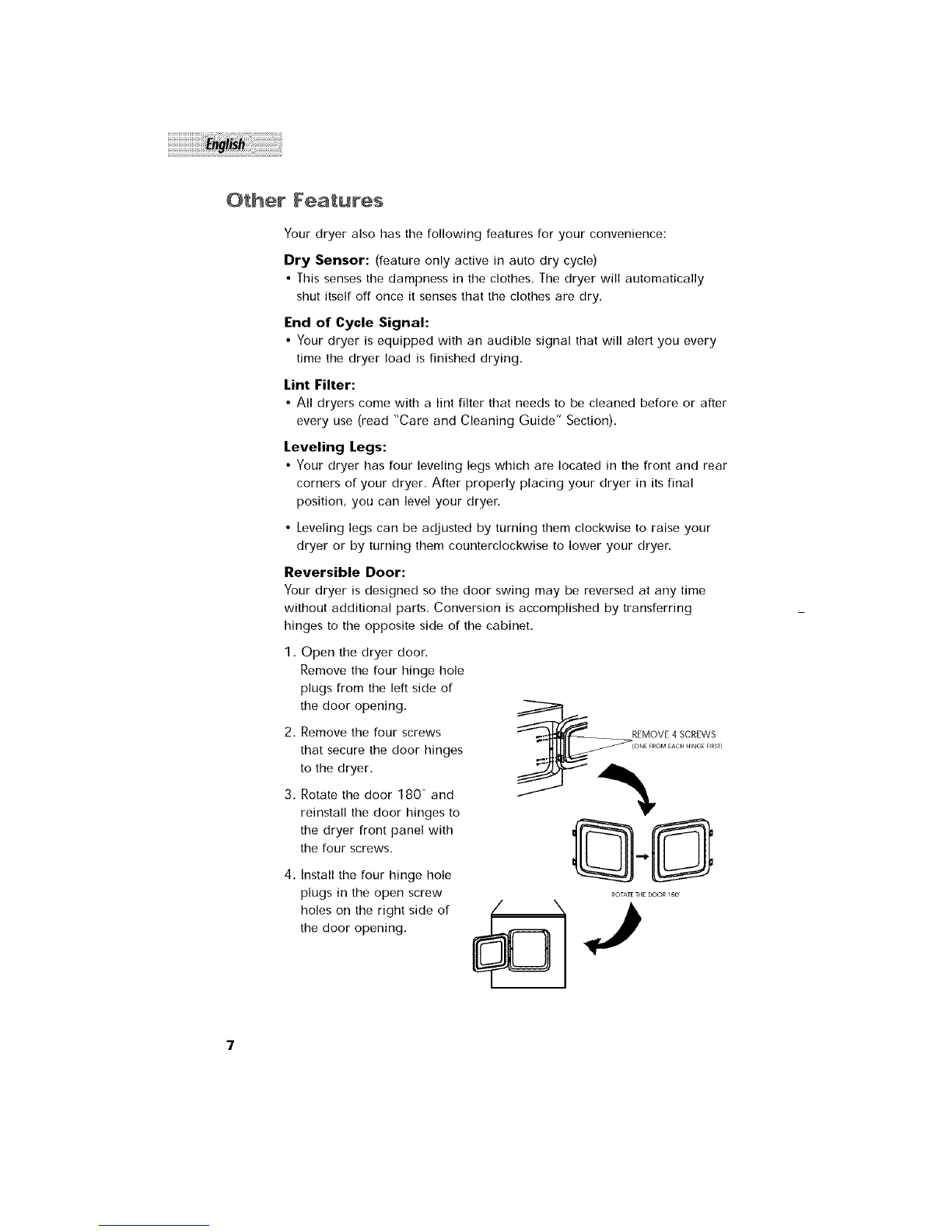

Other Seatures

Your dryer also has the following features for your convenience:

Dry Sensor: (feature only active in auto dry cycle)

• This senses the dampness in the clothes, The dryer will automatically

shut itself off once it senses that the clothes are dry.

End of Cycle Signal:

• Your dryer is equipped with an audible signal that will alert you every

time the dryer load is finished drying,

Lint Filter:

• All dryers come with a lint filter that needs to be cleaned before or after

every use (read "Care and Cleaning Guide" Section),

Leveling Legs:

• Your dryer has four leveling legs which are located in the front and rear

corners of your dryer. After properly placing your dryer in its final

position, you can level your dryer,

• Leveling legs can be adjusted by turning them clockwise to raise your

dryer or by turning them counterclockwise to lower your dryer.

Reversible Door:

Your dryer is designed so the door swing may be reversed at any time

without additional parts, Conversion is accomplished by transferring

hinges to the opposite side of the cabinet.

1, Open the dryer door.

Remove the four hinge hole

plugs from the left side of

the door opening.

2, Remove the four screws REMOVE 4 SCREWS

that secure the door hinges

to the dryer.

3, Rotate the door 180 ° and

reinstall the door hinges to

the dryer front panel with

the four screws.

4. Install the four hinge hole

plugs in the open screw

holes on the right side of

the door opening,

ROTATETHEDOORq8O_

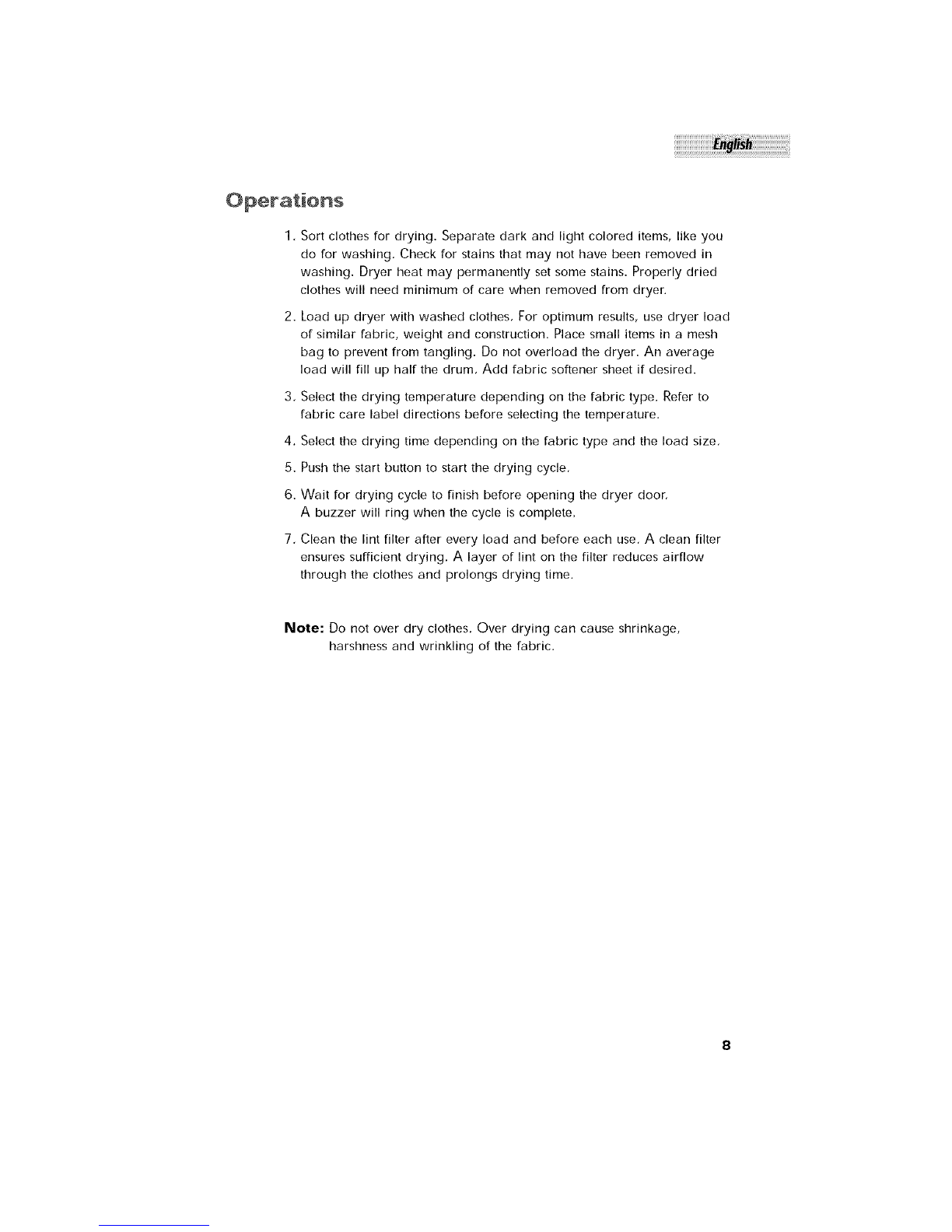

1, Sort clothes for drying. Separate dark and light colored items, like you

do for washing, Check for stains that may not have been removed in

washing. Dryer heat may permanently set some stains. Properly dried

clothes will need minimum of care when removed from dryer.

2. Load up dryer with washed clothes, For optimum results, use dryer load

of similar fabric, weight and construction. Place small items in a mesh

bag to prevent from tangling. Do not overload the dryer. An average

load will fill up half the drum, Add fabric softener sheet if desired.

3, Select the drying temperature depending on the fabric type. Refer to

fabric care label directions before selecting the temperature,

4. Select the drying time depending on the fabric type and the load size,

5. Push the start button to start the drying cycle,

6. Wait for drying cycle to finish before opening the dryer door,

A buzzer will ring when the cycle is complete.

7, Clean the lint filter after every load and before each use, A clean filter

ensures sufficient drying. A layer of lint on the filter reduces airflow

through the clothes and prolongs drying time.

Note: Do not over dry clothes, Over drying can cause shrinkage,

harshness and wrinkling of the fabric,

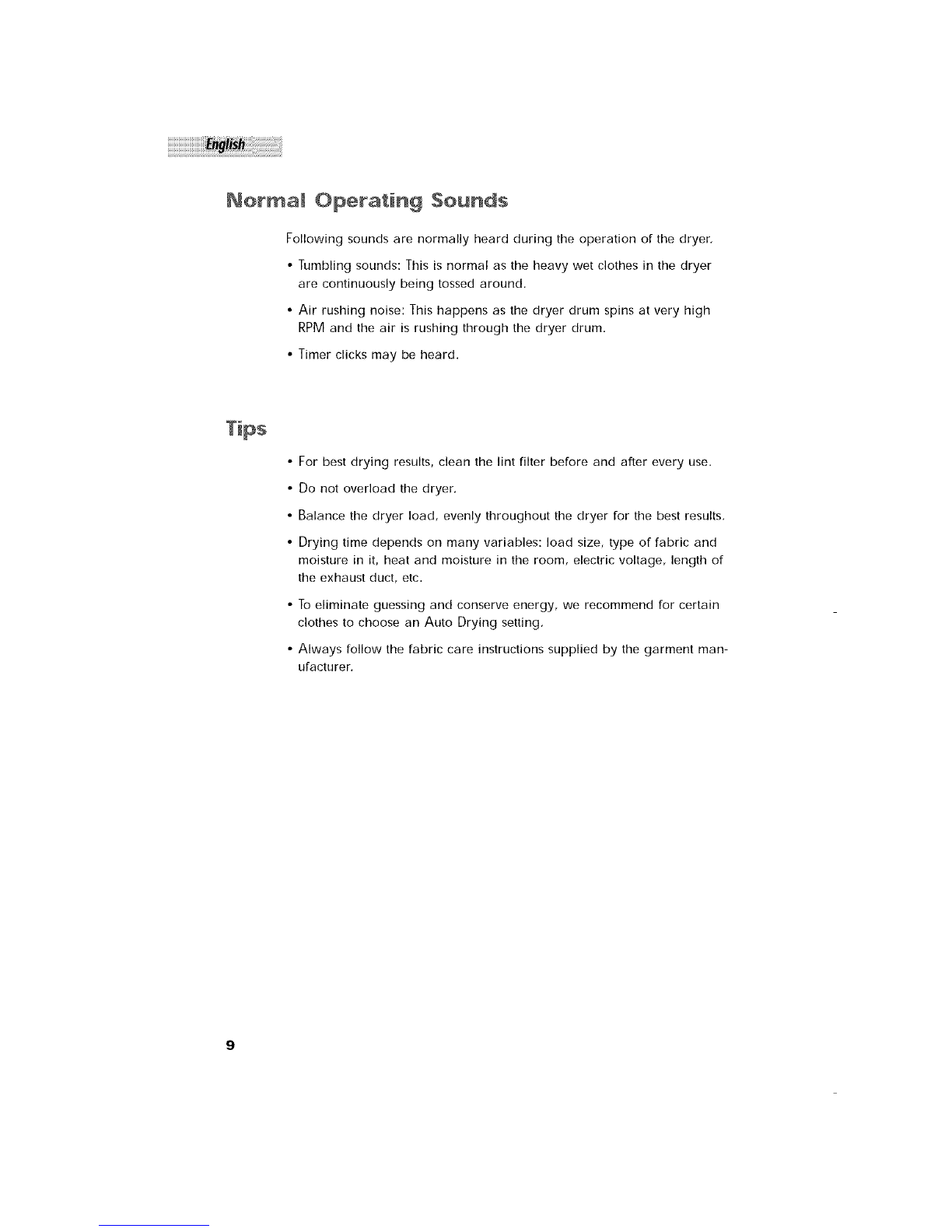

Norma Operating Sounds

Following sounds are normally heard during the operation of the dryer.

• Tumbling sounds: This isnormal as the heavy wet clothesinthe dryer

are continuouslybeing tossed around,

• Air rushing noise:Thishappens as the dryer drum spinsat very high

RPM and the air isrushing through the dryer drum.

• Timer clicksmay be heard.

Tips

• For best drying results, clean the lint filter before and after every use,

• Do not overload the dryer,

• Balance the dryer load, evenly throughout the dryer for the best results,

• Drying time depends on many variables: load size, type of fabric and

moisture in it, heat and moisture in the room, electric voltage, length of

the exhaust duct, etc.

• To eliminate guessing and conserve energy, we recommend for certain

clothes to choose an Auto Drying setting,

• Always follow the fabric care instructions supplied by the garment man-

ufacturer.

Autres manuels pour GDZ22-1

Table des matières

Langues :

Autres manuels Haier Séchoir

Haier

Haier HDHP80AW1 Manuel utilisateur

Haier

Haier HD70-01 ME Manuel utilisateur

Haier

Haier HLF11P Manuel utilisateur

Haier

Haier HDY-E60 Manuel utilisateur

Haier

Haier RDE350AW - 6.5 Cu. Ft. Electric Dryer Manuel utilisateur

Haier

Haier GDG480BW Manuel utilisateur

Haier

Haier CRDE400AW Manuel utilisateur

Haier

Haier HD70-A82 Manuel utilisateur

Haier

Haier Ginesis HLF103Q Manuel utilisateur

Haier

Haier HDY-C70 WH HA AA Manuel utilisateur

Haier

Haier HDY60 Manuel utilisateur

Haier

Haier HDY60M Manuel utilisateur

Haier

Haier HD80-01-U Manuel utilisateur

Haier

Haier T60-32 Manuel utilisateur

Haier

Haier HMS6-1 Manuel utilisateur

Haier

Haier HD80-26A Manuel utilisateur

Haier

Haier HDY-C70 HA AA Manuel utilisateur

Haier

Haier HDY6-1 Manuel utilisateur

Haier

Haier HLP141E Manuel utilisateur

Haier

Haier HLP141E Manuel utilisateur

Haier

Haier Ginesis HLF103Q Manuel utilisateur

Haier

Haier RDE350AW - 6.5 Cu. Ft. Electric Dryer Manuel utilisateur

Haier

Haier GE UltraFresh GFD55ESSN Comment utiliser

Haier

Haier Genesis CRDWE200AW Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
