Haier HDY6.1 HA AA Manuel utilisateur

61405-A

Parts Manual

Dryer

Model:

HDY6.1 HA AA

Product Code:

61405-A

61405-A - 30 DECEMBER 2009

Fisher & Paykel Appliances Ltd

78 Springs Road, East Tamaki

Manukau 2013

PO Box 58-732, Botany

Manukau 2163

New Zealand

Telephone: 09 273 0600

Facsimile: 09 273 0656

PRODUCT

Brand Haier

Voltage 220-240V 50Hz

Model HDY6.1 HA AA

Product Code 61405-A

61405-A

GUIDE TO USING THIS MANUAL

The model covered by this manual is listed on the front cover.

The information detailed in this manual is subject to change without notice. The latest version is indicated by

the reprint date and replaces any earlier editions.

The front cover picture shows the type of product and may not necessarily be an exact image of the model

covered by the manual.

Kit Parts

Kit components are shown in italics. Where a part number is shown against the descriptions for these kit

components, they are also available as separate items. In addition, some parts may be supplied with these

kits that are not available as separate items, and are therefore either not listed, or a part number is not

shown against the part description in this manual.

Parts List Key

italics Kit components or parts included are shown in italics. Refer to above notes: Kit Parts.

NI As a part reference, indicates the part is not illustrated on the diagram.

NOT USED As a part number, indicates the diagram part reference is not used in this manual.

CONTENTS

CABINET AREA................................................................................................................................6

DOOR AREA.....................................................................................................................................8

DRUM AREA...................................................................................................................................10

MOTOR - FAN AREA......................................................................................................................12

CONTROL AREA – ELECTRONIC COMPONENTS......................................................................14

CONDENSER AREA.......................................................................................................................16

61405-A

CABINET AREA

61405-A

CABINET AREA

REF PART DESCRIPTION

1 H0020102847 PANEL REAR

2 H00213500007700 PANEL SIDE RH

3 H0020102821 COVER REAR

6 H00213500013900 PANEL TOP

20 H0020202677 COVER KICK PLATE

21 H0020102799 PANEL CONDENSER HOUSING

22 H0020202718 COVER CONDENSER LOCK

23 H0020202846 LATCH RH CONDENSER LOCK

24 H0020202698 LATCH LH CONDENSER LOCK

26 H0020102811 PANEL FRONT VENTILATION

28 H0020800039 COVER HEATER ASSEMBLY

40 H0020202103 FOOT HDY6-1

41 H00213500007800A PANEL BOTTOM

45 H00215600001300 BRACKET STRENGTHENER

84 H00213500007600 PANEL SIDE LH

61405-A

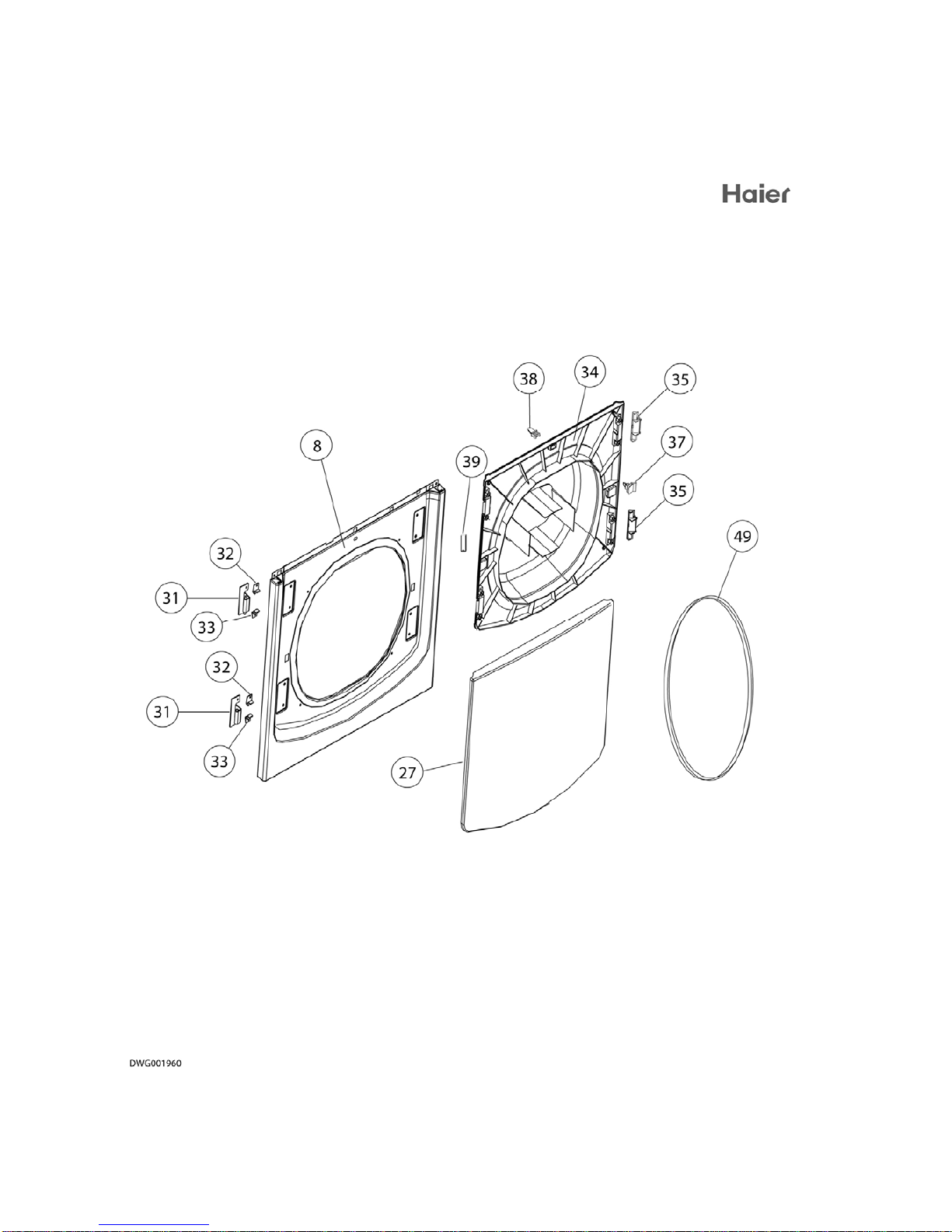

DOOR AREA

61405-A

DOOR AREA

REF PART DESCRIPTION

8 H0020102810 PANEL FRONT

27 H0020202666 PANEL DOOR COVER

31 H0020102797 HINGE DOOR

32 H0020102798 COVER HINGE TOP

33 H0020102831 COVER HINGE BOTTOM

34 H0020202667 DOOR HDY-C70

35 H0020202694 COVER HINGE BLANKING

37 H0020202692 STRIKE

38 H0020202693 PIN DOOR SWITCH

39 H0020202732 CATCH HDY-C70

49 H0020300472 SEAL DOOR

61405-A

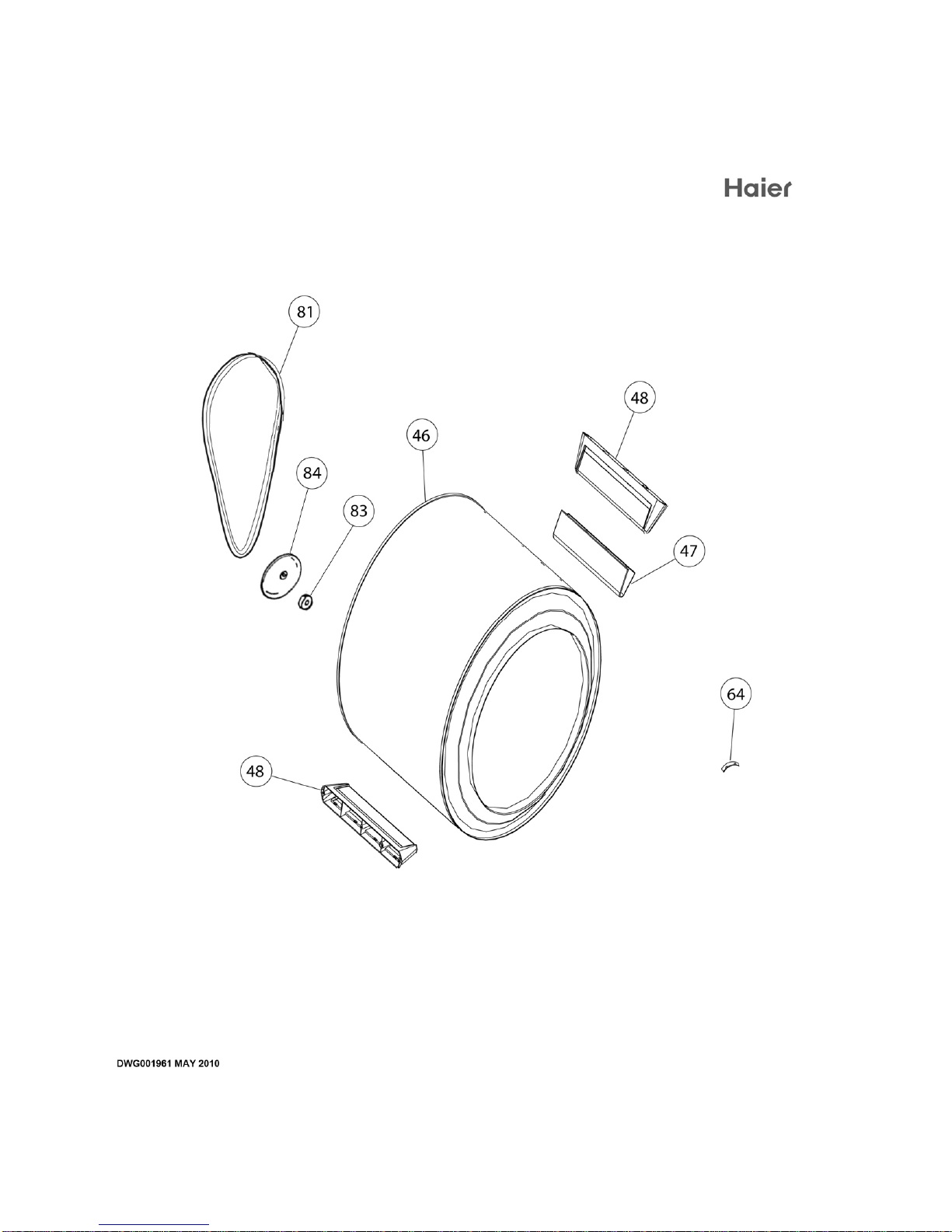

DRUM AREA
