Haier YR-E16b Manuel utilisateur
YR-E16b Wired Controller
User Manual
Ductless Split Air Conditioner
49-5000680 Rev. 0 05-22 GEA
Page 2
ENGLISH
WIRED CONTROLLER 49-5000680 Rev. 0
WARNING
• This system should be installed by a qualied HVAC
professional. Incorrect installation may cause re, water
damage, personal injury or death.
• When abnormalities such as a burnt smell are detected,
immediately power o the main switch and contact a licensed
contractor.
• Do not obstruct or cover ventilation grill on the air con-
ditioner. Do not put ngers/objects into inlet, outlet or swing
louver.
• Do not allow children to play on or near the outdoor system
equipment.
WIRED CONTROL PANEL FUNCTIONS������������������������������������1
Features and Interface.................................................................... 1
OPERATION ����������������������������������������������������������������������������8
Settings & Functions....................................................................... 8
Installation����������������������������������������������������������������������������35
TABLE OF CONTENTS
ENGLISH
WIRED CONTROLLER
Page 3
ENGLISH
WIRED CONTROLLER
49-5000680 Rev. 0
WIRED CONTROL PANEL FUNCTIONS
Features and Interface
Page 4
ENGLISH
WIRED CONTROLLER 49-5000680 Rev. 0
Left Mode key in the main interface, return key in
other interface.
Intelligent key, press it to enable intelligent
mode immediately.
Left/Right key, fan speed adjustment key, swing
angle adjustment key in the main interface,
direction adjustment key in other interface.
Up/Down key, temp. adjustment key in the main
interface, shift direction and value adjustment key
in other interface.
Menu key in the main interface, enter key in
other interface.
Right
Swing key in the main interface, back to
the main interface through the key in other
interface. When the swing function is invalid,
press the key to adjust fan speed.
On/O key
Page 5
ENGLISH
WIRED CONTROLLER
49-5000680 Rev. 0
Quiet function
Turbo function
Child lock function. Pree the Left and Right keys at
the same time in the main interface for 5s to either
set or cancel the function.
Forced defrost function.
Ventilation function.
Health function.
Quick start function.
Night quiet function, this function operations only
at night when set.
Electrical heating. (Function is not available for
mini-split and multi-split.)
Health airow.
Health airow up.
Page 6
ENGLISH
WIRED CONTROLLER 49-5000680 Rev. 0
Health airow down.
Sleep function.
Error code function, this icon will display in the main
interface when the wired controller or the indoor
unit linked to the controller has an error.
Schedule.
Filter.
Temp. ECO.
Motion sensing.
Motion sensing follow.
Motion sensing evade.
Page 7
ENGLISH
WIRED CONTROLLER
49-5000680 Rev. 0
Date, week, clock display area,
the format of the date can be
changed through the time
function.
Temperature display area, set temperature
can be adjusted by the Up/Down key. If energy
saving function is not set, the range of set
temperature is 60°F-86°F, or the adjustment
range will be limited. The default lowest temp.
of cooling/ dry mode is 74°F, the default
highest temp. of heating mode is 78°F. The
adjustment step is 1°F when temp. is displayed
in Fahrenheit. The range of set temp. is also
limited by energy saving function.
Indoor temperature display area.
The value may be from the indoor
unit or the wired controller. This
can be turned
on/o in the function setting.
Page 8
ENGLISH
WIRED CONTROLLER 49-5000680 Rev. 0
Mode.
Intelligent Cooling Heating Fan Dry
The mode cycle depends on mode setting in basic
setting function.
Up/Down swing and Left/Right swing function.
Fan speed, the cycle type of fan speed can be set
through basic setting.
Qty� online The quantity of indoor units connected to the
wired controller.
Defrost Defrost function.
Standby The state of the indoor unit, this area can
also display “operation”
Main
The state of wired controller, this
area also can display “Sub”. “Main” means the
wired controller is the main controller, “Sub”
means the wired controller only can control
parts of functions.
Page 9
ENGLISH
WIRED CONTROLLER
49-5000680 Rev. 0
Outdoor temp� 22�5ºF Outdoor temperature display area. It
can be set whether display or not.
Outdoor relative hum 32%
Outdoor humidity display area.
It can be set whether display or
not.
Above functions are only valid for parts of model.
Page 10
ENGLISH
WIRED CONTROLLER 49-5000680 Rev. 0

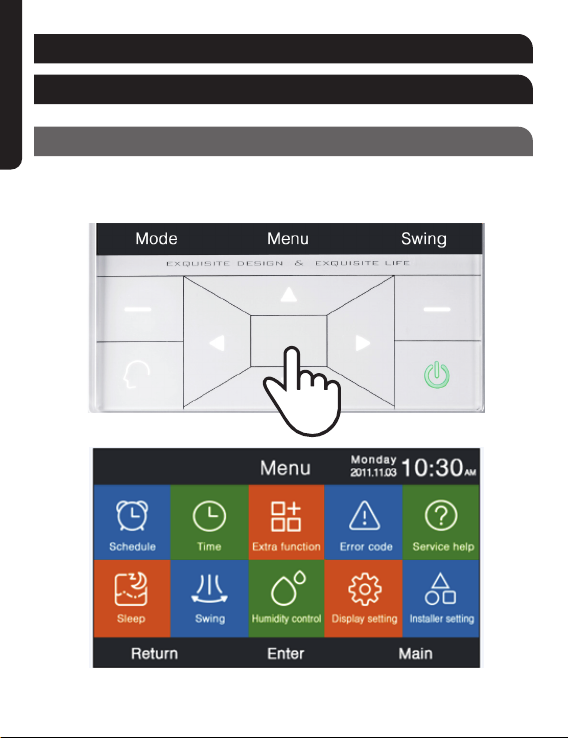

OPERATION
Settings & Functions
Schedule
Press the MENU key in the main interface to enter the operation
settings menu.
