Grundig GD-CI-AP2647P Manuel utilisateur

Quick Guide

About this guide

The guide includes instructions for using and managing the product.

Pictures, charts, images and all other information hereinafter are for

description and explanation only. The information contained in the

guide is subject to change, without notice, due to firmware updates

or other reasons.

Please find the latest version at WWW.GRUNDIG-SECURITY.COM

Limitation of Liability / Legal Disclaimer

Abetechs GmbH (Grundig Security) undertakes all reasonable efforts

to verify the integrity and correctness of the contents in this

document, but no formal guarantee shall be provided. Use of this

document and the subsequent results shall be entirely on the user’s

own responsibility. Abetechs GmbH (Grundig Security) reserves the

right to change the contents of this document without prior notice.

Design and specifications are subject to change without prior notice.

The product described herein, with its hardware, software and

documentation is provided “as is”, without any warranty, expressed

or implies, including without limitation, merchantability, satisfactory

quality, fitness for a particular purpose, and non-infringement of a

third party.

In no event will our company and its employees or agents be liable

to you for any special, consequential, incidental, or indirect damages,

including among others, damages for loss of business profits,

business interruption, or loss of data or documentation, in

QG-GD-CI-AP2647P-2018-01-06-V2-EN ©ABETECHS GMBH, DÜSSELDORF, GERMANY

connection with the use of this product, even if our company has

been advised of the possibility of such damages.

Regarding to products with internet access, the use of the product

shall be wholly at your own risks. Our company shall not take any

responsibilities for abnormal operation, privacy leakage or other

damages resulting from cyber-attack, hacker attack, virus inspection,

or other internet security risks; however our company will provide

timely technical support if required. Surveillance laws vary by

jurisdiction before using this product in order to ensure that your

use conforms to the applicable law. Our company shall not be liable

in the event that this product is used with illegitimate purposes.

In the event of any conflicts between this manual and the applicable

law, the later prevails.

Trademark:

Each of trademarks herein is registered. The name of this product

and other trademarks mentioned in this manual are the registered

trademark of their respective company.

reproduced, distributed or changed, partially or wholly, without

formal authorization.

OPEN SOURCE SOFTWARE LICENSE INFORMATION

The software components provided with Grundig products may

contain copyrighted software that is licensed under various open

source software licenses. For detailed information about the

contained open source software packages, the used package

versions, license information and complete license terms, please

refer to the product detail pages on our website. The complete open

source software license information is also included in firmware files

of affected products. Please also check your product’s CD-ROM and

manuals for additional information.

You may obtain the complete corresponding open source part of a

specific product from us for a period of three years after our last

shipment of this product by sending an email to:

info@grundig-security.com

Safety Instruction

Make sure that you only use the power adapter that is specified in

the specifications sheet of the product. If you use any other adapter

or connect the power supply incorrectly, this may cause explosion,

fire, electric shocks or damage the product. Do not connect several

devices to one power adapter as this may cause an adapter overload

and can lead to over-heating and fire. Make sure that the plug of the

power adapter is firmly connected to the power socket.

Do not place containers with liquids on the product. Do not place

conducting items like tools, screws, coins or other metal items on

the product. These may fall from the product or can cause fire or

electric shocks or other physical injuries.

Do not push or insert any sharp items or any objects into the device

as this may cause damage to the product, fire, electric shocks and/or

physical injuries.

Do not block any ventilation openings, if there are any. Ensure that

the product is well ventilated to prevent any over-heating.

Do not subject the device to physical shock or drop the product.

If the product uses batteries, please use a battery type that is

recommended by the manufacturer. Improper use or replacement of

the battery may result in the hazard of explosion.

Do not use any accessories that are not recommended by GRUNDIG.

Do not modify the product in any way.

If the product starts to smell or smoke comes out of the device,

immediately stop using the product and disconnect it from the

power supply to prevent fire or electric shocks. Then contact your

dealer or the nearest service center.

If the product does not work correctly, contact your dealer or

nearest service center. Never open, disassemble or alter the product

yourself. GRUNDIG cannot accept any liability or responsibility for

problems caused by attempted and unauthorized repair and

maintenance.

Special Installation Instructions for IP Cameras

Make sure that the latest firmware is installed on the IP Device. You

may get the latest firmware from grundig-security.com website or

from tech-support@grundig-security.com.

Do not touch the sensor module with your fingers.

Do not aim the camera or camera lens at a strong light such as the

sun or a bright lamp. Irreversible damage to the camera can be

caused by a strong light.

Do not expose the sensor of the product to laser beams as this may

damage the sensor.

If the product supports IR, you need to take some precautions to

prevent IR reflection. Do not install the product close to reflective

surfaces of objects as this may cause reflection. If the product has a

dome cover, please remove the protection film only after installation

to prevent dust or grease on the camera which can cause reflection.

The foam ring around the lens must be seated flush against the inner

surface of the bubble to isolate the lens from the IR LEDS. Fasten the

dome cover to the camera body so that the foam ring and the dome

cover are attached seamlessly.

For cleaning, use a clean cloth with a bit of ethanol and wipe it

carefully and gently. In any case, do not use alkaline detergents.

If a glove is provided in the package, please use it to open the

product cover. Never touch the product cover directly with fingers,

because the acidic sweat of the fingers may damage the surface

coating of the product cover.

Table of Contents

1 Overview......................................................................................... 8

1.1 Cable Descriptions .................................................................... 8

1.2 Alarm Output............................................................................ 9

2 Installation.................................................................................... 10

2.1 Installing the Memory Card .................................................... 10

2.1.1 DE2xxx Series & DE2xxxI Series (IR) PTZ Camera.............. 10

2.1.2 DE3xxx Series PTZ Camera............................................... 12

2.1.3 DY3xxx Series PTZ Bullet Camera..................................... 12

2.1.4 DE4AxxxI Series (IR) PTZ camera...................................... 13

2.2 Installing DE2xxx Series & DE2xxxI Series (IR) PTZ Camera...... 15

2.2.1 Wall Mounting................................................................. 15

2.2.2 Ceiling Mounting ............................................................. 19

2.2.3 Installing with Junction Box ............................................. 24

2.3 Installing DE3xxx Series PTZ Camera....................................... 27

2.3.1 Ceiling Mounting ............................................................. 27

2.3.2 In-ceiling Mounting ......................................................... 29

2.4 Installing DY3xxx Series PTZ Bullet Camera ............................. 32

2.4.1 Dimensions of DY3xxx Series PTZ Bullet Camera.............. 32

2.4.2 Wall Mounting................................................................. 33

2.4.3 Base Mounting ................................................................ 35

2.5 Installing DE4AxxxI Series (IR) PTZ Camera ............................. 36

2.5.1 Ceiling Mounting ............................................................. 36

2.5.2 In-ceiling Mounting ......................................................... 37

3 Setting the PTZ Camera over the LAN........................................... 40

3.1 Wiring .................................................................................... 40

3.2 Activating the Camera ............................................................ 41

3.2.1 Activation via Web Browser............................................. 41

3.2.2 Activation via SADP Software .......................................... 43

3.3 Modifying the IP Address........................................................ 44

4 Accessing via Web Browser .......................................................... 47

4.2 Initializing the Memory Card .................................................. 50

1Overview

1.1 Cable Descriptions

The cable interfaces of network PTZ camera are shown in Figure 1-1.

The cables are distinguished by different colors. Refer to the labels

attached on the cables for identification.

Notes:

The cables vary depending on different camera models.

Make sure the camera is power-off before you connect the

cables.

Network Cable

Audio Cable

Alarm Cable

Video Cable

RS-485 Cable

Power Cord

Figure 1-1 Cables of PTZ Camera

Power Cord: Supports 12 VDC power supply.

Video Cable: Connect BNC Cable to test the video output.

Alarm Cable: Connect terminal ALARM-IN with GND interface,

and connect terminal ALARM-OUT with ALARM-COM interface.

Audio Cable: Connect terminal AUDIO-IN with GND interface.

Network Cable: Connect the network interface with network

cable.

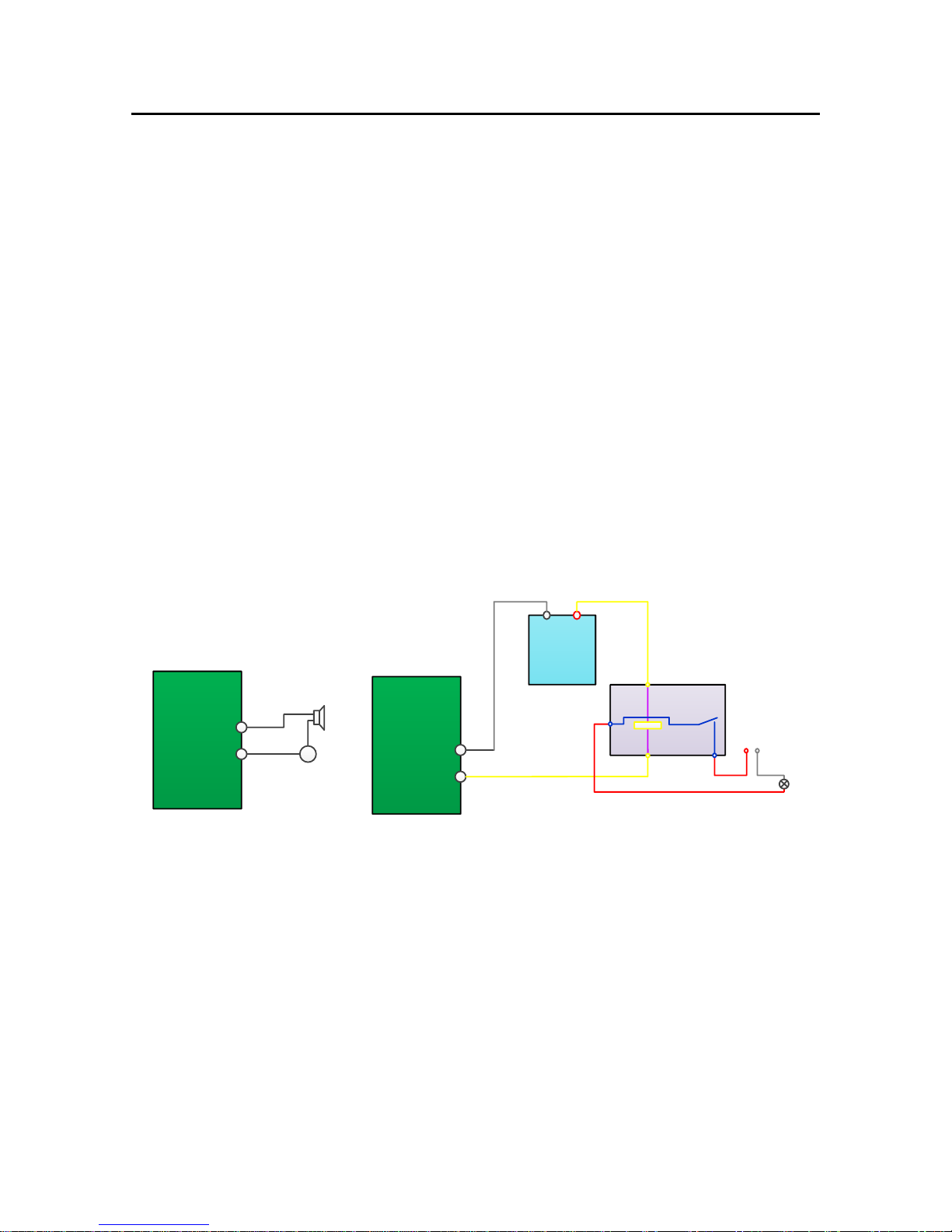

1.2 Alarm Output

Alarm output is shown in Figure 1-2.

Relay Output

OUT (n) DC

OUT (n)

Direct load

Relay Output

OUT (n)

DC 30V

Power Supply

GND Output

~220V AC

FireWire

Zero

Line

JQC-3FG

Relay

(10A 250VAC)

Figure 1-2 Alarm Output
