Grizzly T28929 Manuel utilisateur

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

MODEL T28929

2" PIPE/TUBE NOTCHER

INSTRUCTIONS

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 11/18) #CS21020 PRINTED IN CHINA

Figure 1. T28929 2" Pipe/Tube Notcher. Figure 2. Spindle release components.

V1.05.20

Specifications

Maximum Tube Diameter .................................2"

Chuck Dimension ............................................1⁄2"

Workpiece Degree Range ..........................0˚-45˚

Req. Clearance Between Chuck and Table ... 14"

Spindle Threads ....................................... 1⁄2", 5⁄8"

To reduce your risk of

serious injury, read this

entire manual BEFORE

using machine.

3. Re-insert spindle, threaded end first (see

Figure 3).

4. Align hole in side of spindle with hole in

bracket and insert pin (see Figure 3).

The notcher comes from the factory with the

spindle inverted. Before use, the spindle must be

removed and turned around.

Assembly

Introduction

The T28929 2" Pipe/Tube Notcher cuts notches in

pipe and tubing to make joints that fit together per-

fectly. This notcher features a durable steel frame,

is capable of 0-45˚ angle cuts, and works with any

standard drill press or slow-speed hand drill.

To install spindle for use:

1. Pull pin shown in Figure 2 to release spindle.

2. Remove 5⁄8" adapter and washer from spindle

(see Figure 2).

5⁄8" Adapter

Adapter Washer

Figure 3. Inserting spindle for operations.

Pin Holes

-2- Model T28929 (Mfd. Since 11/18)

3. Thread hole saw onto spindle by hand.

Thread adapter washer and 5⁄8" adapter onto

spindle before hole saw if using 5⁄8" hole saw

(see Figure 5).

Figure 4. Location of spindle support hex bolts.

6. Attach spindle support to notcher using hex

bolts removed in Step 1.

Note: We recommend that height of spindle

support be adjusted so hole saw is as close

as possible to workpiece without touching.

This will help minimize flex in notcher.

Figure 6. Workpiece secured in notcher clamp.

5. Loosen (2) hex bolts shown in Figure 7,

adjust clamp to desired angle, then tighten

hex bolts.

Figure 7. Location of clamp angle hex bolts.

Note: For cutting steel pipe and tubing, we

recommend bi-metal hole saws. These can

be operated at up to 500 RPM for most

diameters and should be operated at higher

speeds for thin wall tubing.

Installing Hole Saw and Workpiece

Hole saws attach to the notcher by threading them

onto the end of the spindle.

Items Needed Qty

Open-End or Socket Wrench 13mm ................. 1

Hole Saw with 1⁄2" or 5⁄8" Threads ...................... 1

To install hole saw and workpiece:

1. Remove (2) hex bolts shown in Figure 4 to

remove spindle support from notcher.

4. Place workpiece into clamp of notcher as

shown in Figure 6, then tighten clamp until

workpiece is secured.

Hex Bolts

Workpiece

Figure 5. Hole saw installed on spindle.

Hole Saw

5⁄8" Adapter

Washer

2. Remove spindle lock pin.

Model T28929 (Mfd. Since 11/18) -3-

Drill Press Operations

To use the Model T28929 with a drill press, the

notcher must be clamped securely to the drill

press base. It is important that the notcher is

secure enough so it will not twist or come off

of the table during use. To ensure square cuts,

the jig must be square to the base before being

mounted to the drill press table.

3. Place notcher on drill press work table and

adjust table until top of notcher spindle is 1⁄2"

lower than drill chuck (see Figure 9).

Items Needed Qty

Open-End or Socket Wrench 13mm ................. 1

Hole Saw with 1⁄2" or 5⁄8" Threads ...................... 1

Drill Press w/14" Between Chuck and Table ..... 1

Open-End or Socket Wrench 17mm .................. 2

Base-Fastening Hardware ................. As Needed

Cutting Fluid ...................................... As Needed

Failure to align spindle flats properly with

chuck jaws may result in spindle coming

loose and damaging notcher and drill chuck.

To reduce risk of eye or face injury from

flying chips, always wear approved safety

glasses and a face shield when operating

drill press.

4. Loosen two hex bolts from Step 2 just enough

so notcher can be aligned with drill chuck.

5. Open drill chuck jaws and use downfeed

handles to lower chuck onto notcher spindle,

aligning chuck jaws with flats of notcher

spindle (see Figure 10). Tighten chuck jaws

to secure.

2. Loosen both hex bolts in Figure 8, then swiv-

el base until square to frame, then tighten hex

bolts.

Figure 8. Base squared to frame.

Hex Bolts

Base

To operate notcher with drill press:

1. Install hole saw and workpiece on notcher.

Figure 10. Chuck attached to spindle.

Spindle

Chuck

Figure 9. Table adjusted correctly.

Notcher Spindle

Drill Press

Chuck

6. Adjust base of notcher until it is flat to drill

press table, then tighten hex bolts from

Step 2.

-4- Model T28929 (Mfd. Since 11/18)

8. Remove lock pin from spindle then rotate

drill chuck by hand to test how easily whole

assembly turns.

— If assembly turns with minimal effort, pro-

ceed to Step 10.

— If assembly does not turn with minimal

effort, proceed to Step 9.

9. Loosen (2) hex bolts securing notcher base to

frame, rotate spindle, then tighten hex bolts,

then return to Step 8. Repeat until assembly

turns with minimal effort.

10. Loosen bolts/clamps securing notcher to drill

press table, rotate spindle, then tighten bolts/

clamps. Spindle should turn freely.

11. When notcher is correctly installed on drill

press (see Figure 12): remove lock pin, apply

cutting fluid, turn drill press ON, and perform

notching operation.

Hand Drill Operations

Items Needed Qty

Open-End or Socket Wrench 13mm ................. 1

Hole Saw with 1⁄2" or 5⁄8" Threads ...................... 1

Workbench Mounting Hardware ........ As Needed

Hand Drill ........................................................... 1

Open-End or Socket Wrench 17mm .................. 2

Cutting Fluid ...................................... As Needed

To operate notcher with hand drill:

1. Install hole saw and workpiece on notcher.

2. Mount notcher to workbench using mounting

hardware (not included).

3. Loosen both hex bolts in Figure 13, swivel

base to desired drilling angle, and tighten hex

bolts.

Figure 13. Location of notcher angle hex bolts.

Hex Bolts

Figure 12. Notcher installed on drill press.

Eye injury hazard! Always

wear safety glasses when

using hand drill.

7. Secure base to table with bolts, strap clamps,

or C-clamps (see Figure 11).

Figure 11. Example of notcher secured to table.

Model T28929 (Mfd. Since 11/18) -5-

Failure to align spindle flats properly with

chuck jaws may result in spindle coming

loose and damaging notcher and drill chuck.

5. Remove lock pin from spindle then rotate

drill chuck by hand to test how easily whole

assembly turns.

— If assembly turns with minimal effort, pro-

ceed to Step 6.

— If assembly does not turn with minimal

effort, adjust angle of drill until it does,

then proceed to Step 6.

6. With lock pin removed, apply cutting fluid,

turn drill ON, and perform notching operation.

Lubrication

During operation, the spindle bushings will require

lubrication. A few drops right before operation

will usually be adequate, but when using notcher

for long periods at a time, lubrication should be

applied several times per hour.

Figure 15. Lubrication locations.

Grease Type .....Grizzly T26419 or NLGI#2 Equiv

Grease Amount ....................................Thin Coat

Lubrication Frequency ..............Before Operation

Apply a few drops of lubrication around spindle

shaft, above top bushing, and in spindle lock pin

hole (see Figure 15).

Cleaning & Protecting

Cleaning the Model T28929 is relatively easy.

Periodically brush away cuttings and debris,

especially around the spindle and bushings to

avoid scoring and binding.

Protect the notcher by wiping it clean after

every use and applying a light lubrication (see

Lubrication) to moving parts.

Before moving or storing tool, insert lock pin into

spindle to prevent movement. Store notcher cov-

ered in a dry, dust free location.

4. Open drill chuck jaws and place chuck onto

notcher spindle, aligning chuck jaws with flats

of notcher spindle (see Figure 14). Tighten

chuck jaws to secure.

Figure 14. Drill aligned to notcher spindle.

Drill Chuck

Notcher Spindle

-6- Model T28929 (Mfd. Since 11/18)

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

T28929

Parts Breakdown and List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT28929001 CLAMP ASSEMBLY 13 PT28929013 BODY

2 PT28929002 T-HANDLE M12-1.75 X 110 14 PT28929014 CLEVIS PIN 8 X 16

3 PT28929003 HOLE SAW ADAPTER 15 PT28929015 HEX BOLT M8-1.25 X 16

4 PT28929004 HOLE SAW ADAPTER WASHER 16 PT28929016 HEX BOLT M10-1.5 X 20

5 PT28929005 BUSHING 17 PT28929017 ADJUSTABLE ANGLE JOINT PLATE

6 PT28929006 SPINDLE SUPPORT 18 PT28929018 FLAT WASHER 10MM

7 PT28929007 SPINDLE M12-1.75 X 14, 204L 19 PT28929019 EXT RETAINING RING 18MM

8 PT28929008 RIVET 2.5 X 8, NAMEPLATE 20 PT28929020 PHLP HD SCR M4-.7 X 10

10 PT28929010 ANGLE INDICATOR 21 PT28929021 FLAT WASHER 4MM

11 PT28929011 HEX NUT M10-1.5 22 PT28929022 TOUCH-UP PAINT, GRIZZLY GREEN

12 PT28929012 FLAT WASHER 8MM 23 PT28929023 QR CODE LABEL

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from

the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,

negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty

and any and all warranties that may be implied by law, including any merchantability or fitness, for any par-

ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent

that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.

In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and

any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,

or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to

achieve better quality equipment. We make every effort to ensure that our products meet high quality and

durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will

then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of

the carton. We will not accept any item back without this number. Proof of purchase must accompany the

merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

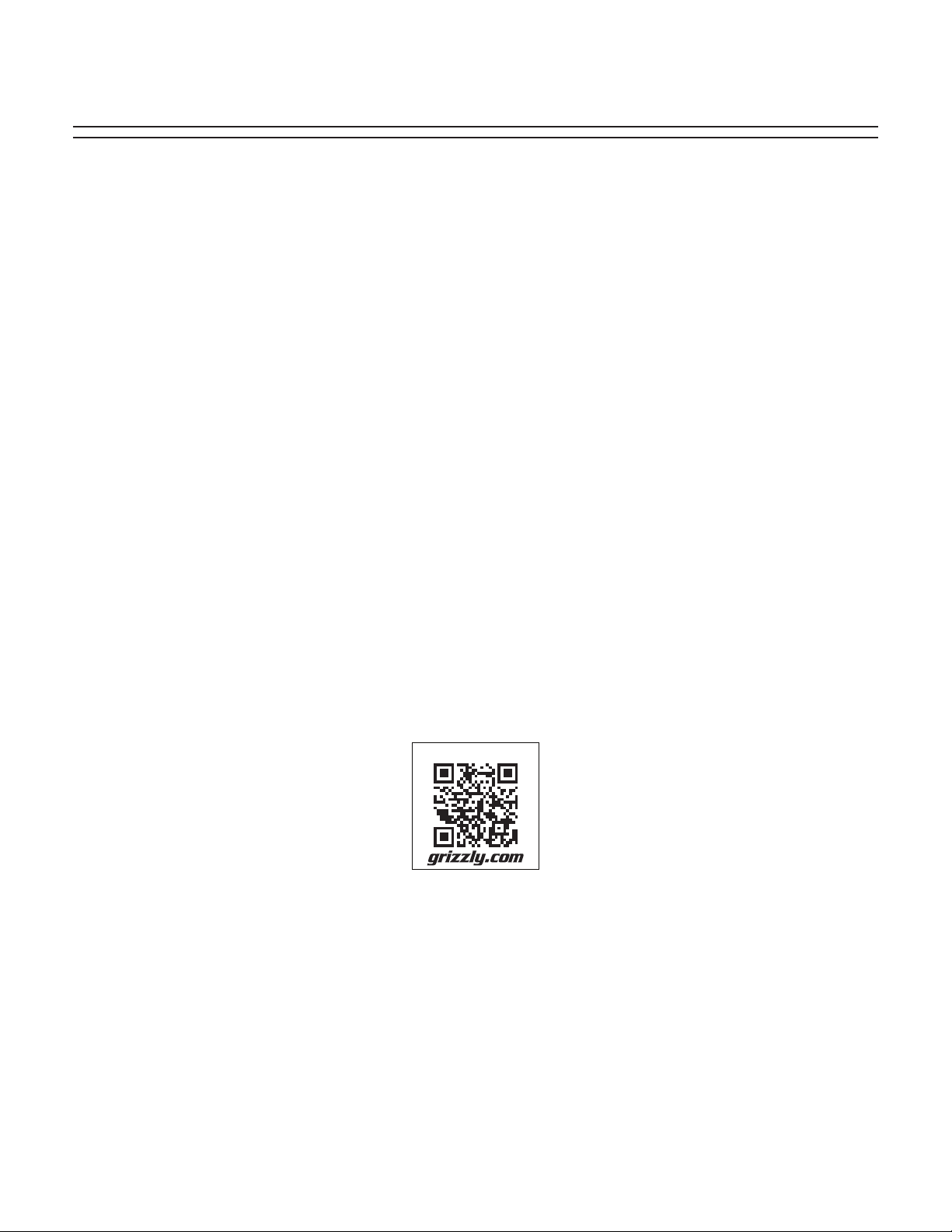

take advantage of this warranty, you must register it at https://www.grizzly.com/secureforms/

warranty-card

, or you can scan the QR code below to be automatically directed to our warranty

registration page

. Enter all applicable information for the product.

WARRANTY

Table des matières

Autres manuels Grizzly Outils

Grizzly

Grizzly T32793 Manuel utilisateur

Grizzly

Grizzly H3142 Manuel utilisateur

Grizzly

Grizzly T25101 Manuel utilisateur

Grizzly

Grizzly T30027 Manuel utilisateur

Grizzly

Grizzly T23103 Manuel utilisateur

Grizzly

Grizzly G8748 Manuel utilisateur

Grizzly

Grizzly T10812 Manuel utilisateur

Grizzly

Grizzly H6087 Manuel utilisateur

Grizzly

Grizzly G4181 Manuel utilisateur

Grizzly

Grizzly T32796 Manuel utilisateur

Grizzly

Grizzly T32838 Manuel utilisateur

Grizzly

Grizzly T1213 Manuel utilisateur

Grizzly

Grizzly T32730 Manuel utilisateur

Grizzly

Grizzly T26857 Manuel utilisateur

Grizzly

Grizzly C1367 Manuel utilisateur

Grizzly

Grizzly H7583 Manuel utilisateur

Grizzly

Grizzly G0711 Manuel utilisateur

Grizzly

Grizzly 7 1/2" Mini Shear Brake T21322 Manuel utilisateur

Grizzly

Grizzly T10222 Manuel utilisateur

Grizzly

Grizzly T31566 Manuel utilisateur

Grizzly

Grizzly G0497 Guide de démarrage rapide

Grizzly

Grizzly G0497 Manuel utilisateur

Grizzly

Grizzly H7583 Manuel utilisateur

Grizzly

Grizzly H7507 Manuel utilisateur

Manuels Outils populaires d'autres marques

Martor

Martor SECUNORM 175 Manuel utilisateur

ERKCO

ERKCO 1000 Manuel utilisateur

jbc

jbc N4473 Manuel utilisateur

FEINMETALL

FEINMETALL FZWZ-SET-001 Manuel utilisateur

Worx Professional

Worx Professional Sonicrafter WU676 Manuel utilisateur

Gage Bilt

Gage Bilt GB713SH Manuel utilisateur

Hilti

Hilti DX 9-ENP Manuel utilisateur

norbar

norbar NORTRONIC 34399 Manuel utilisateur

BGS technic

BGS technic 8578 Manuel utilisateur

Makita

Makita DHR241 Manuel utilisateur

Motor Guard

Motor Guard JMB-1250 Manuel utilisateur

Power Adhesives

Power Adhesives 805-12 Manuel utilisateur

Clemco

Clemco 24189 Manuel utilisateur

VVG

VVG VNG 903 Series Manuel utilisateur

Hilti

Hilti FX 3-A Manuel utilisateur

axing

axing BWZ 5-02 Manuel utilisateur

Dh-Robotics

Dh-Robotics RGI-100 Comment utiliser

Goobay

Goobay 97790 Manuel utilisateur
