Introduction

The Model T32730 Outboard Turning Attachment

is designed to fit on the Model G0733/G0766

lathes. The 223⁄4" bed extension can be installed

to support a tool rest and replace a floor-mounted

tool post for outboard turning operations.

Description (Figure 1) Qty

A. Bed Extension ............................................ 1

B. Tool Rest Base 1" ....................................... 1

C. Tool Rest Arm 1" ........................................ 1

D. Outboard Extension Shaft .......................... 1

E. Hex Wrench 8mm ....................................... 1

F. Adjustable Handles M10-1.5 x 18, 70L ....... 3

G. Cap Screws M10-1.5 x 25 .......................... 3

Inventory

Figure 1. Inventory.

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 01/22) #CS22255 PRINTED IN CHINA V1.05.22

Installation

Wear safety glasses during

the entire setup process!

Refer to Outboard Turning in the Model G0733/

G0766 Owner's Manual to remove the tailstock

and position the headstock for outboard turning

operations.

To install outboard turning attachment:

1. Attach bed extension to lathe with (3) M10-

1.5 x 25 cap screws (see Figure 2).

Figure 2. Bed extension attached to lathe.

Bed Extension

x 3

***Keep for Future Reference***

-2- Model T32730 (Mfd. Since 01/22)

Figure 6. Tool rest arm installed in base.

Tool Rest

Arm

Adjustable

Handle

Figure 3. Location of hex nut and clamp plate.

2. Remove hex nut and clamp plate from tool

rest base (see Figure 3).

3. Place tool rest base on bed extension

with clamp bolt inserted through bed (see

Figure 4).

Figure 4. Clamp bolt inserted through bed and

location of eccentric rod handle.

4. Install clamp plate and hex nut removed in

Step 2 on clamp bolt and hand-tighten (see

Figure 5). Clamp plate must be aligned with

extension bed to sit flush.

Figure 5. Clamp plate and hex nut installed on

clamp bolt.

5. Rotate eccentric rod handle to secure tool

rest base on bed extension (see Figure 4).

Note: If eccentric rod handle does not secure

tool rest base, tighten hex nut from Step 4

until it does.

6. Install either tool rest arm or outboard exten-

sion shaft in tool rest base hole, then secure

with adjustable handle (see Figures 6–7).

— Tool rest arm provides extra adjustment

and reach for larger workpieces.

Tool Rest

Base

Clamp

Bolt

Clamp

Plate

Clamp

Plate

Eccentric Rod

Handle

Model T32730 (Mfd. Since 01/22)-3-

8. Loosen tool rest lock handle, then remove

tool rest.

9. Install tool rest in outboard extension shaft,

then secure with adjustable handle (see

Figures 9–10).

Figure 7. Outboard extension shaft installed in

base.

Outboard

Extension

Shaft

Adjustable

Handle

Figure 8. Outboard extension shaft installed in

tool rest arm.

Outboard

Extension

Shaft

Adjustable

Handle

Figure 9. Tool rest installed in outboard

extension shaft.

Tool Rest

Adjustable

Handle

Figure 10. Tool rest installed in outboard

extension shaft with arm.

Adjustable

Handle

Tool Rest

Refer to Model G0733/G0766 Owner's Manual

for instructions on operating lathe.

If you need help with your new outboard turning

attachment, call Tech Support at: (570) 546-9663.

— If installing tool rest arm, proceed to

Step 7.

— If installing outboard extension shaft, pro-

ceed to Step 8.

7. Install outboard extension shaft in tool rest

arm, then secure with adjustable handle (see

Figure 8).

-4- Model T32730 (Mfd. Since 01/22)

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

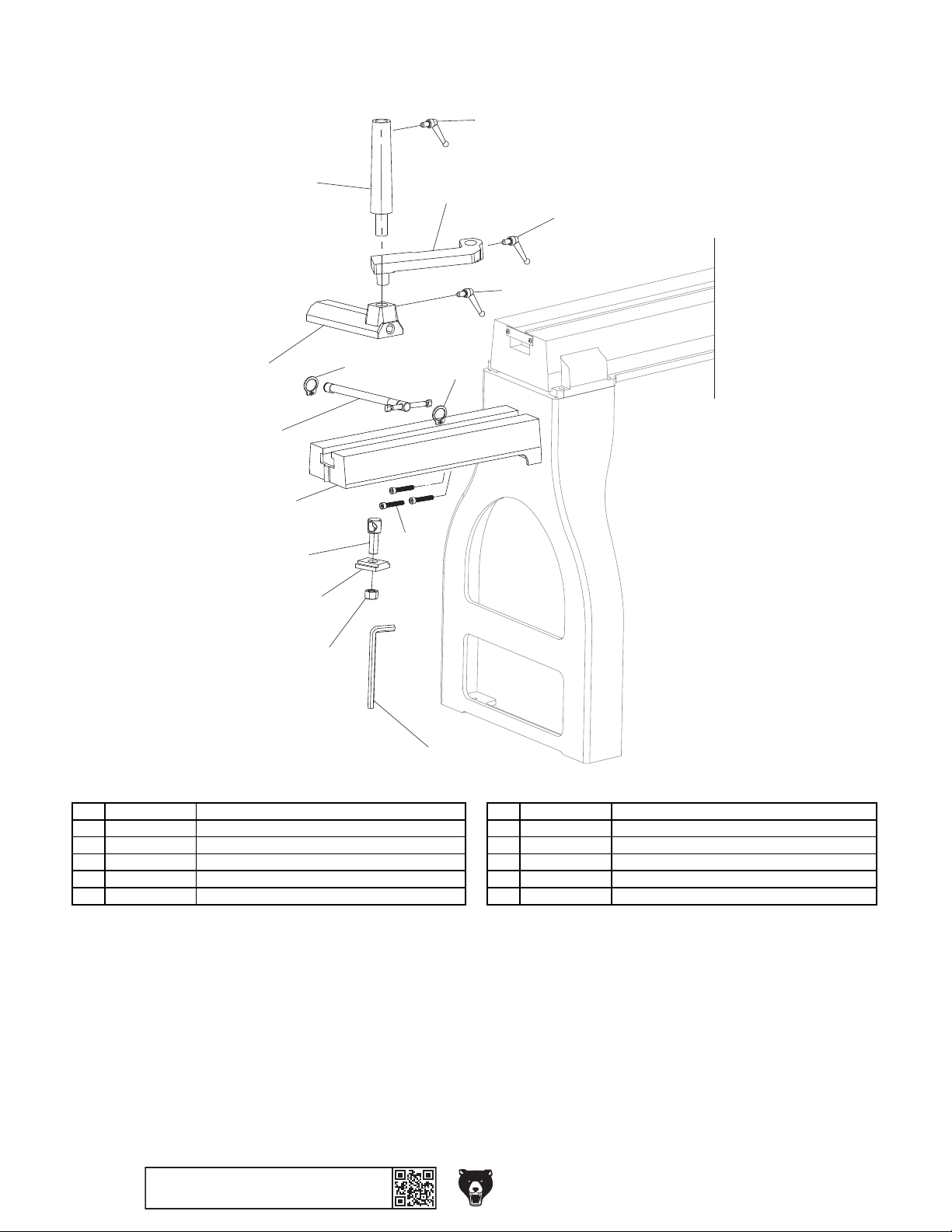

T32730 Parts Breakdown & List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT32730001 HEX NUT M18-2. 5 7 PT32730007 TOOL REST BASE 1"

2 PT32730002 CLAMP PLATE 8 PT32730008 ADJUSTABLE HANDLE M10-1.5 X 18, 70L

3 PT32730003 TOOL REST CLAMP BOLT M18-2.5 X 44 9 PT32730009 OUTBOARD EXTENSION SHAFT

4 PT32730004 CAP SCREW M10-1.5 X 25 10 PT32730010 TOOL REST ARM 1"

5 PT32730005 BED EXTENSION 11 PT32730011 EXT RETAI NI NG RI NG 19MM

6 PT32730006 ECCENTRI C HA NDLE 12 PT32730012 HEX WRENCH 8MM

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
