Greenlee IPM-300 Manuel utilisateur

IPM-300

INDUSTRIAL

PROCESS METER

MEDIDOR DE

PROCESO

INDUSTRIAL

MULTIMETRE DE

PROCEDE

INDUSTRIEL

INSTRUCTION MANUAL

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

Read and understand all of the instructions and safety

information in this manual before operating or servicing this tool.

Lea y entienda todas las instrucciones y la información sobre

seguridad que aparecen en este manual, antes de manejar estas

herramientas o darles mantenimiento.

Lire attentivement et bien comprendre toutes les instructions et

les informations sur la sécurité de ce manuel avant d‘utiliser ou de

procéder à l‘entretien de cet outil.

Description

The Greenlee IPM-300 Industrial Process Meter is a hand-held testing device intended to

calibrate equipment with the following inputs or outputs: milliamp, DC voltage, thermocouple,

RTD, and frequency. It also measures AC and DC voltage, ohms, and checks continuity.

The IPM-300 has the ability to:

• Source and read 0.00 mA to 24.0 mA and display current in mA or percent of 4-20 mA

span.

• Simulate a 2-wire transmitter.

• Simultaneously power and measure 2-wire transmitters.

• Calibrate DC millivolt and voltage instrumentation.

• Source and read directly in °C and °F for thermocouple types J, K, T, and E.

• Calibrate RTD in °C or °F using a built-in platinum 100 ohm DIN/IEC 751 table.

• Read and source in ohms.

• Generate zero crossing square waves from 1 Hz to 1000 Hz, 0.01 kHz to 10.00 kHz, and

from 1 CPM to 1000 CPM (counts per minute).

• Function as a frequency counter.

• Check line voltage or mains from 0.0 to 250.0 VAC.

• Locate pairs of wire, open connections, and shorts.

Safety

Safety is essential in the use and maintenance of Greenlee tools and equipment. This

instruction manual and any markings on the tool provide information for avoiding hazards and

unsafe practices related to the use of this tool. Observe all of the safety information provided.

Purpose

This instruction manual is intended to familiarize all personnel with the safe operation and

maintenance procedures for Greenlee IPM-300 Industrial Process Meter.

Keep this manual available to all personnel.

Replacement manuals are available upon request at no charge.

Greenlee and are registered trademarks of Greenlee Textron.

KEEP THIS MANUAL

IPM-300

Important Safety Information

Read and understand this material before operating or servicing

this equipment. Failure to understand how to safely operate this

tool can result in an accident causing serious injury or death.

This symbol is used to call your attention to hazards or unsafe practices which could

result in an injury or property damage. The signal word, defined below, indicates the

severity of the hazard. The message after the signal word provides information for

preventing or avoiding the hazard.

SAFETY ALERT SYMBOL

Immediate hazards which, if not avoided, WILL result in severe injury or death.

Hazards which, if not avoided, COULD result in severe injury or death.

Hazards or unsafe practices which, if not avoided, MAY result in injury or property

damage.

Important Safety Information (cont’d)

Electric shock and fire hazard:

• Do not expose this unit to rain or moisture.

• Do not use the unit if it is wet or damaged.

• Use test leads or accessories that are appropriate for the application. See the

category and voltage rating of the test lead or accessory.

• Inspect the test leads or accessory before use. They must be clean and dry, and the

insulation must be in good condition.

• Use this unit for the manufacturer’s intended purpose only, as described in this

manual. Any other use can impair the protection provided by the unit.

Failure to observe these warnings can result in severe injury or death.

Electric shock hazard:

Contact with live circuits can result in severe injury or death.

Electric shock hazard:

• Do not apply more than the rated voltage between any two input terminals, or

between any input terminal and earth ground.

• Do not contact the test lead tips or any uninsulated portion of the accessory.

Failure to observe these warnings can result in severe injury or death.

IPM-300

Important Safety Information (cont’d)

• Do not operate with the case open.

• Before opening the case, remove the test leads from the circuit and shut off the unit.

Failure to observe these warnings can result in severe injury or death.

The fuses are an integral part of the overvoltage protection. When fuse replacement is

necessary, see Specifications for the correct type, size, and capacity. Using any other

type of fuse will void the overvoltage protection rating of the unit.

Failure to observe this warning can result in severe injury or death.

Correctly set up the unit before connecting it to any instrument to be calibrated.

Failure to observe this precaution can result in injury and can damage the instrument

being calibrated.

Connect the leads and set the controls so they correspond to the intended calibration or

measurement.

Failure to observe this precaution can result in injury and can damage the instrument

being calibrated.

Important Safety Information

• Set the selector and connect the test leads so that they correspond to the intended

measurement. Incorrect settings or connections can result in a blown fuse.

• Using this unit near equipment that generates electromagnetic interference can

result in unstable or inaccurate readings.

• Do not attempt to repair this unit. It contains no user-serviceable parts.

• Do not expose the unit to extremes in temperature or high humidity.

See Specifications.

Failure to observe these precautions can result in injury and can damage the unit.

Do not change the measurement function or range while the test leads are connected

to a component or circuit.

Failure to observe this precaution can result in injury and can damage the unit.

IPM-300

Identification

1. Display LCD

2. Toggle Switch Use to set maximum, intermediate, and minimum output values

and to view minimum and maximum input values

3. STORE/RESET Button Use to store values to memory and restore defaults

4. Digital Potentiometer Turn to adjust output

(Pot)

5. Selector Knob Turn to select an operating function

6. SOURCE/READ Button Press to select Source or Read function

7. RANGE/TYPE Button Press to select Range or Type function

8. POWER Button Press to turn on or off

9. Terminals Input and output banana jacks

10. T/C terminals Miniature thermocouple socket

145

!T/C +

–

300V

MAX

INPUT

5V MAX

INPUT 45V MAX

INPUT

45V

MAX

INPUT

910

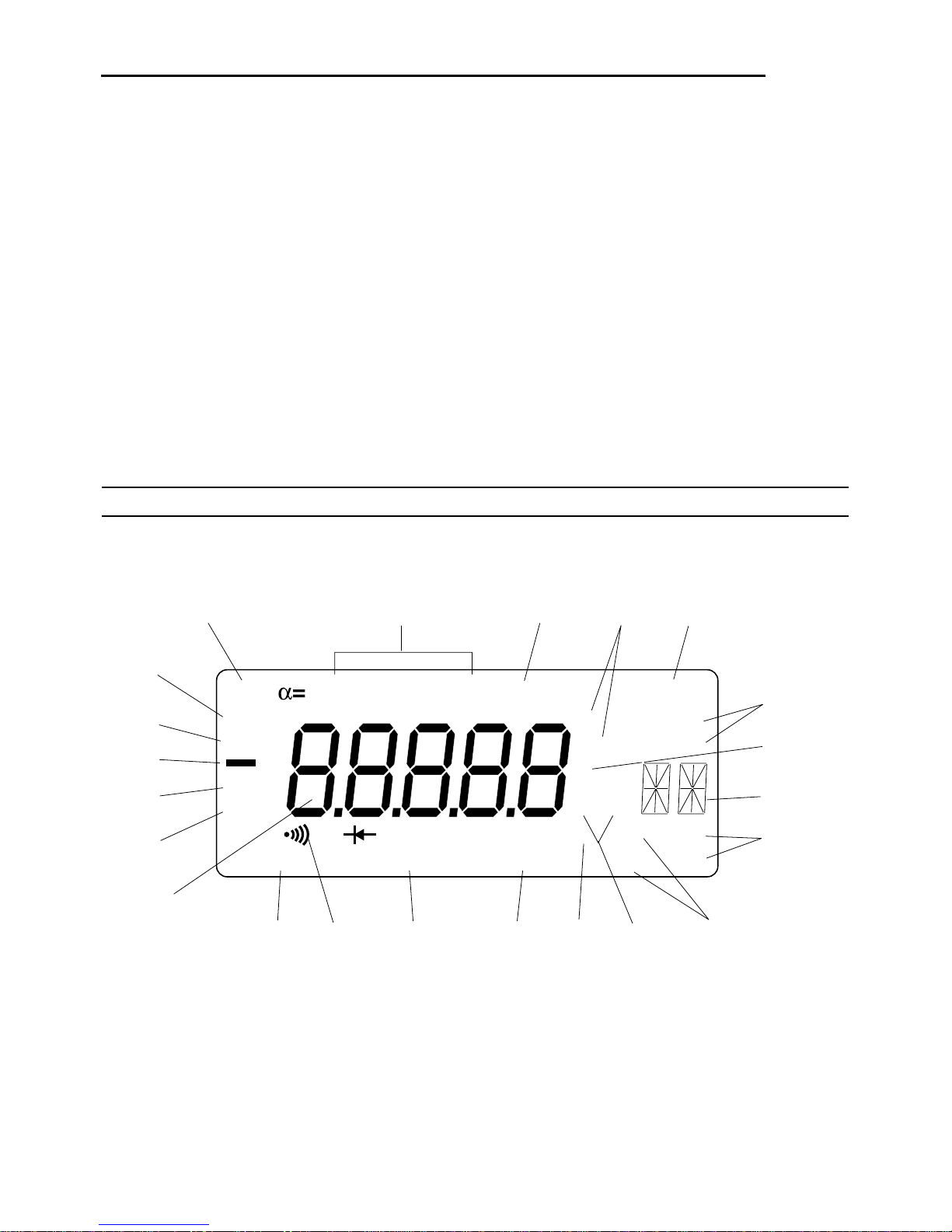

Display Icons

11. CAL Automatic self calibration in progress

12. SOURCE READ Source or Read function is selected

13. SETUP Reset of defaults selected

14. BAT Low Battery

15. HI High value is selected in Source mode

16. MAX Maximum value is displayed in Read mode

17. –Polarity Indicator

18. MIN Minimum value is displayed in Read mode

19. LOW Low value is selected in Source mode

20. - 8.8.8.8.8 Output or input value (numeric display)

Over range (the signal is too high for the range)

Under range (the signal is too low for the range)

21. CONTINUITY Continuity function selected

22. Continuity indicator

23. POLARITY Reversed polarity detected

24. % Display is in percent of 4 mA to 20 mA

25. 2-WIRE SIM 2-wire simulator function is selected

26. RTD TYPE RTD type (Pt or Cu) is displayed on #41

27. T/C TYPE Thermocouple type (J, T, E, or K) is displayed on #41

28. PWR XMTR Power transmitter function is selected

29. mA Milliamp

30. m Milli (10 -3)

31. V Volts

32. AC AC

33. DC DC

IPM-300

34. Ωohms

35. K Kilo (10 3)

36. Hz Hertz

37. CPH Counts per hour

38. CPM Counts per minute

39. °F Fahrenheit

40. °C Celsius

41. Alpha numeric Various displays

display

Note: Unidentified icons are not used on this model.

11 12 13 14

21 22 23 34-3628 25 29-33

37,38

26,27

39,40

CAL SOURCE READ SETUP BATERROR

°F

°CRTD TYPE

T/C TYPE

mA AC

mV DC

KΩCPH

KHz CPM

MAX

MIN

LOW

REL

CONTINUITY POLARITY PWR XMTR

GATE 2-WIRE SIM

Display Icons (cont’d)

•Selector Knob Turn to choose mA, VDC, T/C, ohms, RTD, FREQ, or VAC READ.

•SOURCE/READ Button Press to select the function.

•

RANGE/TYPE Button Press to select measurement range, scale, temperature element type, or

display format.

Source Ranges

Milliamp: mA, %mA, 2-Wire Sim, %2-Wire Sim, Pwr Xmtr, %Pwr Xmtr

VDC: mV, V

T/C types: J, T, E, and K in °C and °F

Ohms: Resistance in ohms

RTD: 100 Ωplatinum (Pt) or 50 Ωcopper (Cu) RTD in °C and °F

Frequency: kHz, Hz, CPM (counts per minute)

Read Ranges

Milliamp: mA, %mA

VDC: mV, 10V, 200V

T/C: J, T, E, and K in °C and °F

Ohms: Resistance in ohms, continuity

RTD: 100 Ωplatinum (Pt) or 50 Ωcopper (Cu) RTD in °C and °F

Frequency: kHz, Hz, CPM (counts per minute)

VAC: AC Voltage

•POWER Button Press momentarily to turn the unit on or off.

•Toggle Switch Flip to select the desired function.

Source Mode The HI, SET and LO outputs will be the same as previously stored.

Each function recalls its stored outputs.

Read Mode Set to READ to display present reading. Set to MAX or MIN to display

maximum or minimum readings.

•STORE/RESET Button puts the present output value into memory while in the Source mode.

Resets MAX and MIN values in READ mode. Also used to reset stored values to factory

defaults. See the Returning to the Default Settings section.

•Digital Potentiometer (Pot) Turn to set the desired value. Turn slowly to make a gradual

change in the output or turn it faster to make a faster change.

Using the Features
