Preface

Description

The Greenlee Communications 910FS Optical Fiber Fusion Splicer is intended to fuse

bers, resulting in low splice loss and long-term stable splices. Splice loss depends on

certain conditions such as ber preparation, splicing parameters, and ber condition.

The 910FS fusion splicer uses a CDS (Core Detection System), which is also widely

known as PAS (Prole Alignment System). Two cameras sense the center of the core

of the bers, with the fusion splicer then adjusting in the X, Y, and Z dimensions to

automatically and precisely align the two ber cores. A fusing arc is applied, which then

provides the lowest loss fusion splice.

The 910FS with PAS technology is designed for splicing many types of optical bers.

It is small in size and lightweight, making it suitable for any operating environment. It is

easy to operate, and it splices fast while maintaining low splice loss.

Contents List

• 910FS fusion splicer

• 250 micron adapter pair

• 900 micron adapter pair

• SC/LC splice-on connector adapter

• Spare electrodes (one pair)

• AC adapter (power supply) with line cord

• Battery pack (installed in 910FS)

• Carry case

• 1.5 mm hex wrench

• Plastic tweezers

• Cooling tray

• Electrode polisher with 10 polishing strips

• Cleaning brush

• USB Cable

• RS-232 serial cable

Safety

Safety is essential in the use and maintenance of Greenlee tools and equipment.

Thisinstruction manual and any markings on the tool provide information for avoiding

hazards and unsafe practices related to the use of this tool. Observe all of the safety

information provided.

Purpose of This Manual

This instruction manual is intended to familiarize all personnel with the safe operation

and maintenance procedures for the Greenlee Communications 910FS Optical Fiber

Fusion Splicer.

Keep this manual available to all personnel. Replacement manuals are available upon

request at no charge at www.greenlee.com.

All specications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not

be liable for damages resulting from misapplication or misuse of its products.

berTOOLS is a trademark of Textron Innovations Inc.

910FS Splicer

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Important Safety Information

General

Use this unit for the manufacturer’s intended purpose only, as described in this manual.

Any other use can impair the protection provided by the unit. Do not use the splicer on

live bers.

Environmental Conditions

This tool is designed to operate at a maximum relative humidity of 95% and at altitudes

up to 5000 m (16,400 ft).

Before Applying Power

Verify that the tool is set to match the available line voltage and the correct fuse is

installed.

Do Not Operate in Explosive Atmosphere

Do not operate the tool in the presence of ammable gases or fumes.

Do Not Remove Instrument Cover

Do not remove the cover of the unit for any reason. It contains no user-serviceable parts.

SAFETY

ALERT

SYMBOL

This symbol is used to call your attention to hazards or unsafe practices which could

result in an injury or property damage. The signal word, dened below, indicates the

severity of the hazard. The message after the signal word provides information for

preventing or avoiding the hazard.

Immediate hazards which, if not avoided, WILL result in severe injury or death.

Hazards which, if not avoided, COULD result in severe injury or death.

Hazards or unsafe practices which, if not avoided, MAY result in injury or property

damage.

Read and understand all of the instructions and safety information in

this manual before operating or servicing this tool.

Failure to observe this warning could result in severe injury or death.

910FS Splicer

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Important Safety Information

Electric shock hazard:

Contact with live circuits could result in severe injury or death.

Wear eye protection when using this tool.

Fiber fragments can be extremely dangerous if they come into con-

tacts with eyes or skin or are ingested.

Disconnect AC power cord from AC adapter inlet or wall socket (outlet) immediately if

user observes the following or if the splicer receives the following faults:

• Fumes, bad odor, noise, or overheat occurs.

• Liquid or foreign matter falls into cabinet.

• Splicer is damaged or dropped.

If these faults occur, return unit to Greenlee service center for repair. Leaving splicer in

a damaged state could cause equipment failure, electric shock or re, and could result

in severe injury or death.

Electric shock hazard:

• Use only AC adapter or battery charger designed for this splicer. Using an

improper AC power source could cause fuming, electric shock, or equipment

damage.

• Do not disassemble or modify splicer, AC adapter, or battery. Do not remove

or bypass any electrical or mechanical device (e.g., fuse or safety switch)

incorporated into design and manufacturing of this equipment.

• Never operate tool in an environment where ammable liquids or vapors exist.

Risk of re or explosion could result from the tool’s electrical arc in such an

environment.

• Do not use compressed gas or canned air to clean tool. They may contain

ammable materials that could ignite during electrical discharge.

• Do not touch electrodes when splicer is on and power is supplied to unit. The

electrodes generate high voltage and high temperatures that could cause a severe

shock or burn.

• Turn tool off and disconnect AC power cord before replacing electrodes.

Failure to observe these warnings could result in severe injury or death.

910FS Splicer

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Important Safety Information

Electric shock hazard: Use only proper power source.

• Check AC power source before use. Proper AC power source is 100–240 VAC,

50–60 Hz. Proper DC power source is 10–12 VDC. Improper AC or DC power

source could cause fuming, electric shock, or equipment damage.

• AC generators commonly produce abnormally high AC output voltage or irregular

frequencies. Measure output AC voltage with a circuit tester before connecting

the AC power cord. Such abnormally high voltage or frequency from a generator

could cause fuming, electric shock, or equipment damage. Make sure generator is

regularly checked and serviced.

Failure to observe these warnings could result in severe injury or death.

Electric shock hazard:

• Do not modify, abuse, heat, or excessively pull on power cord. Use of a damaged

cord could cause fuming, electric shock, or equipment damage.

• This tool uses a three-prong (core) AC power cord that contains an earthed

ground safety mechanism. This tool must be grounded. Use only the supplied

power cord. Never use a two-prong (core) power cord, extension cord, or plug.

• Connect AC power cord properly to splicer (inlet) and wall socket (outlet). When

inserting AC plug, make sure there is no dust or dirt on terminals. Engage by

pressing the female plug into the splicer (inlet) and the male plug into the wall

socket (outlet) until both plugs are fully seated. Incomplete engagement could

cause fuming, electric shock, or equipment damage.

• Do not short-circuit the terminals of AC adapter and optional battery. Excessive

electrical current could cause fuming, electric shock, or equipment damage.

• Do not touch the splicer, AC power cord, and AC plugs with wet hands.

• Do not operate splicer near hot objects, in hot temperature environments, in

dusty/humid atmospheres or when condensation is present on the tool. This may

result in electric shock, splicer malfunction, or poor splicing performance.

Failure to observe these warnings could result in severe injury or death.

910FS Splicer

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Important Safety Information

Explosion hazard: Follow these instructions when using lithium-ion battery:

• Do not charge battery with other methods than instructed.

• Do not dispose of battery in an incinerator or re.

• Do not charge or discharge battery near a ame or in direct sunlight.

• Do not excessively shake or jar battery.

• If battery leaks liquid residue, be careful handling battery so liquid does not

contact skin or eyes. If skin or eyes are contacted, immediately wash thoroughly

and seek medical attention. Dispose of battery and order replacement from

Greenlee.

• If charge did not complete in four hours or the “CHARGE” LED is constantly on,

stop charging immediately and call Greenlee service center for repair.

Failure to observe these warnings could result in severe injury or death.

Battery safety:

• Do not allow anything to contact the battery terminals.

• Do not immerse batteries in liquid. Liquid may create a short circuit and damage

the battery. If batteries are immersed, contact your service center for proper

handling.

• Do not place the battery into a pocket, tool pouch, or tool box with conductive

objects. Conductive objects may create a short circuit and damage the battery.

• Do not place a battery on moist ground or grass. Moisture may create a short

circuit and damage the battery.

• Do not store the battery at more than 122 °F (50 °C) or less than –4 °F (–20 °C).

Damage to the battery can result.

• Do not use another manufacturer’s charger. Other manufacturers’ chargers may

overcharge and damage the battery.

• Do not attempt to open the battery. It contains no user-serviceable parts.

Failure to observe these precautions may result in injury and may damage the unit.

910FS Splicer

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

• Do not store tool in areas of extremely high temperature and humidity.

• Do not touch protection sleeve or tube heater during or immediately after heating.

These surfaces are very hot and touching them may result in burns.

• Do not place tool in an unstable or unbalanced position. Tool may shift or lose

balance, causing unit to fall.

• This tool is precision adjusted and aligned. Do not allow unit to receive a strong

shock or impact. Use supplied carrying case for transportation and storage.

Carrying case protects tool from damage, moisture, vibration, and shock.

Failure to observe these precautions may result in injury and may damage the unit.

Follow these instructions for handling electrodes:

• Use only specied electrodes.

• Set new electrodes in correct position.

• Replace electrodes as a pair.

Failure to observe this precaution may cause abnormal arc discharge, which may

result in equipment damage or degradation in splicing performance.

• Do not use any chemical other than pure alcohol (99% or greater) to clean the

objective lens, V-groove, mirror, LCD monitor, etc. Use of other chemicals may

cause blurring, discoloration, damage, or deterioration.

• This tool requires no lubrication. Oil or grease may degrade the splicing

performance and damage the splicer.

• This equipment must be repaired or adjusted by a qualied technician or engineer.

Incorrect repair may cause re or electric shock. Contact Greenlee service center

for repair.

Failure to observe these precautions may result in injury and may damage the unit.

Important Safety Information

910FS Splicer

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Section 1. Identiﬁcation

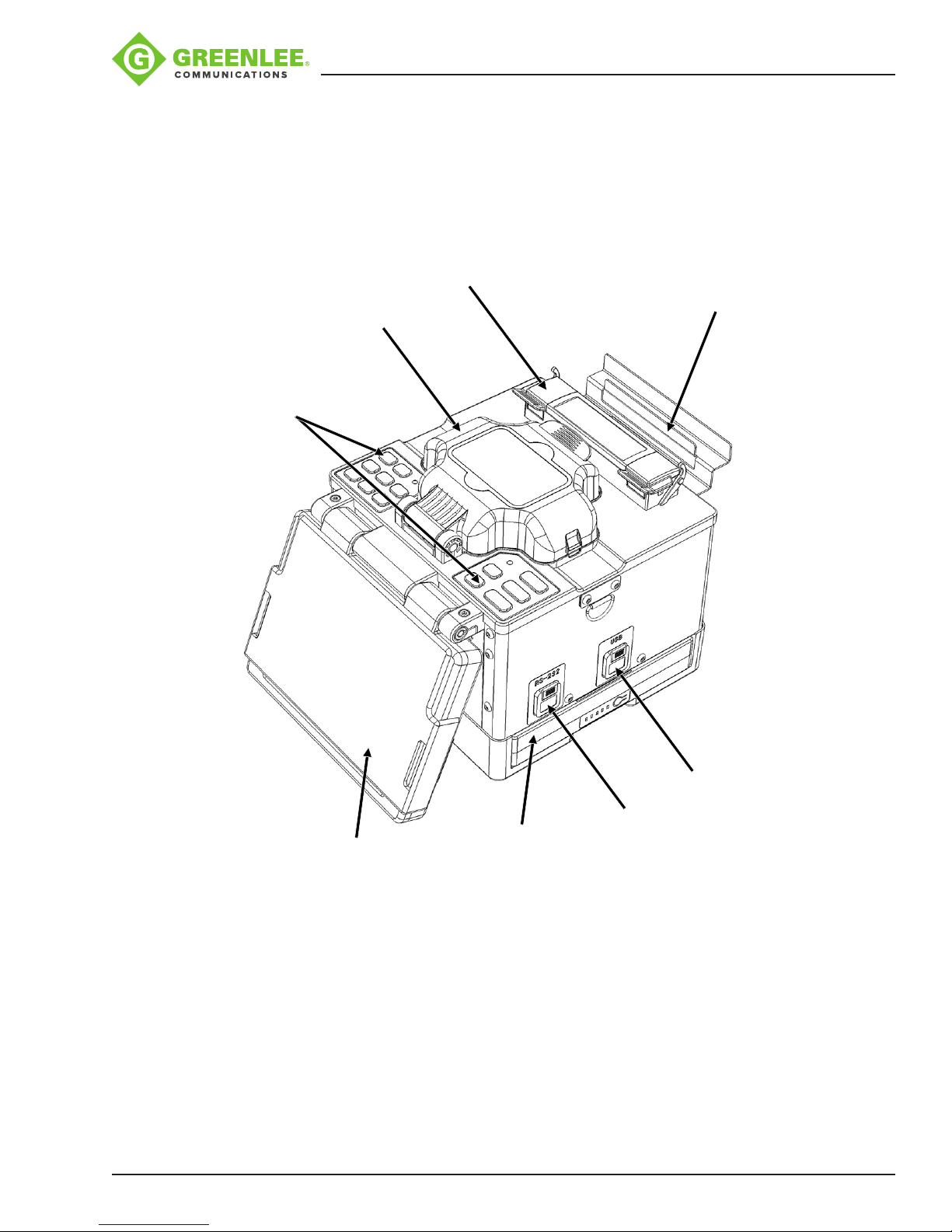

Components of Splicer

Keypads

LCD

Wind Protector

Tube Heater

Cooling Tray

RS-232

Port

USB

Port

Battery

Compartment

910FS Splicer

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Top View

V-groove

Guide Groove

Electrode Cover

Wind Protector

Mirror

Fiber Adapter

Fiber

Adapter

Electrode

Cover

Table des matières

Autres manuels Greenlee Matériel informatique

Greenlee

Greenlee 2001 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
