Gree TS15-8PACWHTK1-A Manuel utilisateur

Model: GPC08AH-A3NNC4D

Portable room air conditioner

Model: TS15-8PACWHTK1-A

(G15-8PACWHTK)

Thank you for choosing our product.

For proper operation, please read and keep this manual carefully .



















 

 



 



 

 

 

 

 



 









 

























 













Model TS15-8PACWHTK1-A

Power Supply (Ph/V/Hz) 1/115/60Hz

Dehumidifying Capacity (Pints/Day) 38

Rated Cooling Capacity (BTU/h) 8,000

Rated Heating Capacity (BTU/h) /

Cooling Power Input (Watts) 760

Heating Power Input (Watts) /

Rated Current Cooling (Amperage) 6.7

Rated Current Heating (Amperage) /

Noise Level db (A) H/L 55

CFM 195/165/135

Design Pressure (PSIG) (H/L) /

11.75×31×13.625

Package Dimensions x x 14 x 33 x 22.25

Net/Gross Weight (Lbs) 53/66

Refrigerant Type R-410A

Refrigerant Charge (Oz)













































Preparation before installation

Note: check if the accessories are available before installation.

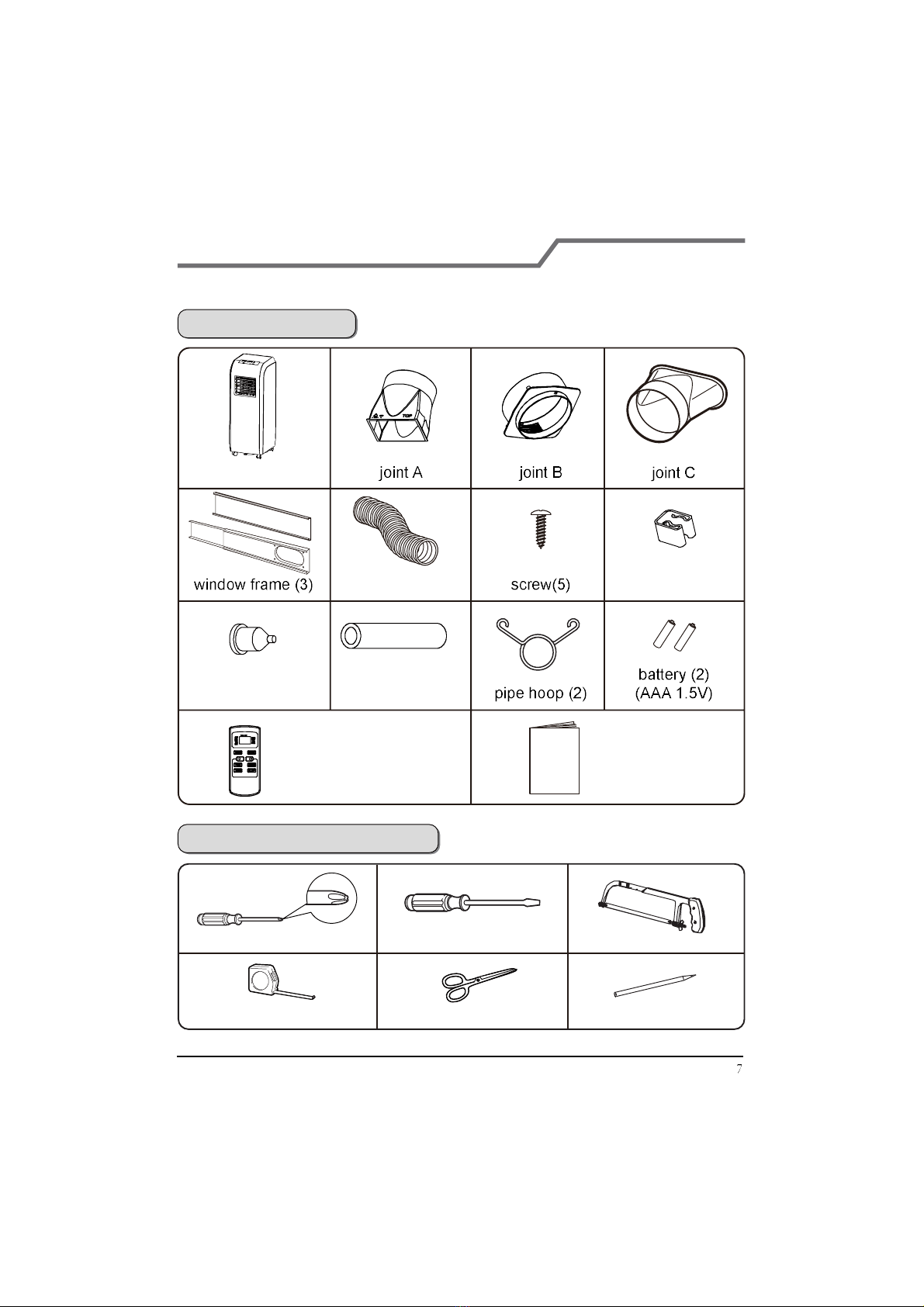

Accessory list

Tools needed for installation

unit

heat discharge pipe

drainage pipe

cross screwdriver

gauge

straight screwdriver

scissors

saw

pencil

remote controller user's manual

pipe clip

rubber plug

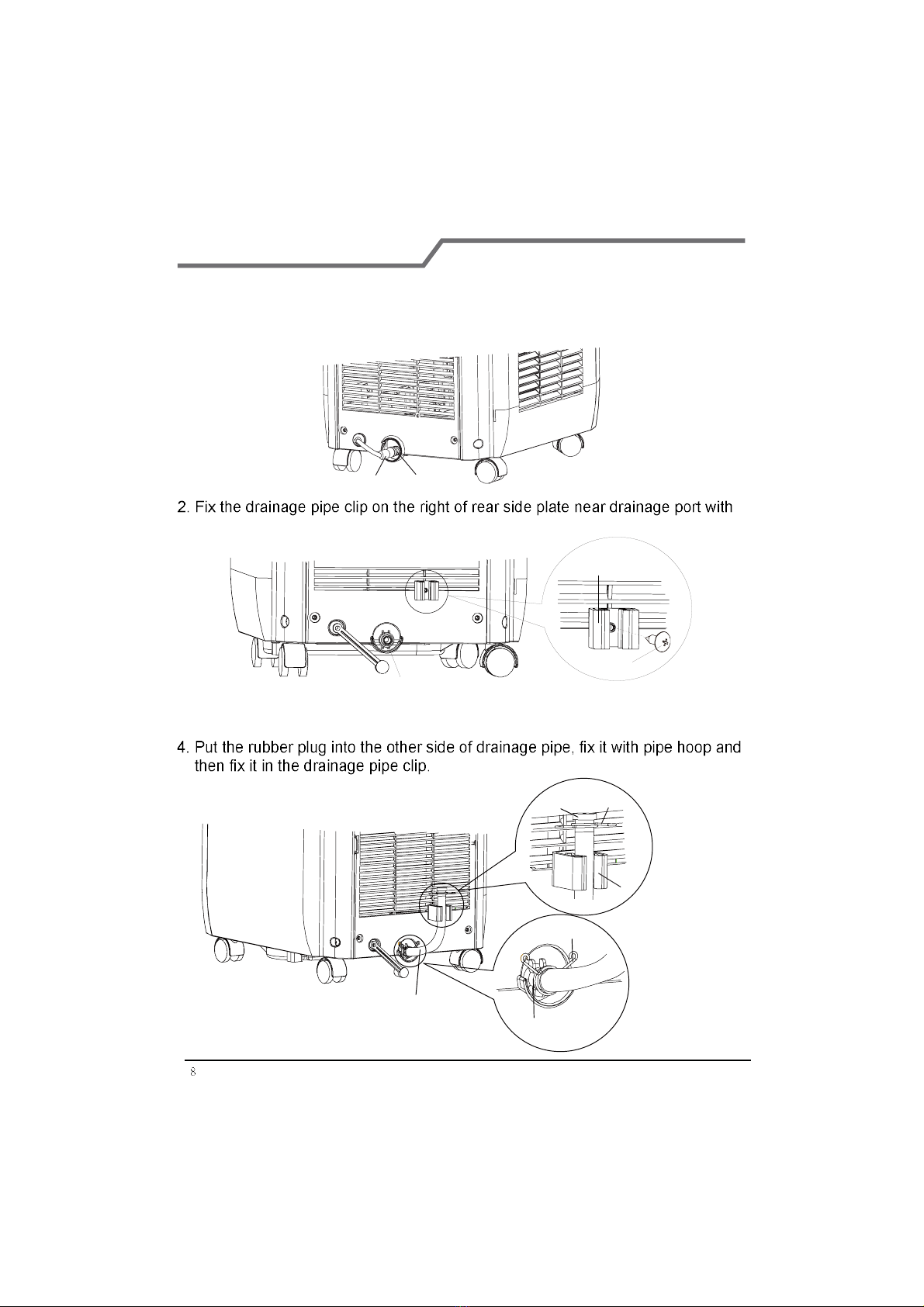

Install drainage pipe

Note: Install drainage pipe before using, otherwise poor drainage will affect normal

operation of the unit.

1. Remove the rubber plug at drainage port.

a screw.

3. Put the drainage pipe into drainage port and screw it up, and then bind it with

pipe hoop.

rubber plug drainage port

drainage port

drainage pipe clip

screw

pipe hoop

rubber plug

drainage pipe

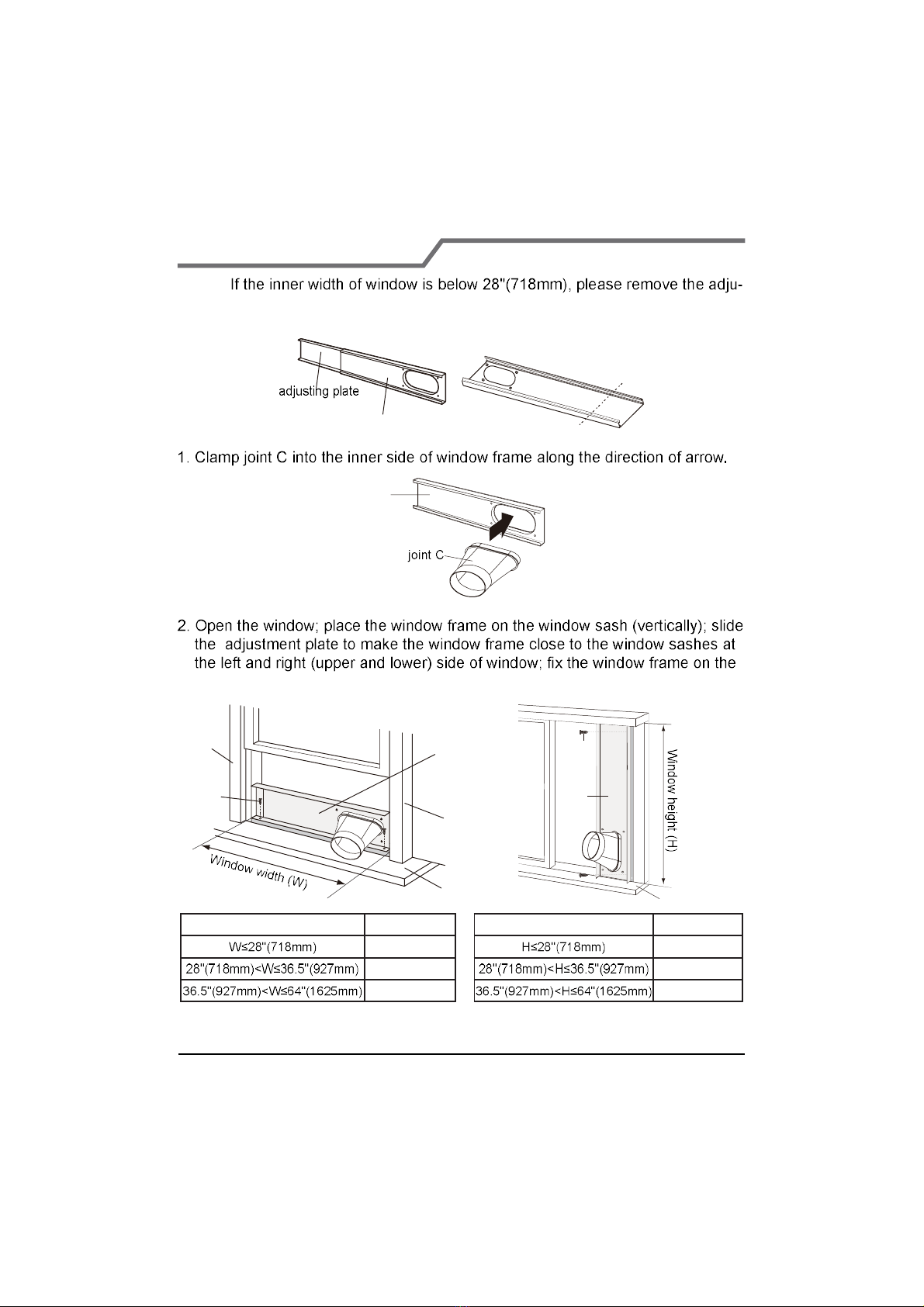

Install window frame

Note:

sting plate from window frame and then cut the window frame to make its width the

same as the width of window.

windowsill with screws.

window frame

cut

window frame

Window width (W) Screw quantity

Window height (H) Screw quantity

window

sash

window

sash window

frame

windowsill

screw window

frame

windowsill

screw
