Owner's Manual

Original Instructions

Window Type Air Conditioner

Thank you for choosing our product.

Please read this Owner’s Manual carefully before operation and

retain it for future reference.

If you have lost the Owner’s Manual, please contact the local agent

or visit www.gree.com or send an email to [email protected] for

the electronic version.

GJC12AF-E3DRNG2A

GJC18AH-E3DRNG1A

GJC24AH-E3DRNG1A

Function

CONTENTS

Structure mechanism and Installation

Operating condition

power requirement

Installation

Notes for installation

Part identification

Air direction adjustment

Remote control operation procedure

Remote control panel

Operation tips

Operation procedure

Precautions 1

Care and maintenance

NOTICE:

Caution

Care and maintenance

Trouble shooting guide

After service

Please read this operating manual carefully before operating the unit.

The figures in this manual may be different with the material objects, please refer to the material objects

for reference.

The appliance shall be installed in accordance with national wiring regulations

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent

or similarly qualified persons in order to avoid a hazard.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Thank you for choosing air conditioner. Our design is based on the best efficiency and the lowest

noise operation and it can keep the room comfortable. Please read this operating manual carefully before

operating the unit and keep it for consultation.

Explanation of Symbols

1.Damage the product due to improper use or misuse of the product;

2.Alter, change, maintain or use the product with other equipment without abiding

by the instruction manual of manufacturer;

After verification, defects are due to improper operation during transportation of

product;

Operate, repair, maintain the unit without abiding by instruction manual or related

regulations;

After verification, the problem or dispute is caused by the quality specification or

performance of parts and components that produced by other manufacturers;

The damage is caused by natural calamities, bad using environment or force

majeure.

After verification, the defect of product is directly caused by corrosive gas;3.

Exception Clauses

Manufacturer will bear no responsibilities when personal injury or

property loss is caused by the following reasons.

Indicates a hazardous situation that, if not avoided, will

result in death or serious injury.

Indicates a hazardous situation that, if not avoided, could

result in death or serious injury.

Indicates a hazardous situation that, if not avoided, may

result in minor or moderate injury.

Indicates important but not hazard-related information,

used to indicate risk of property damage.

Indicates a hazard that would be assigned a signal word

WARNING or CAUTION.

DANGER

WARNING

CAUTION

N OTIC E

If it needs to install, move or maintain the air conditioner, please contact dealer

or local service center to conduct it at first. Air conditioner must be installed,

moved or maintained by appointed unit. Otherwise, it may cause serious

damage or personal injury or death.

When refrigerant leaks or requires discharge during installation, maintenance,

or disassembly, it should be handled by certified professionals or otherwise in

compliance with local laws and regulations.

- 1 -

Precautions

Working temperature range

Warning

Indoor side DB/WB(°C)

※ Operating Temperature Range

32/23

Outdoor side DB/WB(°C)

43/-

Do disconnect power supply when cleaning air conditioner. Otherwise, it may cause

electric shock.

The operating temperature range (outdoor temperature) for cooling only unit is

18°C~ 43°C.

Maintenance must be performed by qualified professionals.Otherwise, it may cause

injury or damage.

Do not repair air conditioner by yourself. It may cause electric shock or damage.

Please contact dealer when you need to repair air conditioner.

●

The appliance is not to be used by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction.

Maximum cooling

●

●Children being supervised not to play with the appliance.

Please install the devices for short-circuit protection and electrical leakage protection

when installing the air conditioner.

According to the local safety regulations, use qualified power supply circuit and circuit

break.

Do not connect air conditioner to multi-purpose socket.Otherw

hazard.

The air conditioner should be installed in accordance with national wiring regulations.

Air Conditioner should be properly grounded. Incorrect grounding may cause electric

shock.

●

Do not extend fingers or objects into air inlet or air outlet. It may cause personal

injury or damage.

Do not step on air conditioner, or put heavy objects. It may cause damage or

personal injury.

●

Do install the air switch. If not, it may cause malfunction.

Do not spill water on the remote controller, otherwise the remote controller may

be broken.

ise, it may cause fire

●

Do not spray water on air conditioner. It may cause electric shock or malfunction.

●

●Do not block air outlet or air inlet. It may cause malfunction.

This appliance can be used by children aged from 8 years and above and persons

with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Function

Introduction

Autumn

Spring

Summer

Dry

Winter

- 2 -

Room

Fresh Air

temp.

Wind

direction

Heating in winter

(On (Only for the models with fresh air function)ly for heat unit)

In cold winter, Air conditioner can heat up room air.

humid season

Without reducing the room temp., air conditioner can

dehumidify and make the room air dry and

comfortable.

Dehumidifying in rainy or

Cooling in summer

In hot summer, Air conditioner can cool down

the room air by transferring heat out.

Window type room air conditioners can regulate the room

temperature and dry the room. It is convenient for your work,study

and life. It can be widely used in residence, shop, hotel, office, library

and laboratory, and so on.

Exchange fresh air

Open ventilation lever to keep the fresh air in the

room.

- 3-

Operating Condition

Please operate air conditioner in the correct conditions as following.

Power requirement

COOL mode operation

DRY mode operation

Outdoor temperature should be in range of 18 to 43 ,

otherwise it is possible for air conditioner to breakdown.

Outdoor temperature should be in range of 18

to 43 , otherwise it is possible for air conditioner

to breakdown.

Room humidity should be lower than 90%.

Otherwise, it is possible for air conditioner to dew

at air conditioner surface and even drop water af-

ter running for so much time. But this is normal.

Water pipe

The electric components will be damaged when the voltage is too high.

If the voltage is too low, the compressor will vibrate violently to dam-

age the refrigerant system and easily cause the compressor and elec-

tric components not work.

The ground must be connected.

Special socket must be used. Furthermore, the socket and wiring

must conform to the wiring regulations. And the earthing method

must be reliable.

In fixed circuit, there must be electricity leakage protection switch

of enough power capacity and air switch with enough space.

Earth wire To ensure the reliable earthing, please do not connect earth wire to the following places:

- 4 -

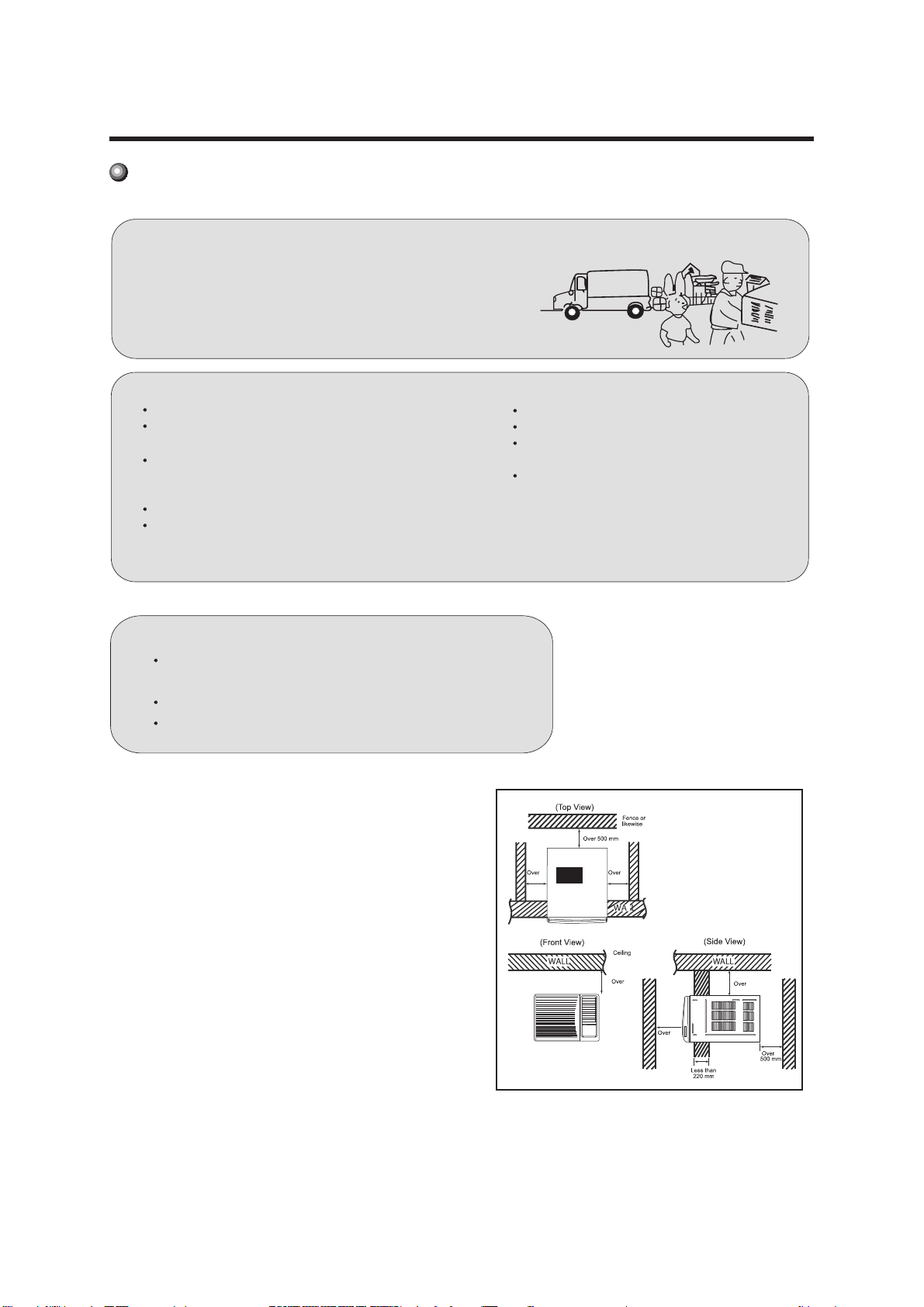

Installation

Installation precaution:

Window type air conditioner is so valuable and the improper installa-

tion of it will cause a lot of damage! Pleaseassociate the profes-

sional technician to install the unit and don’t install it by yourself.

Otherwise, we are not responsible for the damage like this.

Location:

The condensation water must be drained away conveniently.

Install air conditioner unit far away from TV set or radio

etc. to avoid disturbing video or voice.

In salt and coastal area or place where is near thermal springs

and polluted by sulphurous gas, or other special areas, please

contact the seller before use.

Avoid a place where is possible for inflammable gas to leak out.

It’s not allowed to be installed on the unstable or motive base

structure (such as truck) or in the corrosive environment

(such as chemical factory).

Avoid other heat sources or direct sun light.

Avoid a place where is easy for children to touch.

Don't use the unit in the immediate surroundings of

a laundry, a bath, a shower or a swimming pool.

For window type air conditioner with remote

control, install in a location where is strong elec-

tromagnetic disturbance, you should contact the

seller in advance to avoid the malfunction in use.

How to install:

Choose a location where there are no any obstacle surrounding

the unit, and the plug is accessible.

Prepare the installation hole slightly bigger than unit size.

Choose the installation space according to the following diagram.

500 mm 500 mm

300 mm

The distance between the air conditioner 300mm and the

around obstacles should meet the requirement as below:

over 300mm(upper side), over 500mm (left side), over

500mm (right side), over 1500mm (front side) and over

500mm (rear side).

1500 mm

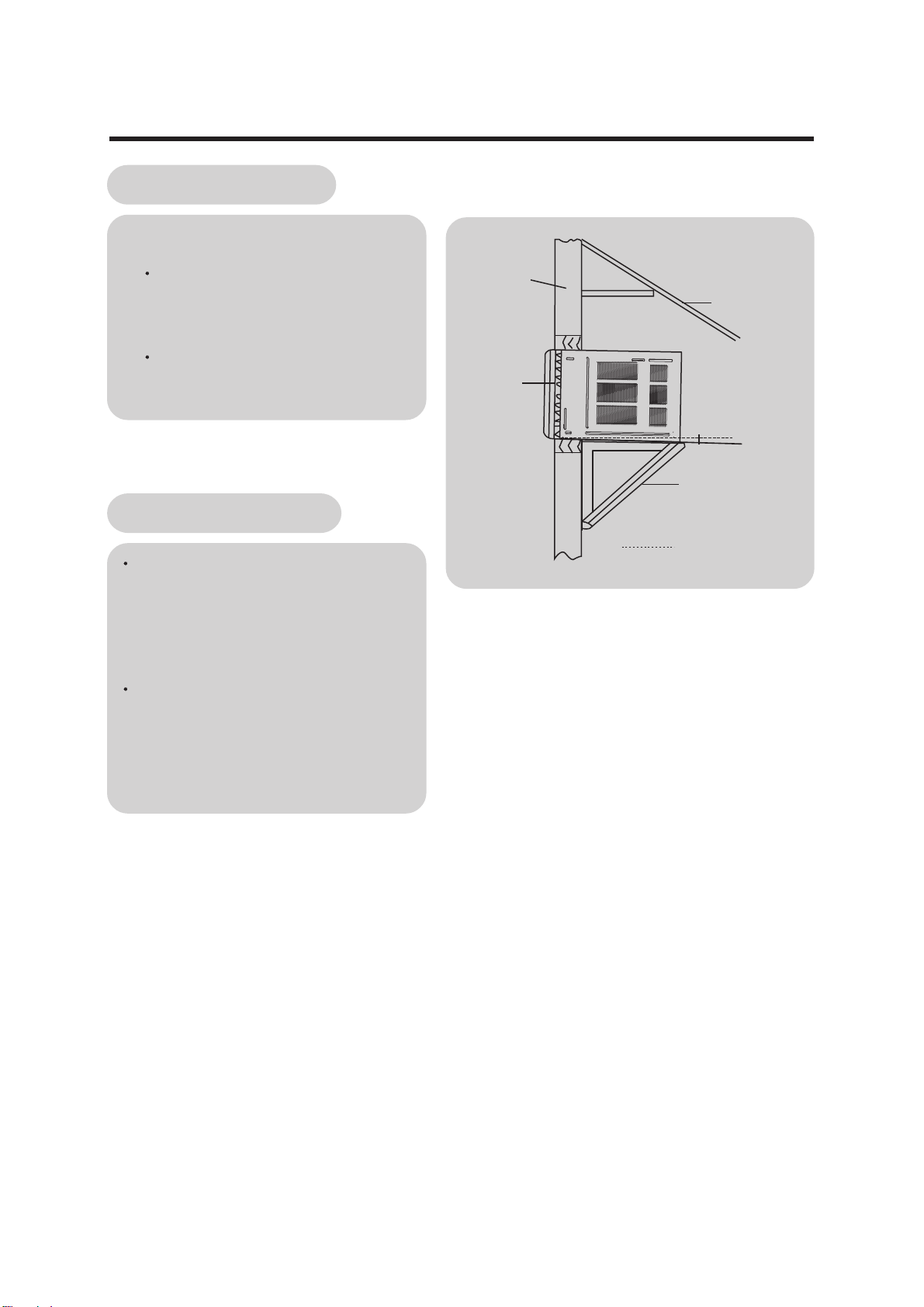

Installation procedure:

Wall

Sunshade board

Rubber plate

Installation assistance:

Horizontal line

Use iron support

The installation hole should be strong enough to

support the air conditioner. If it cannot, iron sup-

port has to be used outdoors.

Iron support should be fixed on the building (Shown

at right figure.)

Use sunshade board

Air conditioner should avoid anything to be dropped

into it and avoid direct sunshine. If there is no cover

on it, you should contact the seller for installing

the sunshade board. When installing the sunshade

board, don’t let it block the air inlet at the side grille.

- 5 -

6-10mm

Support

Remove the sticker from the front panel.

Put the unit into the installation hole.

When installing the unit, it should be slanted

down to the back to avoid the enlargement of

noise or vibration. (Slant between 6-10mm.)

(Shown at right figure.)

The installation place should be strong enough

to avoid the enlargement of noise or vibration.

Fill up sews in the cabinet with sponge or foam.

- 6 -

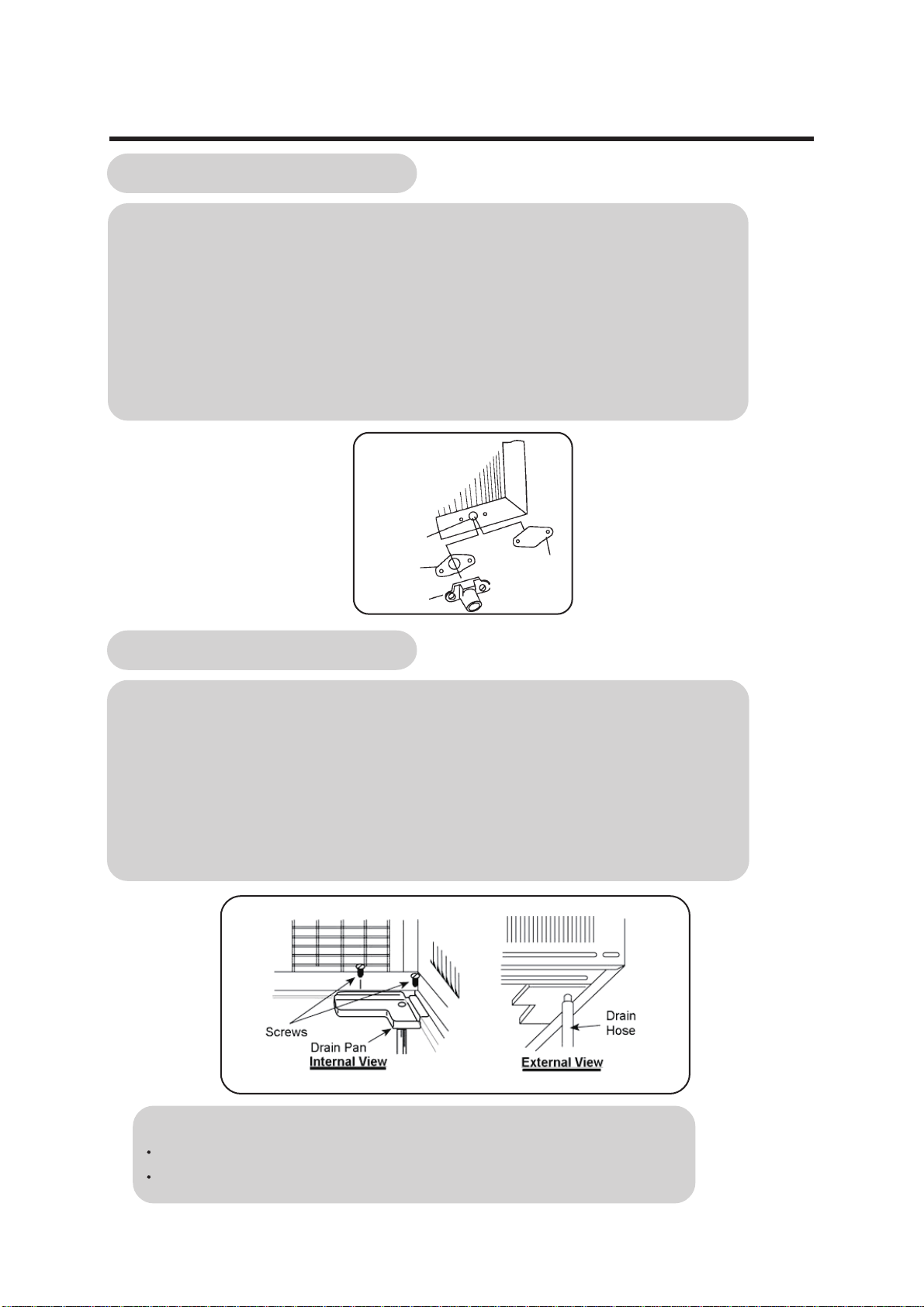

Note:

Drain pan and drain hose must be installed before using reverse cycle models.

Drain hose or tubing can be purchased locally to satisfy your particular needs.

Drain water for another style:

To get the maximum cooling efficiency, the air conditioner isdesigned to splash the condensation water on the

condenser coil.

To the cooling only unit,If the splashing sound annoys you, you can provide an outside drain by using the follo

-wing procedure, which may however cause a small loss of performance.

1. Slide out the chassis from the cabinet.

2. Remove the rubber plug from the body base plate.

3. Install the drain pan to the corner of the cabinet with 2 screws.

4. Connect the drain hose to the outlet on the drain pan bottom.

5. Slide the chassis into its original place in the cabinet.

Drain water for one style:

To get the maximum cooling efficiency,the air conditioner is designed to splash the condensate on the

condenser coil.

If the splashing sound annoys you, you can provide an outside drain by using the following procedure,

which may however cause a small loss of performance.

1.There is a drainage outlet at the back of the unit.

2.Remove cover from the drainage outlet, and then connect drainage joint to it with screw.

3.Connect the drain hose to the outlet.

Note:

Drain hose or tubing can be purchased locally

to satisfy your particular needs.

Drainage outlet

Washer

Drainage joint

Install

Cover

Remove

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gree Climatiseur

Gree

Gree U-Match 6 Series Manuel utilisateur

Gree

Gree GSW12-22L/B Manuel d'utilisation

Gree

Gree JKFD5QSR/Na-E Manuel utilisateur

Gree

Gree BORA GWH12AAB Manuel utilisateur

Gree

Gree Split Air Conditioner Manuel utilisateur

Gree

Gree Thermocore GM-WAC-25ESE-C Manuel utilisateur

Gree

Gree GMV-N22G/A3A-K Manuel utilisateur

Gree

Gree GMV-NX140P/A(X1.2)-K Manuel utilisateur

Gree

Gree GWHD(36)NK3JO Manuel utilisateur

Gree

Gree NEO09AC115V1A Manuel utilisateur

Gree

Gree E-TACII ETAC215HP230VACP Mode d'emploi

Gree

Gree ALTEA Manuel utilisateur

Gree

Gree GWH09AKC-K6DNA1A Manuel utilisateur

Gree

Gree GMV-ND140L/A-T Manuel utilisateur

Gree

Gree GMV-72WM/B-U Manuel utilisateur

Gree

Gree GICF909AE/AC Manuel utilisateur

Gree

Gree GWH09QB-K3DNA6D Manuel utilisateur

Gree

Gree CE52-24/F(C) Manuel utilisateur

Gree

Gree GJC10BL-A6NRNE2D Manuel utilisateur

Gree

Gree ULTRA heating GMV5 Multi VRF Series Manuel utilisateur

Gree

Gree Vireo VIR36HP230V1C Manuel utilisateur

Gree

Gree LIVV09HP230V1A Series Mode d’emploi

Gree

Gree GTH(09)CA-K6DNA1A/I Manuel utilisateur

Gree

Gree VIREO+ VIR12HP115V1B Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
