WALL MOUNTED TYPE FAN COIL

UNIT SERVICE MANUAL

(GC201411-I)

CONTENTS

PRODUCT �� 2

1 MODELS LIST �� 2

2 NOMENCLATURE OF THE UNIT �� 3

3 FUNCTION�� 4

4 PRODUCT DATA �� 5

CONTROL�� 12

1 WIRELESS REMOTE CONTROLLER �� 12

2 OPERATION OF WIRELESS REMOTE CONTROL �� 13

3 OPERATION OF WIRELESS REMOTE CONTROL �� 14

4 OPERATION OF WIRELESS REMOTE CONTROL �� 15

5 CHANGING BATTERIES AND NOTICES�� 15

6 WIRED CONTROLLER OPERATION (OPTIONAL) �� 16

INSTALLATION�� 31

1 INSTALLATION OF THE UNIT�� 31

2 INSTALLATION DIMENSION DIAGRAM�� 32

3 INSTALL THE UNIT�� 33

MAINTENANCE�� 37

1 TROUBLESHOOTING�� 37

2 MAINTENANCE INSTRUCTIONS�� 38

3 WIRING DIAGRAMS �� 39

4 EXPLODED VIEWS AND SPARE PART LISTS �� 42

Wall Mounted Type

Fan Coil Unit Service Manual

PRODUCT

Wall Mounted Type

Fan Coil Unit Service Manual

PRODUCT

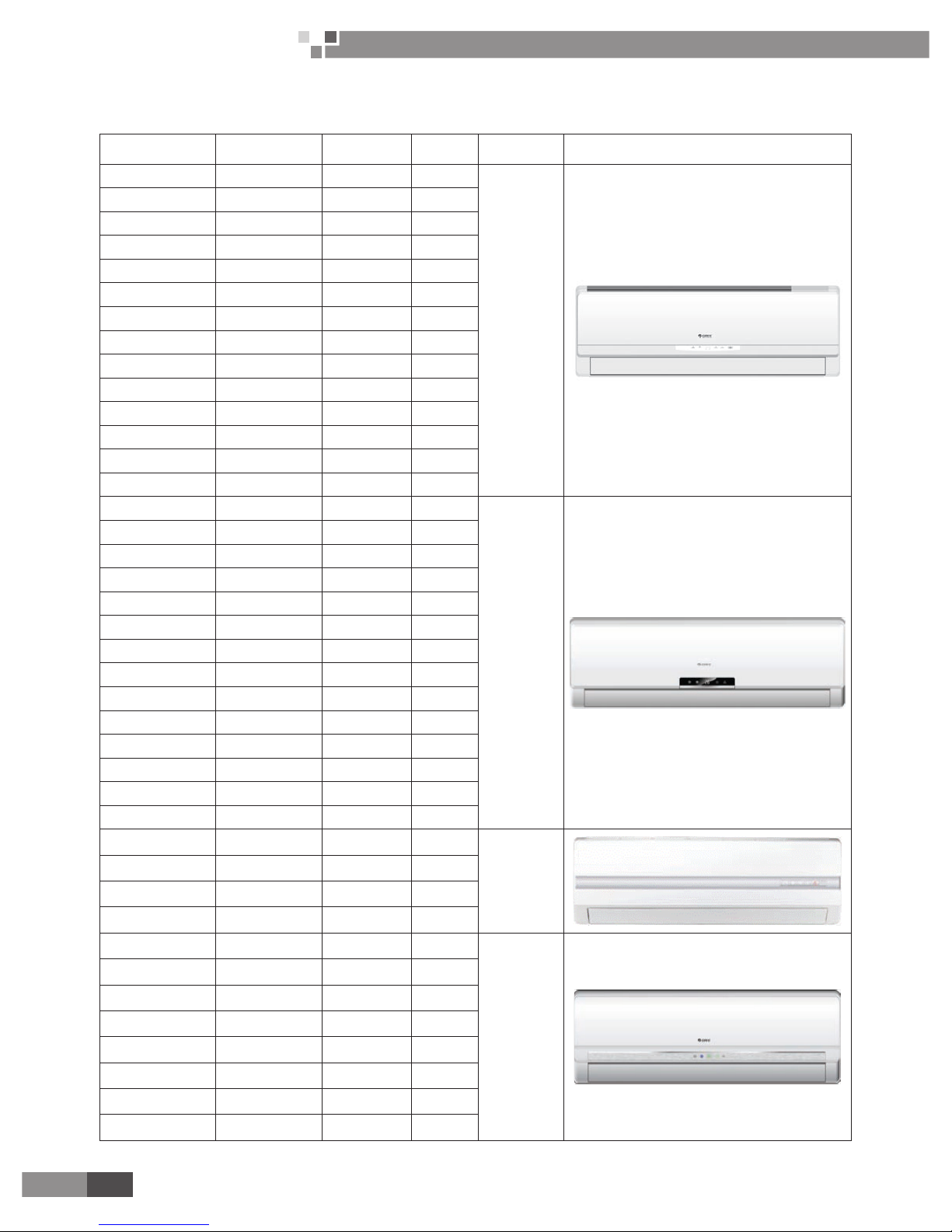

1 MODELS LIST

Model Name Cooling Capacity

(W) Product Code Air Flow

(m3/h)

Power Supply

(V,Ph,Hz) Remarks

FP-34BA2/A-K 2100 EM55000200 360

220-240V~

50Hz

FP-51BA2/A-K 2700 EM55000210 550

FP-68BA2/A-K 3600 EM55000220 680

FP-85BA2/A-K 4200 EM55000230 850

FP-51BWA2/A-K 1500 EM55000240 450

FP-85BWA2/A-K 2500 EM55000250 650

FP-34BA2/D-K 2000 EM55001810 360

FP-51BA2/D-K 2500 EM55001820 550

FP-68BA2/D-K 3600 EM55001830 680

FP-85BA2/D-K 4200 EM55001840 850

FP-34BA2/B-K 2300 EM55001710 360

FP-51BA2/B-K 2900 EM55001700 550

FP-68BA2/B-K 3800 EM55001690 680

FP-85BA2/B-K 4800 EM55001680 850

FP-34BA3/A-K 2100 EM55001130 360

220-240V~

50Hz

FP-51BA3/A-K 2700 EM55001210 550

FP-68BA3/A-K 3600 EM55001290 680

FP-85BA3/A-K 4200 EM55001360 850

FP-34BA3/B-K 2300 EM55001720 360

FP-51BA3/B-K 2900 EM55001730 550

FP-68BA3/B-K 3800 EM55001750 680

FP-85BA3/B-K 4800 EM55001740 850

FP-51BWA3/A-K 1500 EM55001430 450

FP-85BWA3/A-K 2400 EM55001510 650

FP-34BA3/D-K 2000 EM55002000 360

FP-51BA3/D-K 2500 EM55002010 550

FP-68BA3/D-K 3600 EM55002020 680

FP-85BA3/D-K 4200 EM55002030 850

FP-34BB3/A-K 2100 EM55001180 360

220-240V~

50Hz

FP-51BB3/A-K 2700 EM55001260 550

FP-68BB3/A-K 3600 EM55001340 680

FP-85BB3/A-K 4200 EM55001410 850

FP-34BA4/A-K 2100 EM55001140 360

220-240V~

50Hz

FP-51BA4/A-K 2700 EM55001220 550

FP-68BA4/A-K 3600 EM55001300 680

FP-85BA4/A-K 4200 EM55001370 850

FP-34BA4/D-K 2000 EM55002040 360

FP-51BA4/D-K 2500 EM55002050 550

FP-68BA4/D-K 3600 EM55002060 680

FP-85BA4/D-K 4200 EM55002070 850

Wall Mounted Type

Fan Coil Unit Service Manual

PRODUCT

FP-34BA5/A-K 2100 EM55000260 360

220-240V~

50Hz

FP-51BA5A-K 2700 EM55000270 550

FP-68BA5/A-K 3600 EM55000280 680

FP-85BA5/A-K 4200 EM55000290 850

FP-51BWA5/A-K 1500 EM55000300 450

FP-85BWA5/A-K 2500 EM55000310 650

FP-34BA5/D-K 2000 EM55002080 360

FP-51BA5/D-K 2500 EM55002090 550

FP-68BA5/D-K 3600 EM55002100 680

FP-85BA5/D-K 4200 EM55002110 850

FP-34BA5/B-K 2300 EM55001670 360

FP-51BA5/B-K 2900 EM55001660 550

FP-68BA5/B-K 3800 EM55001650 680

FP-85BA5/B-K 4800 EM55001640 850

FP-85BA2/A-D 5400 EM55001590 1000

208-230V~

60Hz

FP-34BA2/B-D 2100 EM55000320 360

FP-51BA2/B-D 2700 EM55000330 550

FP-68BA2/B-D 3600 EM55000340 680

FP-85BA2/B-D 4200 EM55000350 850

FP-102BA2/B-D 5400 EM55000360 1000

FP-34BA3/B-D 2100 EM55001760 360

208-230V~

60Hz

FP-51BA3/B-D 2700 EM55001800 550

FP-68BA3/B-D 3600 EM55001770 680

FP-85BA3/B-D 4200 EM55001780 850

FP-102BA3/B-D 5400 EM55001790 1000

FP-34BA5/B-D 2100 EM55001890 360

208-230V~

60Hz

FP-51BA5/B-D 2700 EM55001900 550

FP-68BA5/B-D 3600 EM55001910 680

FP-85BA5/B-D 4200 EM55001920 850

FP-102BA5/B-D 5400 EM55001930 1000

2 NOMENCLATURE OF THE UNIT

FP - □□□ /□-□

1 2 3 4 4 6

NO. Description Options

1 Fan coil

2Air ow volume Number×10 m3/h

3 Structure type mounted-B Wall, mounted with water valve-BW

4 Front panel code One letter +one number

5 Design Sequence Arranged by A, B,C…

6 Power code K-220-240V~ 50Hz, D-208-230V~ 60Hz

Wall Mounted Type

Fan Coil Unit Service Manual

PRODUCT

3 FUNCTION

Function Fan Coil Unit

Service Manual for Evaluation

For Comfortable

Air Conditioning

Cooling YES

Heating YES

Dehumidify YES

Air Flow YES

Auto Swing YES

Sleep and Auto YES

With Access Control System Optional

Central Control Optional

Wired Controller Optional

Long Distance Control Optional

Timer YES

Energy Saving YES

Anti Cold Air YES

Anti Heat Air YES

Waste Heat Blow YES

Memory YES

Self Diagnosis YES

Alarming YES

Wall Mounted Type

Fan Coil Unit Service Manual

PRODUCT

4 PRODUCT DATA

Model

FP-34BA2/A-K

FP-34BA3/A-K

FP-34BA4/A-K

FP-34BA5/A-K

FP-51BA2/A-K

FP-51BA3/A-K

FP-51BA4/A-K

FP-51BA5/A-K

FP-68BA2/A-K

FP-68BA3/A-K

FP-68BA4/A-K

FP-68BA5/A-K

FP-85BA2/A-K

FP-85BA3/A-K

FP-85BA4/A-K

FP-85BA5/A-K

Product Code

EM55000200

EM55001130

EM55001140

EM55000260

EM55000210

EM55001210

EM55001220

EM55000270

EM55000220

EM55001290

EM55001300

EM55000280

EM55000230

EM55001360

EM55001370

EM55000290

Air ow volume

High

m3/h 360 550 680 850

CFM 212 324 400 500

Medium

m3/h 322 413 591 708

CFM 189 242 347 416

Low

m3/h 282 367 532 616

CFM 166 215 312 362

Capacity

Cooling W 2100 2700 3600 4200

Heating W 3150 4050 5400 6300

Power

system

Type V-Ph-Hz 220-240V~ 50Hz

Input W 50 50 60 60

Water

system

Water ow volume

m3/h 0.4 0.45 0.6 0.7

GPM 1.76 1.98 2.64 3.08

Pressure drop

kPa 13 24 44 45

Ft·WG 4.3 7.9 14.5 14.8

Coil

Type Aluminum n-copper tube

Operating pressure MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa

Motor

Type FN20J-PG FN20V-PG

Capacitor uF 1 1 1.5 1.5

Power output W 20

Sound pressure level dB(A) 35 40 43 48

Connection

pipe size

Water inlet &outlet inch 1/2"

Condensing water drain mm 15.6

Outline dimension (W×D×H) mm 845×180×275 940×200×298

Package dimension (W×D×H) mm 915×255×355 1010×285×380

Net weight kg 11 13

Gross weight kg 14 17

Loading quantity

20'GP 365 290

40'GP 765 595

40'HQ 850 671

Standard wireless remote controller YB1FA

Wall Mounted Type

Fan Coil Unit Service Manual

PRODUCT

Model FP-34BB3/A-K FP-51BB3A-K FP-68BB3A-K FP-85BB3/A-K

Product Code EM55001180 EM55001260 EM55001340 EM55001410

Air ow volume

High

m3/h 360 550 680 850

CFM 212 324 400 500

Medium

m3/h 322 413 591 708

CFM 189 242 347 416

Low

m3/h 282 367 532 616

CFM 166 215 312 362

Capacity

Cooling W 2100 2700 3600 4200

Heating W 3150 4050 5400 6300

Power

system

Type V-Ph-Hz 220-240V~ 50Hz

Input W 50 50 60 60

Water

system

Water ow volume

m3/h 0.4 0.45 0.6 0.7

GPM 1.76 1.98 2.64 3.08

Pressure drop

kPa 13 24 44 45

Ft·WG 4.3 7.9 14.5 14.8

Coil

Type Aluminum n-copper tube

Operating pressure MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa

Motor

Type FN20J-PG FN20V-PG

Capacitor uF 1 1 1.5 1.5

Power output W 20

Sound pressure level dB(A) 35 40 43 48

Connection

pipe size

Water inlet &outlet inch 1/2"

Condensing water drain mm 15.6

Outline dimension (W×D×H) mm 845×180×275 940×200×298

Package dimension (W×D×H) mm 915×255×355 1010×285×380

Net weight kg 10 12

Gross weight kg 12.5 16

Loading quantity

20'GP 365 290

40'GP 765 595

40'HQ 850 671

Standard wireless remote controller YB1FA

Wall Mounted Type

Fan Coil Unit Service Manual

PRODUCT

Model

FP-51BWA2/A-K

FP-51BWA3/A-K

FP-51BWA5/A-K

FP-85BWA2/A-K

FP-85BWA3/A-K

FP-85BWA5/A-K

Product Code

EM55000240

EM55001430

EM55000300

EM55000250

EM55001510

EM55000310

Air ow volume

High

m3/h 450 650

CFM 265 382

Medium

m3/h 383 560

CFM 225 329

Low

m3/h 323 490

CFM 190 288

Capacity

Cooling W 1500 2400

Heating W 2250 3600

Power system

Type V-Ph-Hz 220-240V~ 50Hz

Input W 50 60

Water system

Water ow volume

m3/h 0.28 0.38

GPM 1.23 1.67

Pressure drop

kPa 37 60

Ft·WG 12.2 19.7

Coil

Type Aluminum n-copper tube

Operating pressure MPa ≤1.6MPa ≤1.6MPa

Motor

Type FN20J-PG FN20V-PG

Capacitor uF 1 1.5

Power output W 20 20

Sound pressure level dB(A) 42 50

Connection

pipe size

Water inlet &outlet inch 1/2"

Condensing water drain mm 15.6

Outline dimension (W×D×H) mm 845×180×275 940×200×298

Package dimension (W×D×H) mm 915×255×355 1010×285×380

Net weight kg 11 13

Gross weight kg 14 17

Loading quantity

20'GP 365 290

40'GP 765 595

40'HQ 850 671

Standard wireless remote controller YB1FA

Wall Mounted Type

Fan Coil Unit Service Manual

PRODUCT

Model FP-85BA2/A-D

Product Code EM55001590

Air ow volume

High

m3/h 1000

CFM 588

Medium

m3/h 840

CFM 493

Low

m3/h 720

CFM 423

Capacity

Cooling W 5400

Heating W 8500

Power system

Type V-Ph-Hz 208-230V~ 60Hz

Input W 70

Water system

Water ow volume

m3/h 0.88

GPM 3.87

Pressure drop

kPa 63

Ft·WG 20.7

Coil

Type Aluminum n-copper tube

Operating pressure MPa ≤1.6MPa

Motor

Type FN20W-PG

Capacitor uF 1.5

Power output W 20

Sound pressure level dB(A) 49

Connection pipe size

Water inlet &outlet inch 1/2"

Condensing water drain mm 15.6

Outline dimension (W×D×H) mm 940×200×298

Package dimension (W×D×H) mm 1010×285×380

Net weight kg 13

Gross weight kg 17

Loading quantity

20'GP 290

40'GP 595

40'HQ 671

Standard wireless remote controller YB1FA

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gree Climatiseur

Gree

Gree Ultra Heat GMV-VQ72W/A-F Manuel utilisateur

Gree

Gree GWH09ACC-K6DNA1F/I Manuel utilisateur

Gree

Gree MULTI21 CAS12HP230V1AC Manuel utilisateur

Gree

Gree GJC08BS-A6NRNJ1B Manuel utilisateur

Gree

Gree GMV-ND22C/A-T Manuel utilisateur

Gree

Gree GWH09AOCXD-K6DNA1B Manuel utilisateur

Gree

Gree Bright Series Manuel utilisateur

Gree

Gree GWH18RC-K3DNA5G Manuel utilisateur

Gree

Gree Cozy Manuel utilisateur

Gree

Gree U-Match UMAT18HP230V1AF Manuel utilisateur

Gree

Gree GVA60AH-M3NNA5A Manuel utilisateur

Gree

Gree GWH09QB-K3DNA1G Manuel utilisateur

Gree

Gree GWH09AKC-K6DNA1A Manuel utilisateur

Gree

Gree U-Crown Series Manuel utilisateur

Gree

Gree Fresh Air Series Manuel utilisateur

Gree

Gree GWH07QB-K3DNC2G/I Manuel utilisateur

Gree

Gree GMV-N22G/A4A-K Manuel utilisateur

Gree

Gree GMV-ND180PHS/B-T Manuel utilisateur

Gree

Gree Cooling Bay Series Manuel utilisateur

Gree

Gree KF-20GW/A20 Manuel utilisateur

Gree

Gree GWH09AGA-K6DA1A Manuel utilisateur

Gree

Gree GMV-ND28TS/B-T Manuel utilisateur

Gree

Gree KFR-25x2GW/NaJ31F-K Manuel utilisateur

Gree

Gree Ultra Heat GMV-V72W/A-F Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
