Gree TS15-12PACHPEC-A Manuel utilisateur

Local air conditioner

Thank you for choosing our product.

For proper operation, please read and keep this manual carefully .

Model: TS15-12PACHPEC-A

(G15-12PACHPEC)

For your own records, please attach a copy of your sales receipt to this manual. Also, write the store

name/location, date purchased, and serial number below:

Store Name: ____________________________________________________

Location: ______________________________________________________

Date Purchased: _________________________________________________

Serial Number (located on back of unit): ______________________________

IMPORTANT INSTRUCTIONS

Before installing and using your portable air conditioner, please read this owner’s manual carefully. Store this

manual in a safe place for future reference.

1) Always place the unit on a level surface.

2) Never use or store gasoline or other flammable vapor or liquid near this unit unless instructed by this manual.

3) Maintain at least 12 inches (50 cm) clearance space around this unit. Do not block or cover air inlet or outlet grilles.

4) The unit must be connected to a correctly grounded power supply.

5) Do not start or stop the unit by inserting or pulling out the power plug.

6) Do not use an adapter plug or extension cord.

7) Do not use the unit in the immediate surroundings of a bath, a shower or a swimming pool.

8) Do not insert anything into the air outlet. Do not obstruct air inlet or outlet grills unless instructed by this manual.

9) Do not let children play near this unit.

10) Always inspect the cord for signs of damage before use. If the power cord is damaged, it must be replaced by the

manufacturer or a qualified service technician.

11) When cleaning the unit, always turn the unit off and unplug the power cord.

SPECIFICATIONS

• The cooling capacity is measured at an ambient temperature of DB 86 °F, WB 78 °F.

• Noise level is measured at a distance of 3.28 ft away from the front of the unit, when the unit is in cooling mode.

• Power consumption is measured when the fan runs at the highest speed setting.

• These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit.

• If the environment temperature is higher than the max operating temperature or lower than the minimum operating

temperature, the air conditioner may not work properly.

• Dehumidifier mode works when ambient temperatures are between 61°F - 86°F

• Air Conditioner mode operates up to an ambient temperature of 95°F.

PACKAGE CONTENTS

Portable Air Conditioner

Exhaust Hose (1)

Front Exhaust Hose Adapter (1)

Window Kit Adapter (1)

Rear Exhaust Hose Adapter (1)

Remote Control & AAA Batteries (2 batteries)

Window Kit - 3 Sliding Panels (1 single hose panel, 2 extension panels)

Owner’s Manual

Model

TS15-12PACHPEC-A

(with Heat)

Power Supply (Ph/V/Hz) 1/115/60Hz

Dehumidifying Capacity (Pints/Day) 81

Rated Cooling Capacity (BTU/h) 12,000

Rated Heating Capacity (BTU/h) 10,500

Cooling Power Input (Watts) 1465

Heating Power Input (Watts) 1200

Rated Current Cooling (Amperage) 13

Rated Current Heating (Amperage) 10.6

Noise Level (dBA) - H/M/L 55/53/51

Air Flow - H/M/L (CFM) 235/205/175

Product Dimensions (W” x H” x D”) 17.75 x 33.125 x 17.125

Product Weight (Lbs) 80

Refrigerant Type R-410A

LCDI POWER CORD AND PLUG

This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and

plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexible cord

with no termination on the load side and a LCDI attachment plug on the line side.

The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the

nominal current leakage between the cord shield and either load conductor exceeds a predetermined value.

The cord will remain de-energized until the devise has been manually reset. This is intended to reduce the risk

of a fire in the power cord or combustible materials nearby. The cord shields are not grounded and they must

be considered a shock hazards if exposed. The cord shield must not be connected to ground or to any exposed

metal.

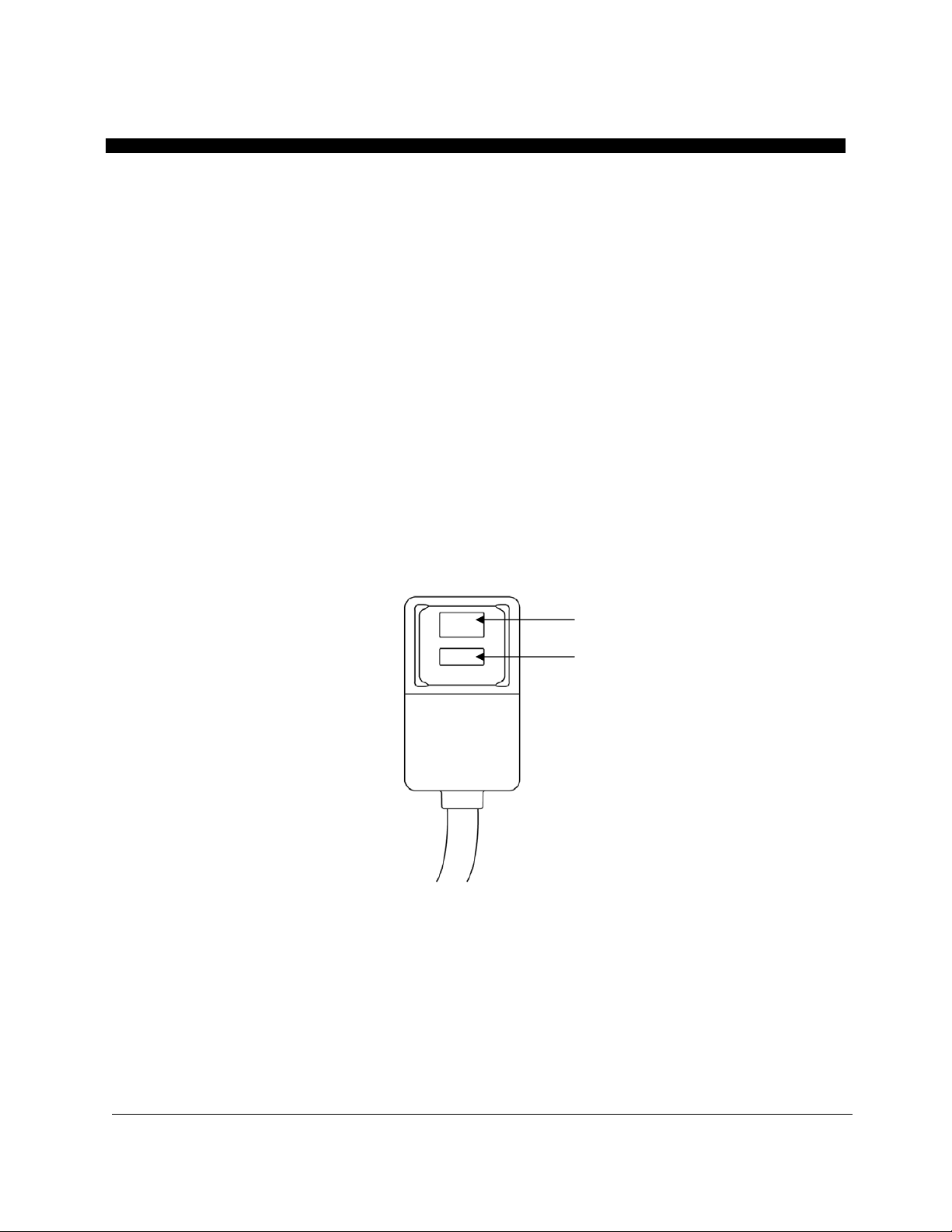

The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly. To test:

1. Plug power cord into wall outlet

2. Press TEST Button, circuit should trip, cutting power to the air conditioner

3. Press RESET button for use

If a test is performed and the indicator light remains ON, current leakage has been detected. Do not use the air

conditioner or attempt to reset the LCDI Plug. Contact MARSHALLASSOCIATESINTERNATIONAL

Customer Service for troubleshooting recommendations.

WARNING:

1. DO NOT press the TEST button while the air conditioner is operating.

2. The TEST and RESET buttons should not be used as “ON” and “OFF” switches.

3. The cord and plug are not intended to offer protection to externally connected loads or supply circuits.

4. The cord and plug are intended for indoor use only.

RESET

TEST

PRODUCT DIAGRAM

Control Panel

Carry Handle

Air Outlet &

Louvers

Power Cord

Upper Air Intake

Lower Air Intake

Air Exhaust Vent

Filter

Location

PARTS & WINDOW KIT ASSEMBLY

PARTS

EXHAUST HOSE & ADAPTERS

ASSEMBLY & INSTALLATION

INSTALLATION

When the unit is operating as an air conditioner or dehumidifier, the window kit and exhaust hose must be installed.

When the unit is operating in fan mode, the window kit and exhaust hose do not need to be installed .

MOUNTING THE EXHAUST HOSE

• Choose a suitable location, near a grounded electrical outlet and suitable window or door. Remove

packaging and locate components.

• Extend both ends of the exhaust hose approximately 6 inches.

• Screw the REAR and FRONT Exhaust Hose Adapters onto each end of the exhaust hose. Once both

adapters are attached, attach the Window Kit Adapter to the REAR Exhaust Hose Adapter.

• Connect the FRONT Exhaust Hose Adapter to the back of your portable air conditioner.

• Attach the Window Kit Adapter to the window kit.

• For maximum efficiency bend the exhaust hose as little as possible once installation is complete.

Exhaust HoseRear Exhaust Hose

Adapter

Front Exhaust Hose

Adapter

Window Kit Adapter

Sliding Panels (3)

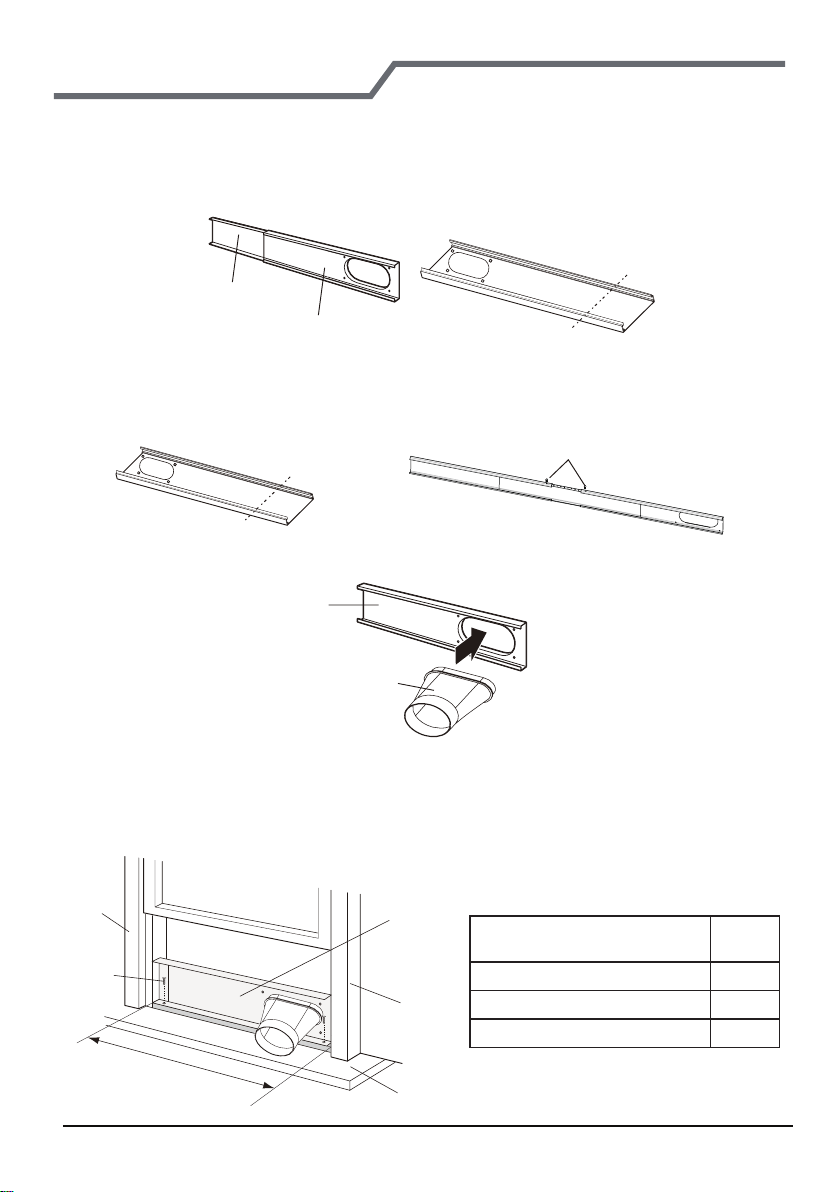

Install window frame

Note:

● If the inner width of window is below 20"(520mm), please remove the adjusting

plate from window frame and then cut the window frame to make its width the

same as the width of window.

1. Clamp joint C into the inner side of window frame along the direction of arrow.

adjusting plate

window frame

cut

window frame

joint C

●

If the inner width of window is above 20.5" (520mm), please cut the window frame

and then x the adjusting plate and window frame with two screws. Make the

total width after xing the window frame and adjusting plate the same as that of

window.

2. Open the window; place the window frame on the window sash (vertically); slide

the adjustment plate to make the window frame close to the window sashes at

the left and right (upper and lower) side of window; x the window frame on the

windowsill with screws.

Window width (W) Screw

quantity

W≤20.5"(520mm) 2

20.5"(520mm)<W≤39"(1000mm) 3

39"(1000mm)<W≤64"(1520mm) 4

window

sash

window

sash window

frame

windowsill

screw

Window width (W)

screw

3. Close the window securely against the window frame.

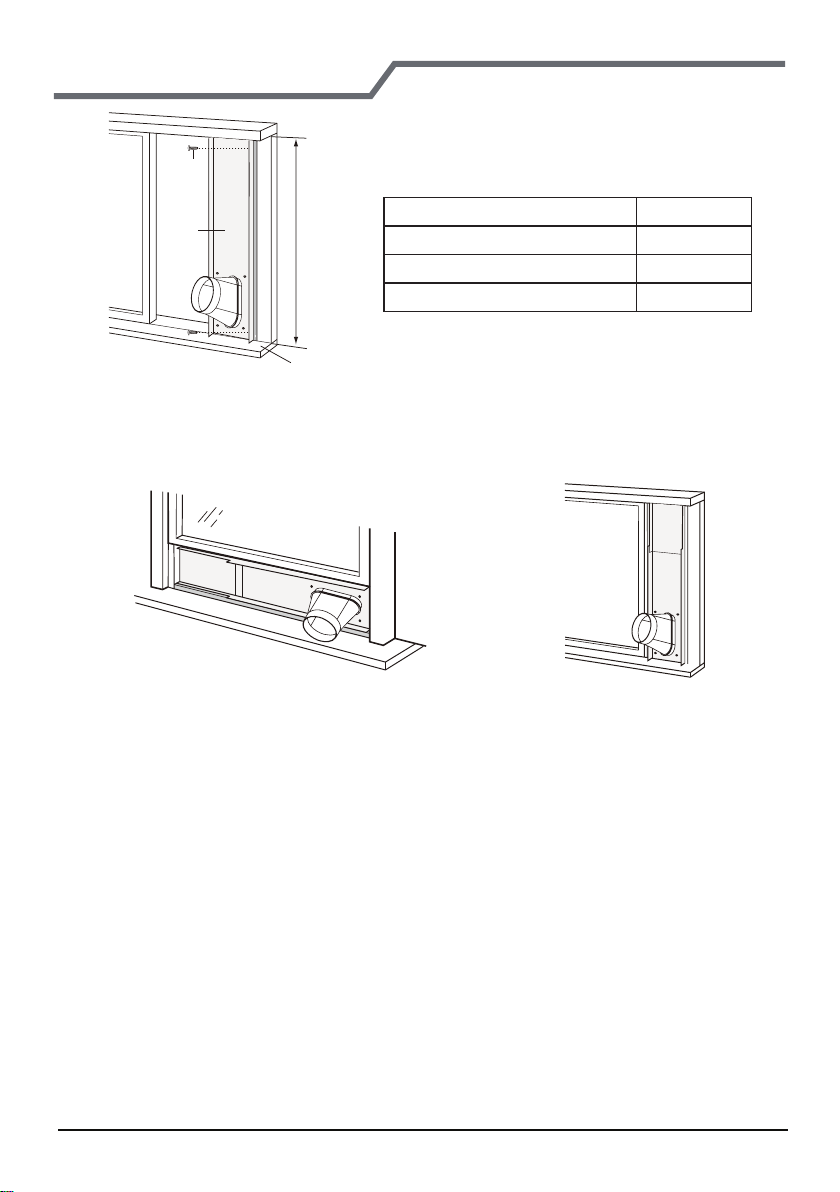

Install window frame

Window height (H) Screw quantity

H≤20.5"(520mm) 2

20.5"(520mm)<H≤39"(1000mm) 3

39"(1000mm)<H≤60"(1520mm) 4

window

frame

windowsill

screw

Window height (H)

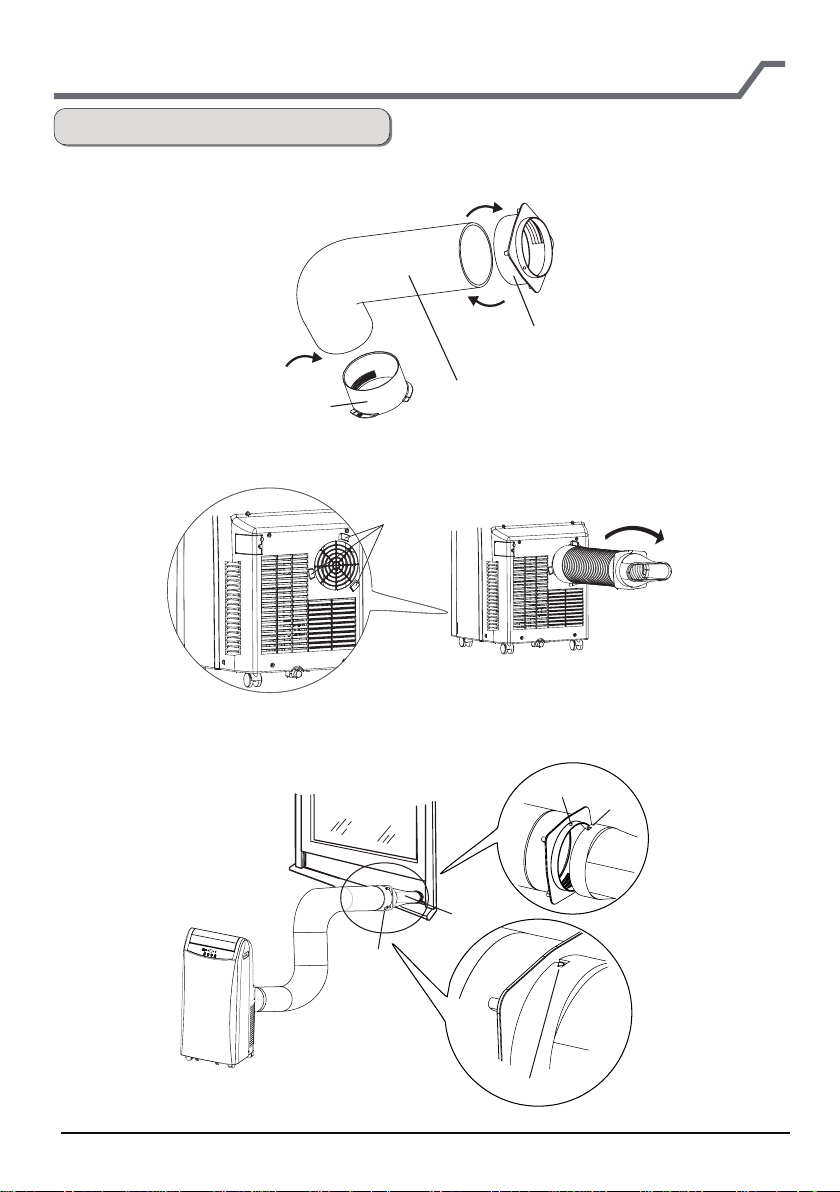

Installation and disassembly of heat discharge pipe

Install heat discharge pipe

1. Rotate joint A and joint B clockwise into the two ends of heat discharge pipe.

clockwise

joint A

joint B

heat discharge pipe

2. Rotate joint A of heat discharge pipe clockwise and assemble it into the groove

until you hear a sound.

groove

3. Aim the locating pole of joint B of heat discharge pipe at the opening of joint C;

rotate it slightly to make joint B and joint C connect tightly.

joint B

joint C

locating pole opening

tightened status

Installation and disassembly of heat discharge pipe

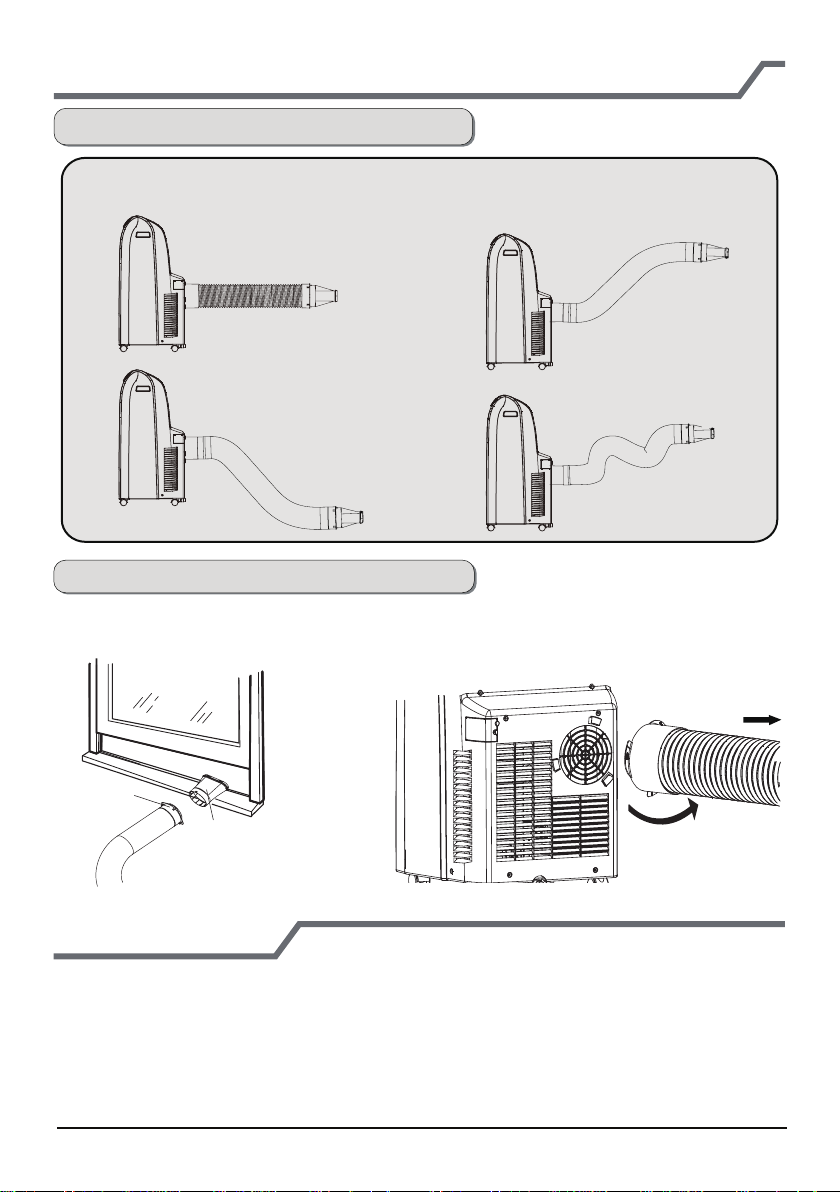

Note of Install heat discharge pipe

In order to improve cooling efciency, the heat discharge pipe should be as

short as possible and at without curve to ensure smooth heat discharge.

correct correct

correct wrong

Disassemble heat discharge pipe

1. Remove joint B:

remove joint B from joint C.

2. Remove joint A:

Rotate joint A in the arrow direction and

then remove it.

joint B

joint C

Operation test

● Put through the power supply and then press ON/OFF button on remote contro-

ller to start the unit.

● Press mode button to select auto, cooling, drying, fan or heating function, and

then check if the unit operates normally.

● If ambient temperature is below 16°C, the unit can't operate in cooling mode.
