Gree Vireo VIR09HP115V1A Manuel utilisateur

Models:

VIR09HP115V1A

VIR12HP115V1A

VIR09HP230V1A

VIR12HP230V1A

VIR18HP230V1A

VIR24HP230V1A

VIR30HP230V1A

VIR36HP230V1A

HIGH-WALL DUCTLESS

AIR CONDITIONING & HEATING SYSTE

OWNER’S ANUAL

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Part Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

System Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

Operation of Wireless Remote Contoller . . . . . . . . . . . . . . . . . . 9 -17

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back

Thank you for choosing a

Vireo Heat Pump System!

You can feel confident in your selection because the same pride in craftsmanship

and engineering knowledge that goes into millions of other ree installed

products worldwide has gone into your unit.

Please read this owner’s manual carefully before operation and retain it for

future reference.

Superior Design for Superior Performance

ree’s Vireo Heat Pumps are beautifully designed to deliver effective cooling or heating,

while fitting unobtrusively into any decor. The indoor unit’s aesthetically pleasing,

minimalist design blends nicely in any home or office.

Your Vireo unit offers quiet, energy-efficient comfort, powered by ree’s famous 10

Inverter technology. To speed the process of bringing conditioned air exactly where you

want it, the unit features both horizontal and vertical air flow control. Customizable mode

controls allow you to adjust fan speeds, special sleep-time settings and more, all through

the easy-to-use wireless remote controller, or an optional Wired Tether Controller.

There’s even a Turbo, Power Failure Memory and other advanced features to make the

Vireo system even more versatile, for year-round comfort and energy savings.

INTRODUCTION

NO ENCLATURE

Cooling Capacity

09 - 9,000 BTUH

12 - 12,000 BTUH

18 - 18,000 BTUH

24 - 24,000 BTUH

30 - 30,000 BTUH

36 - 36,000 BTUH

Series Designation

Revision Level

Style/Color Designation

Product Type

S - System

O - Outdoor units

H - Indoor High Wall

D - Indoor Duct

C - Indoor Cassette

F - Indoor Floor/Ceiling

Electrical Rating

230V - 208/230V 60Hz 1PH

Model Type

AC - Cooling Only

HP - Heat Pump

HC - Heat/Cool 115V - 115V 60Hz 1PH

Example: VIR24HP230V1AH

HVIR 24 HP 230V 1A

CROWN

RIO

TERRA

VIREO

SAFETY PRECAUTIONS

Please read the following before operation.

Recognize safety information. This is the safety-alert symbol. When you see this

symbol on the unit and in instructions or manuals, be alert to the potential for personal

injury. Understand these signal words: DANGER, WARNING, and CAUTION. These

words are used with the safety-alert symbol.

DANGER identifies the most serious hazards which will result in severe personal

injury or death.

WARNING signifies hazards which could result in personal injury or death.

CAUTION is used to identify unsafe practices which may result in minor personal

injury or product and property damage.

NOTE is used to highlight suggestions which will result in enhanced installation,

reliability, or operation.

NOTE: Your actual air conditioning & heating system and related devices may differ from

the images shown in this manual.

This appliance is not intended for use by children without responsible adult supervision.

Proper care should be taken to ensure safety.

Heat pumps, air conditioners & heating equipment should be installed, started up, and

serviced only by qualified installers and service technicians. Air conditioning, heat pumps

and refrigeration systems are hazardous due to high voltage electrical components,

high refrigerant pressures, and moving parts.

WARNING

• Disconnect electrical power to the indoor and outdoor units before performing any

maintenance or cleaning.

• Do not attempt to repair the

ree

system yourself. Incorrect repairs may cause

electric shock or fire. Contact a qualified service technician for all service requirements.

• Keep combustible materials away from the unit.

WARNING

CAUTION

SAFETY PRECAUTIONS

Please read the following before operation.

• Do not put hands or any objects into the air inlets or outlets. This may cause personal

injury or damage the unit.

• When cleaning, be careful not to splash water on the unit. Doing this may cause electric

shock or damage to unit.

• Do not use or place any flammable, combustible or noxious substance next to the unit.

• In the event of a failure (burning smell, etc.), immediately disconnect all electrical power

to indoor and outdoor units.

•

Never try repairing the system yourself; contact a qualified service technician for all repairs.

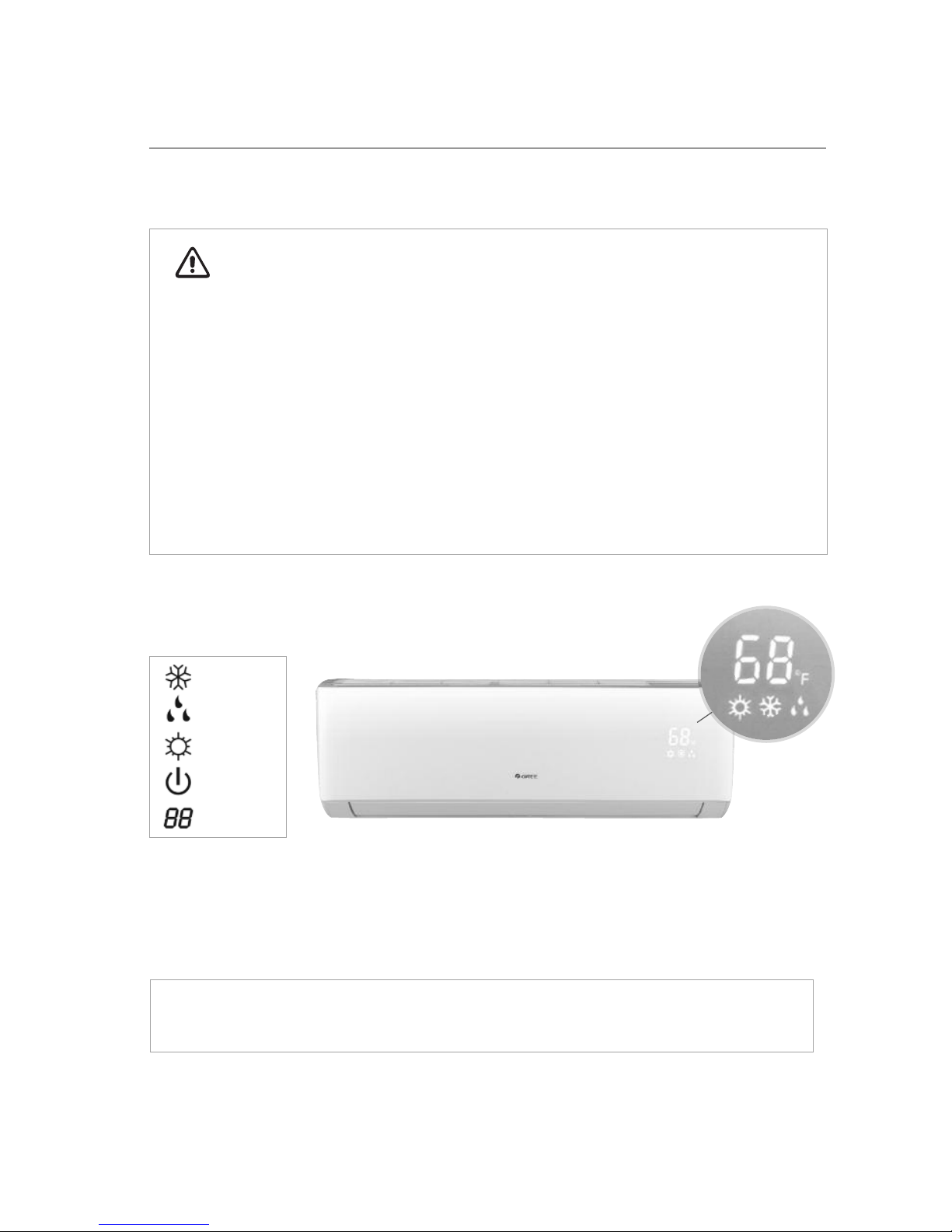

Front Panel Display

The front panel on the Vireo indoor unit contains system status lights and a modern,

easy-to-read LED display.

NOTE: The indoor unit display panel can be turned ON or OFF via the LI HT button

on the remote controller. See "LI HT" button description for more detail.

: COOL

: DRY

: HEAT

: POWER

: SET TE P

Icons Displayed

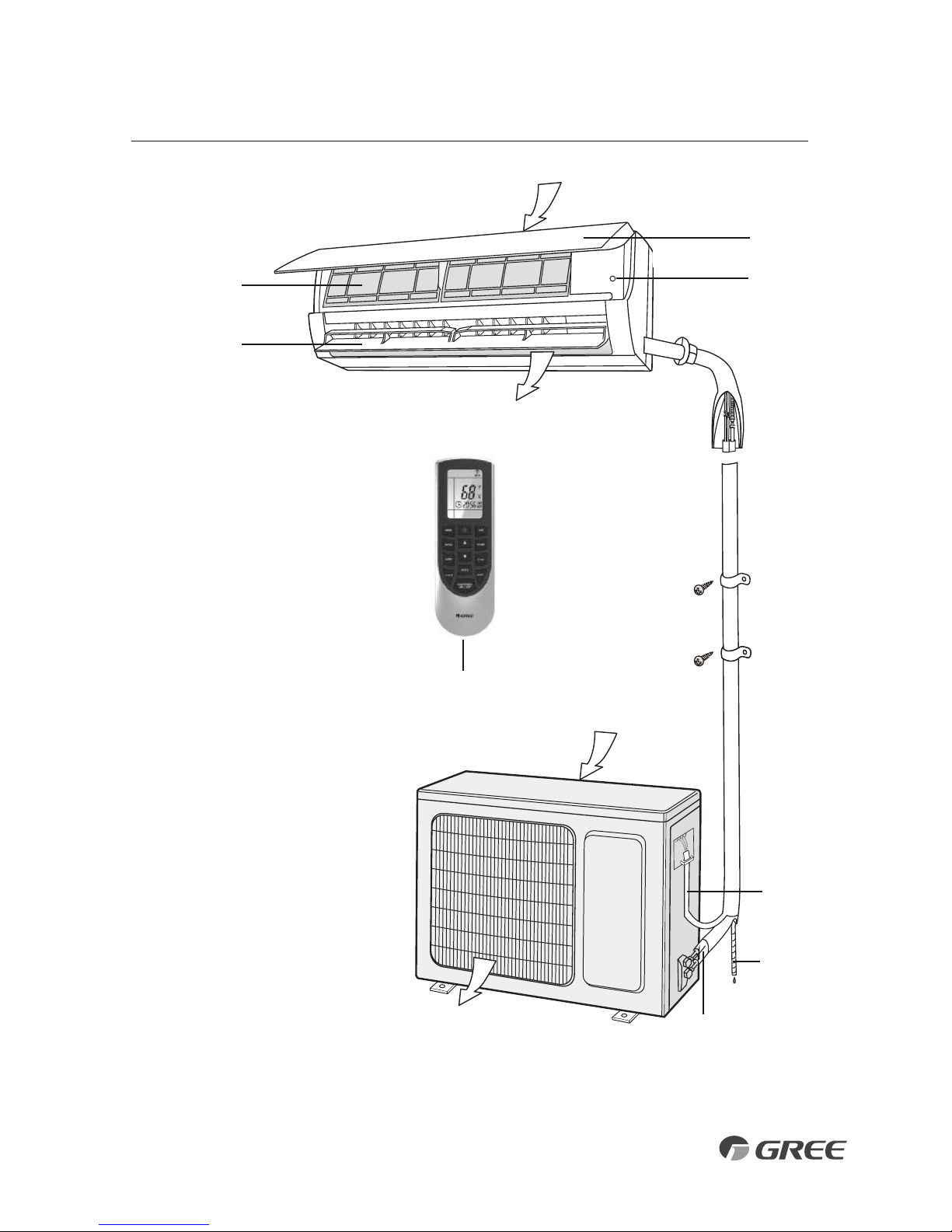

PART NA ES

Indoor unit

Part Name

1. Front Panel

2. Aux. Button

3. Filter

4. Horizontal Louver

5. Remote Controller

6. Inter-Connection Wire

7. Drain Hose

8. Refrigerant Lines

Outdoor unit

Air outlet

Air inlet

Air outlet

SYSTE FUNCTIONS

WHISPER QUIET

Not only are the ree systems energy efficient but they are quiet too. Vireo High-Wall units

operate with sound pressure levels starting as low as 26 dB(A).

ULTI FAN SPEEDS

Whether operating in either Cooling or Heating mode, the indoor fan can be set to your choice

of four different speeds (Low, Medium, High or Turbo) to achieve maximum comfort.

INTELLIGENT PRE-HEATING

The Vireo system guards against the annoying cool air blown into the room in heating mode.

The system constantly monitors the discharge air temperature. It will delay the indoor fan until

the indoor coil has warmed up to prevent blowing uncomfortable cool air into the room.

I FEEL ODE

The unit will sense room temperature at the remote controller instead of at the indoor unit.

It then adjusts airflow and temperature accordingly for the ultimate in personal comfort control

and energy savings.

ADJUSTABLE AIRFLOW

The Vireo system has a bi-directional airflow control for maximum comfort. The indoor unit

has adjustable vertical swing louvers and can be set in multiple discharge directions from the

wireless remote controller.

TURBO ODE

Use Turbo Mode for situations where you wish to achieve the desired room temperature in the

shortest possible time. This mode runs the unit at ultra high speeds for quickest results.

FREEZE GUARD

Room Freeze uard protection will automatically keep the room temperature from getting too

cold, where water pipes might freeze

TI ER ODE

The unit can be programmed to turn ON or OFF after a specific amount of time. The time period

is adjustable between one half and 24 hours.

SYSTE FUNCTIONS

ODE BUTTON

The unit can be set to five different operating modes: HEAT, COOL, DRY, FAN ONLY and AUTO.

NOTE:

AUTO MODE has fixed setpoints of 68° F heating and 78° F cooling, which are

not adjustable. The system will automatically select heating or cooling to maintain room

temperature within this band.

SLEEP ODE

The Vireo offers three selectable sleep modes for your comfort. The unit will automatically

adjust room temperature during your sleep time. This slight change in temperature will not

affect your comfort level due to the natural effects that sleeping has on the body, but it will

save on energy consumption and will lower electric bills.

ENERGY SAVINGS ODE

This feature will automatically select the optimal compressor and fan speeds to allow for

energy savings while operating in Cooling or Heating modes. The compressor and fan will

automatically slow down as the room temperature reaches the set point.

SELF-DIAGNOSIS

Vireo has a built-in computer which uses real-time diagnostics which help prolong the unit’s

life. The automatic diagnosis feature continuously scans for errors or malfunctions and fault

codes are shown on the unit display to facilitate troubleshooting and repair.

POWER FAILURE ODE

Power interruptions are no problem for the Vireo system. User selections and system parameters

are stored in non-volatile memory. These parameters are retained during a power failure. When

power is returned, the Vireo system will automatically return to the last operating mode.

SYSTE FUNCTIONS

INTELLIGENT DEFROST

The Vireo Intelligent Defrost function increases room comfort and saves energy by eliminating

unnecessary defrost cycles. In heating mode, the unit will monitor the outdoor coil for frost build

up. Once frost buildup has been detected, the system will switch into a defrost mode to remove

the frost.

POLY ERIC AIR FILTER

The polymeric mesh filters save energy by preventing the indoor coils from being plugged with

dirt and lint. This economical and sturdy filter may be washed, vacuumed and reused.

FAHRENHEIT °F/ CELSIUS °C

The remote controller and indoor wall unit front panel can be set to display in either °F or °C.

PRIVACY LOCK ODE

The wireless remote controller has a Lock feature. The Lock averts unauthorized access or

tampering with system settings.

AGENCY LISTINGS

All systems are listed with AHRI (Air conditioning, Heating, and Refrigeration Institute) and

are ETL certified per UL Standards.

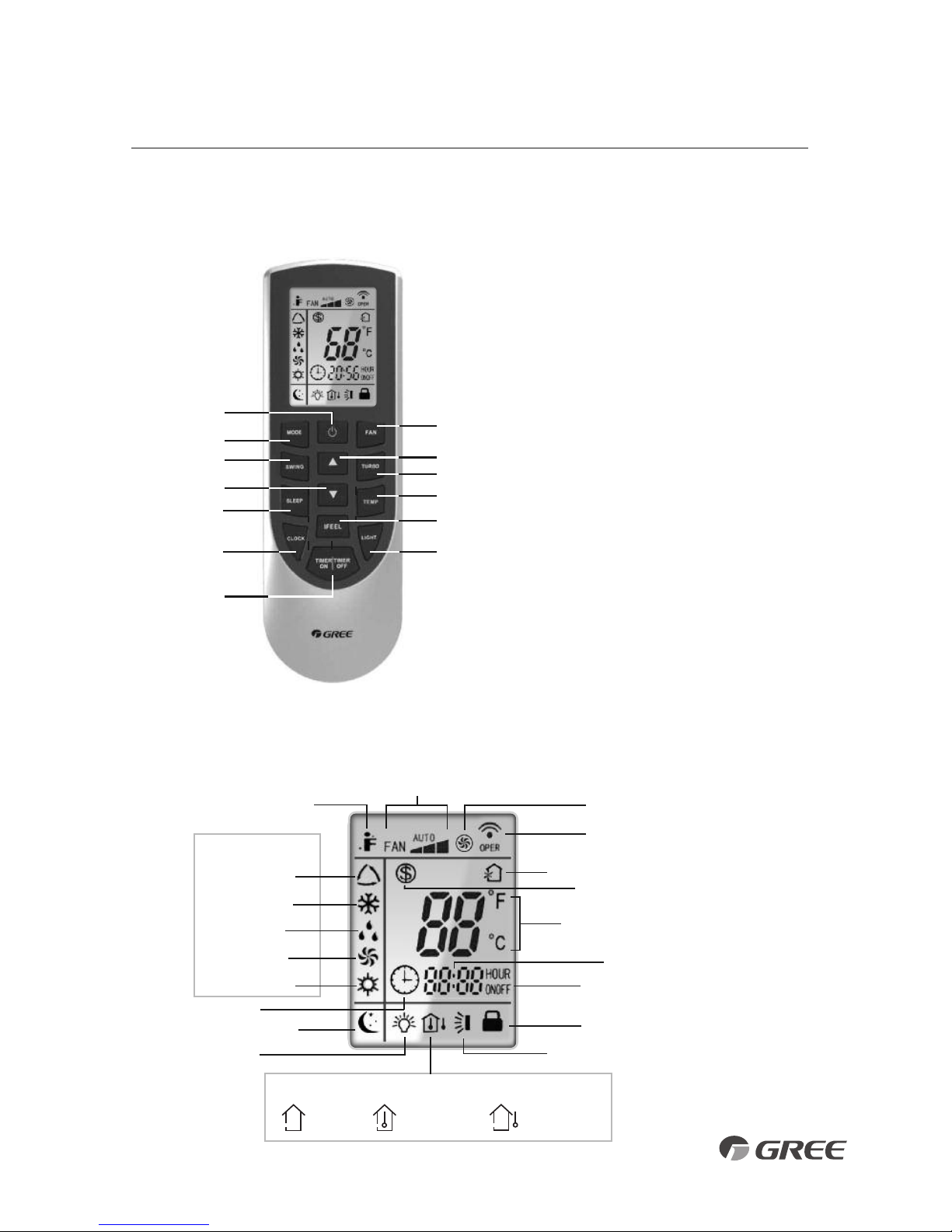

Remote Controller

INTRODUCTION FOR ICONS ON DISPLAY SCREEN

OPERATION OF WIRELESS RE OTE CONTROLLER

Part Name

1. ON/OFF Button

2. Fan Button

3. Mode Button

4. Up Button

5. Swing Button

6. Turbo Button

7. Down Button

8. Temp Button

9. Sleep Button

10. I Feel Button

11. Clock Button

12. Light Button

13. Timer On/Off Button

Auto Mode

Cool Mode

Dry Mode

Fan Mode

Heat Mode

Clock

Sleep Mode

I Feel Function

Light

Send Signal

Turbo Mode

Set Fan Speed

Operation ode

Temp.Display Type

Set Temperature

Set Time

Timer On/Off

Privacy Lock

Up & Down Swing

Set Temp. Indoor

Ambient Temp.

Outdoor

Ambient Temp.

Temp. Display Type

Freeze uard
