Service Manual

Change for life

GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI

4LIV30HP230V1A

4LIV36HP230V1A

Service Manual

Table of Contents

Part Ⅰ: Technical Information .................................. 1

1. Summary......................................................................... 1

2. Specications............................................................... 2

2.1 Specication Sheet................................................................................... 2

2.2 Capacity Variation Ratio According to Temperature ............................. 8

2.3 Cooling and Heating Data Sheet in Rated Frequency ........................... 9

3. Outline Dimension Diagram................................. 10

3.1 Indoor Unit ............................................................................................... 10

3.2 Outdoor Unit ............................................................................................ 11

4. Refrigerant System Diagram ............................... 12

4. Refrigerant System Diagram ............................... 13

5. Electrical Part ............................................................. 14

5.1 Wiring Diagram........................................................................................ 14

5.2 PCB Printed Diagram.............................................................................. 17

Function and Control .............................................. 19

6.1 Remote Controller Introduction............................................................. 19

6.2 GREE+ App Operation Manual............................................................... 28

6.3 Ewpe Smart App Operation Manual ...................................................... 29

6.4 Brief Description of Modes and Functions........................................... 30

Part Ⅱ: Installation and Maintenance ................ 33

7. Notes for Installation and Maintenance.......... 33

8. Installation ................................................................... 36

8.1 Installation Dimension Diagram ............................................................ 36

8.2 Installation Parts-checking ................................................................... 38

8.3 Selection of Installation Location.......................................................... 38

8.4 Electric Connection Requirement ......................................................... 38

8.5 Installation of Indoor Unit....................................................................... 38

Table of Contents

Service Manual

Table of Contents

8.6 Installation of Outdoor unit .................................................................... 40

8.7 Vacuum Pumping and Leak Detection .................................................. 42

8.8 Check after Installation and Test operation.......................................... 43

9. Maintenance................................................................ 44

9.1 Error Code List ........................................................................................ 44

9.2 Procedure of Troubleshooting............................................................... 49

9.3 Troubleshooting for Normal Malfunction.............................................. 66

10. Exploded View and Parts List........................... 68

10.1 Indoor Unit ............................................................................................. 68

10.2 Outdoor Unit .......................................................................................... 70

11. Removal Procedure ............................................... 73

11.1 Removal Procedure of Indoor Unit ...................................................... 73

11.2 Removal Procedure of Outdoor Unit ................................................... 78

Appendix:.......................................................................... 87

Appendix 1: Reference Sheet of Celsius and Fahrenheit ......................... 87

Appendix 2: Conguration of Connection Pipe ......................................... 87

Appendix 3: Pipe Expanding Method.......................................................... 88

Appendix 4: List of Resistance for Temperature Sensor .......................... 89

Technical Information

Service Manual

Outdoor Unit:

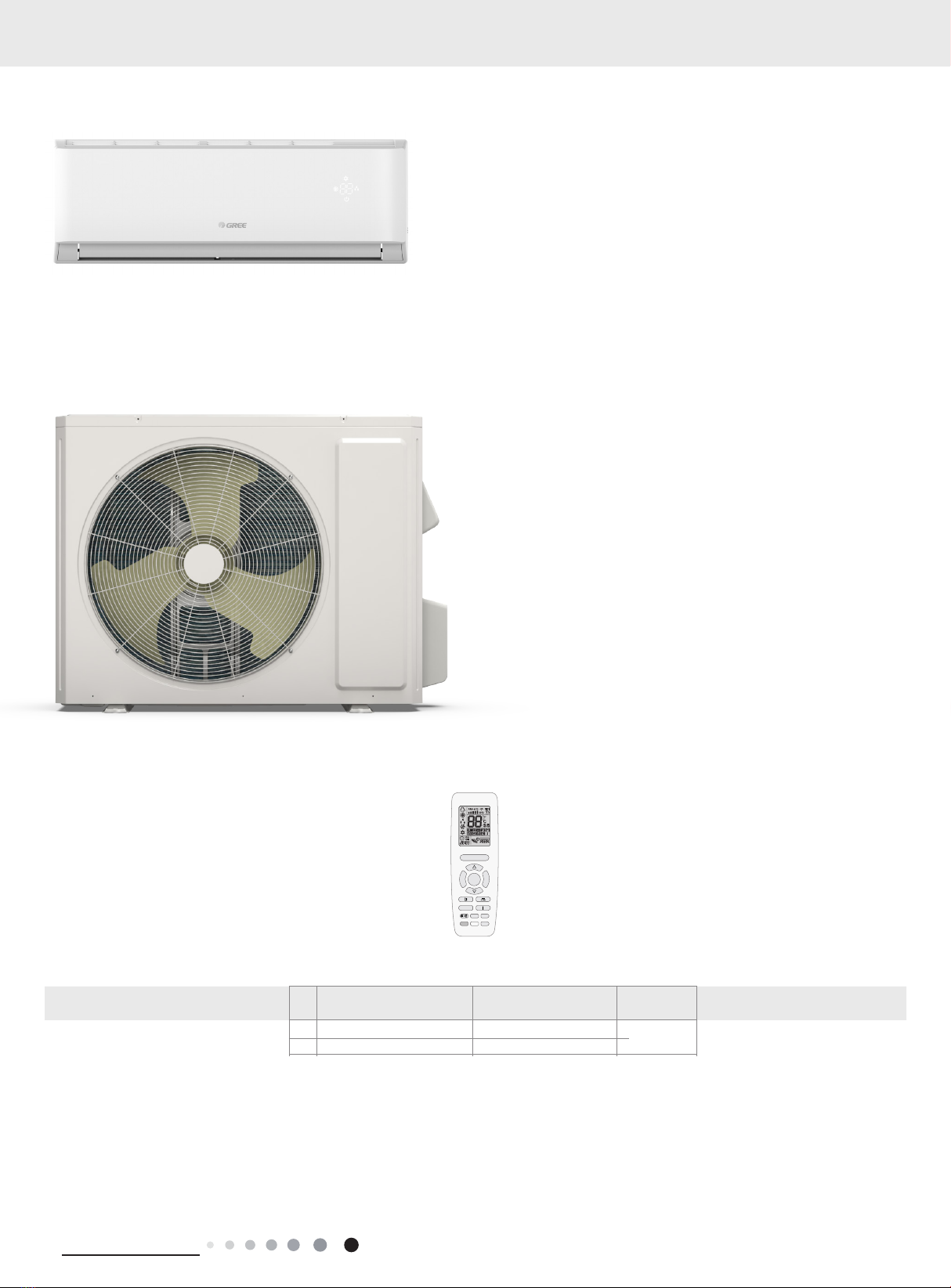

1. Summary

Indoor Unit:

4LIV30HP230V1AH 4LIV36HP230V1AH

Remote Controller:

4LIV30HP230V1AO

4LIV36HP230V1AO

Model list:

No. Indoor model Outdoor model Remote

Controller

1YAP1FB2F

(WiFi)

4LIV30HP230V1AO

4LIV36HP230V1AO

4LIV30HP230V1AH

4LIV36HP230V1AH

TURBO

FAN

MODE

ON/OFF

I FEEL

T-ON T-OFF

TEMP

CLOCK

LIGHT

WiFi

SLEEP

YAP1FB2F(WiFi)

Technical Information

Service Manual

2. Specications

2.1 Specication Sheet

INTENTIONALLY BLANK

Technical Information

Service Manual

The above data is subject to change without notice. Please refer to the nameplate of the unit.

Outdoor

Unit

Outdoor Unit Model 4LIV30HP230V1AO

Outdoor Unit Product Code CB432W29200

Compressor Manufacturer ZHUHAI LANDA

COMPRESSOR CO.,LTD

Compressor Model QXFS-B238zX070

Compressor Oil RB68DA or equivalent

Compressor Type Rotary

Compressor LRA. A 27

Compressor RLA A 14.2

Compressor Power Input W 2020

Compressor Overload Protector /

Throttling Method Electron expansion valve

Set Temperature Range ºF 61~86

Cooling Operation Ambient Temperature Range ºF -4~122

Heating Operation Ambient Temperature Range ºF -13~75

Condenser Form Aluminum Fin-copper Tube

Condenser Pipe Diameter mm Φ7

Condenser Rows-fin Gap mm 2-1.4

Condenser Coil Length (LXDXW) mm 955X38.1X704

Fan Motor Speed rpm 850

Fan Motor Power Output W 90

Fan Motor RLA A 0.9

Fan Motor Capacitor μF /

Outdoor Unit Air Flow Volume CFM 2648

Fan Type Axial-flow

Fan Diameter mm Φ570

Defrosting Method Automatic Defrosting

Climate Type T1

Isolation I

Moisture Protection IPX4

Permissible Excessive Operating Pressure for

the Discharge Side MPa 4.3

Permissible Excessive Operating Pressure for

the Suction Side MPa 2.5

Sound Pressure Level (H/M/L) dB (A) 62/-/-

Sound Power Level (H/M/L) dB (A) 72/-/-

Dimension(WXHXD) inch 39 3/8 × 29 3/8 × 16 13/16

Dimension of Carton Box (LXWXH) inch 42 26/64 X 18 57/64 X 30 58/64

Dimension of Package(LXWXH) inch 42 33/64 × 19 1/64 × 31 57/64

Net Weight Ib 113.6

Gross Weight Ib 124.6

Refrigerant R410A

Refrigerant Charge oz 74.1

Connection

Pipe

Connection Pipe Length ft 24.6

Connection Pipe Gas Additional Charge oz/ft 0.5

Outer Diameter Liquid Pipe inch 1/4"

Outer Diameter Gas Pipe inch 5/8"

Max Distance Height ft 32.8

Max Distance Length ft 82

Note: The connection pipe applies metric diameter.

2. Specications

Technical Information

Service Manual

2. Specications

INTENTIONALLY BLANK

Technical Information

Service Manual

2. Specications

INTENTIONALLY BLANK

Technical Information

Service Manual

2. Specications

INTENTIONALLY BLANK

Technical Information

Service Manual

The above data is subject to change without notice. Please refer to the nameplate of the unit.

Outdoor

Unit

Outdoor Unit Model 4LIV36HP230V1AO

Outdoor Unit Product Code CB432W31000

Compressor Manufacturer ZHUHAI LANDA

COMPRESSOR CO., LTD.

Compressor Model QXFS-D280zX070

Compressor Oil FW68DA or equivalent

Compressor Type Rotary

Compressor LRA. A 40.00

Compressor RLA A 16.00

Compressor Power Input W 2294

Compressor Overload Protector /

Throttling Method Electron expansion valve

Set Temperature Range ºF 61~86

Cooling Operation Ambient Temperature Range ºF -4~122

Heating Operation Ambient Temperature Range ºF -13~75

Condenser Form Aluminum Fin-copper Tube

Condenser Pipe Diameter mm Φ7.94

Condenser Rows-fin Gap mm 2-1.4

Condenser Coil Length (LXDXW) mm 955X38.1X704

Fan Motor Speed rpm 850

Fan Motor Power Output W 90

Fan Motor RLA A 1.50

Fan Motor Capacitor μF /

Outdoor Unit Air Flow Volume CFM 2648

Fan Type Axial-flow

Fan Diameter mm Φ570

Defrosting Method Automatic Defrosting

Climate Type T1

Isolation I

Moisture Protection IPX4

Permissible Excessive Operating Pressure for

the Discharge Side MPa 4.3

Permissible Excessive Operating Pressure for

the Suction Side MPa 2.5

Sound Pressure Level (H/M/L) dB (A) 62/-/-

Sound Power Level (H/M/L) dB (A) 72/-/-

Dimension(WXHXD) inch 39 3/8 × 29 3/8 × 16 13/16

Dimension of Carton Box (LXWXH) inch 42 26/64 X 18 57/64 X 30 58/64

Dimension of Package(LXWXH) inch 42 33/64 × 19 1/64 × 31 57/64

Net Weight Ib 127.9

Gross Weight Ib 138.9

Refrigerant R410A

Refrigerant Charge oz 84.7

Connection

Pipe

Connection Pipe Length ft 24.6

Connection Pipe Gas Additional Charge oz/ft 0.5

Outer Diameter Liquid Pipe inch 1/4"

Outer Diameter Gas Pipe inch 5/8"

Max Distance Height ft 32.8

Max Distance Length ft 82.0

Note: The connection pipe applies metric diameter.

2. Specications
