Gree UMatch UMAT18HP230V1AC Manuel utilisateur

CEI ING CASSETTE

INSTA ATION MANUA

Models:

Indoor Unit Outdoor Unit

UMAT18HP230V1AC UMAT18HP230V1AO

UMAT24HP230V1AC UMAT24HP230V1AO

UMAT30HP230V1AC UMAT30HP230V1AO

UMAT36HP230V1AC UMAT36HP230V1AO

UMAT42HP230V1AC UMAT42HP230V1AO

UMAT48HP230V1AC UMAT48HP230V1AO

Table of Contents

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Suggested Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

System Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Standard Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installation Site Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

Indoor Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12

Outdoor Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Piping Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-17

Power & Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-20

Controller Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22

Ceiling Cassette Panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Fresh Air Intake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Decorative Grille Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Testing and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-28

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-30

Diagnostic Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-33

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back

Thank you for choosing a

Ceiling Cassette Ductless

Heat Pump System for your customer.

Please read this installation manual carefully before installing and starting up

the Ceiling Cassette Ductless System. Take a moment to fill out the product and

installation form on the back cover. Retain both the manual and installation

record for future reference.

SAFETY PRECAUTIONS

Please read the following before installation.

This is the safety alert symbol. It is used to alert you to potential

personal injury hazards. Obey all safety messages that follow this

symbol to avoid possible injury or death.

This mark indicates procedures which, if improperly performed,

might lead to the death or serious injury of the user.

This mark indicates procedures which, if improperly performed, might

possibly result in personal harm to the user, or damage to property.

Notice is used to address practices not related to personal injury.

General Safety Precautions

1. Instructions for installation and use of this product are provided by the manufacturer.

For proper operation, the system must be installed in accordance with this

installation manual.

2. Installation must be performed in accordance with local laws, regulations and

National Electrical Codes (NEC).

3. If refrigerant leaks while work is being carried out, ventilate the area. Do not allow

refrigerant to come in contact with a flame as it produces toxic gas.

4. Disconnect all electrical power to the indoor and outdoor units until the system is

ready for start-up and checkout.

5. When installing or repairing the system, use only R410A refrigerant. Do not

mix refrigerant with other gases. If air or other gas enter the refrigeration system,

the pressure inside the system may rise to an abnormally high value and cause

damage or injury.

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING

CAUTION

NOTICE

WARNING

Indoor unit

Outdoor unit

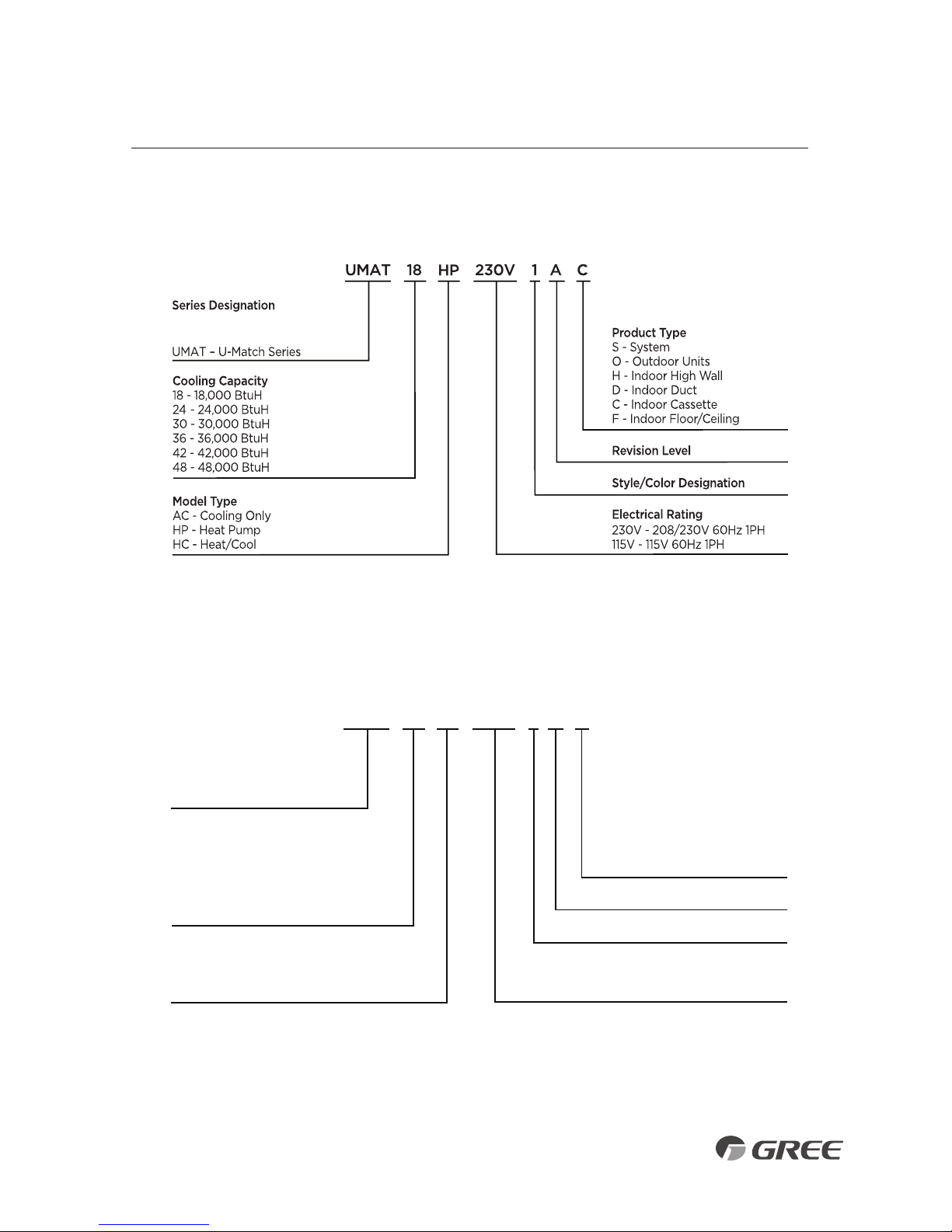

NOMENC ATURE

Example: UMAT18HP230V1AC

UMAT 18 1 A O

Series Designation

UMAT – U-Match Series

Product Type

S - System

O - Outdoor Units

H - Indoor High Wall

D - Indoor Duct

C - Indoor Cassette

F - Indoor Floor/Ceiling

Revision Level

Style/Color Designation

Electrical Rating

230V - 208/230V 60Hz 1PH

115V - 115V 60Hz 1PH

HP 230V

Cooling Capacity

18 - 18,000 BtuH

24 - 24,000 BtuH

30 - 30,000 BtuH

36 - 36,000 BtuH

42 - 42,000 BtuH

48 - 48,000 BtuH

Model Type

AC - Cooling Only

HP - Heat Pump

HC - Heat/Cool

Example: UMAT18HP230V1AO

SYSTEM REQUIREMENTS

REFRIGERANT CHARGE

INDOOR UNIT E ECTRICA REQUIREMENTS

PIPE SIZE in (mm)

Notes: Insulate both refrigerant lines, separately.

Communication Cable: Recommended cable - 18/2 AWG stranded bare copper conductors THHN 600V unshielded wire

Note: Use shield cable if installation is in close proximity of RF and EMI transmitting devices.

Unit Size

(BtuH)

18,000 1/4 (6) 1/2 (12) 10 (3) 25(7.5) 66 (20) 49 (15)

24,000 3/8 (10) 5/8 (15) 10 (3) 25(7.5) 98 (30) 49 (15)

30,000 3/8 (10) 5/8 (15) 10 (3) 25(7.5) 98 (30) 49 (15)

36,000 3/8 (10) 5/8 (15) 10 (3) 25(7.5) 98 (30) 49 (15)

42,000 3/8 (10) 5/8 (15) 10 (3) 25(7.5) 164 (50) 98 (30)

48,000 3/8 (10) 5/8 (15) 10 (3) 25(7.5) 164 (50) 98 (30)

Min ine

Max. Pre-Charge

Max ine

Max Elevation

ength

ine ength

ength

(ID over OD)

iquid Suction/Gas

ine ine

Unit Size Refrigerant Factory System Additional

(BtuH) Type Charge oz (kg)* Charge oz/ft (g/m)

18,000 R410A 49.4 (1.4) 0.3 (30)

24,000 R410A 78.4 (2.2) 0.6 (60)

30,000 R410A 84.6 (2.4) 0.6 (60)

36,000 R410A 123.2 (3.6) 0.6 (60)

42,000 R410A 131.2 (3.8) 0.6 (60)

48,000 R410A 141.8 (4.1) 0.6 (60)

Unit Size Voltage Min Circuit Max Overcurrent Main Power

(BtuH) Amps (MCA) Protection (MOCP) Wire Size (AWG)

18,000 208/230v - 1ph 60hz 1.0 15 14

24,000 208/230v - 1ph 60hz 1.5 15 14

30,000 208/230v - 1ph 60hz 1.5 15 14

36,000 208/230v - 1ph 60hz 1.5 15 14

42,000 208/230v - 1ph 60hz 1.5 15 14

48,000 208/230v - 1ph 60hz 2.0 15 14

OUTDOOR UNIT E ECTRICA REQUIREMENTS

Unit Size Voltage Min Circuit Max Overcurrent Main Power

(BtuH) Amps (MCA) Protection (MOCP) Wire Size (AWG)

18,000 208/230v - 1ph 60hz 17.0 25 10

24,000 208/230v - 1ph 60hz 24.0 40 10

30,000 208/230v - 1ph 60hz 24.0 40 10

36,000 208/230v - 1ph 60hz 29.0 45 8

42,000 208/230v - 1ph 60hz 31.0 50 8

48,000 208/230v - 1ph 60hz 45.0 70 6

*Precharge amount for up to 25-ft of refrigerant pipe.

REFRIGERANT INE ENGTHS ft (m)

• Standard Wrench

• Adjustable/Crescent Wrench

• Torque Wrench

• Hex eys or Allen Wrenches

• Drill & Drill Bits

• Hole Saw

• Pipe Cutter

• Screw drivers (Phillips & Flat blade)

• Manifold and Gauges

• Level

• R410A Flaring Tool

• Clamp on Amp Meter

• Vacuum Pump

• Safety Glasses

• Work Gloves

• Refrigerant Scale

• Micron Gauge

SUGGESTED TOO S

SYSTEM PARTS

Indoor unit

Part Name

1. Indoor Power Supply

2. Drain Pipe

3. Communication Cable

4. Decorative Discharge Air

Grille (sold separately)

5. Refrigeration Pipes

6. Wired Tether Controller

(sold separately)

7. Remote Controller

8. Service Cover

9. Communication Cable

10. Front Panel

11. Outdoor Power Supply

12. Liquid Pipe

13. Gas Pipe

14. Drain Hose

Outdoor Unit

Air outlet

Air inlet

Air outlet

Air inlet

1110

The refrigerant pipe, drain pipe and electrical wiring for this unit should be installed by a

qualified HVAC professional only.

CAUTION

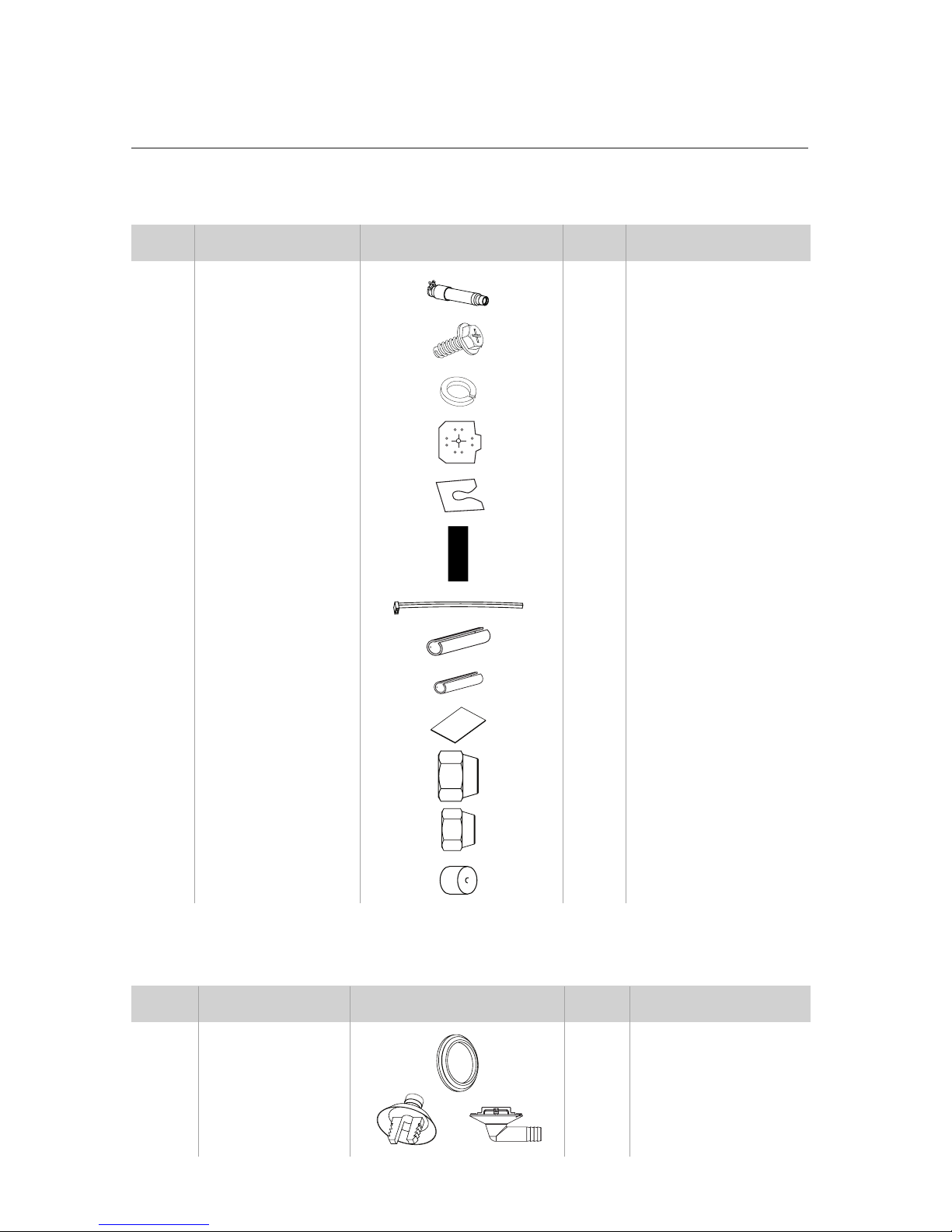

STANDARD PARTS

Indoor Unit Accessories

Outdoor Unit Accessories

No. Name Appearance Qty Usage

1 Drain Hose 1 Connects with field

supplied drain pipe

2 Screw with Washer 4 Secures the hook on the

cabinet of the unit

3 Washer 10 Used together with the hanger

bolt for installing the unit

4 Installation Template 1 Used for ceiling drilling

5 Gasket Mounting Board 4 Prevents gasket from

falling off

6 Remote Controller 1 Remotely controls the

indoor unit

7 Cable Clamp 4 Fastens the insulation to pipe

8 Pipe Insulation 1 Insulates the gas pipe

9 Pipe Insulation 1 Insulates the liquid pipe

10 Insulation 4

Insulates the drain pipe

11 Flare Nut 1 Connects the gas pipe

12 Flare Nut 1 Connects the liquid pipe

13 Service Valve Cap 2 Protects service port

No. Name Appearance Qty Usage

1 Drain Plug 2 or 3 Plugs the unused drain hole

2 Drainage Connecter

1Connects with the hard

PVC drain pipe

INSTA ATION SITE INSTRUCTIONS

Indoor Unit

The unit must be installed in a location which can withstand four times the weight of the unit.

Inadequate support may result in serious property damage and injuries.

Select a site that allows for the following:

•Ensure the installation complies with the installation minimum dimensions and meets the

minimum and maximum connecting piping length and maximum change in elevation.

• Air inlet and outlet should be clear of obstructions, ensuring proper airflow throughout the room.

• Condensate can be easily and safely drained.

• All connections can be easily made to outdoor unit.

• Indoor unit is out of reach of children.

• A structure strong enough to withstand four (4) times the full weight and vibration of the unit.

• Filter can be easily accessed for cleaning.

• Leave enough free space to allow access for routine maintenance.

• Do not install in a laundry room or by a swimming pool due to chemicals corroding cassette coil.

WARNING

Minimum Indoor Clearances

INSTA ATION SITE INSTRUCTIONS

Outdoor Unit

Do not install the unit at a location where the distance exceeds the maximum pipe length indicated

the table. The maximum length of the connection pipe is listed in the System Requirements section.

CAUTION

WARNING

Outdoor Unit Minimum Distances

in (mm)

A 20 (500)

B 20 (500)

C 24 (610)

D 12 (305)

E 12 (305)

Air inlet

Air outlet

BC D

The unit should be installed level on a pad that can support twice the weight of the unit.

If the outdoor unit will be exposed to strong winds, it must be adequately secured.

1. I

nstall the outdoor unit at a location that is capable of withstanding twice the weight of the unit.

2. Install the outdoor unit where it is convenient to connect refrigerant lines to the indoor unit.

3. I nstall the outdoor unit where the condensate water can be drained unobstructed during the

heating mode to a safe location.

4. Do not locate the unit where the noise may be objectionable to neighbors.

5. Provide the space shown below, so that the air flow is not blocked and future service and

maintenance can be performed.

Select a site that allows the following:

Minimum Outdoor Clearances

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gree Climatiseur

Gree

Gree GWH18MC-K3DNA2G Manuel utilisateur

Gree

Gree GWH18MC-K3DNB7G Manuel utilisateur

Gree

Gree GWH09YCXB-K6DNA1C Manuel utilisateur

Gree

Gree GWH12RB-K3DNA5G Manuel utilisateur

Gree

Gree GRH085DA-K3NA1A Manuel utilisateur

Gree

Gree GJC07AB-K3MNB8A Manuel utilisateur

Gree

Gree KF-20GW/A20 Manuel utilisateur

Gree

Gree GSA228XA Manuel utilisateur

Gree

Gree FP-51XD-E Manuel utilisateur

Gree

Gree GWH12MB-K3DNE3G Manuel utilisateur

Gree

Gree GWH12KF-A3DNB1A Manuel

Gree

Gree GEHAA-D3DNA1C/I Manuel utilisateur

Gree

Gree UMatch UMAT18HP230V1AO Manuel utilisateur

Gree

Gree GUHN09NK3AO Manuel utilisateur

Gree

Gree GUD50T/B-S Manuel utilisateur

Gree

Gree GWC24TD-S3DNA1B Manuel utilisateur

Gree

Gree GICF209BXAE Manuel utilisateur

Gree

Gree GWH09AB-A3DNA1B Manuel utilisateur

Gree

Gree GJC09AF-E6RNB3A Manuel utilisateur

Gree

Gree EXTREME Series Manuel utilisateur

Gree

Gree Bright Series Manuel utilisateur

Gree

Gree GVH24AK-K3DNC8A Manuel utilisateur

Gree

Gree GUHD09NK3FO Manuel utilisateur

Gree

Gree GJC08BK-A6NRNE2D Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
