Graco ISPCO80CA Manuel utilisateur

READ THIS MANUAL

KEEP INSTRUCTIONS FOR FUTURE USE.

Do not install or use this infant restraint until you

read and understand the instructions in this manual.

FAILURE TO PROPERLY USE THIS INFANT RESTRAINT

INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN

A SUDDEN STOP OR CRASH.

Infant Restraint/Carrier

Owner’s Manual

1.0 Warning to Parents and Other Users . . . . . . . . . . . . . . . . . .4

2.0 Registration Information . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6

2.1 Register Your Infant Restraint . . . . . . . . . . . . . . . . . . . . . .5

2.2 Recall Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.3 If You Need Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3.0 Features and Components . . . . . . . . . . . . . . . . . . . . . . . .7-15

3.1 3-Point Harness Model . . . . . . . . . . . . . . . . . . . . . . . . . . .8

3.2 5-Point Harness Model . . . . . . . . . . . . . . . . . . . . . . . . . .10

3.3 Removing andAttaching Base . . . . . . . . . . . . . . . . . . . . .12

3.4 Adjusting Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

3.5 Attaching Canopy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

3.6 Cold Weather Boot (on certain models) . . . . . . . . . . . . . .14

3.7 Head Support (on certain models) . . . . . . . . . . . . . . . . . .15

4.0 Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . .16-20

4.1 Warnings for Use as Infant Restraint . . . . . . . . . . . . . . . .16

4.2 Warning for Use With a Stroller . . . . . . . . . . . . . . . . . . . .18

4.3 Additional Warnings for Use as Carrier . . . . . . . . . . . . . .19

4.4 Height and Weight Limits . . . . . . . . . . . . . . . . . . . . . . . .20

5.0 Infant Restraint Location . . . . . . . . . . . . . . . . . . . . . . . .21-26

No infant restraint can guarantee protection from injury in every

situation. However, proper use of this infant restraint reduces the

risk of serious injury or death to your child.

5.1 Vehicle Seat Requirements . . . . . . . . . . . . . . . . . . . . . . .21

5.2 Vehicle Seat Belt Requirements . . . . . . . . . . . . . . . . . . .22

5.2.1 UNSAFE Vehicle Belt Systems . . . . . . . . . . . . . . . .23

5.2.2 SAFE Vehicle Belt Systems . . . . . . . . . . . . . . . . . .24

5.3 UAS (Universal Anchorage System) locations . . . . . . . .26

6.0 Using Infant Restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27-40

6.1 Positioning Harness Straps . . . . . . . . . . . . . . . . . . . . . . .27

6.1.1 3-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .28

6.1.2 5-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .29

6.2 Securing Child in Infant Restraint . . . . . . . . . . . . . . . . . .31

6.2.1 3-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .32

6.2.2 5-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .33

6.3 Installing Infant Restraint/Base Using Vehicle Belt . . . . . .34

6.4 Using UAS (Universal Anchorage System) to

Install Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

6.5 Reclining Infant Restraint/Base . . . . . . . . . . . . . . . . . . . .38

7.0 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . .41-43

7.1 Airplane Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

7.2 Storing UAS (Universal Anchorage System) . . . . . . . . .42

7.3 Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . .43

1.0 Warnings to Parents and

Other Users

Failure to properly use this infant restraint increases the risk of serious

injury or death in a sharp turn, sudden stop or crash. Your child’s safety

depends on you installing and using this infant restraint correctly.

Even if using this infant restraint seems easy to figure out on your own, it

is very important to READ THE OWNER’S MANUAL. The manual is

located in the back pocket of the infant restraint. You must also read

your vehicle owner’s manual.

Your child’s safety depends on:

1. Choosing a suitable location in your vehicle. Some seating

positions, such as those equipped with air bags, may not be safe

locations for this infant restraint.

2. Inserting the harness straps in the proper slots for your child.

3. Properly securing your child in the infant restraint.

4. Placing infant restraint/base in a rear-facing position.

5. Properly routing the vehicle seat belt or UAS.

6. Properly reclining the infant restraint.

7. Properly securing the infant restraint in the vehicle using

a seat belt designed to restrain an infant restraint or by using UAS.

Many seat belts are NOT safe to use with infant restraints, even

though they can easily be threaded through the infant restraint!

Model Number:

Serial Number:

Purchase Date:

2.1 Register Your Infant Restraint

Please fill in the above information. The model and serial numbers

can be found on a label underneath your infant restraint. Fill out the

prepaid registration postcard attached to the seat cover and mail

it today.

Child restraints could be recalled for safety reasons. You must

address and model/serial numbers to:

Elfe Juvenile Products

5171 Thimens

Saint-Laurent, Quebec

H4R 3C6

or call 1-800-667-8184 or 514-344-3533 in Montreal.

2.0 Registration Information

2.2 Recall Information

• Call the Customer Service in Canada at 1-800-667-8184 or in

Montreal at 1-514-344-3533

• www.elfe.net

2.3 If You Need Help

Please contact our Customer Service Department with any questions

you may have concerning parts, use, or maintenance. When you

ready so that we may help you efficiently. These numbers can be

found on a sticker on the underside of your infant restraint.

1-800-667-8184 Montreal: 514-344-3533

Each model of the infant restraint comes with different harness

options. To adjust your infant restraint properly, it is very

important to follow the instructions that are appropriate for the

model you have purchased.

3.0 Features and Components

Vehicle belt/UAS* path

5-Point Harness3-Point Harness

Canadian Federal Motor Vehicle Safety Standards have defined a

new system for installing car seats in vehicles. The system is called

UAS* (UniversalAnchorage System).

* UAS may be used IN PLACE of vehicle belt ONLY if vehicle is equipped

with UAS anchor points. Please refer to vehicle owners manual for UAS

locations.

Base

Adjustable Foot

UAS Connector

Adjustment Belt UAS

Storage

Bars

3.1 3-Point Harness Model

Handle

Harness

slots

Vehicle belt

hook

Handle

adjustment

button

Harness

clip

Harness

buckle Harness

straps

FRONT VIEW: 3-POINT HARNESS

REAR VIEW: 3-POINT HARNESS

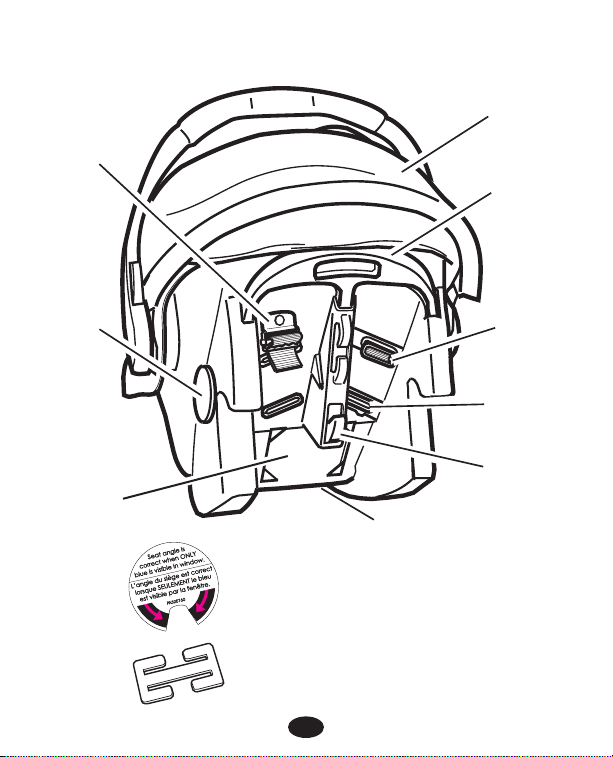

Canopy

Harness

slot

Release

handle

Attachment

latch

Level

indicator*

Owner’s

manual

pocket Locking

clip**

Harness

anchor

buckle

Harness

tightener

The level indicator is attached to the side of

the infant restraint, and indicates whether or

not the infant restraint is properly reclined.

The locking clip is stored on the bottom of

the infant restraint. You will need to use it

with certain types of vehicle seat belts.

**Locking

Clip

*Level

Indicator

3.2 5-Point Harness Model

FRONT VIEW: 5-POINT HARNESS

Handle

Harness

slots

Vehicle

belt

hook

Handle

adjustment

button

Harness

clip

Harness

adjustment strap

Harness

buckle

Harness

adjustment

button

Harness

buckle tongues
