Graco Xtreme 244463 Manuel utilisateur

309362

Rev. E

Related manuals

U.S. Patent Pending

. . 309342

309092, 308438. . . . . . .

309340. . . . . . .

.. 307049

OPERATION

Zinc Sprayer

List of Models, page 2

For Maximum Working Pressure see page 2

INSTRUCTIONS

IMPORTANT WARNINGS AND

INFORMATION.

Read and keep for reference.

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441

Graco Inc. is registered to I.S. EN ISO 9001

2309362

List of Models

HD = Heavy Duty Cart

LW = Light Weight Cart

Part

No.

Series Ratio /

Pump

Pump No. Gun Hose HD LW Maximum Fluid

Working Pressure

Maximum Air

Input Pressure

244463 A 33:1

Bulldog 245117 X X X 20.7 MPa

(207 bar) (3000 psi)

.7 MPa

(7.0 bar) (100 psi)

245113 A 24:1

Bulldog 245116 X X X 23.4 MPa

(234 bar) (3400 psi)

.7 MPa

(7.0 bar) (100 psi)

3309362

Symbols

When you see a symbol in the manual, for example

refer to the WARNINGS on pages 3–4.

WARNING

INSTRUCTIONS

EQUIPMENT MISUSE HAZARD

Equipment misuse can cause the equipment to rupture, malfunction, or start unexpectedly and result in serious

injury.

DRead all instruction manuals, tags, and labels before operating the equipment.

DDo not exceed the maximum working pressure of the lowest rated system component. See page 2 for maxi-

mum working pressure of each package.

DDo not alter or modify equipment.

DDo not use hoses to pull equipment.

DWear hearing protection when operating this equipment.

DMoving parts can pinch or amputate your fingers.

DFollow all local, state, and national fire, electrical, and safety regulations.

WARNING

PRESSURIZED FLUID AND INJECTION HAZARD

Spray from the gun, hose leaks, or ruptured components can splash fluid in the eyes or on the skin and cause

serious injury. High pressure spray or leaks can inject fluid into the body.

DFollow Pressure Relief Procedure on page 10 when you stop spraying or begin servicing sprayer.

DFluid injected into the skin might look like a cut, but is a serious injury. Get immediate medical attention.

DDo not put your hand or fingers over the spray tip, or point gun at anyone or any part of body. Do not stop or

deflect leaks with your hand, body, glove, or rag.

DCheck the hoses, tubes, and couplings daily. Tighten all fluid connections before each use.

DKnow the specific hazards of the fluid you are using. Read the fluid manufacturer’s warnings.

DWear appropriate protective clothing, gloves, eyewear, and respirator.

DAlways have the tip guard and the trigger guard on the gun when spraying.

DCheck hoses and couplings daily. Replace worn or damaged parts immediately. Do not repair high pressure

couplings; you must replace entire hose.

4309362

Symbols

WARNING

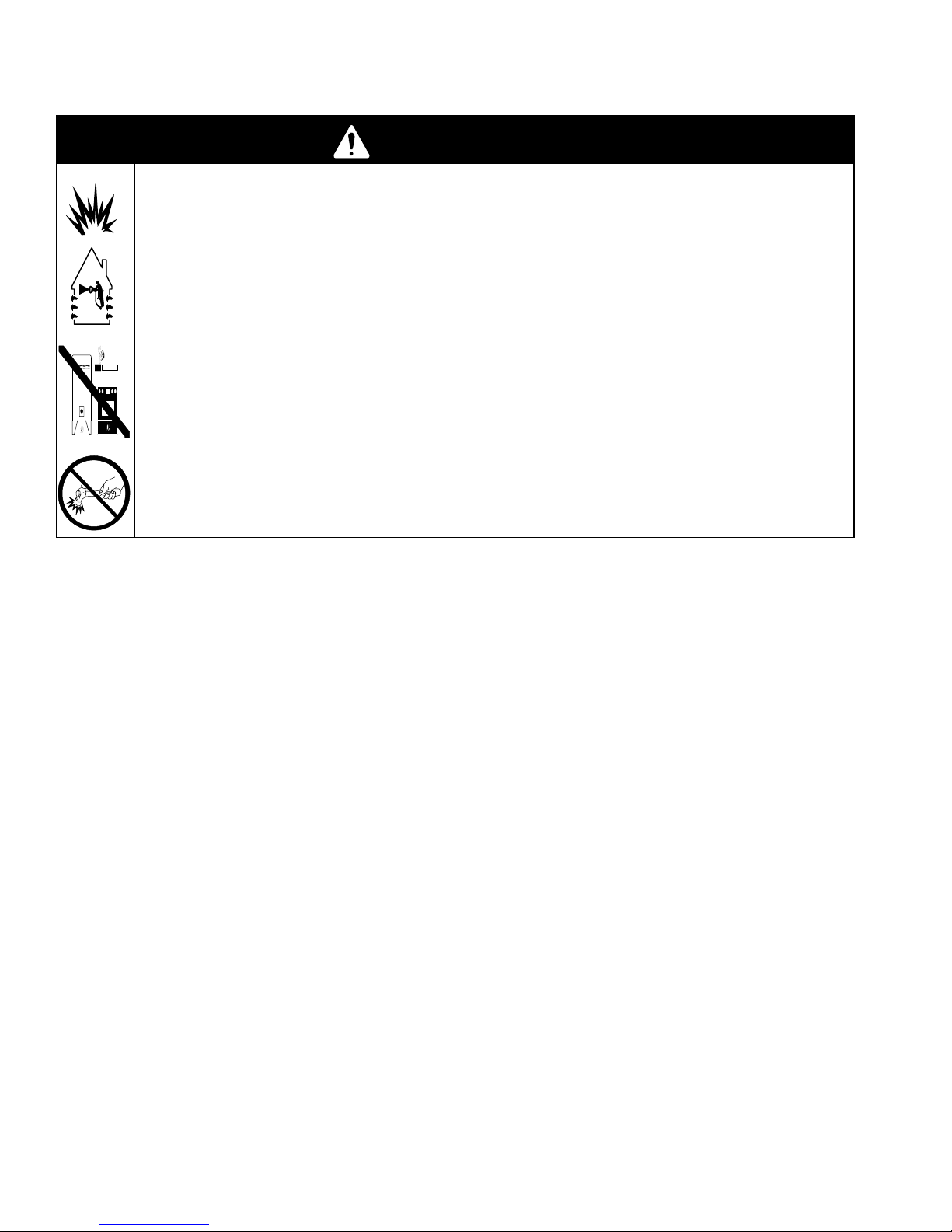

FIRE AND EXPLOSION HAZARD

Solvent and paint fumes can ignite or explode. To help prevent a fire and explosion:

DGround the equipment and the object being sprayed. See Grounding on page 7.

DUse in extremely well ventilated area.

DHold gun firmly to side of grounded pail when triggering into pail.

DUse only electrically conductive paint hose.

DIf there is any static sparking while using the equipment, stop spraying immediately. Identify and correct the

problem.

DEliminate all ignition sources such as pilot lights, cigarettes, and static arcs from plastic drop cloths. Do not plug

in or unplug power cords or turn lights on or off in the spray area.

DTo reduce the risk of static arcing which could result in a fire or explosion and serious injury, use only non–

sparking tools.

5309362

6309362

Overview

Pump Air Regulator

OFF

Loosen nut

Tighten nut

Adjust Air

Air Supply Valve

(Must be Bleed Type)

Grounding Wire

Return System

7309362

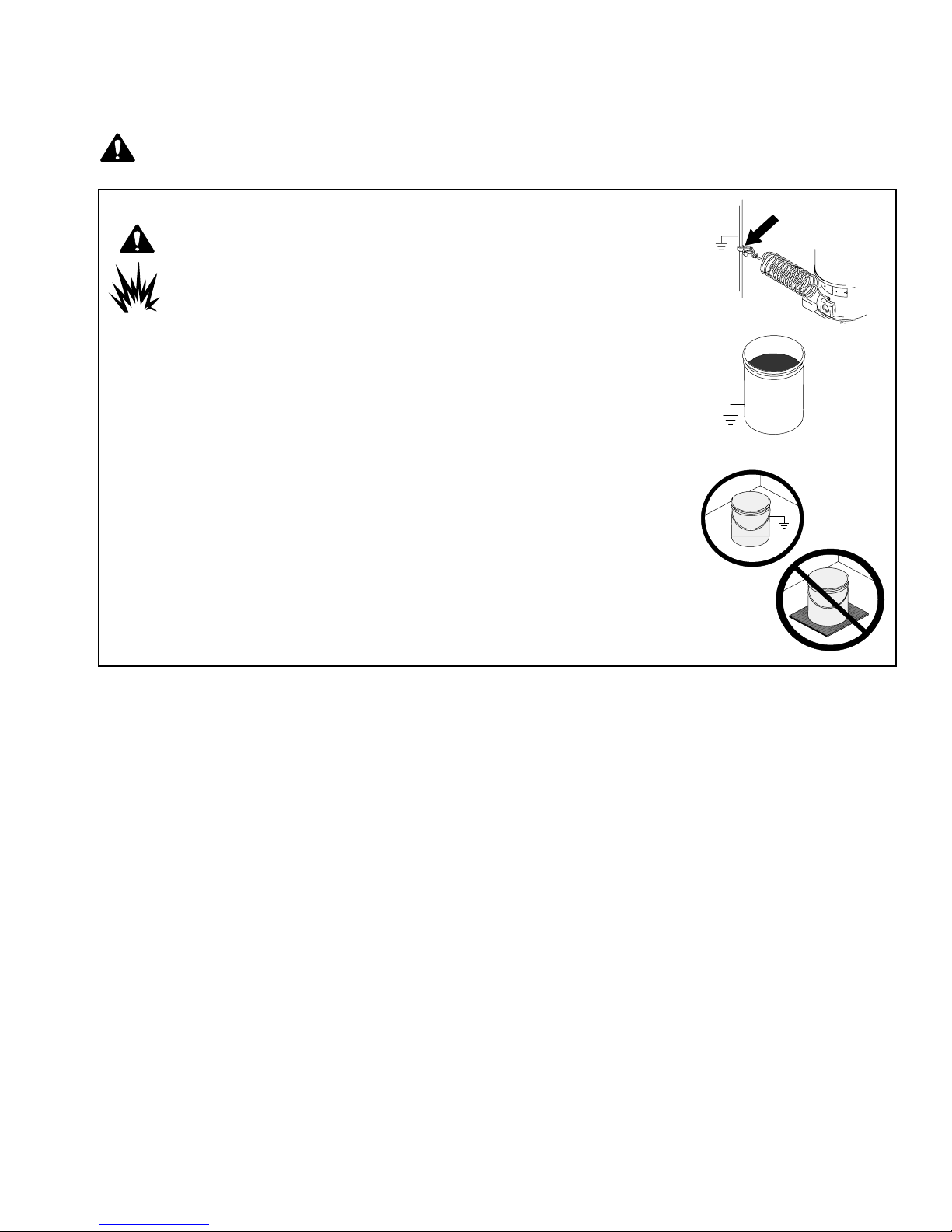

Grounding

Use only electrically conductive hoses.

1. Connect ground wire clamp to a true earth ground.

2. Ground object being sprayed, fluid supply containers,

solvent pails, waste pails, and all other equipment in spray

area. Use only metal pails. Do not place on non-conductive

surface such as paper, cardboard, or plastic.

PAINT

TINTA

PEINTURE

INTURA

TI1102

8309362

Setup

Complete before using the equipment for the

first time.

1. 2. 3. 4. 5.

Tools Required:

1. Two adjustable wrenches

2. Non–sparking hammer or plastic mallet

3. Torque wrench

4. Grounding wires and clamps for pails

5. Two 5 gallon metal pails

1. Ground sprayer. See page 7.

2. Check packing nut. Fill with Throat Seal Liquid

(TSL).Torque to 25–30 ft–lb (34–41 NSm).

9309362

Setup

3. Attach electrically conductive fluid hose to pump and tighten.

4. Attach electrically conductive fluid hose to gun and tighten.

5. Connect main air supply to air supply valve.

6. Flush. See page 11.

FLUSH WASTE

7. Prime. See page 14.

WASTE

PAINT

10 309362

Pressure Relief

Follow steps 1–3 when you stop spraying and

before cleaning, checking, or servicing the

equipment.

1. Close bleed type air supply valve.

Hold gun firmly against a grounded metal

pail and trigger gun.

Open return valve.
