Graco Modbus TCP Manuel utilisateur

Instructions - Parts

Modbus TCP

Gateway Module

RECOGNIZED

COMPONENT

334183B

For use with systems based on Graco Control Architecture to provide Modbus TCP

communications capabilities.

Important Safety Instructions

Read all warnings and instructions in the system

operation manual. Save these instructions.

Conforms to

UL STD 508

Certified to CAN/CSA STD C22.2 No. 14

4003764

Models

2334183B

Contents

Models ...................................2

Component Identification ....................3

Overview ..................................4

Installation ................................5

Troubleshooting ...........................8

Parts ....................................10

Technical Data ............................10

Graco Standard Warranty ...................12

GracoInformation ........................12

Models

To order replacement parts, see Parts on page 10.

To order installation kits for a system based on Graco

Control Architecture, see the system operation manual.

Communications

Gateway Module Part No. Fieldbus

24W462 Modbus TCP

Component Identification

334183B 3

Component Identification

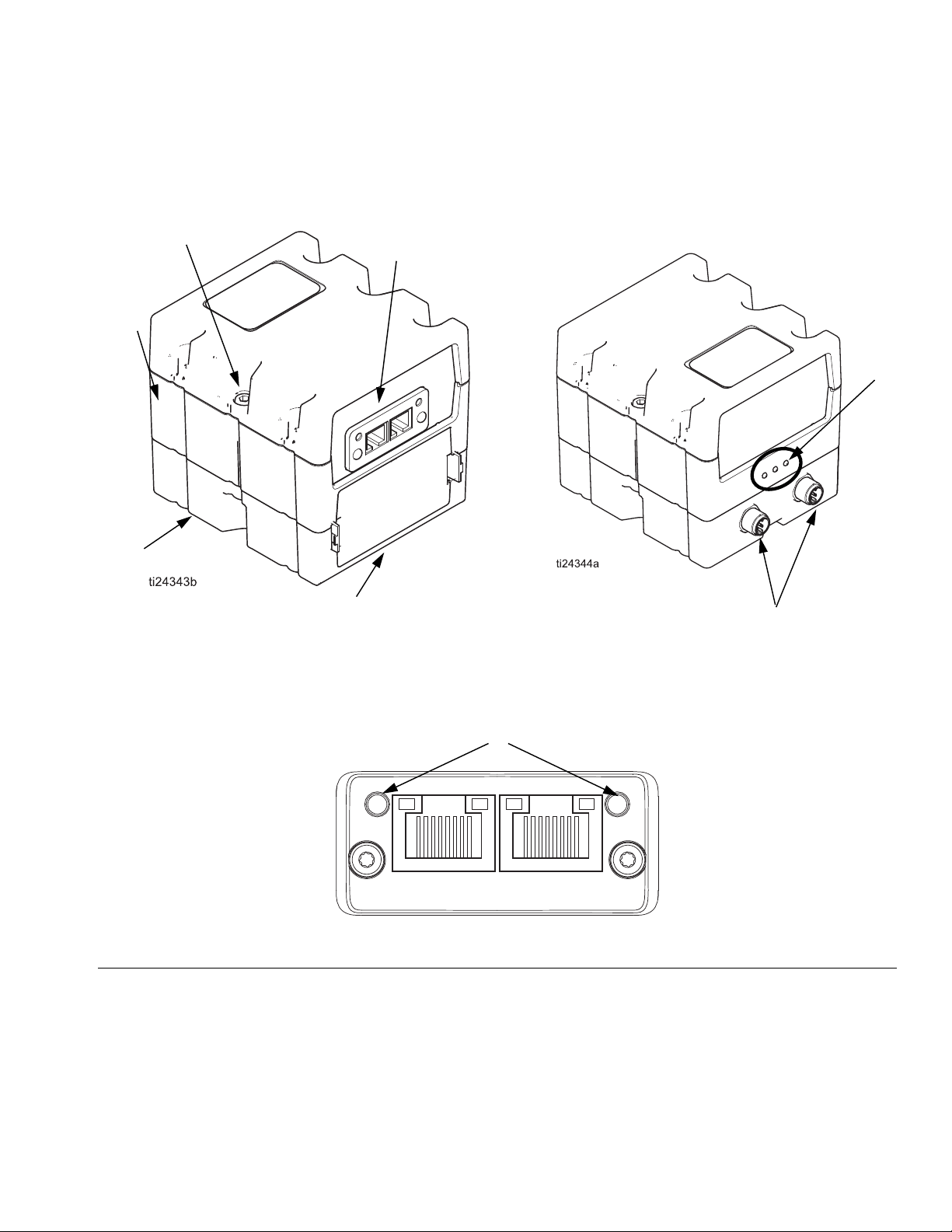

Key:

A Communications Gateway Module

B Base

C Fieldbus Connector

D Module Connection Screws

E Access Cover

F Module Status LEDs

G Fieldbus Status LEDs (see descriptions on page 7)

H CAN Connectors

FIG.1:

TI11814A

Fieldbus Connector (C)

Front Back

Modbus TCP

Overview

4334183B

Overview

Module Description

The Modbus TCP (MBTCP) Gateway Module provides a

control link between a Modbus TCP fieldbus and a sys-

tem that uses Graco Control Architecture (GCA). This

link provides the means for remote monitoring and con-

trol by an external automation system.

Data provided by the MBTCP Gateway Module to the

fieldbus depends on the GCA-based system. Mapping

of Modbus registers is loaded by the host GCA system

and varies by system.

Data Exchange

Data is available by block transfer or by explicit access

to individual attributes as defined by the fieldbus specifi-

cation.

Module Status LED Signals

NOTE:

If you get a “No Valid Map” error, disable and re-enable

your gateway from the host device.

Module Requirements

Power Supply

The MBTCP Gateway Module requires a 12-30 VDC @

0.2 A power supply. Refer to the system manual for sys-

tem level power supply guidelines.

Environment Conditions

Refer to the system manual for guidelines regarding

environment conditions for the MBTCP module.

Signal Description

Green on The system is powered up.

Yellow Internal communication is in prog-

ress.

Red

Solid

MBTCP hardware failure

Red Flashing The red LED (F) will flash a code,

pause, then repeat. See MBTCP

Module Errors on page 8 for

details.

3 flashes The host device of the mapped

property is not responding.

4 flashes No valid mapping is set by the

host.

5 flashes MBTCP is not connected or the

system has an invalid network

configuration.

Installation

334183B 5

Installation

The MBTCP Gateway Module is available for use with

all GCA-based systems that have a compatible design.

Each MBTCP module requires the following to operate

in a system:

• Mounting hardware

• Compatible GCA system

Install the MBTCP module as explained in the system

operation manual or in the installation kit manual.

If the MBTCP is offered only as an accessory for your

system, see Accessories in the system operation man-

ual for available MBTCP kits.

Install or Update Software

NOTE: The fieldbus connection is temporarily disabled

during the installation or update of software.

1. Ensure system is inactive.

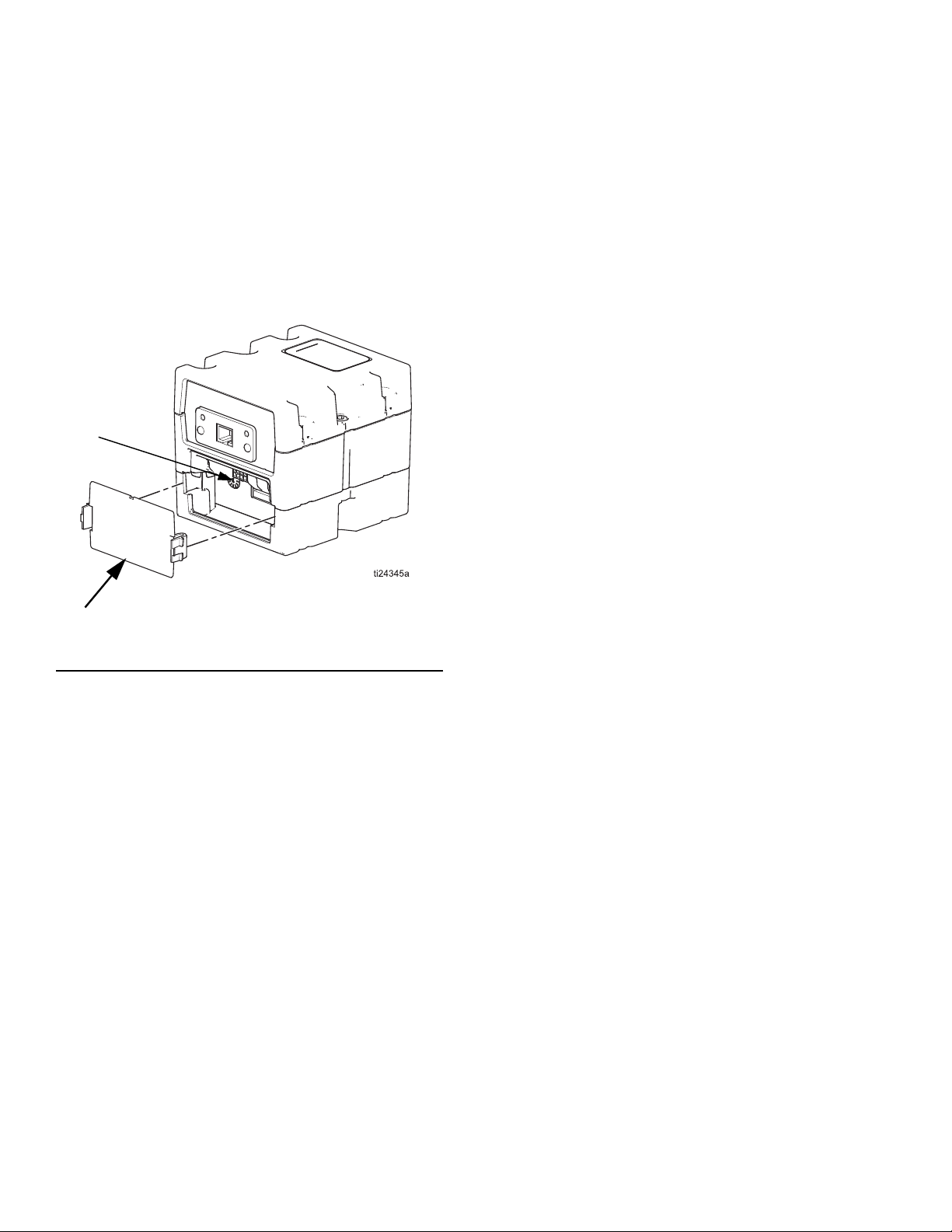

2. Remove access cover (E)

3. Insert and press software token (T) firmly into slot.

4. Press the reset push button (M) once. Wait for red

light (L) to stop flashing. This may take up to 30 sec-

onds

5. Remove Token (T). Store in a safe place.

6. Replace access cover (E).

Connect Cables

Connect cables as explained in the system operation

manual.

FIG.2

FIG.3

NOTICE

Route cables to avoid interference with moving

parts.

Installation

6334183B

Rotary Switch

If your system has only one MBTCP module, keep the

rotary switch (S) at its default position of 0.

If the system has multiple MBTCP modules, use a

unique value (position) for each module. Remove the

access cover (E) to set the rotary switch (S) for each

module.

FIG.4

Installation

334183B 7

Fieldbus Connectors

Network Status LED

Module Status LED

Link/Activity LED

Ethernet Interface

The Ethernet interface supports 10/100 Mbit, full or half duplex operation.

Ref. Item

1Network Status LED

2Module Status LED

3Link/Activity

4Ethernet Interface

LED State Description

Off No power or no IP address

Green Connection established. Module is in the Process

Active state or the Idle state.

Flashing Green Waiting for connection

Red Duplicate IP address or FATAL event

Flashing Red Process Active timeout

LED State Description

Off No power

Green Normal operation

Red Major fault. The module is in the state

of EXCEPTION (or FATAL event).

Red Flashing Minor fault in diagnostic object or IP

conflict

LED State Description

Off No Link, no communication present

Green Link established, no communication present

Flashing Green Link established, communication present

Troubleshooting

8334183B

Troubleshooting

MBTCP Module Errors

Module errors are triggered by overall system operation. The module status LED blinks red at a frequency of 1 Hz.

The red LED (F) will flash a code, pause, then repeat.

Module Status LED Signal Diagnosis Solution

3 red flashes The host of the mapped property is

not responding.

Check whether all system devices

are powered on.

Check cabling between all system

devices.

4 red flashes The host device (ADM) has not initi-

ated property mapping.

Disable and then re-enable the gate-

way module from the host device

(ADM).

5 red flashes The MBTCP module is not con-

nected.

Verify that the MBTCP module is con-

nected.

The system has an invalid network

Configuration.

Verify the proper network Confiugra-

tion.

Solid Red Gateway has been downloaded with

unsupported software.

NOTE: Does not apply to legacy sin-

gle port hardware. (See Fig. 5)

Check your gateway to ensure it has

software version 2.01.001 and up.

Faulty Hardware Replace Gateway

FIG. 5 Single Port & Dual Port

Single Port

Dual Port

Troubleshooting

334183B 9

Modbus Errors

Modbus errors are typical protocol errors defined by fieldbus specification. The fieldbus error code shown is returned

to the PLC when the error condition occurs.

Code Name Cause Solution

1 Illegal Function Request function is not supported. Use supported Modbus functions:

• Read Holding Register

• Write Holding Register

• Write Multiple Holding Registers

2 Illegal Data Address Exceeded maximum register count

of 121 registers.

Request 121 or fewer registers at a time.

No valid property mapped to the

requested Modbus register.

Verify that the device has valid mapping.

See MBTCP Modbus Error for 4 red

flashes.

Write Holding Register(s) returns

set property error.

Verify that the end device is online.

3 Illegal Data Value Not implemented.

4 Slave Device Fail Not implemented.

5 Acknowledge Not implemented.

6 Slave Device Busy Not implemented.

8 Memory Parity Error Not implemented.

10 Gatweay Path Unavailable Not implemented.

11 Gateway Target Fail An active system error exists. Refer to system errors table.

255 Unspecified

Parts

10 334183B

Parts

Modbus TCP Gateway Module

Parts

Technical Data

Ref Part No. Description Qty.

A 24W777 MODULE, Gateway, Modbus TCP 1

B 289697 Base 1

D 114135 SCREW, mounting, module connec-

tion

E 277674 COVER, access 1

Category Data

Power requirements 12-30 VDC @ 0.2 A

Weight 12.8 oz.

Dimensions 4.3 in. x 3.8 in. x 3.8 in.
