User’s Manual
USB 3.0 Single Port Express Card
ABOUT THIS MANUAL
This manual is designed for use with the USB 3.0 Single Port Express Card.
Information in this document has been carefully checked for accuracy;
however, no guarantee is given to the correctness of the contents. The
information in this document is subject to change without notice. The
manufacturer does not make any representations or warranties (implied or
otherwise) regarding the accuracy and completeness of this document and
shall in no event be liable for any loss of profit or any commercial damage,
including but not limited to special, incidental, consequential, or other
damage.
SAFETY INSTRUCTIONS
Always read the safety instructions carefully:
Keep this User’s Manual for future reference.
Keep this equipment away from humidity.
If any of the following situations arises, get the equipment checked by a
service technician:
The equipment has been exposed to moisture.
The equipment has been dropped and damaged.
The equipment has obvious sign of breakage.
The equipment has not been working well or you cannot get it to work
according to the User’s Manual.
COPYRIGHT
This document contains proprietary information protected by copyright. All
right are reserved. No part of this manual may be reproduced by any
mechanical, electronic or other means, in any form, without prior written
permission of the manufacturer.
1
Table of Contents
1. Introduction ................................................................................................................... 3
Features........................................................................................................................... 4
Package Contents ........................................................................................................... 4
System Requirements...................................................................................................... 4
2. Installation ..................................................................................................................... 5
3. Installation Verification................................................................................................. 9
4. Notice ........................................................................................................................... 10
5. Uninstall the Driver...................................................................................................... 11
6. Specifications.............................................................................................................. 13
7. Regulatory Compliance .............................................................................................. 14
FCC Conditions .............................................................................................................14
CE.................................................................................................................................. 14
WEEE Information.........................................................................................................14
2
1. Introduction
This new product mainly is to fit in the market demand with low cost and flexibility
for user benefit. Also, it will bring higher efficiency and advantageous to user
with integrating Super Speed USB transceiver as will as PCI Express transceiver.
Moreover, an additional independent DC power Jack will allow to add in a 500
mA to ensure the USB 3.0 output will working with high reliability.
Features
Compliant with USB 3.0 Specification Revision 1.0
Compliant with Extensible Host controller interface (xHCI) Specification
Revision 0.96
Single USB port supporting SS/HS/FS/LS data rates
(5 Gbps/480M bps/12M bps/1.5M bps)
Single PCI Express Lane
Supports PCI Express Specification Revision 1.1
3
Supports PCI bus Power Management Interface Specification Revision 1.2
10 MHz/ 30 MHz crystal system clock
Additional DC Jack to enhance the function stability
Integrated Super Speed USB Transceiver
Integrated PCI Express Transceiver
Package Contents
USB 3.0 single Port Express Card x1
Driver CD (Driver and User’s Manual) x1
Quick Installation Guide x1
DCtoUSBcable(60cm) x1
System Requirements
OS Compliance: Windows®7, WindowsVista®, Windows®XP, Linux
Application Compliance: PCI Express Card Specification 1.0
2. Installation
1. Insert USB 3.0 Single Port Express Card to PCI-Express slot.
USB 3.0 Port DC Power Jack
2. The “Found New Hardware Wizard” Window will appear, please click
“Cancel”.
4
3. Insert the provided CD into your disc drive and please click on Run
Autorun.exe to execute the installer program.
5
If the installer program doesn’t run automatically, please locate and
double-click on the Autorun.exe file in the CD to launch the install
program.
4. Please click “Next” to continue the Setup Wizard.
6
5. To install in this folder, click “Next”. To install to a different folder, enter it
below or click “Browse”.
6. Click “Install” to begin the installation.
7
7. Click “Finish” button to exit the Setup Wizard.
Note: You may need to restart your system for the configuration changes
made to Fresco Logic USB 3.0 Host controller to take effect.
**Actual strings depend on your operation system. These screen shots are from Windows 7 and might
vary slightly for each operation system
8

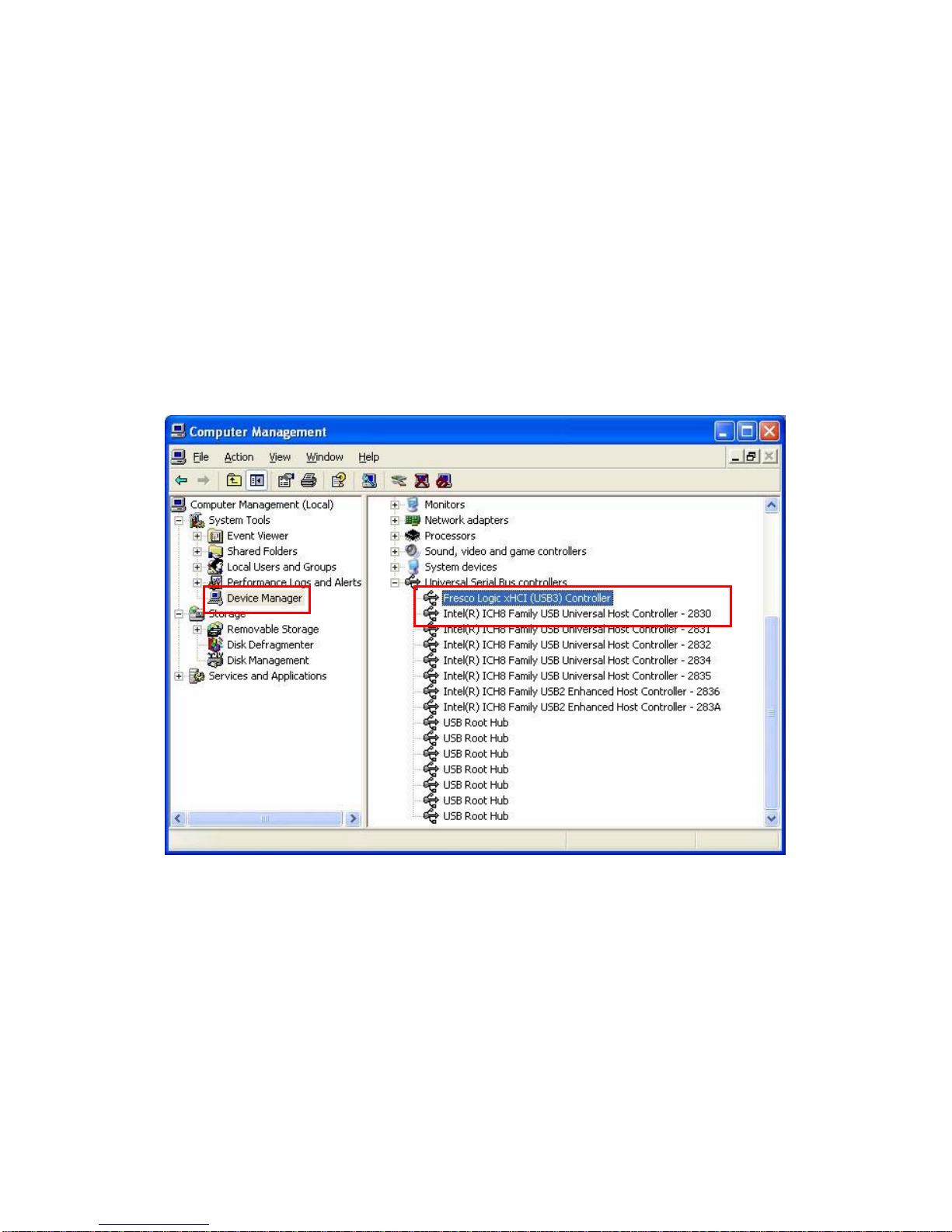

3. Installation Verification
After finishing installation, the system will detect the device. You can go to
Device Manager to verify the entire installation.
Windows®XP
9
