gofanco EthSwitch24P Manuel utilisateur
24-Port Smart Video
Ethernet Switch
User's Guide
G4-0069A
P/N:EthSwitch24P
2
Thank you for purchasing from gofanco. Our products
aim to meet all your connectivity needs wherever you
go. For optimum performance and safety, please read
the instructions carefully and keep this User's Guide for
future reference. If you need more information about
our products, please visit www.gofanco.com. For
For drivers or manual download, please go to
www.gofanco.com/download.
Important Safety Notices
Pleasereadsafetyinstructionscarefullybeforeinstallation
and operation.
• Please pay close attention to all warnings and hints
for this device
• Do not expose this unit to rain, heavy moisture, or
liquid
• Do not put any items into the device or attempt to
modify its operation
• Do not repair the device or open the enclosure
without professional guidance to avoid electric
shocks. Doing so may void your warranty
• Keep the product in a well-ventilated location to
avoid damage from overheating
• Shut off power and make sure environment is safe
before installation
3
Introduction
The 24-Port Smart Video Ethernet Switch dedicated to
video switching is designed to work with select gofanco
IP HDMI extenders.
Features
• Compatible with gofanco IP HDMI extenders, part#
HDBitTExt, HDBitTPRO, and HDbitT4K
• Worksflawlessly with 1-to-1,1-to-many, and many-
to-many configurations
• Supports up to 394ft (120m) from the switch to a TX
or RX
• Support Matrix switching via the Web GUI. Assign
any input to any output on the fly
• Metal housing provides durability and higher level
of RF/EMI shielding
• FCC, CE, and RoHS compliant
PackageContents
•1x 24-Port Smart Video Ethernet Switch
•1x Power cable
•1x Mounting kit
•1x User guide
4
Figure 2: Rear Panel Layout
Product Layout
Figure 1: Front Panel Layout
1RJ-45Port(x24) Connects to your network using
CAT cables
2 Speed LED (x24) Network speed
3Link/Activity LED
(x24)
On: CAT cable is connected and
linked sucessfully to the network
Blinking: Data transmission is
detected
4Reset Press for 5-10 seconds to restore
factory default settings
5 System LED Blinking: Normal operation
6 DIP Switch Do not change switch position
7DCJack Disabled,donotuse
8 Power Jack Connects to the power cable
9 Eth GND Grounding (cable not included)
5
Hardware Installation
1. Connect the power cord to the switch, then plug
the other end into a reliable power outlet. The
Speed/Link LED will illuminate for 3-4 seconds
then go off and the System LED will be blinking.
2. Connect the CAT cables, the Speed LED will be
blinkingandthe Link/Action LED isOnfornormal
operation.
3. Refertothe Web GUIsection on page8 to configure
the ports.
CAT Cable Wiring
We suggest both RJ-45 connectors be wired identically
using T568B wiring standard for the best performance
and compatibility.
6
ApplicationDiagram
One-to- many connection
Figure 3: One-to-many
7
Many-to-many connection
Figure 4: Many-to-many
8
Web GUI
Login
The default IP address of the switch is 192.168.168.254.
Username: admin, Password: admin.
1. Connect your computer to the switch's Port 23 or
Port 24 using a CAT cable. Only port 23 or port 24
can access the switch's web GUI.
2. Change the computer's IP address to 192.168.168.x
(x = 0-253) and subnet mask to 255.255.255.0.
3. Open your web browser and in the address bar type
in 192.168.168.254 and press enter key.
4. Type in Username: admin, and Password: admin,
and press Sign In. See image below.
9
Port Tools
Port Setting
1. Select Port Setting in the Ports Tool menu.
2. Select either Input or Output depending on your
hardware connection.
3. When the port is set to Input, it should be connected
to a transmitter unit. When the port is set to Output,
it should be connected to a receiver unit.

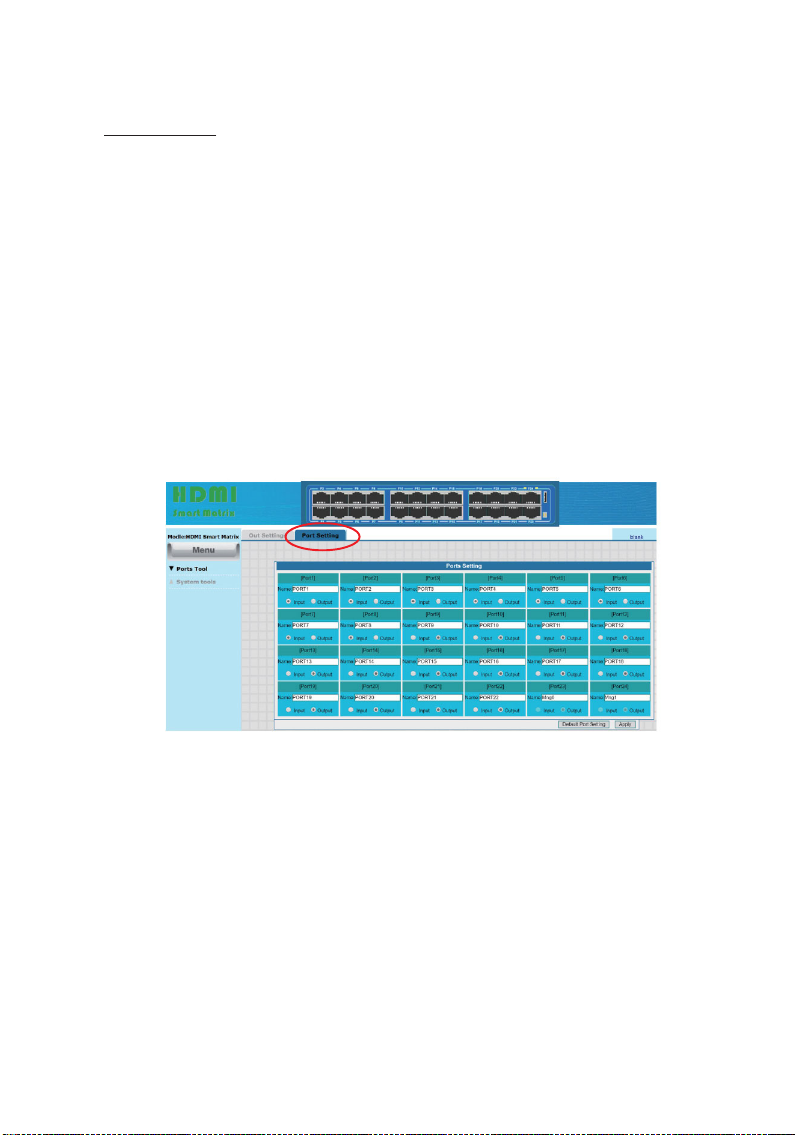

4. In the example below, ports 1-8 are set as Input ports
and ports 9-22 are set as Output ports.
Note: Port23 and Port24 are Managementports and
connect to a control PC only.
10
Out Settings
1. Select Out Settings in the Ports Tool menu.
2. Select an Output port to display from an Input port.
3. In the example below Ports 9, 10, 11, and 12 will
display video signal from Input port 1.
System Tools
User Manage
Use this to change the Switch's user name and password.
1. Select User Manage from the System Tools menu.
2. Enter your old and new personal information.
3. Click Apply to save the changes.
