Godex C-680 FlatJet Manuel

FlatJet Printer C-680

Operators Guide

Godex Europe GmbH

Arnzhäuschen 36 . 42929 Wermelskirchen

Tel.: +49 (0) 2193 – 53396-0

E-mail:[email protected] . http://www.outputsolutions.de

Fax: +49 (0) 2193 – 53396-

Godex Europe GmbH FlatJet Printer C-680

1. Revision, Oktober 2004

Notices

The information contained in this document is subject to change without notice.

Godex Europe makes no warranty of any kind with regards to:

• this material including, but not limited to, the implied warranties of

merchantability and fitness for a particular purpose.

• for any errors or for incidental or consequential damages in connection with the

furnishing, performance, or use of this material.

is prohibited without prior written permission of Godex Europe GmbH, except as

allowed under copyright laws.

Acknowledgments

Microsoft, MS, MS-DOS, and Windows are registered trademarks of

Microsoft Corporation.

Adobe and Acrobat are trademarks of Adobe Systems Incorporated.

Page

Accessories FlatJet C-680 4

Printer 4

Packaging includes following accessories 4

Terms and conventions 5

Terms 5

Formatconventions 5

Symbols 5

Connectivity 6

Parallel connection 6

USBconnection 6

Network connection (optional) 6

250-sheet plain paper tray accessory (optional) 7

Preparation and installation 7

First Stepps 9

Document printing 11

Troubleshooting 12

Printer is not printing 12

Check the printer-LED’s 12

If the printer does not turn on 14

Check the printer cable connection 14

If the printer still does not print 14

Paper problems 15

Print quality is poor 15

Document is misprinted 16

Photos are not printing correctly 16

Document prints slowly 17

If you continue to have problems 17

Technische Daten 18

Accessories of the Godex Europe GmbH FlatJet Printer C-680

Make sure that the following accessories were included with your printer:

Printer

(Packed in a plastic bag and foam)

Packaging includes following accessories

1. External power supply

(the appearance can deviate from

the representation, possibly

a separate power cable is supplied)

2. CD with printer software

3. Document input tray

4. Document output tray

5. Tri-color ink cartridge*/ Black ink cartridge* 4

*Are not intended in the scope of supply for each country!

If the contents in the packaging is not complete, contact your supplier or Godex Europe

GmbH directly.

Terms and conventions

The following terms and word conventions are used in the onscreen User’s

Guide.

Terms

The Godex Europe GmbH FlatJet Printer C-680 is referred to as FlatJet Printer or

simply Printer.

Format conventions

• marks a listing

□mark operator instructions

⇒marks the consequence of an action

VERSALIEN mark commands, instructions/functions and key designations.

Symbols

References give useful information for the optimal handling and use of the equipment.

For example:

Reference:

The printer can be operated also with only one ink cartridge.

A Caution indicates possible damage to the Godex Europe GmbH FlatJet Printer C-

680 or to other equipment. For example:

Caution:

Do not touch the print head ink nozzles or copper contacts.

A Warning indicates possible harm to yourself or to others.

For example:

Warning:

Keep new and used ink cartridges out of the reach of children!

Connectivity

This printer offers a number of options for connectivity, including:

• Parallel

• USB

• Network connections (optional)

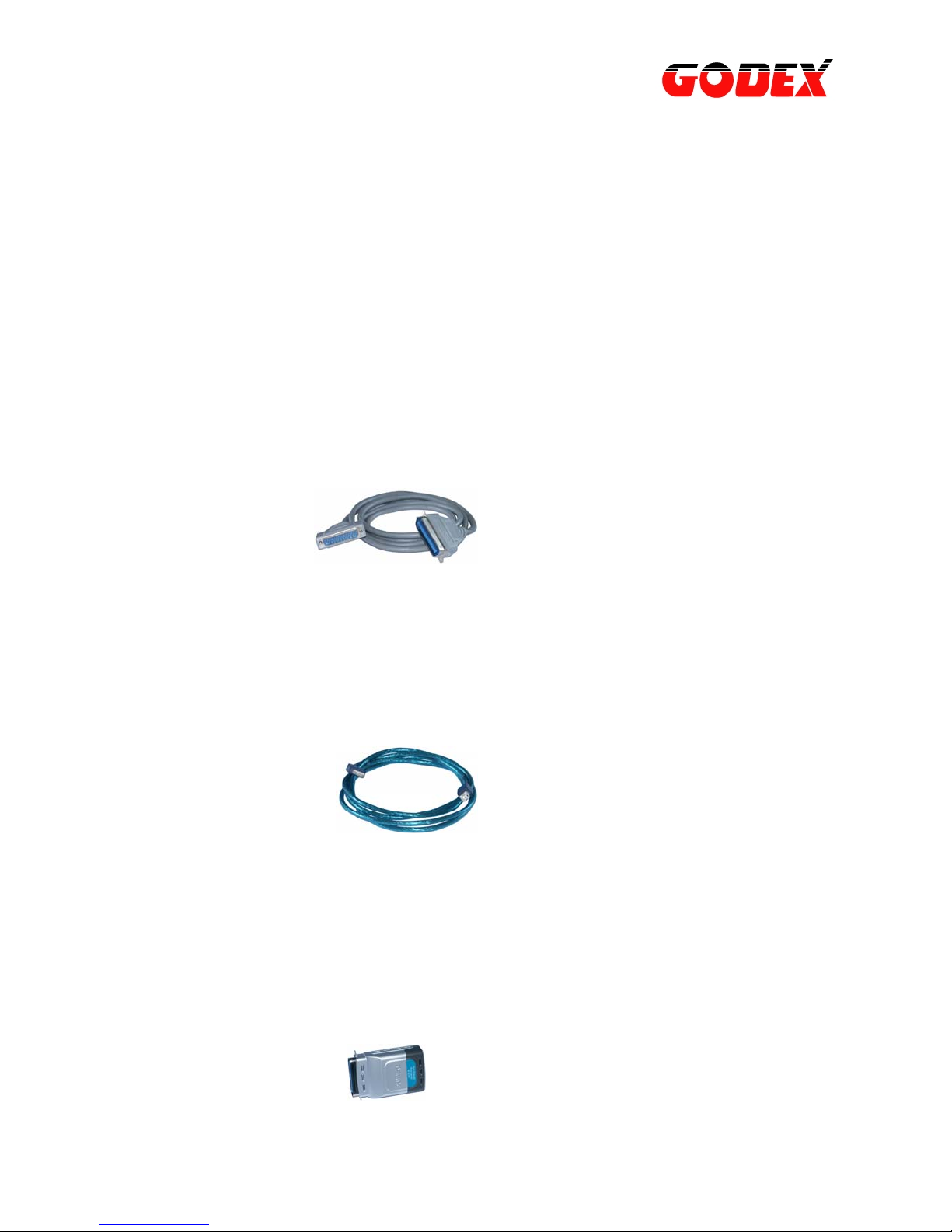

Parallel connection

Acquire a parallel cable of the Type IEEE-1284

(for Windows 2000- or Windows XP-Computer systems).

USB connection

Acquire a USB cable

(for Windows 2000- or Windows XP-Computer systems).

The cable should not be longer than 3 Meter.

Network connection (optional)

The printer can be connected (optionally and against surcharge) to a network using a

Fast Ethernet Print Server. Attach the Fast Ethernet Print Server to the parallel interface

and connect the Print Server using an Ethernet-cable to the LAN.

Similar illustration

250-sheet plain paper tray accessory (optional)

The optional 250-sheet Plain Paper Tray Accessory is useful for high-volume printing

and for occasions where you want to use the in tray for special media such as letterhead

paper.

The 250-Sheet Plain Paper Tray Accessory can be purchased separately from an

authorized Godex Europe GmbH dealer.

Preparation and installation

1. Mount the document input tray to the front of the printer, using the two slots.

2. Push the document output tray into its storage slot at he back of the printer.

3. Connect the low voltage plug of the external power supply to the printer as shown in

figure 3.

4. Connect the power cable of the external PS to the wall outlet as shown in figure 4.

5. Push the power-on switch.

6. Check if the printer is powered on.

7. Open the top cover as shown in figure 7.

8. Remove the tri-colour ink cartridge from its packaging and carefully remove the

plastic tape as shown in figure 8.

9. Open the print head carriage latch as shown in figure 9.

Caution:

Do not touch the print head ink nozzles or copper contacts!

10. Gently push the print head into place in the print carriage as shown in figure 10.

11. Close the print carriage, then press the print head carriage latch into position until it

clicks as shown in figure 11.

12. Follow steps 8 to 11 to install the black ink cartridge an close the top cover.

13. Insert a white A4 paper.

Note:

After replacing an ink cartridge the printer automatically performs an print head check

and adjusting cycles and a diagnostic page will be printed!

14. Plug the USB-cable into the USB interface connector from the printer and connect

the other end of the cable to a the computer, or

15. plug the parallel-cable into the parallel connector of the printer and connect the other

end of the cable to a computer as shown in figure 14 and 15.

Note:

The interface cables are not supplied as a standard accessory!

16. Insert the CD with the printer software into the computer and follow the instructions.

17. Install the driver software.

First steps

The printer buttons let you turn the printer on and off, cancel a print job, select the print

quality or resume printing.

The lights give you visual cues about the status of the printer.

[1] Power button and light

The Power button turns the printer on and off. It may take a few seconds for

the printer to turn on after pressing the Power button. The green LED next to

the Power button flashes when the printer is busy.

Caution:

Always use the Power button on the front of the printer to turn the printer on and off.

Using a power strip, surge protector, or a wall mounted switch to turn the printer on and

off may cause printer failure or damage the print heads.

[2] Print quality selection and -LED

Press one of the print quality selection buttons to select the standard print quality. The

selected print quality is indicated by one of the print quality LED’s.

Quality Quality Quality

high normal draft
