Gigabyte Z790 AORUS XTREME X Manuel utilisateur

Z790 AORUS XTREME X

User's Manual

Rev. 1001

GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.

Also, to reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

For more product details, please visit GIGABYTE's website.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

For detailed product information, carefully read the User's Manual.

For quick set-up of the product, refer to the Quick Installation Guide on GIGABYTE's

website.

https://download.gigabyte.com/FileList/Manual/mb_manual_quick-guide_am5.pdf?m=sw

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Motherboard Block Diagram ............................................................................ 5

Chapter 2 Hardware Installation .....................................................................................6

2-1 Installation Precautions.................................................................................... 6

2-2 Product Specications...................................................................................... 7

2-3 Installing the CPU and CPU Cooler ............................................................... 10

2-4 Installing the Memory..................................................................................... 13

2-5 Installing an Expansion Card ......................................................................... 14

2-6 Back Panel Connectors.................................................................................. 15

2-7 Onboard Buttons............................................................................................ 17

2-8 Internal Connectors........................................................................................ 18

Chapter 3 BIOS Setup ..................................................................................................30

Chapter 4 Installing the Operating System and Drivers................................................32

4-1 Operating System Installation ........................................................................ 32

4-2 Drivers Installation.......................................................................................... 33

Chapter 5 Appendix ......................................................................................................34

5-1 Conguring a RAID Set.................................................................................. 34

5-2 Debug LED Codes ......................................................................................... 35

Regulatory Notices.................................................................................................... 39

Contact Us ................................................................................................................ 42

- 4 -

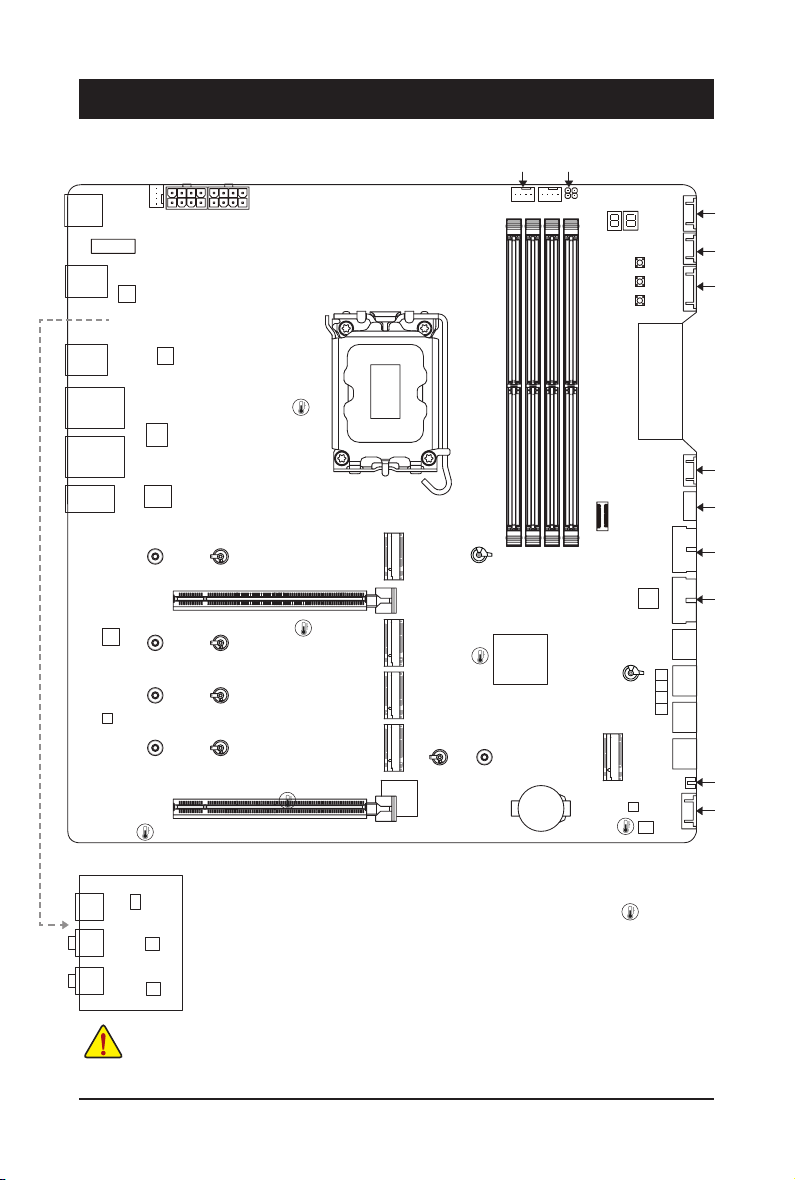

1-1 Motherboard Layout

(Note) For debug code information, please refer to Chapter 5.

Chapter 1 Product Introduction

Temperature

sensor

Be sure not to put pressure on the surface of the LCD panel of the rear I/O armor. Otherwise, damage to

the LCD panel may occur.

M2_WIFI

LGA1700

ATX

U32G2_1

Intel®Z790

M_BIOS

USB 3.2 Gen 2 Hub

PCIEX16

F_U320G

DB_PORT (Note)

EC_TEMP2

SYS_FAN1

110

M2C_CPU

M2A_CPU

CPU_FAN

iTE®

Super I/O

F_U320G_1

PW_SW

ATX_12V_2X4_2

ATX_12V_2X4_1

SATA3

456 7

REAR_BUTTON

CPU_OPT

EC_TEMP1

CLR_SW

3_FANS_2

3_FANS_1

F_PANEL

NOISE_

SENSOR

F_U32_2

F_USB_FAN

PCIEX4

U32G2_3

Intel® 2.5GbE

LAN

M2P_SBM2Q_SB

DDR5_A1

DDR5_A2

DDR5_B1

DDR5_B2

BAT

USB 3.2

Gen 1 Hub

F_U32_1

110

Marvell® AQtion AQC107

10GbE LAN

U32G2_2

TYPEC_1

U32G2

_LAN2

TYPEC_2

U32G2

_LAN1

Intel®

Thunderbolt™4

Controller

USB 2.0 Hub

OPTICAL

MIC_IN

LINE_OUT

ESS ES9280AC

DAC

ESS ES9080

Z790 AORUS XTREME X

RST_SW

M2M_SB

USB 2.0 Hub

LED_C

USB 3.2 Gen 2 Hub

- 5 -

1-2 Motherboard Block Diagram

(Note) Actual support may vary by CPU.

LGA1700 CPU

CPU CLK+/- (80~800 MHz)

DMI 4.0

4 SATA 6Gb/s

eSPI

Bus

SPI

Bus

PCI Express 3.0 Bus

Line Out

MIC

S/PDIF Out

ESS ES9280AC DAC

2 ESS ES9080

iTE®

Super I/O

4 USB 3.2 Gen 1

2 USB 3.2 Gen 2 Type-A

Intel®Z790

USB 3.2

Gen 1 Hub

BIOS

PCI Express 5.0 Bus

2 USB Type-C®,

with USB 3.2 Gen 2x2 support

LAN2

RJ45

Intel®

2.5GbE LAN

8 USB 3.2 Gen 2 Type-A

Intel®Thunderbolt™4

Controller

2 Intel® Thunderbolt™42 USB Type-C®, with

USB 3.2 Gen 2 support

PCI Express 4.0 Bus

1 M.2 Socket 3

(M2A_CPU)

1 PCI Express x4

PCI Express 4.0 Bus

x4 x4 x4

3 M.2 Socket 3

(M2P_SB, M2Q_SB, M2M_SB)

4 USB 2.0/1.1

DDR5 5600 (Note)/5200 (Note)/4800/4400 MT/s

USB 3.2

Gen 2 Hub

x16

1 PCI Express x16

1 PCI Express x8

1 M.2 Socket 3

(M2C_CPU)

x4x8

Switch

LAN1

RJ45

Marvell® AQtion

AQC107 10GbE LAN

CNVi

M.2 WIFI

USB 2.0

Hub

- 6 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its

installation and/or grounding instructions.

Chapter 2 Hardware Installation

- 7 -

2-2 ProductSpecications

CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel®Core™,

Pentium®Gold and Celeron® Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®Z790 Express Chipset

Memory 14th and 13th Generation Intel®Core™ i9/i7 Processors:

- Support for DDR5 5600/5200/4800/4400 MT/s memory modules

 13th Generation Intel®Core™ i5/i3 and 12th Generation Intel®Core™, Pentium®

Gold and Celeron® Processors:

- Support for DDR5 4800/4400 MT/s memory modules

 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity)

of system memory

Dual channel memory architecture

 Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(The CPU and memory conguration may affect the supported memory types, data

rate (speed), and number of DRAM modules, please refer to "Memory Support List"

on GIGABYTE's website for more information.)

Onboard

Graphics

Integrated Graphics Processor+Intel®Thunderbolt™4 Controller:

- 2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports), supporting

DisplayPort and Thunderbolt™ video outputs and a maximum resolution of

5120x2880@60 Hz with 24 bpp (via single display output)

* Because of the limited I/O resources of the PC architecture, the number of

Thunderbolt™devices that can be used is dependent on the number of the PCI

Express devices beinginstalled. (Refer to Chapter 2-6, "BackPanel Connectors,"

for more information.)

* Support for DisplayPort 1.4 version and HDCP2.3

(Graphics specications may vary depending on CPU support.)

Audio 1 ESS ES9280AC DAC chip +2 ESS ES9080 chips

DTS®Sound Unbound™

High Denition Audio

2-channel

Support for S/PDIF Out

* The line out jackand the optical S/PDIF out connector can only be used one at a

time.

LAN Marvell®AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5Gbps/1 Gbps/

100 Mbps) (LAN1)

Intel®2.5GbE LAN chip (2.5Gbps/1 Gbps/100 Mbps) (LAN2)

Wireless

Communication

Module

Qualcomm® Wi-Fi 7 QCNCM865

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

- 8 -

Expansion Slots CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16

slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage Interface CPU:

- 1 xM.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD

support) (M2C_CPU)

- 1 xM.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD

support) (M2A_CPU)

Chipset:

- 2 xM.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD

support) (M2P_SB, M2Q_SB)

- 1 xM.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/

x2 SSD support) (M2M_SB)

- 4 xSATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB Chipset+Intel®Thunderbolt™4 Controller:

- 2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support

Chipset:

- 2 x USB Type-C® ports with USB 3.2 Gen 2x2 support, available through the

internal USB headers

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+2 USB 3.2 Gen 2 Hubs:

- 8 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal

Connectors

1 x24-pin ATXmain power connector

2 x8-pin ATX12Vpower connectors

1 xCPU fan header

1 xCPU fan/water cooling pump header

1 xsystemfan header

1 xsystemfan extension cable header (can extend three systemfan headers

through one cable)

1 xsystemfan/water coolingpump extension cable header (can extend three

systemfan/water coolingpump headers through one cable)

1 xnoise detection header

1 xintegrated extension cable header for addressable RGB Gen2 LED strips and

RGB LED strips (can extend three addressable RGB Gen2 LED strip headers

and three RGB LED strip headers through one cable)

4 xSATA 6Gb/s connectors

5xM.2 Socket 3 connectors

1 xfront panel header

- 9 -

Internal

Connectors

2 xUSB Type-C®headers, withUSB 3.2 Gen 2x2 support

2 xUSB 3.2 Gen 1 headers

1 xintegrated extension cable header for systemfan/water coolingpump and USB

2.0/1.1 headers (can extend one systemfan/water coolingpump header and two

USB 2.0/1.1 headers through one cable)

2 xtemperature sensor headers

1 xpower button

1 xreset button

1 xClear CMOSbutton

BackPanel

Connectors

1 xQ-FlashPlus button

1 xOC Ignition button

2 xSMA antenna connectors (2T2R)

2 xThunderbolt™4 connectors (USB Type-C®ports, withUSB 3.2 Gen 2 support)

10 xUSB 3.2 Gen 2 Type-A ports (red)

2 xRJ-45ports

1 xoptical S/PDIF Out connector

2 xaudio jacks

* The mic in jacksupports only mono microphone input.

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Water coolingow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan

(pump) you install.

Noise detection

BIOS1 x256 Mbit ash

Use of licensed AMI UEFI BIOS

PnP1.0a, DMI 2.7, WfM 2.0, SM BIOS2.7, ACPI 5.0

Unique Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions

of eachapplication may also vary dependingon motherboard specications.

Support for Q-Flash

Support for Q-FlashPlus

Support for Smart Backup

Bundled

Software

Norton®Internet Security (OEM version)

LAN bandwidthmanagement software

Operating

SystemSupport for Windows 11 64-bit

FormFactor E-ATXFormFactor; 30.5cmx28.5cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

&Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest version

of apps.

https://www.gigabyte.com/Support/Utility/Motherboard?m=ut

- 10 -

2-3 Installing the CPU and CPU Cooler

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

A. Note the CPU Orientation

Note the alignment keys on the motherboard CPU socket and the notches on the CPU.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically after you insert the CPU and close the load plate.

Alignment Key

LGA1700 CPU Socket

Triangle Pin One

Marking of the

CPU Socket

Notch

LGA1700 CPU

Triangle Pin One

Marking on the

CPU

&Please visit GIGABYTE's website for details on hardware installation.

https://www.gigabyte.com/WebPage/210/quick-guide.html?m=sw

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-G31M-ES2C Manuel utilisateur

Gigabyte

Gigabyte 8S648FX-RZ Manuel utilisateur

Gigabyte

Gigabyte GA-F2A75-D3H Manuel utilisateur

Gigabyte

Gigabyte GA-D510UD Manuel utilisateur

Gigabyte

Gigabyte 6EMM Manuel utilisateur

Gigabyte

Gigabyte 6BXA Manuel utilisateur

Gigabyte

Gigabyte GA-H61-S3 Manuel utilisateur

Gigabyte

Gigabyte GA-P31-ES3G Manuel utilisateur

Gigabyte

Gigabyte GA-8S648FX-775 Manuel utilisateur

Gigabyte

Gigabyte GA-M52LT-D3 Manuel utilisateur

Gigabyte

Gigabyte MS03-CE0 Manuel utilisateur

Gigabyte

Gigabyte GA-8I865GME-775 Manuel utilisateur

Gigabyte

Gigabyte GA-Z270-Phoenix Gaming Manuel utilisateur

Gigabyte

Gigabyte GA-6CXC Manuel utilisateur

Gigabyte

Gigabyte GA-7TCSV4 Manuel utilisateur

Gigabyte

Gigabyte GA-B75M-D3H Manuel utilisateur

Gigabyte

Gigabyte GA-F2A55-DS3 Manuel utilisateur

Gigabyte

Gigabyte GA-EG31MF-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-586UX Manuel utilisateur

Gigabyte

Gigabyte GA-WRX80-SU8-IPMI Manuel utilisateur

Gigabyte

Gigabyte GA-686KDX Manuel utilisateur

Gigabyte

Gigabyte 6ZMA Manuel utilisateur

Gigabyte

Gigabyte GA-Z77M-D3H-MVP Manuel utilisateur

Gigabyte

Gigabyte GA-990FXA-UD7 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
