Gigabyte S17 Series Manuel utilisateur

S17 SeriesUser'sManual

English

Preface

Thank you for purchasing and adopting the S17 Series as your favorite computer product.

To assure the safe application of this product, please carefully read the following:

vPlease strictly follow the labeled warnings and instructions given.

vBefore disassembling or cleaning this product, make sure the power connector is

unplugged.

vNever wipe the interior of the system with water or dip the system in water.

vBefore connecting to any peripheral, please turn off the power of the system.

vEnsure that the voltage select switch is in the correct position for the type of voltage

you use(115V/230V). Apr /2003

■ Features

S17 Series adopts the motherboard designed and developed for Customer which

allows you to work seamlessly with the Windows operating system.

The nimble design of the book size casing not only gives convenient assembling and

maintenance but also allows you to easily upgrade in the future!

WARNING

If the battery is not properly handled, there may be a risk

of explosion; make sure you are using the same or

equivalent battery. Please dispose the used battery

according to the instructions given by the manufacturer.

English

S17 SeriesUser'sManual

■ Specifications

-Product Specifications

-Book Size Chassis

-Small Form factor (Refer to the model specification)

-Power Supply

-DVD-ROM / CD-ROM (Option)

-Power Cord

-CPU Cooler (Option)

-Keyboard (Option)

-Accessory Box Content

System Installation Guide Screw Bag foot atand

Driver CD Mouse (Option)

■ Items included in the package

M Specification with“Option”aresubjecttochange withoutnotice.

Softwardand

Manuals

*FootStand

(Option)

*Mouse

(Option)

*Keyboard

(Option)

PowerCord

*CPUcooler

(Option)

S17 SeriesUser'sManual

English

I. Chassis

Dimensions 359(D)mm x 88(W)mm x 275(H)mm

This chassis is made with material complied with UL specification and designed for space saving

and it can be opened esaily with thumbscrew. There are one 5.25” and one 3.5” drive bays. This

chassis complies with corresponding EMC and safety regulations.

II. Motherboard

This Motherboard is Standard Product,it will be setup ready before ship out,So you do’nt need to

change for this Motherboard setting.

III. Power Supply

This computer adopts a S.F.X. power supply and supports the functions of turning off the system

by software. The factory default voltage is 230V.

MNote: Please confirm the default voltage of the country before turning on the computer.

IV. Front Panel and Rear Panel Components

Front Panel Components

1.Optical Device

2.Power Button

3.Audio Out

4.MIC In

5.USB Hub

6.Foot Stand

Rear Panel Components

1.Power Switch 9.Voltage Switch

2.Keyboard Port(PS/2) 10.Mouse Portt(PS/2)

3.COM Port 11.LPT Port

4.VGA Port 12.Game Port

5.MIC In 13.LAN Port

6.Audio In

7.Audio Out

8.USB Hub

( P3 Solution) ( P4 Solution)

English

S17 SeriesUser'sManual

Voltage Selection Switch

Select the correct voltage setting for your local area voltage before the computer system is

plug to the power source.

WARNING:Select incorrect setting

will cause the Power supply failure!

V. Installing the System

1. Unscrew the rear casing and push the upper casing toward the front panel,and loose the

hook to leval the front panel.

2. After loosening the 3 front screws, pull out the Device disk Bay.

S17 SeriesUser'sManual

English

3. Put the hard disk drive into the rack and align the screws at the screw holes.

4. CPU

4-1.Place the CPU into the CPU socket on the motherboard. Make sure that you have lifted the

transversal lever and aligned the aslant side of the CPU along the aslant side of the CPU

socket.

4-2. After CPU is secured tightly onto the CPU socket, release the transversal lever and attach

it to the CPU socket.

4-3. Evenly spread the heat dispersion paste on the CPU and make sure it totally covers the

CPU. The CPU fan must be tightly attached on the CPU to maximize the effect of heat

dispersion.

4-4.Connect fan power connector to CPU FAN on the motherboard.

Fix the cooler on the rack.

Latch the hooks on

bothsidesoftheCPU

securelyintotheCPU

socket

CPUPin

Evenly spread the heat

dispersion paste on the CPU

A. For Intel®Pentium®III and Intel®Celeron®processors

Pull the transversal lever

English

S17 SeriesUser'sManual

B. For Intel®Pentium®4 processors

CPUPin

Evenly spread the heat

dispersion paste on the CPU

Pull the transversal lever

Fix the cooler on the rack.

5. Memory

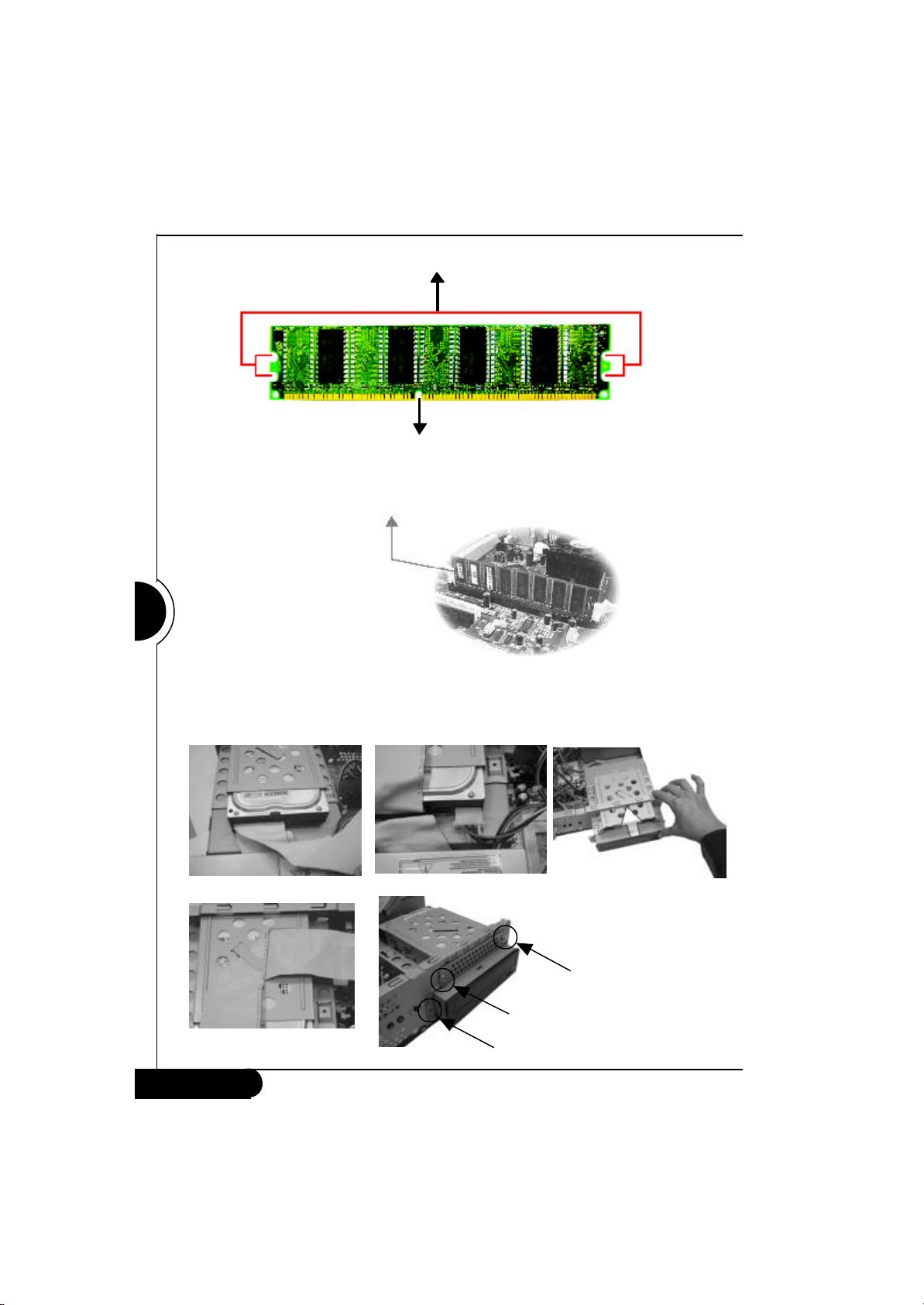

Make sure the direction of the foolproof groove must be the same as that of the

memory slot on the motherboard.

There are fixing grooves on both sides

SDRAM

This section introduces the memory installation. When the memory is installed, the direction of the

foolproof groove should be the same as that of the memory slot on the motherboard. The hooks on

both sides must be latched completely for a correct installation.

S17 SeriesUser'sManual

English

Make sure the direction of the foolproof groove must be the same as that of the

memory slot on the motherboard.

There are fixing grooves on both sides

DDR

Fixing the hooks. The hooks must be fixed into the grooves

before the installation is considered complete.

6. Connect the IDE bus cable bundled in the accessory kit. Connect the black connector to the

hard disk drive and align the first pin of the red cable to Pin 1 labeled on the hard disk.

7. Connect the connector of the power supply to the power supply socket of the hard disk drive.

Put the Device Disk Bay

into the chassis.

Location the HDD Cable into the

Cable hook.

Alightle 3 screws at the screw

holes.
