Gigabyte H510M K Manuel utilisateur

H510M K

H470M K

User's Manual

Rev. 1001

For more product details, please visit GIGABYTE's website.

https://www.gigabyte.com/Motherboard/H510M-K-rev-10?m=ma#kf

https://www.gigabyte.com/Motherboard/H470M-K-rev-10?m=ma#kf

GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.

Also, to reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

For detailed product information, carefully read the User's Manual.

For quick set-up of the product, refer to the Quick Installation Guide on GIGABYTE's

website.

https://download.gigabyte.com/FileList/Manual/mb_manual_installation-guide_103.pdf?m=sw

For product-related information, check on our website at: https://www.gigabyte.com

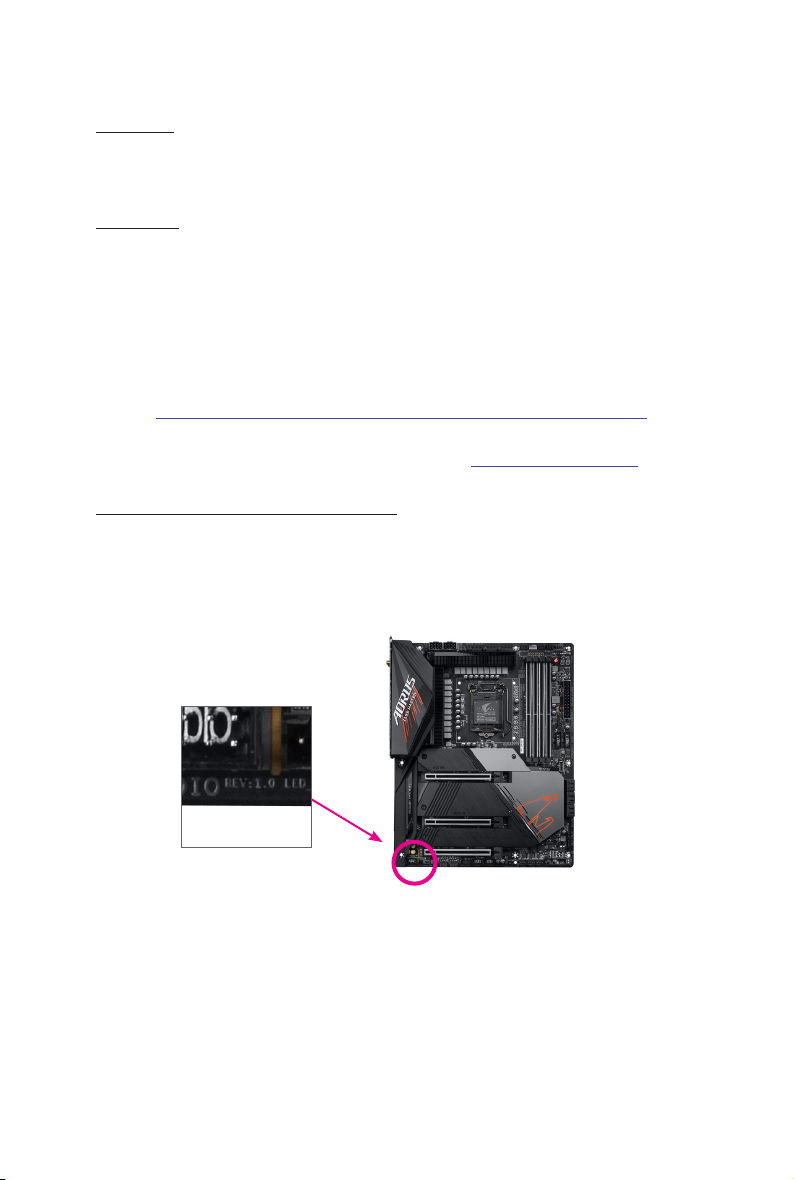

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Box Contents.................................................................................................... 5

Chapter 2 Hardware Installation .....................................................................................6

2-1 Installation Precautions.................................................................................... 6

2-2 Product Specications...................................................................................... 7

2-3 Installing the CPU and CPU Cooler ............................................................... 10

2-4 Installing the Memory..................................................................................... 11

2-5 Installing an Expansion Card ......................................................................... 12

2-6 Back Panel Connectors.................................................................................. 13

2-7 Internal Connectors........................................................................................ 15

Chapter 3 BIOS Setup ..................................................................................................24

Chapter 4 Installing the Operating System and Drivers................................................26

4-1 Operating System Installation ........................................................................ 26

4-2 Drivers Installation.......................................................................................... 27

Chapter 5 Appendix ......................................................................................................28

5-1 Conguring a RAID Set.................................................................................. 28

Regulatory Notices.................................................................................................... 29

Contact Us ................................................................................................................ 30

- 4 -

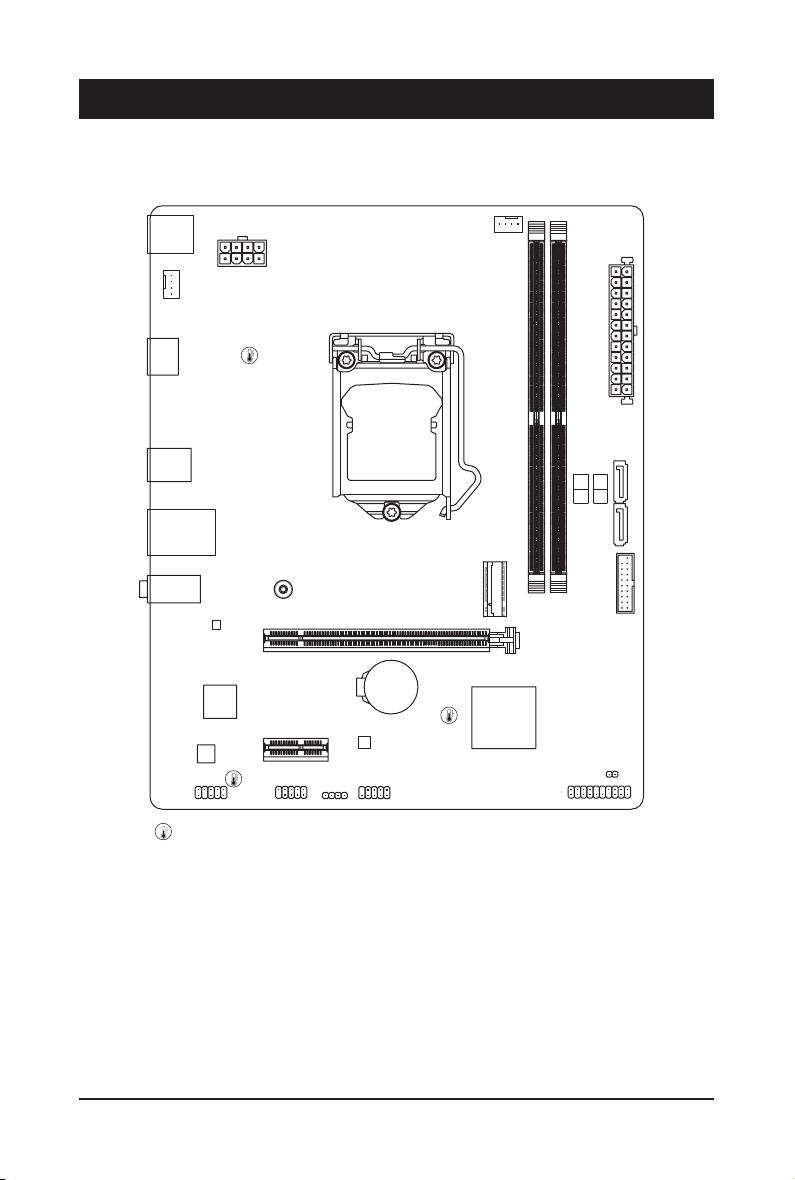

1-1 Motherboard Layout

Chapter 1 Product Introduction

R_USB20 CPU_FAN

SYS_FAN

LGA1200

ATX

H510M K

H470M K

AUDIO

DDR4_1

DDR4_2

BAT

ATX_12V_2X4

Intel®H510 j

Intel®H470 k

F_U32

CODEC

CLR_CMOS

M_BIOS

HDMI

USB_LAN

U32

PCIEX16

PCIEX1

iTE®

Super I/O

Realtek®

GbE LAN

F_PANEL

SATA3

2 3

0 1

M2A_SB

F_USB1

COM LED_C

F_AUDIO

Temperature sensor

jOnly for H510M K.

kOnly for H470M K.

- 5 -

1-2 Box Contents

5H510M K or H470M K motherboard

5User's Manual

5One SATA cable

5I/O Shield

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

- 6 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its

installation and/or grounding instructions.

Chapter 2 Hardware Installation

- 7 -

2-2 ProductSpecications

CPU LGA1200 package:

- 11th Generation Intel®Core™i9 processors/Intel®Core™i7 processors/

Intel®Core™i5 processors

- 10th Generation Intel®Core™i9 processors/Intel®Core™i7 processors/

Intel®Core™i5 processors/Intel®Core™i3 processors/Intel®Pentium®

processors/Intel®Celeron®processors*

* Limited to processors with 4 MB Intel®Smart Cache, Intel®Celeron®G5xx5 family.

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®H510 Express Chipset j

Intel®H470 Express Chipset k

Memory 11th Generation Intel®Core™i9/i7/i5 processors:

- Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

10th Generation Intel®Core™i9/i7 processors:

- Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel®Core™i5/i3/Pentium®/Celeron®processors:

- Support for DDR4 2666/2400/2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

(Graphics specications may vary depending on CPU support.)

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To congure

7.1-channel audio, access the audio software for audio settings.

LAN Realtek®GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots CPU:

- 1 x PCI Express x16 slot:

Supporting PCIe 4.0 and running at x16 j

(PCIe 4.0 is only supported by 11th Generation processors.)

Supporting PCIe 3.0 and running at x16 k

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

jOnly for H510M K.

kOnly for H470M K.

- 8 -

Storage Interface Chipset:

- 1 x M.2 connector:

Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD j

Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD k

- 2 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 5 k

Intel®Optane™Memory Ready k

USB Chipset:

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through

the internal USB header)

- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

2 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x serial port header

1 x Clear CMOS jumper

Back Panel

Connectors

1 x HDMI 1.4 port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1 x 128 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

jOnly for H510M K.

kOnly for H470M K.

- 9 -

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

- @BIOS

- Ambient LED

- EasyTune

- ON/OFF Charge

- Smart Backup

- System Information Viewer

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

LAN bandwidth management software

Operating

System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

&Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices.

https://www.gigabyte.com/Motherboard/H510M-K-rev-10?m=dl#support-dl

https://www.gigabyte.com/Motherboard/H470M-K-rev-10?m=dl#support-dl

&Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest version

of apps.

https://www.gigabyte.com/Support/Utility/Motherboard?m=ut

- 10 -

2-3 Installing the CPU and CPU Cooler

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

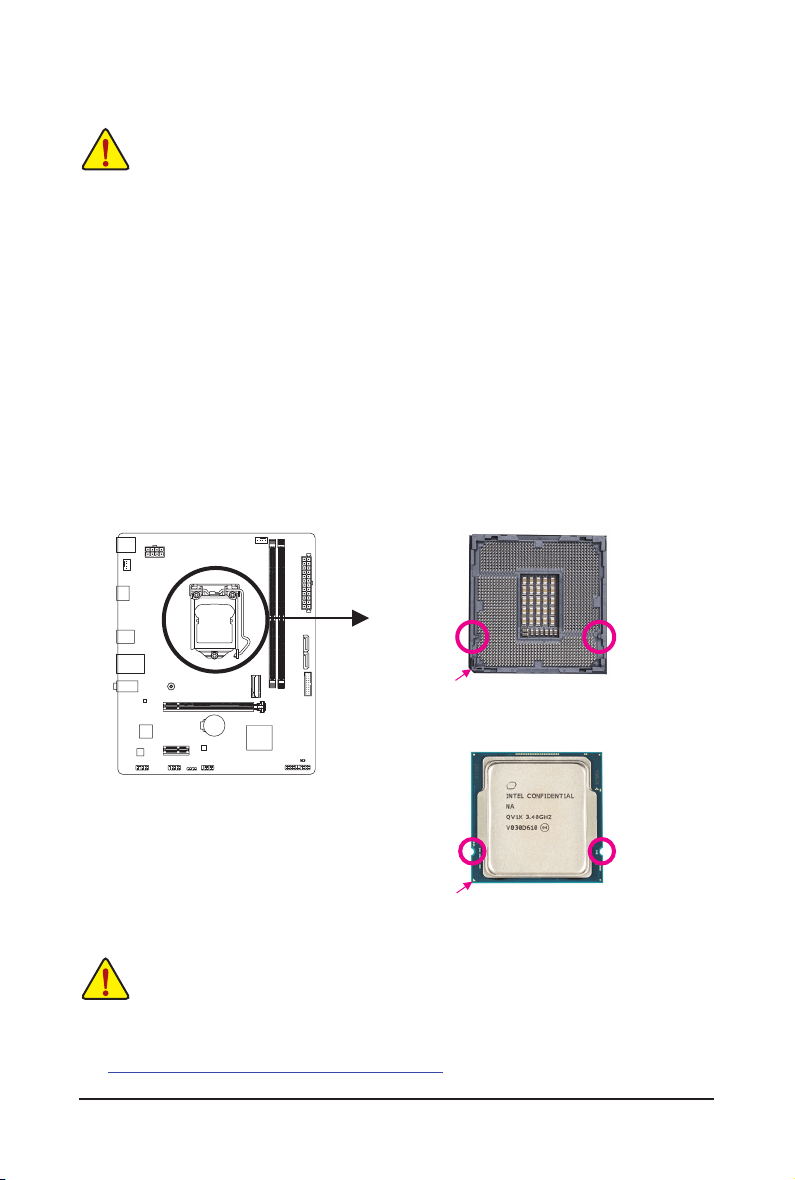

Installing the CPU

Note the alignment keys on the motherboard CPU socket and the notches on the CPU.

&Please visit GIGABYTE's website for details on hardware installation.

http://www.gigabyte.com/WebPage/210/quick-guide.html?m=sw

Alignment KeyAlignment Key

LGA1200 CPU Socket

Pin One Corner of the CPU Socket

Triangle Pin One Marking on the CPU

NotchNotch

LGA1200 CPU

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically after you insert the CPU and close the load plate.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-MA69VM-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-7PXSL Manuel utilisateur

Gigabyte

Gigabyte B650M GAMING X AX Manuel utilisateur

Gigabyte

Gigabyte GIGABYTE 7 Series Manuel utilisateur

Gigabyte

Gigabyte G1.Sniper 5 Manuel utilisateur

Gigabyte

Gigabyte GA-8VT880P Combo Manuel utilisateur

Gigabyte

Gigabyte GA-8I945GMH-RH Manuel utilisateur

Gigabyte

Gigabyte GA-8I945P Dual Graphic Manuel utilisateur

Gigabyte

Gigabyte GA-945GZM-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-C1037UN-EU Manuel utilisateur

Gigabyte

Gigabyte B450M H Manuel utilisateur

Gigabyte

Gigabyte B460M D2V Manuel utilisateur

Gigabyte

Gigabyte GA-P55A-UD3P Manuel utilisateur

Gigabyte

Gigabyte GA-PH67A-UD3-B3 Manuel utilisateur

Gigabyte

Gigabyte 686LX Manuel utilisateur

Gigabyte

Gigabyte GA-EP45-UD3 Manuel utilisateur

Gigabyte

Gigabyte GA-945G-S3 Manuel utilisateur

Gigabyte

Gigabyte GA-MA790X-UD3P Manuel utilisateur

Gigabyte

Gigabyte GA-G1975X-C Manuel utilisateur

Gigabyte

Gigabyte GA-EP45T-UD3LR Manuel utilisateur

Gigabyte

Gigabyte GA-8I945PMF Manuel utilisateur

Gigabyte

Gigabyte GA-K8NF-9 Manuel utilisateur

Gigabyte

Gigabyte MW50-SV0 Manuel utilisateur

Gigabyte

Gigabyte GA-8I865GME-775 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
