GA-N3050N-D3H

User's Manual

Rev. 1001

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

For more product details, please visit GIGABYTE's website.

Motherboard

GA-N3050N-D3H

Aug. 5, 2015

Motherboard

GA-N3050N-D3H

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by

any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

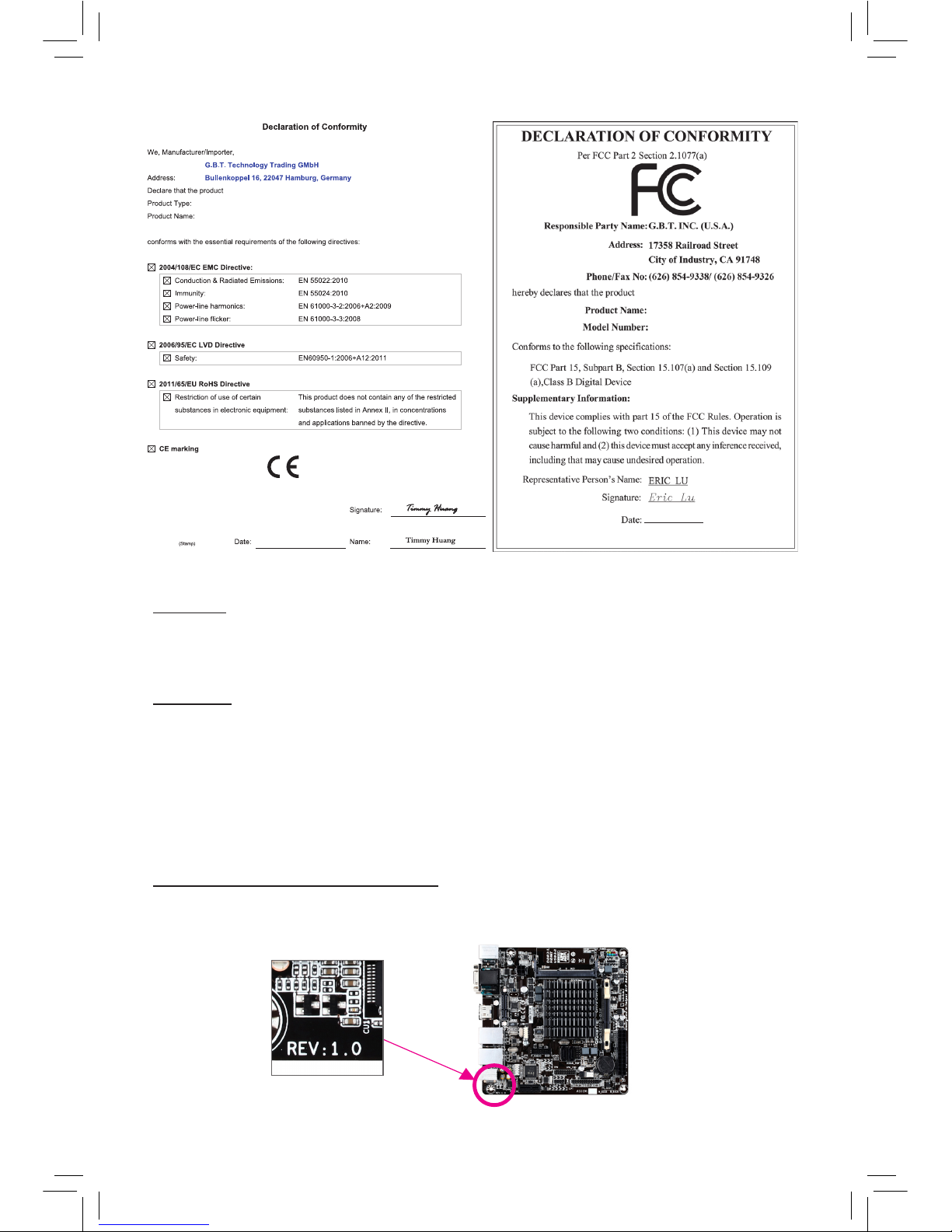

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the

revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS,

drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

GA-N3050N-D3H Motherboard Layout ...........................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 Product Specications...................................................................................... 6

1-3 Installing the Memory....................................................................................... 8

1-4 Installing an Expansion Card ........................................................................... 8

1-5 Back Panel Connectors.................................................................................... 8

1-6 Internal Connectors........................................................................................ 10

Chapter 2 BIOS Setup ..................................................................................................16

2-1 Main ............................................................................................................... 17

2-2 Advanced ....................................................................................................... 18

2-3 Security .......................................................................................................... 22

2-4 Boot................................................................................................................ 23

2-5 Save & Exit..................................................................................................... 25

Chapter 3 Appendix ......................................................................................................26

Drivers Installation..................................................................................................... 26

Regulatory Statements.............................................................................................. 27

Contact Us ................................................................................................................ 32

- 4 -

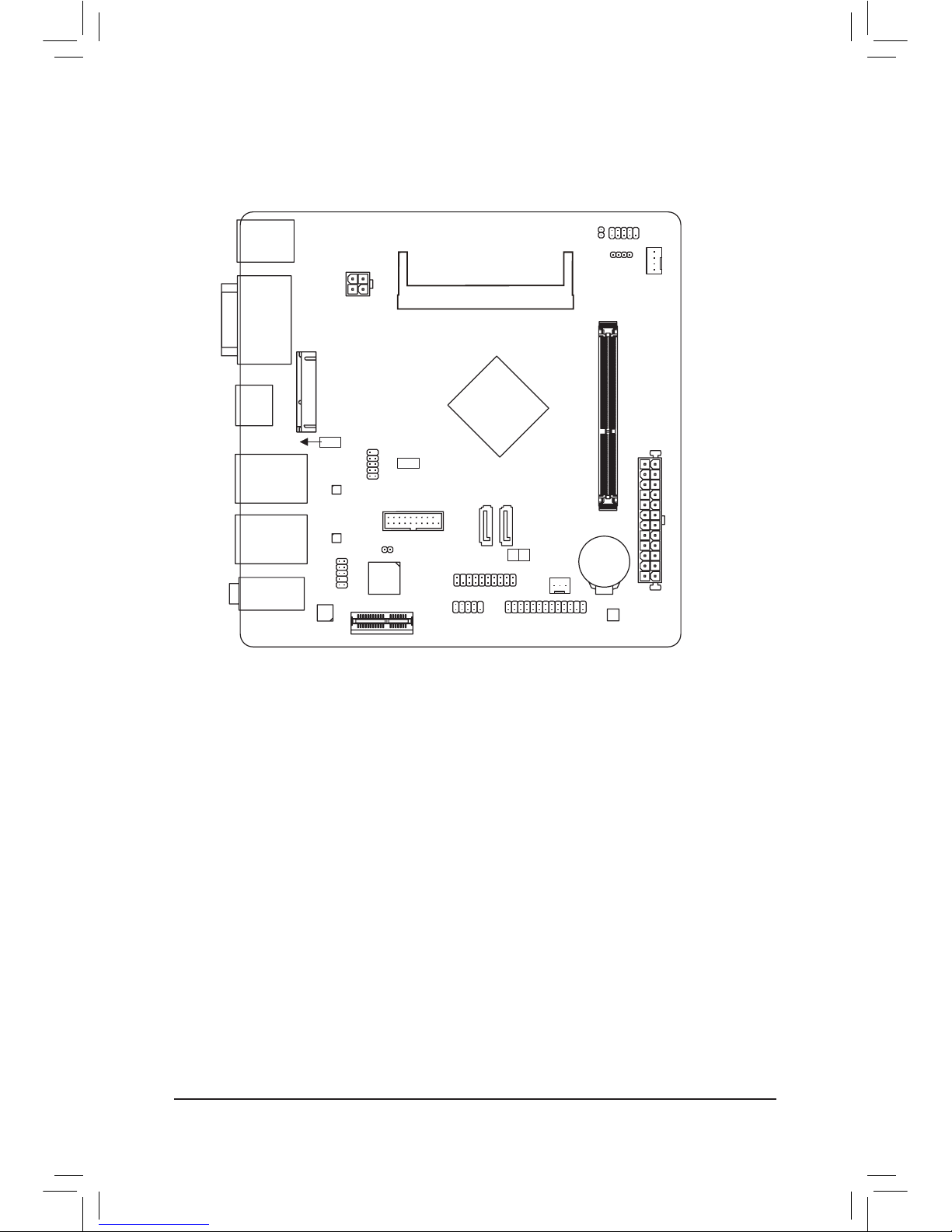

GA-N3050N-D3H Motherboard Layout

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-N3050N-D3H motherboard

5Motherboard driver disk 5Two SATA cables

5User's Manual 5I/O Shield

KB_USB3

CPU_FAN

ATX

GA-N3050N-D3H

AUDIO

SODIMM_2

BAT

ATX_12V

Intel®Braswell SoC N3050

F_USB

CODEC M_BIOS

HDMI

USB_LAN1

PCIEX1

Realtek®

GbE LAN

TPM

F_PANEL

SATA3 0 1

COMA

VGA

COMB LPT

F_USB30

Realtek®

GbE LAN

iTE®

Super I/O

SYS_FAN

SPEAKER

CLR_CMOS

SODIMM_1

MINI_PCIE

USB_LAN2

GL850S

F_AUDIO CI

- 5 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 6 -

1-2 ProductSpecications

CPU Built in with an Intel®Dual-Core Celeron®N3050 SoC (1.6 GHz)

* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage

to these components.

2 MB Cache

Memory 2 x DDR3/L DIMM sockets supporting up to 8 GB of system memory

* If only one DDR3/L memory module is to be installed, be sure to install it in the

SODIMM_1 socket.

Dual channel memory architecture

Support for DDR3/L 1333/1600 MHz memory modules

* Due to an SoC limitation, if a 1333 MHz memory is installed, it will be downgraded

to 1066 MHz.

Support for non-ECC memory modules

Onboard

Graphics

Integrated in the SoC:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz

Audio Realtek®ALC887 codec

High Denition Audio

2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you have to use an HD front panel audio module

and enable the multi-channel audio feature through the audio driver.

LAN 2 x Realtek®GbE LAN chips (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x1 slots

1 x Mini PCI Express x1 slot

(All of the PCI Express slots conform to PCI Express 2.0 standard.)

Storage Interface Integrated in the SoC:

- 2 x SATA 6Gb/s connectors

USB Integrated in the SoC:

- 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through

the internal USB header)

2 x GL850S chips:

- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

2 x SATA 6Gb/s connectors

1 x USB 3.0/2.0 headers

1 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header

1 x serial port header

1 x parallel port header

1 x speaker header

1 x chassis intrusion header

1 x Clear CMOS jumper

- 7 -

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x HDMI port

1 x serial port

2 x USB 3.0/2.0 ports

4 x USB 2.0/1.1 ports

2 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1 x 64 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for Xpress Install

Support for @BIOS

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

Bundled

Software Norton®Internet Security (OEM version)

Operating

System

Support for Windows 10 32-bit/64-bit

Support for Windows 8.1/7 64-bit

* Please download the "Windows USB Installation Tool" from GIGABYTE's website

and install it before installing Windows 7.

Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

Please visit GIGABYTE's website for support lists of memory modules.

Please visit GIGABYTE's website for details on hardware installation.

* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.

- 8 -

1-3 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

1-4 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

DualChannelMemoryConguration

This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory is

installed, the BIOS will automatically detect the specications and capacity of the memory.

The two memory sockets are divided into two channels as following:

Channel A: SODIMM_1

Channel B: SODIMM_2

Due to SoC limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. If only one memory module is to be installed, be sure to install it in the SODIMM_1 socket, and Dual

Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used for optimum performance.

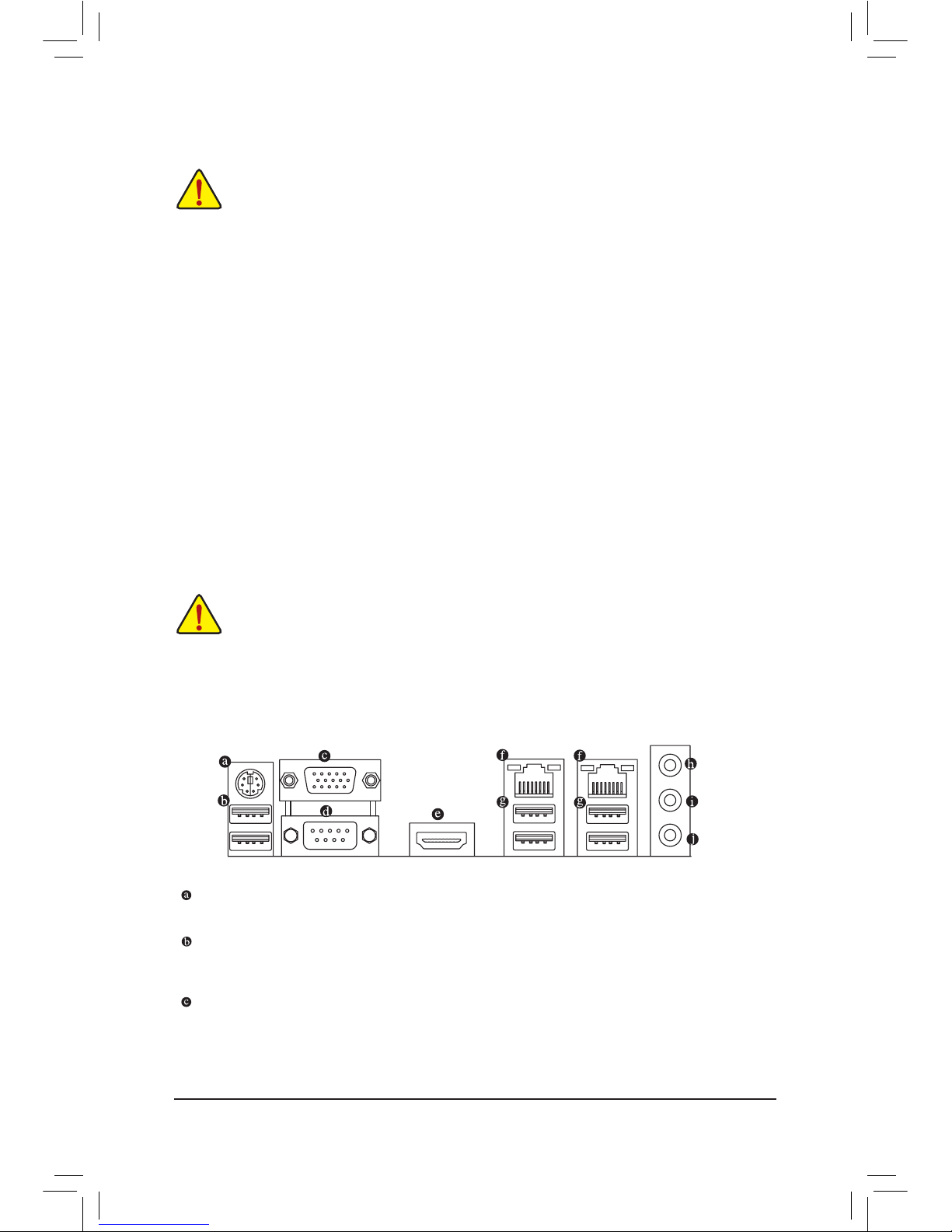

1-5 Back Panel Connectors

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

USB 3.0/2.0 Port

The USB 3.0 port supports the USB 3.0 specication and is compatible to the USB 2.0/1.1 specication.

Use this port for USB devices.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 2560x1600

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

D-Sub connection to this port.

- 9 -

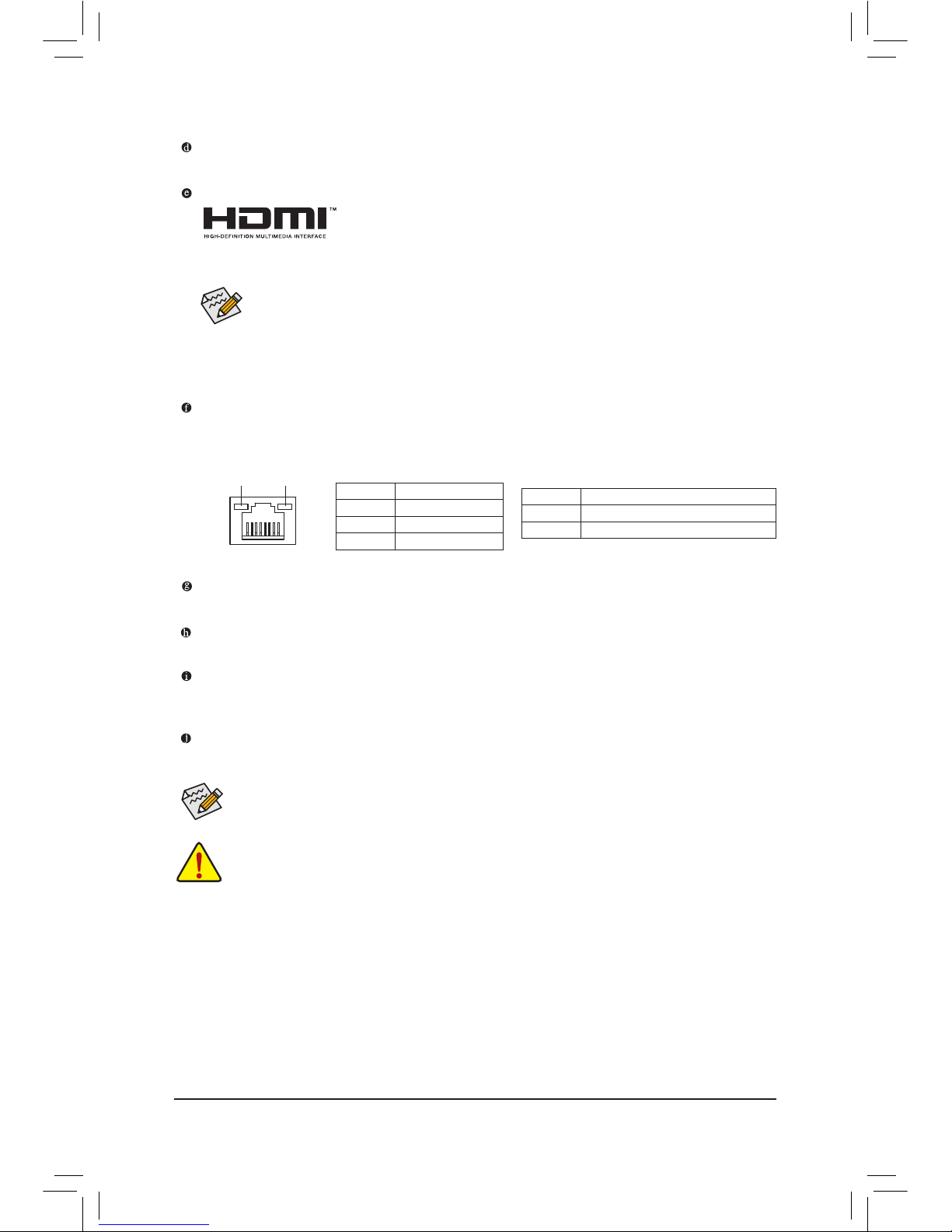

Activity LED

Connection/

Speed LED

LAN Port

Activity LED:

Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

Serial Port

Use the serial port to connect devices such as a mouse, modem or other peripherals.

HDMI Port

The HDMI port is HDCP compliant and supports Dolby True HD and DTS HD

Master Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM audio

output. You can use this port to connect your HDMI-supported monitor. The maximum supported resolution

is 3840x2160@30 Hz, but the actual resolutions supported are dependent on the monitor being used.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

•When removing the cable connected to a back panel connector, rst remove the cable from your

device and then remove it from the motherboard.

•When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent

an electrical short inside the cable connector.

After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The

item name may differ depending on your operating system.)

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices.

Line In (Blue)

The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out (Green)

The line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to

connect front speakers in a 4/5.1/7.1-channel audio conguration.

Mic In (Pink)

The Mic in jack.

DualDisplayCongurationsfortheOnboardGraphics:

Dual-display congurations are supported after you install motherboard drivers in OS, but not during the

BIOS Setup or POST process.

To congure 7.1-channel audio, you have to use an HD front panel audio module and enable the

multi-channel audio feature through the audio driver. Please visit GIGABYTE's website for more

software information.

- 10 -

Read the following guidelines before connecting external devices:

•First make sure your devices are compliant with the connectors you wish to connect.

•Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

•After installing the device and before turning on the computer, make sure the device cable has

been securely attached to the connector on the motherboard.

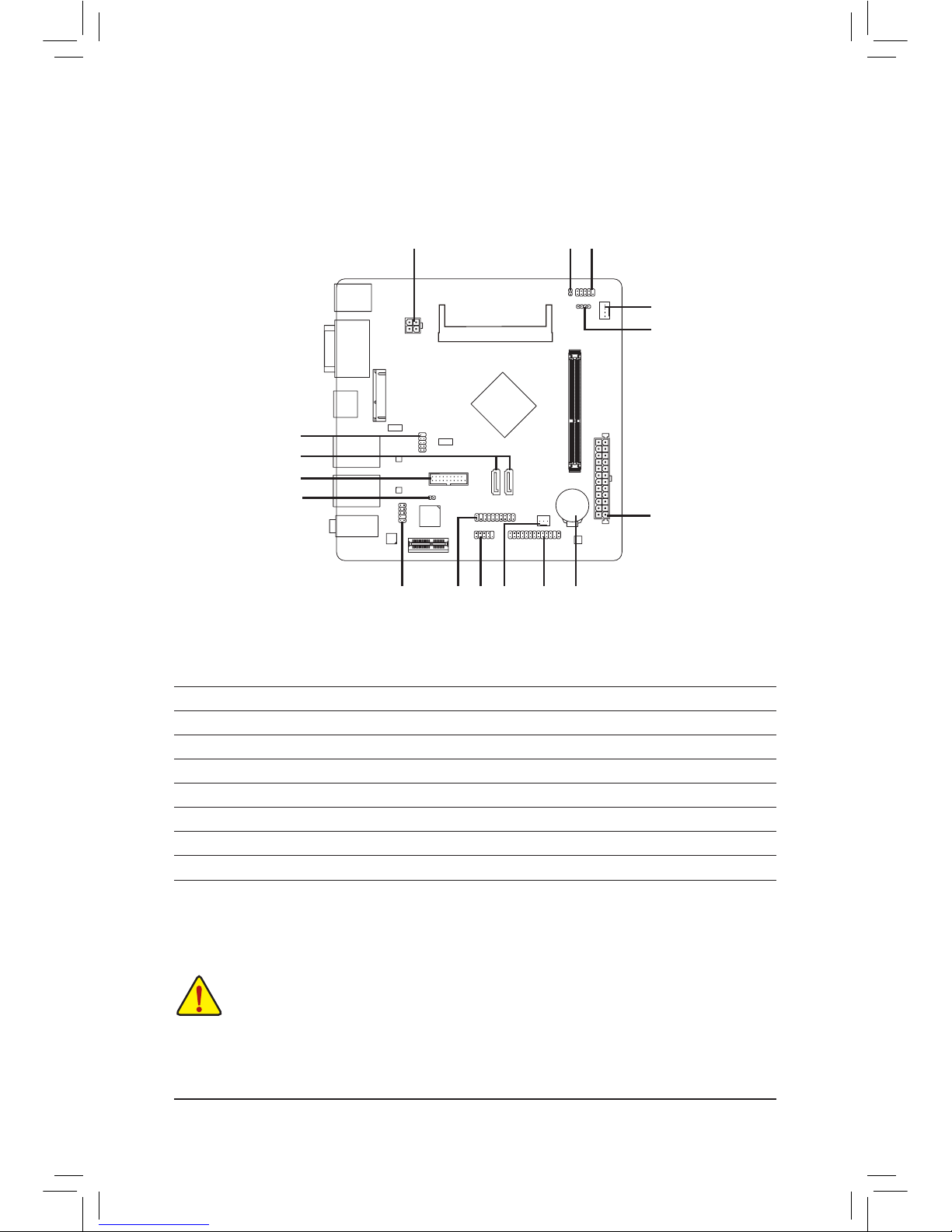

1) ATX_12V

2) ATX

3) CPU_FAN

4) SYS_FAN

5) SATA3 0/1

6) F_USB

7) F_USB30

8) BAT

9) F_PANEL

10) F_ AUDIO

11) TPM

12) COMB

13) LPT

14) SPEAKER

15) CI

16) CLR_CMOS

1 916

810

1-6 Internal Connectors

3 131211

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-970A-D3 Manuel utilisateur

Gigabyte

Gigabyte GA-870A-USB3 Manuel utilisateur

Gigabyte

Gigabyte GA-Z77X-UD4H Manuel utilisateur

Gigabyte

Gigabyte GA-7VAXP-A Ultra Manuel utilisateur

Gigabyte

Gigabyte B760 DS3H AX Manuel utilisateur

Gigabyte

Gigabyte GA-B250-HD3P Manuel utilisateur

Gigabyte

Gigabyte GA-H67N-USB3-B3 Manuel utilisateur

Gigabyte

Gigabyte Z590 AORUS XTREME Manuel utilisateur

Gigabyte

Gigabyte GA-7ZXR Manuel utilisateur

Gigabyte

Gigabyte GA-Z270-Phoenix Gaming Manuel utilisateur

Gigabyte

Gigabyte GA-6UASL1 Manuel utilisateur

Gigabyte

Gigabyte GA-8I865GM-775 Manuel utilisateur

Gigabyte

Gigabyte GA-8LS533 Manuel utilisateur

Gigabyte

Gigabyte H310M S2 2.0 Manuel utilisateur

Gigabyte

Gigabyte B360M DS3H Manuel utilisateur

Gigabyte

Gigabyte GA-Z68X-UD4-B3 Manuel utilisateur

Gigabyte

Gigabyte GA-MA790GP-DS4H Manuel utilisateur

Gigabyte

Gigabyte X570 AORUS MASTER Manuel utilisateur

Gigabyte

Gigabyte B450M DS3H Manuel utilisateur

Gigabyte

Gigabyte C246N-WU2 Manuel utilisateur

Gigabyte

Gigabyte R150-T60 Manuel utilisateur

Gigabyte

Gigabyte GA-M61PME-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-6VA7+ Manuel utilisateur

Gigabyte

Gigabyte GA-8VD667K Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
